EL6631-0010

BECKHOFF

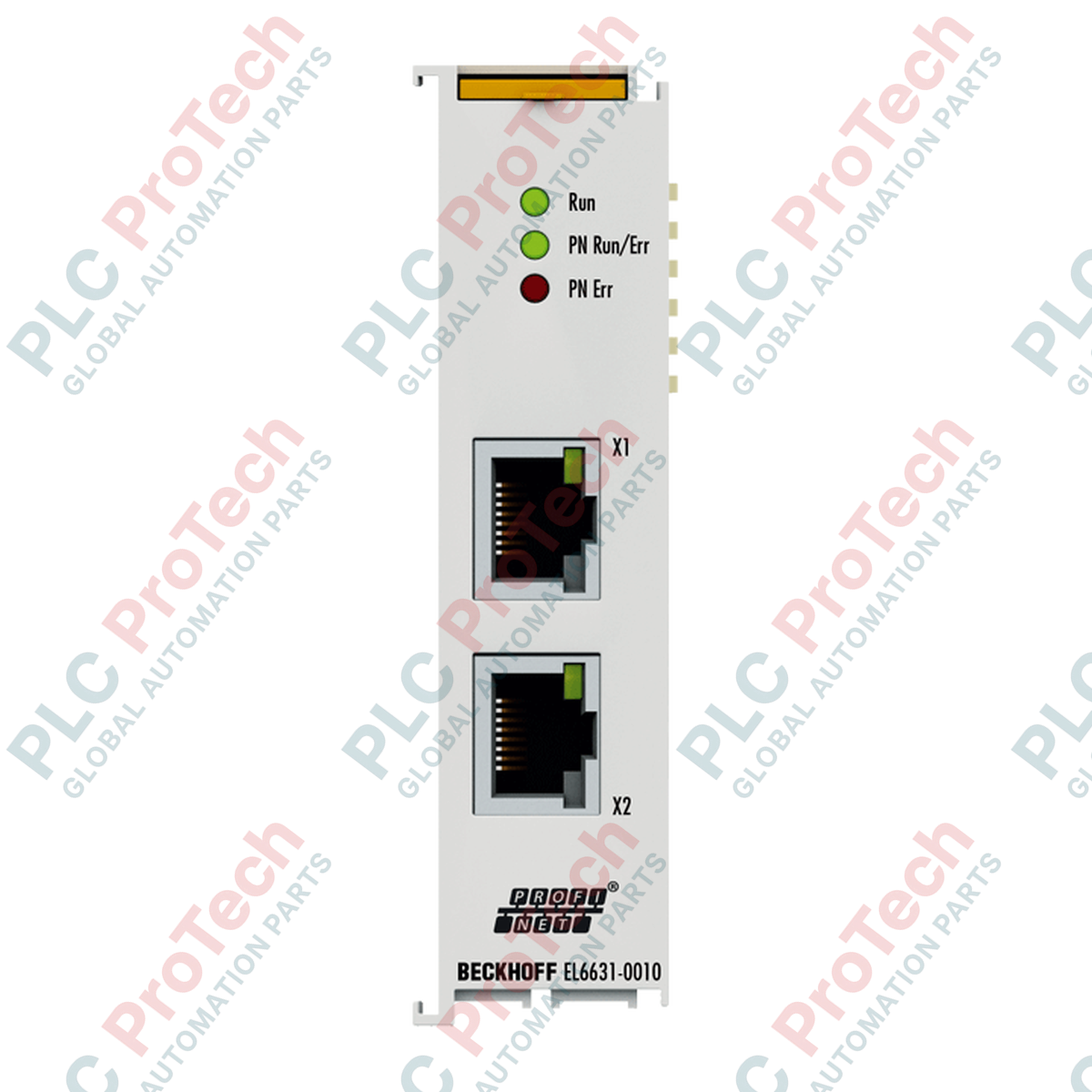

Beckhoff EL6631-0010 EtherCAT Terminal PROFINET RT Device

SKU EL6631-0010

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: BECKHOFF
  • Product No.: EL6631-0010
  • Origin Germany
  • Product Type: EtherCAT Terminals
  • Payment: T/T, Western Union
  • Weight: 0.075 kg
  • Dimensions: 24 mm x 100 mm x 52 mm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

EtherCAT EtherCAT Terminals
Quantità
Call sales Contact

Product Description

Description

Engineered for high-performance industrial networking, the Beckhoff EL6631-0010 serves as a specialized PROFINET RT device interface within decentralized EtherCAT Terminal systems. This gateway module enables seamless data exchange between EtherCAT and PROFINET RT controllers, mapping up to 1000 bytes of input and output process data directly onto the E-bus.

The module features an integrated 2-port switch designed for 100BASE-TX Ethernet connections via standard RJ45 connectors. This dual-port switched configuration simplifies line topology deployment in complex automation systems. Through hardware diagnostics and status LEDs, operators receive real-time visibility into E-bus communication status, network link activity, and protocol diagnostics.

Features

  • Dual-port switched Ethernet interface (100BASE-TX) via RJ45 connectors.
  • Supports PROFINET RT device protocol with Conformance Class B.
  • Handles up to 1 kbyte of input and 1 kbyte of output process data.
  • Integrated LLDP and SNMP functions for physical topology detection and network diagnostics.
  • Minimum RT cycle time of 1 ms.
  • Robust 500 V electrical isolation between E-bus and Ethernet interfaces.

Applications

  • Decentralized factory automation systems.
  • Machine building and modular assembly lines.
  • Interfacing PROFINET RT master controllers with high-speed EtherCAT networks.
  • Process control systems requiring distributed network topology bridging.

Technical Specifications

ManufacturerPart Number / ModelProtocolInterface TypeMax. Process Data SizeE-bus Current ConsumptionPower SupplyElectrical IsolationMax. Cable LengthOperating TemperatureStorage TemperatureRelative HumidityHousing MaterialDimensions (W x H x D)WeightInstallation Type
Beckhoff
EL6631-0010
PROFINET RT (Device)
100BASE-TX Ethernet (2 x RJ45 switched)
1 kbyte input / 1 kbyte output
typ. 400 mA
Via E-bus
500 V (E-bus / Ethernet)
Up to 100 m twisted pair
0 to +55 degC
-25 to +85 degC
95%, non-condensing
Polycarbonate
24 mm x 100 mm x 52 mm
approx. 75 g
35 mm DIN rail (EN 60715) with locking mechanism

Connections and Interfaces

Connector / Port Function
RJ45 Port 1 PROFINET RT / Ethernet interface (Switched port 1)
RJ45 Port 2 PROFINET RT / Ethernet interface (Switched port 2)
E-Bus Contacts Internal power supply and data exchange with EtherCAT master

Installation Guidelines

  • Mount vertically on standard 35 mm DIN rail conforming to EN 60715.
  • Ensure the double slot and key connection is aligned correctly with adjacent EtherCAT terminals.
  • Maintain clear ventilation channels above and below the terminal block to prevent thermal buildup.
  • Use shielded twisted pair (STP) cabling for network lines to limit electromagnetic interference.

Compliance and Certifications

  • CE
  • UL
  • ATEX: II 3 G Ex nA IIC T4 Gc
  • EMC Immunity/Emission: EN 61000-6-2 / EN 61000-6-4
  • Vibration/Shock Resistance: EN 60068-2-6 / EN 60068-2-27
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the primary function of the Beckhoff EL6631-0010?
The EL6631-0010 functions as a PROFINET RT device gateway within an EtherCAT Terminal system, allowing seamless communication between an EtherCAT master and a PROFINET RT master controller.
What is the maximum process data capacity of the EL6631-0010?
The module supports a maximum process data size of 1 kbyte input and 1 kbyte output.
Does the EL6631-0010 support network diagnostics?
Yes, it supports LLDP (Link Layer Discovery Protocol) and SNMP (Simple Network Management Protocol) for physical topology detection and advanced network diagnostics.
How is the EL6631-0010 terminal powered?
The module is powered internally via the standard EtherCAT E-bus, drawing a typical current of 400 mA.
What hazardous area certifications does the EL6631-0010 have?
The module is ATEX certified with the marking II 3 G Ex nA IIC T4 Gc, making it suitable for Zone 2 hazardous locations when installed inside an appropriate enclosure.
