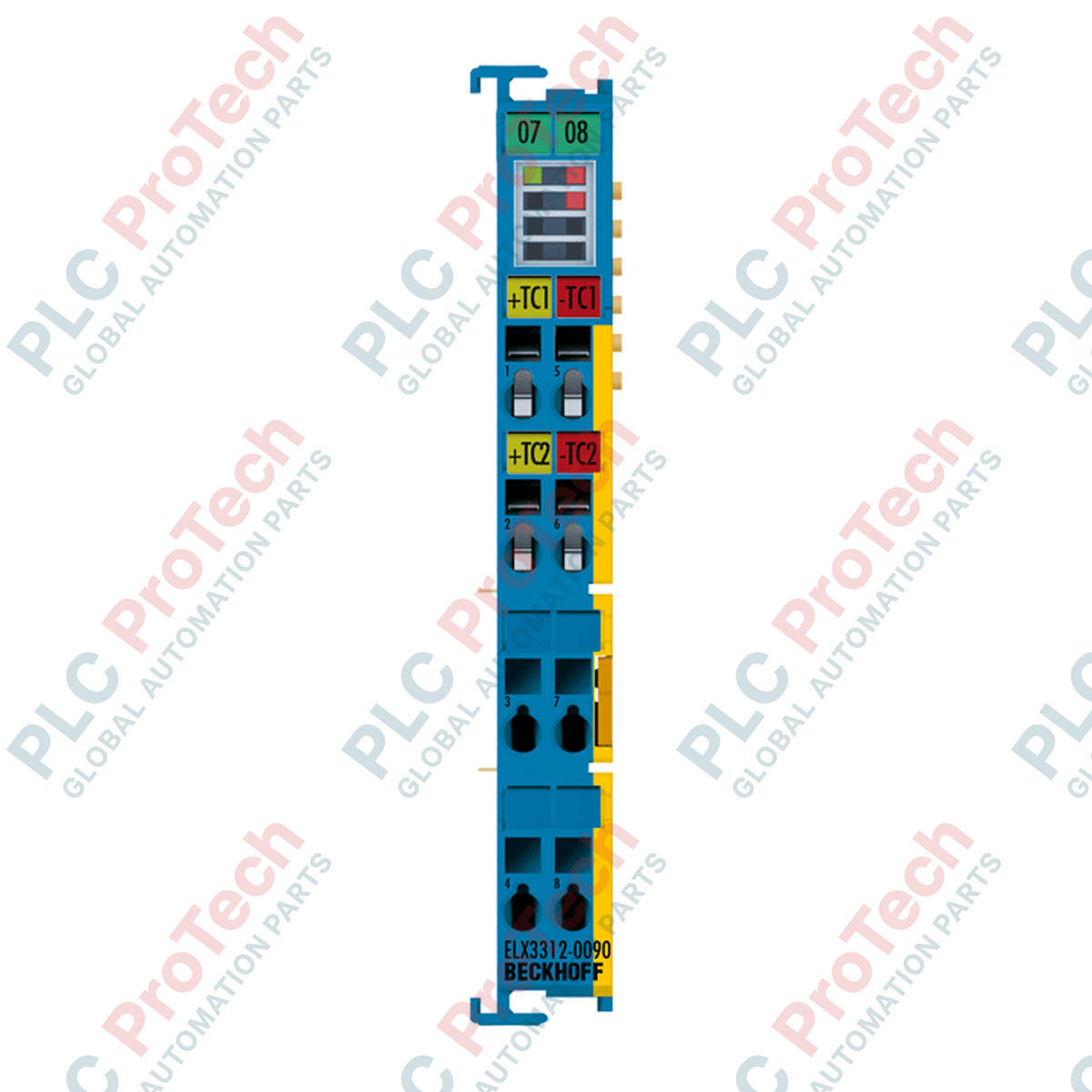

BECKHOFF ELX3312-0090 EtherCAT Terminal

SKU ELX3312-0090

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: BECKHOFF
Product No.: ELX3312-0090
Origin Germany
Product Type: EtherCAT Terminals
Payment: T/T, Western Union
Weight: 0.06 kg
Dimensions: 12 mm x 100 mm x 68 mm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

The BECKHOFF ELX3312-0090 is a high-precision, 2-channel analog input EtherCAT Terminal designed for direct temperature measurement using thermocouples located in explosion-hazardous areas. Featuring intrinsic safety (Ex i) interfaces, this terminal permits the direct connection of sensors installed in Zone 0/20 and Zone 1/21 hazardous environments, providing a highly integrated solution for process technology applications.

In addition to its intrinsically safe capabilities, the BECKHOFF ELX3312-0090 incorporates TwinSAFE SC (Single Channel) technology. This enables the use of standard analog signals for safety-directed tasks within a TwinSAFE system, allowing the transmission of process data to a TwinSAFE Logic terminal for safety-related evaluation and processing.

This compact 12 mm terminal supports a wide array of thermocouple types, performing high-resolution, low-noise analog-to-digital conversion. To maintain isolation and safety parameters, the terminal must be integrated into an EtherCAT segment powered by an ELX9560 power supply terminal.

Features

Intrinsically safe (Ex i) inputs for direct connection of field devices in hazardous locations
TwinSAFE SC (Single Channel) technology for safety-oriented process data evaluation
Two differential analog input channels dedicated to high-accuracy thermocouple measurement
Wide sensor compatibility supporting thermocouple types K, J, L, E, T, N, U, B, R, S, and C
High-resolution 16-bit analog-to-digital conversion
Integrated cold junction temperature compensation and characteristic curve linearization
Compact DIN rail mounting with diagnostics indicators via integrated LEDs

Applications

Intrinsically safe temperature monitoring in chemical, petrochemical, and gas processing plants
Thermocouple signal acquisition from Zone 0/20 and Zone 1/21 hazardous zones
Safety-related temperature monitoring systems using TwinSAFE SC architectures
Process engineering automation requiring compact, hazardous-area-compliant I/O solutions

Technical Specifications

General

Manufacturer	BECKHOFF
Exact Model	ELX3312-0090
Product Type	EtherCAT Terminal
Number of Inputs	2 differential inputs
Connection Technology	2-wire

Signal and Measurement

Sensor Types Supported	Thermocouples Type K, J, L, E, T, N, U, B, R, S, C (Default: Type K)
Measuring Range	Depending on sensor type (Default Type K: -200 to +1350 degC)
Resolution	16 bit (0.1 degC per digit)
Measuring Error	Less than +/-0.3% (relative to full scale value)
Internal Resistance	Typ. >= 10 kOhm (differential)
Conversion Time	10 ms to 5000 ms (Adjustable, Default: 270 ms)

Electrical

Supply Voltage Electronics	24 V DC via power contacts (Requires ELX9560 power supply)
Current Consumption E-Bus	Typ. 70 mA
Current Consumption Power Contacts	Typ. 10 mA

Mechanical and Environmental

Dimensions (W x H x D)	12 mm x 100 mm x 68 mm
Weight	Approx. 60 g
Operating Temperature	-25 degC to +60 degC
Storage Temperature	-40 degC to +85 degC
Relative Humidity	95%, no condensation
Protection Class	IP20

Installation Guidelines

Ensure all power supplies are fully de-energized before mounting, wiring, or configuring the terminal.
Mount the terminal on a standard 35 mm DIN rail (EN 60715) with secure locking.
Verify that the terminal is positioned within an EtherCAT Terminal segment that is powered downstream of an approved ELX9560 power supply terminal to ensure intrinsically safe power distribution.
Observe all mandatory Ex i isolation distances, separation guidelines, and wiring classifications for hazardous-area installations.
Ensure correct thermocouple polarity during wiring to avoid measurement offset and errors. Ensure shield grounding is executed in accordance with local hazardous area regulations.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the primary function of the BECKHOFF ELX3312-0090?

The BECKHOFF ELX3312-0090 is a 2-channel analog input EtherCAT Terminal designed to perform high-resolution temperature measurements via thermocouples directly connected to sensors located in explosion-hazardous areas (Zone 0/20 and Zone 1/21).

Does the BECKHOFF ELX3312-0090 support safety functions?

Yes, the BECKHOFF ELX3312-0090 features TwinSAFE SC (Single Channel) technology, which allows standard analog process signals to be transmitted safely to a TwinSAFE Logic terminal for safety-directed evaluation.

Which thermocouple types are compatible with the BECKHOFF ELX3312-0090?

The BECKHOFF ELX3312-0090 supports thermocouple types K, J, L, E, T, N, U, B, R, S, and C, with type K configured as the default standard sensor.

Is an external power supply required for the BECKHOFF ELX3312-0090?

Yes, the BECKHOFF ELX3312-0090 must be supplied with power through an ELX9560 power supply terminal to ensure compliance with intrinsically safe (Ex i) power distribution standards.

What are the Ex i certifications for the BECKHOFF ELX3312-0090?

The BECKHOFF ELX3312-0090 is certified for use in hazardous areas under ATEX, IECEx, and cFMus regulations, with specific markings including Ex ec [ia Ga] IIC T4 Gc and [Ex ia Da] IIIC.
