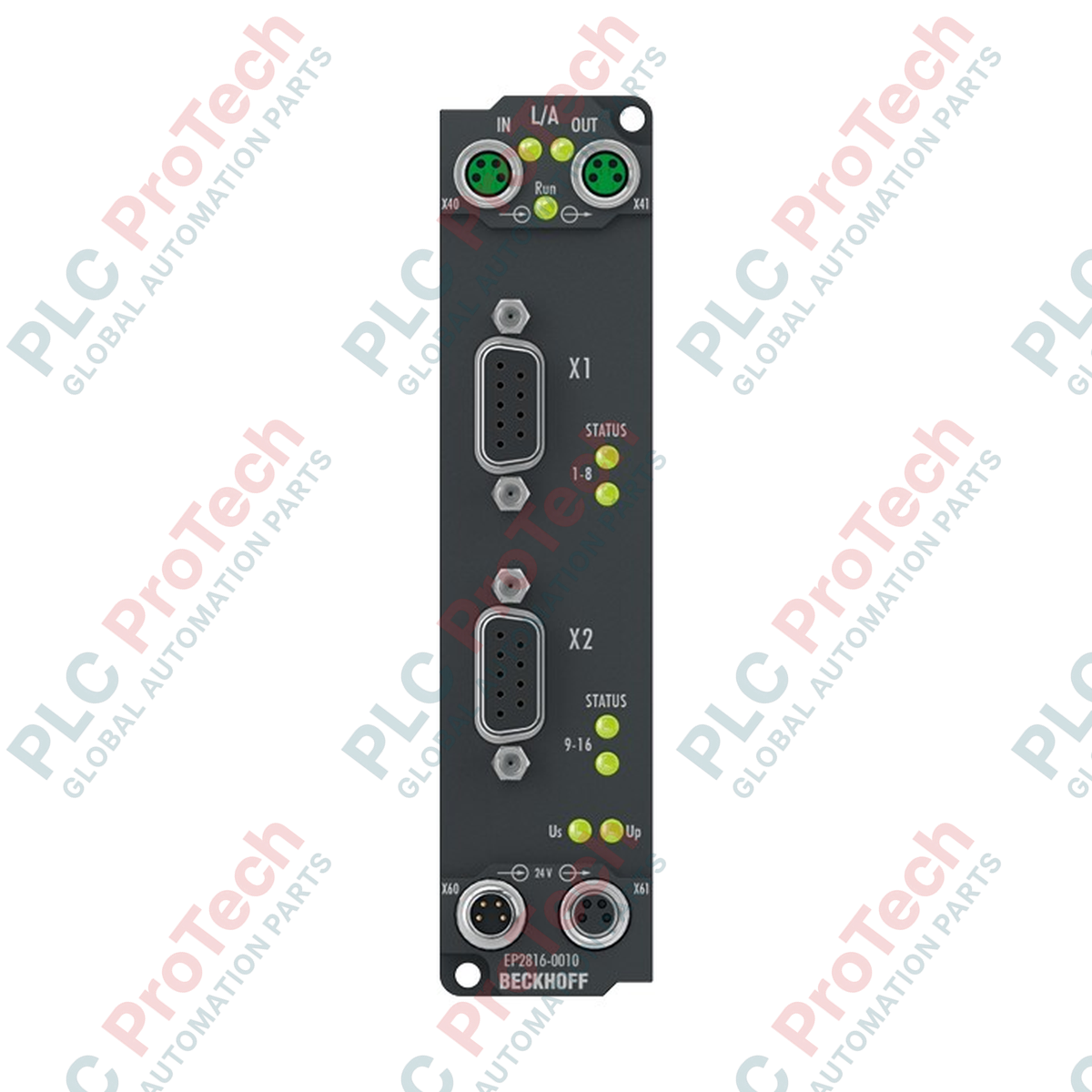

BECKHOFF EP2816-0010 EtherCAT Box 16-Channel Digital Output Module

SKU EP2816-0010

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: BECKHOFF
Product No.: EP2816-0010
Origin Germany
Product Type: EtherCAT I/O Modules
Payment: T/T, Western Union
Weight: 0.165 kg
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

Designed for decentralized automation tasks requiring dense digital output distribution directly in the field, the Beckhoff EP2816-0010 EtherCAT Box provides 16 digital outputs in a robust, space-saving enclosure. This IP65/66/67-rated module connects binary control signals from the EtherCAT network directly to actuators and devices, eliminating the need for protective control cabinets and minimizing complex field cabling.

Featuring two 9-pin D-sub socket connections, this module is specifically optimized for direct, hassle-free interfaces with multi-pin connector valve terminals and pneumatic manifold systems. The outputs support ohmic, inductive, and lamp loads with integrated short-circuit protection and electrical isolation up to 500 V, making it highly reliable in demanding manufacturing and process environments.

Features

16 digital output channels in a highly compact, direct-to-field mountable housing.
Equipped with two 9-pin D-sub socket connectors tailored for multi-pin valve manifolds.
Individually short-circuit proof outputs with 0.5 A maximum output current per channel.
Integrated Distributed Clocks functionality for precise synchronization across the EtherCAT network.
Rugged environmental design with IP65, IP66, and IP67 ingress protection ratings.
EtherCAT communication interface utilizing shielded, screw-type M8 sockets.

Applications

Direct integration with pneumatic valve terminals and manifold systems.
Decentralized actuator control in automotive assembly and robotic lines.
Field-level I/O processing in material handling and packaging systems.
General manufacturing automation requiring direct, cabinet-free mounting.

Technical Specifications

Manufacturer	Beckhoff
Model/Part Number	EP2816-0010
Protocol	EtherCAT
Number of Outputs	16
Nominal Output Voltage	24 V DC (-15% / +20%)
Max. Output Current	0.5 A per channel (individually short-circuit proof, total limit 4.0 A)
Short-Circuit Current	Max. 1.5 A
Load Types	Ohmic, inductive, lamp load
Switching Times (Typical)	T ON: 60 us, T OFF: 300 us
Current Consumption (Us)	120 mA
Auxiliary Power Current	Typ. 20 mA + load
Distributed Clocks	Yes
Electrical Isolation	500 V
Operating Temperature	-25 to +60 degC
Storage Temperature	-40 to +85 degC
Vibration / Shock Resistance	Conforms to EN 60068-2-6 / EN 60068-2-27
EMC Immunity / Emission	Conforms to EN 61000-6-2 / EN 61000-6-4
Protection Rating	IP65 / IP66 / IP67 (conforms to EN 60529)
Weight	Approx. 165 g

Connections and Interfaces

Connection Type	Interface Style	Function
Bus Interface	2 x M8 socket, shielded, screw type	EtherCAT input and downstream extension
Output Connections	2 x D-sub socket, 9-pin	16 digital outputs for actuator/valve terminals
Power Supply Feed	1 x M8 male socket, 4-pin	Incoming control and auxiliary power (Us/Up)
Power Supply Downstream	1 x M8 female socket, 4-pin	Power distribution loop-through to adjacent modules

Installation Guidelines

Mounting: Install directly onto flat machine structures or profiles using integrated mounting holes. Variable mounting positions are supported.
Shielding & Grounding: Ensure proper connection of the shielded M8 EtherCAT cables to achieve reliable grounding and maintain full EMC compliance.
Cable Routing: Keep communication cabling and high-power actuator lines separated where possible to avoid electrical interference.
Environmental Protection: To maintain the IP65/66/67 protection rating, ensure all unused M8 and D-sub ports are sealed with appropriate protective caps.

Compliance and Certifications

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What type of connection interface does the EP2816-0010 use for outputs?

The EP2816-0010 features two 9-pin D-sub sockets, making it highly suitable for direct integration with multi-pin valve manifolds and valve terminals.

What is the maximum output current supported per channel?

Each digital output channel supports a maximum current of 0.5 A. All channels are individually short-circuit proof, and the total sum current limit across all outputs is 4.0 A.

Does this EtherCAT Box support Distributed Clocks (DC)?

Yes, the EP2816-0010 has native support for Distributed Clocks, enabling high-precision, synchronized execution of digital outputs.

What is the environmental ingress protection rating of the EP2816-0010?

The module is rated for IP65, IP66, and IP67 protection according to EN 60529, allowing direct, cabinet-free mounting in wet, dusty, and demanding industrial environments.
