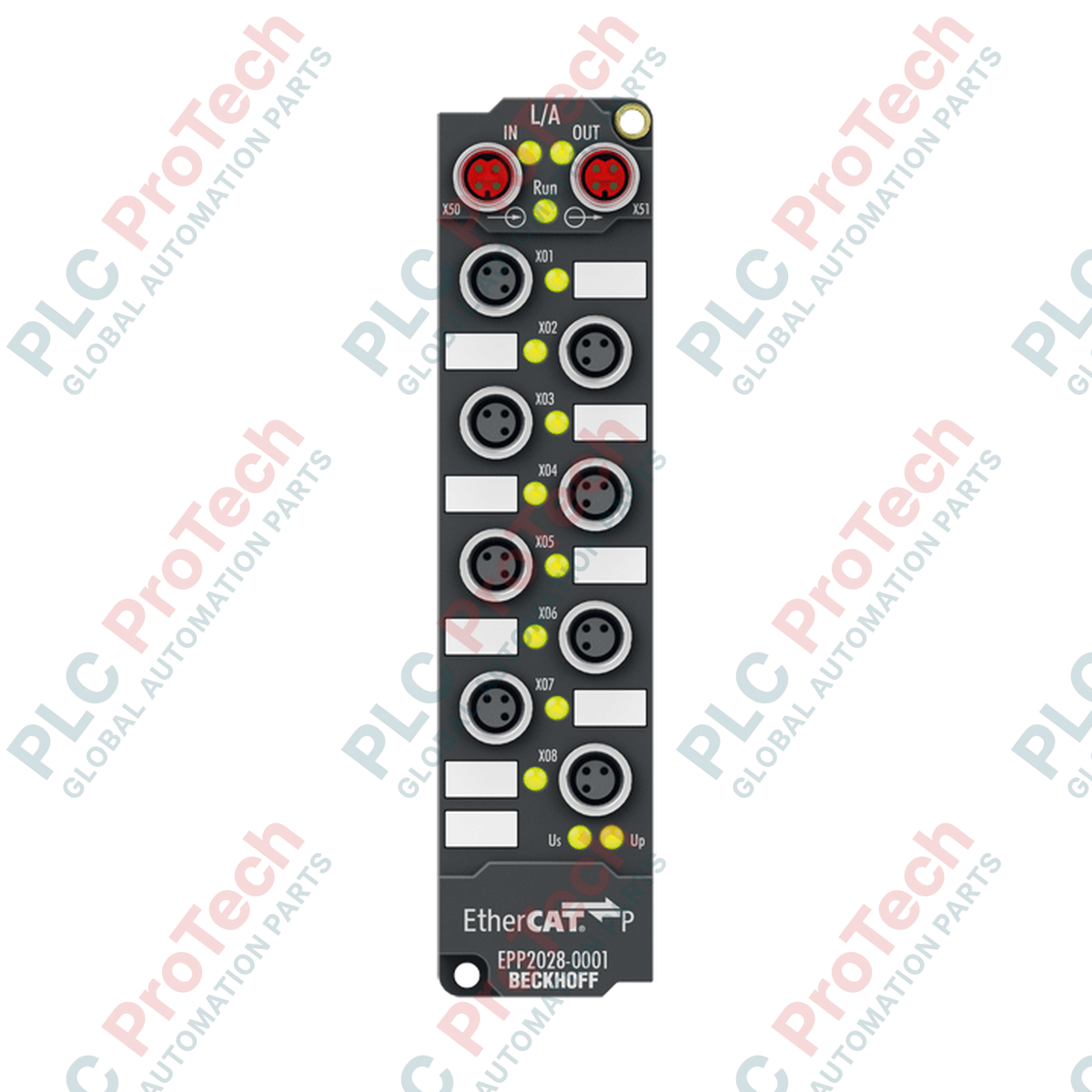

BECKHOFF EPP2028-0001 EtherCAT P Box Digital Output Module

SKU EPP2028-0001

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: BECKHOFF
Product No.: EPP2028-0001
Origin Germany
Product Type: Digital Output Modules
Payment: T/T, Western Union
Weight: 0.165 kg
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

Designed for decentralized industrial automation environments, the EPP2028-0001 digital output module interfaces directly with EtherCAT P systems to control up to eight actuators or field components. By combining high-speed communication and peripheral power (Us and Up) into a single, specialized M8 cable connection, this unit minimizes wiring complexity and installation footprints. The module handles individual channel currents up to 2 A, supporting diverse load profiles including resistive, inductive, and lamp loads with integrated short-circuit protection.

Housed in a robust, compact enclosure, this EtherCAT P box is built for direct machine mounting without the need for a protective control cabinet. Its high environmental resistance makes it suitable for demanding, distributed control architectures where space is at a premium and field-level reliability is critical.

Features

Eight independent digital outputs operating at 24 V DC.
P-coded M8 EtherCAT P interfaces integration, supplying both system logic and peripheral power over one cable.
Robust IP65, IP66, and IP67 rating for operation in harsh, wet, or dusty environments.
Short-circuit proof individual output channels with a typical short-circuit current limit of 15 A.
Broad load compatibility across ohmic, inductive, and lamp load types.
Direct machine installation using standardized mounting holes, eliminating the cabinet requirement.

Applications

Automotive assembly lines and robotic work cells.
Decentralized conveyor systems and material handling.
Packaging machinery and bottling plants.
Industrial food processing equipment requiring washdown capabilities.

Technical Specifications

Parameter	Value
Manufacturer	BECKHOFF
Part Number / Model	EPP2028-0001
Protocol	EtherCAT P
Bus Interface	2 x M8 socket, shielded, screw type, P-coded
Number of Outputs	8
Output Connections	M8 x 1, 3-pin, a-coded
Load Type	Ohmic, inductive, lamp load
Nominal Output Voltage	24 V DC (-15 % / +20 %)
Max. Output Current	2 A per channel (individually short-circuit proof), sum max. 3 A
Switching Times	typ. TON: 200 us, typ. TOFF: 200 us
Short-Circuit Current Limit	typ. 15 A
Current Consumption from Us	typ. 100 mA
Auxiliary Power Current	typ. 20 mA + load
Electrical Isolation	500 V
Weight	approx. 165 g
Operating Temperature	-25 to +60 degC
Storage Temperature	-40 to +85 degC
Vibration Resistance	Conforms to EN 60068-2-6
Shock Resistance	Conforms to EN 60068-2-27
EMC Immunity / Emission	Conforms to EN 61000-6-2 / EN 61000-6-4
Protection Rating	IP65, IP66, IP67 (conforms to EN 60529)
Installation Position	Variable

Connections and Interfaces

Interface Type	Connection Standard	Function
EtherCAT P Input/Output	M8, P-coded, female/male	Data transmission, system power Us, and peripheral power Up
Digital Outputs 1 to 8	M8, 3-pin, A-coded	Signal output connection to field actuators

Installation Guidelines

Mounting: Mount directly to the machine frame using two M3 screws through the integrated mounting holes. Ensure the surface is flat to prevent mechanical stress on the housing.
Grounding: Establish a low-resistance functional earth connection at the mounting points or via the dedicated grounding lug to ensure electromagnetic compatibility (EMC).
Cabling: Only use certified, shielded EtherCAT P M8 cables. Maintain a minimum bending radius to prevent cable degradation.
Torque: Hand-tighten all M8 connectors, then secure to the specified torque (approx. 0.4 Nm) using a torque wrench to guarantee IP67 protection. Do not leave unused ports uncovered; seal them with protective caps.

Compliance and Certifications

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the primary difference between a standard EtherCAT Box and the EPP2028-0001 EtherCAT P Box?

The EPP2028-0001 uses EtherCAT P technology, which integrates both communication data and two independent 24 V DC power supplies (Us for system logic, Up for peripheral actuators) into a single, specialized 4-wire P-coded M8 connection. This eliminates the need for separate power cabling.

What is the maximum output current limit per channel on the EPP2028-0001?

The module supports up to 2 A per individual channel, though the cumulative output current across all channels must not exceed 3 A.

Does the EPP2028-0001 feature integrated protection against short circuits?

Yes, all eight output channels are individually short-circuit proof, with a typical short-circuit current limit of 15 A.

Can this module be mounted directly in washdown or high-dust environments?

Yes, with its IP65, IP66, and IP67 ratings (conforming to EN 60529), the EPP2028-0001 is completely sealed against dust ingress and high-pressure water jets, making it suitable for direct machine mounting without an enclosure.
