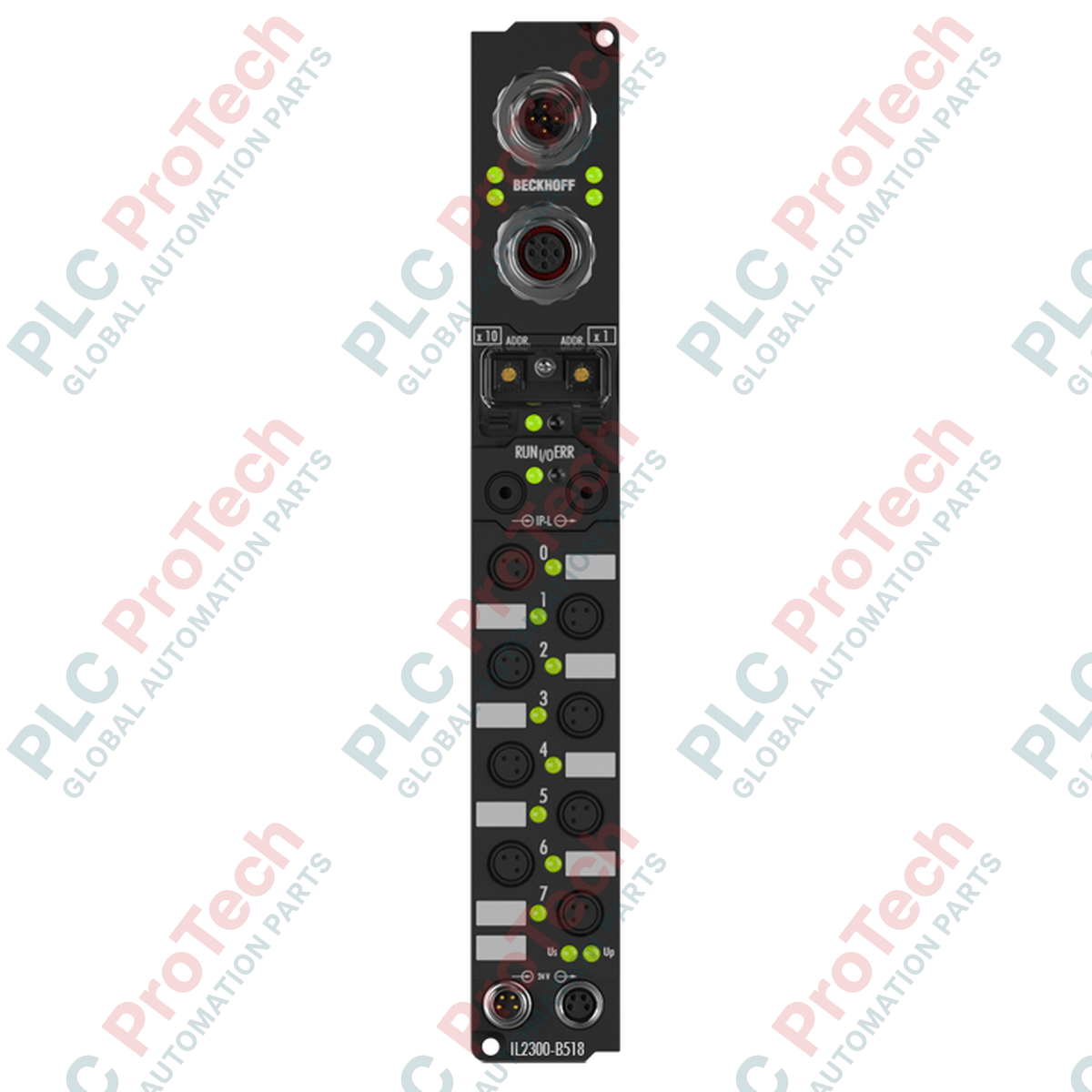

The Beckhoff IL2300-B518 is a high-performance, decentralized Fieldbus Box designed to establish direct communication between a CANopen network and extension IP67 I/O modules. Engineered for rugged industrial environments, this coupler box eliminates the need for protective control cabinets by offering a fully sealed housing. It supports automatic baud rate detection and efficiently manages decentralized digital and analog signals. The integrated T-connector design simplifies network looping and minimizes cabling complexity on the factory floor.
| Parameter | Specification |
|---|---|
| Manufacturer | Beckhoff |
| Model / Part Number | IL2300-B518 |
| Fieldbus Interface | CANopen |
| Data Transfer Rates | 10 kbaud to 1 Mbaud (automatic detection) |
| Bus Connection | 1 x M12 plug (5-pin), 1 x M12 socket (5-pin) (integrated T-connector) |
| Control Voltage | 24 V DC (-15% / +20%) |
| Load Voltage | Determined by connected I/O type |
| Power Connection | Feed: 1 x M8 male socket (4-pin); Downstream: 1 x M8 female socket (4-pin) |
| Current Consumption | 45 mA + sensor current (max. 0.5 A) |
| Electrical Isolation | 500 V (control voltage / fieldbus) |
| Operating Temperature | 0 to +55 degC |
| Storage Temperature | -25 to +85 degC |
| Protection Rating | IP65, IP66, IP67 (conforms to EN 60529) |
| Vibration / Shock Resistance | Conforms to EN 60068-2-6 / EN 60068-2-27 |
| EMC Compatibility | Conforms to EN 61000-6-2 / EN 61000-6-4 |
| Connector Type | Pin Count | Function |
|---|---|---|
| M12 Plug (Inlet) | 5-pin | CANopen fieldbus input |
| M12 Socket (Outlet) | 5-pin | CANopen fieldbus downstream loop |
| M8 Male Socket | 4-pin | 24 V DC power feed input |
| M8 Female Socket | 4-pin | 24 V DC downstream power connection |
