Description

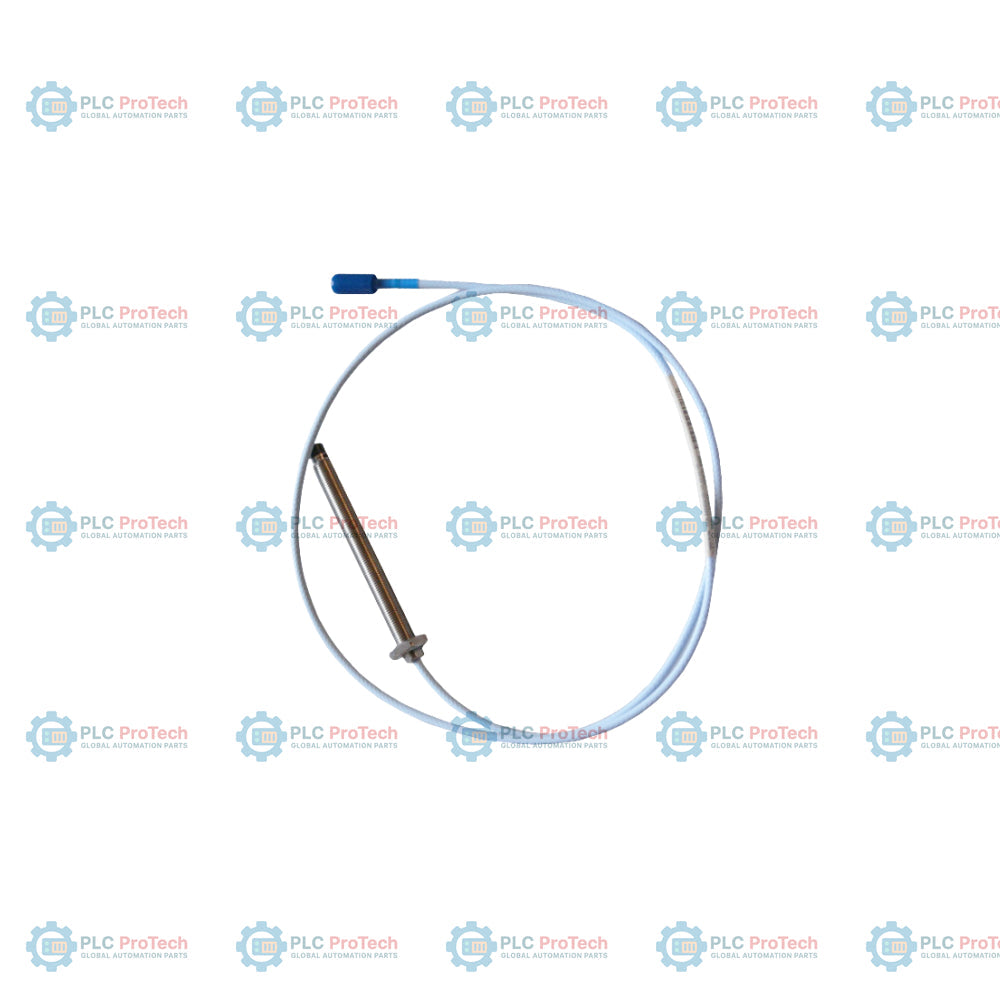

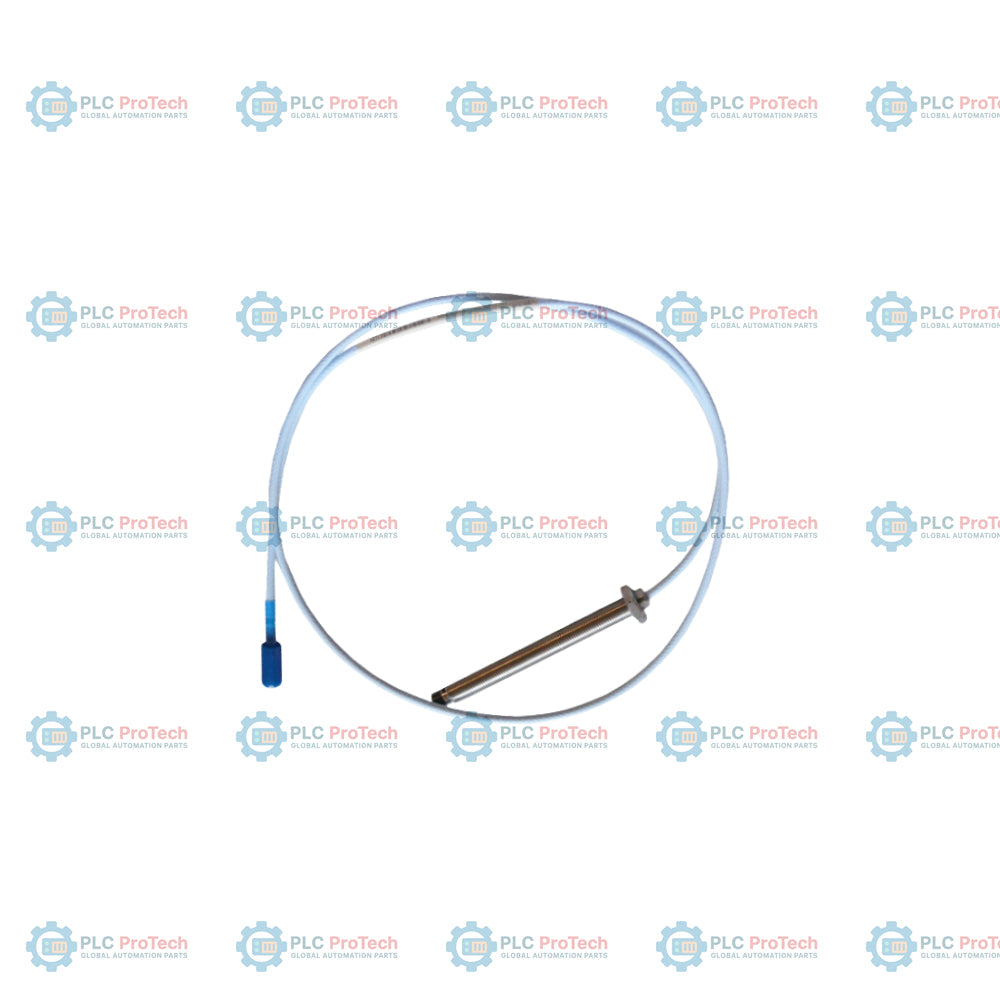

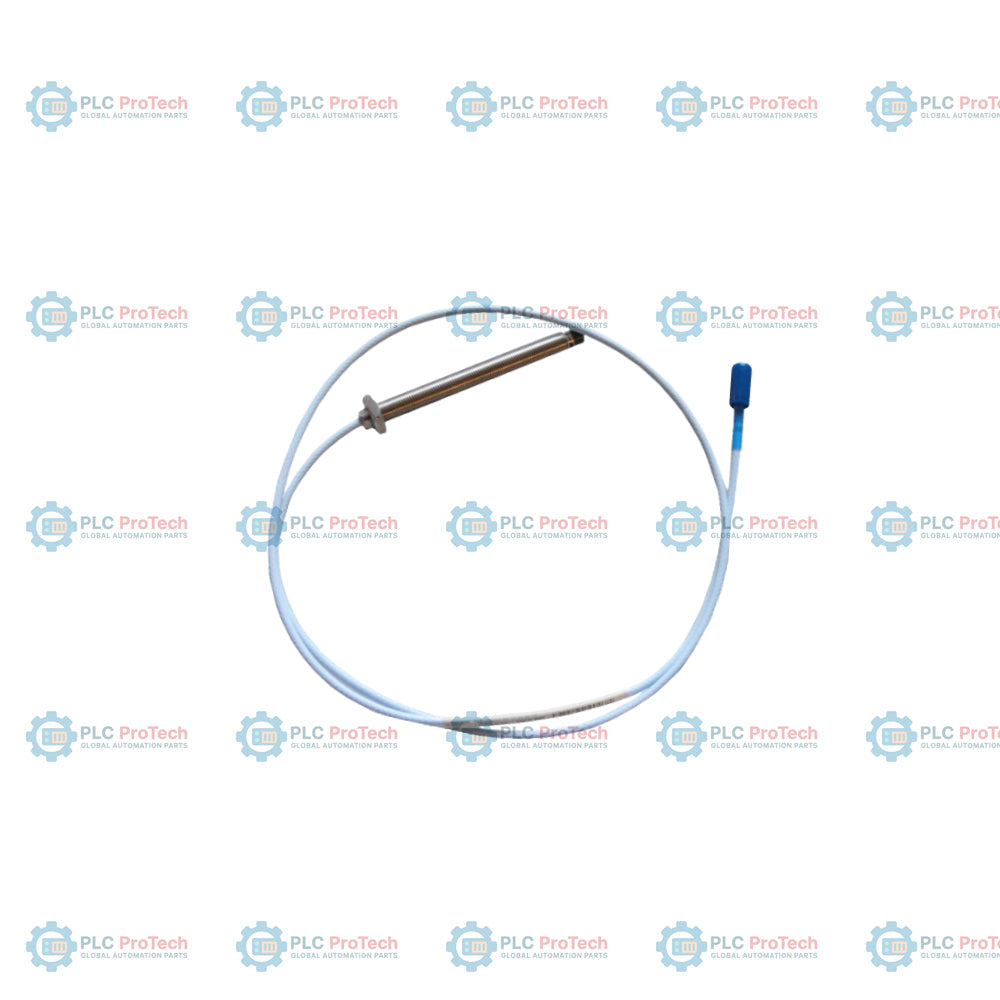

The 330103-00-04-10-02-CN is an 8 mm proximity probe from the Bently Nevada 3300 XL transducer system series, featuring an M10 x 1 thread and an unarmored construction. This specific configuration includes a 0.0 in unthreaded length (Option 00), 0.4 in case length (Option 04), 1.0 m total system length (Option 10), and standard Miniature ClickLoc connector (Option 02), with the -CN suffix indicating a dedicated China hazardous area approval package (NEPSI/CCC). This probe is designed for use in critical rotating machinery monitoring applications, providing essential shaft vibration and axial position measurement data to the 3300 XL Proximitor sensor. The M10 x 1 metric thread ensures compatibility with standard metric mounting locations, while the unarmored design offers flexibility in applications where mechanical abrasion protection is not required. The -CN suffix ensures compliance with regional certification requirements for installations within China.

Features

• M10 x 1 thread profile for metric mounting interfaces
• Unarmored probe body construction for standard industrial environments
• 1.0 m total system length for precise signal transmission to the Proximitor sensor
• Miniature ClickLoc connector for secure and reliable signal connection
• China hazardous area approval package (-CN) including NEPSI and CCC certifications
• Compatible with 3300 XL 8 mm transducer system components (Proximitor sensors and extension cables)

Applications

• Turbine and compressor shaft vibration monitoring
• Rotor axial position measurement
• Critical rotating machinery protection on 8 mm probe systems
• Industrial environments requiring China-specific hazardous area compliance

Ordering Information

Option	Code on This SKU	Description
Orderable Part Number	330103-00-04-10-02-CN	3300 XL 8 mm Proximity Probe, M10 x 1 thread, unarmored
A - Unthreaded Length	00	0.0 in unthreaded length
B - Case Length	04	0.4 in case length
C - Total Length	10	1.0 meter (3.3 feet) system length
D - Connector/Cable	02	Miniature ClickLoc connector, standard cable
Suffix -CN	-CN	China hazardous area approval package (NEPSI/CCC)

Technical Specifications

Manufacturer	Bently Nevada
Model	330103
Product Type	3300 XL 8 mm Proximity Probe
Thread Size	M10 x 1
Armor	None (Unarmored)
Total Length	1.0 m
Connector Type	Miniature ClickLoc
Cable Type	Standard
Operating Temperature	-55 degC to +177 degC

Installation Guidelines

• Ensure the probe is gapped correctly according to the 3300 XL monitoring system specifications.
• Use appropriate probe lock nuts and mounting brackets to secure the probe in the machine casing.
• Route cables away from high-voltage lines and sources of electromagnetic interference to maintain signal integrity.
• Install with Bently Nevada approved extension cables and Proximitor sensors to maintain system calibration and certification.

Compliance and Certifications

• CE marked
• NEPSI (via -CN suffix)
• CCC (via -CN suffix)
• Compliant with standard Bently Nevada hazardous area installation drawings for nA, ec, and ia protection modes
