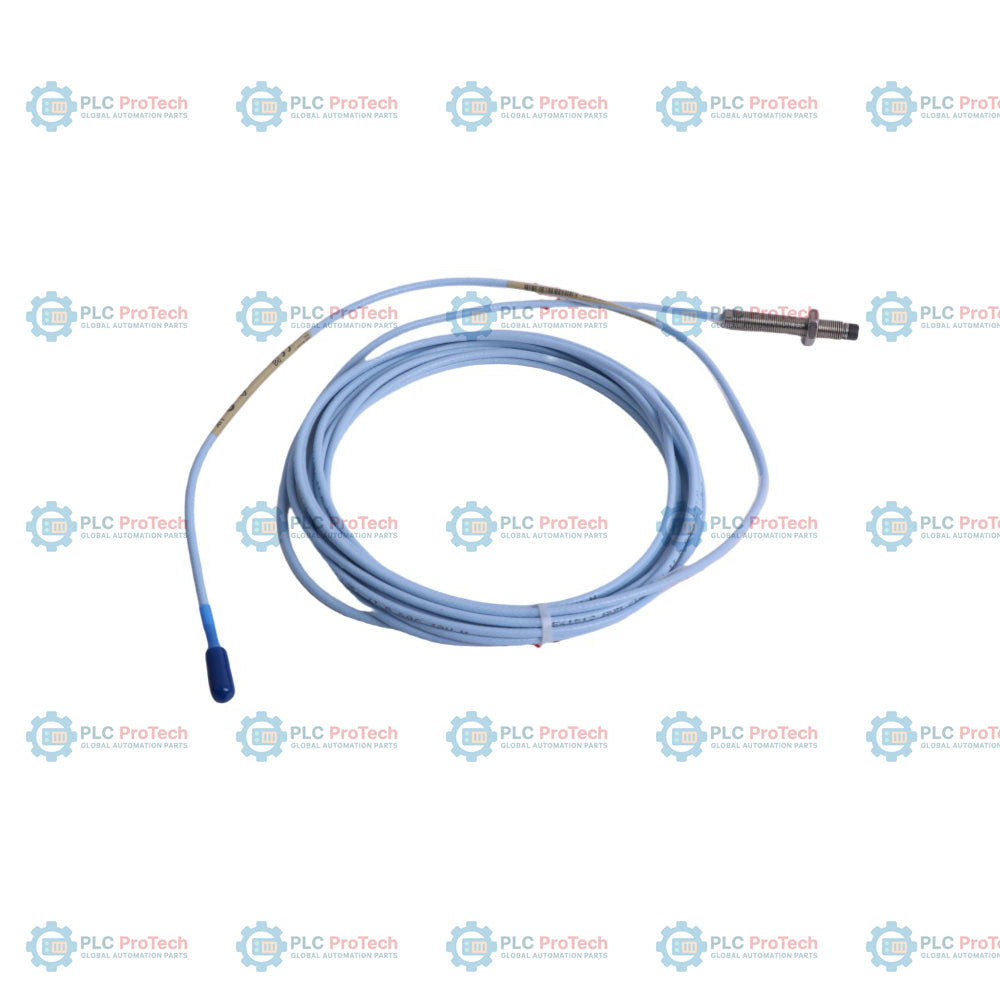

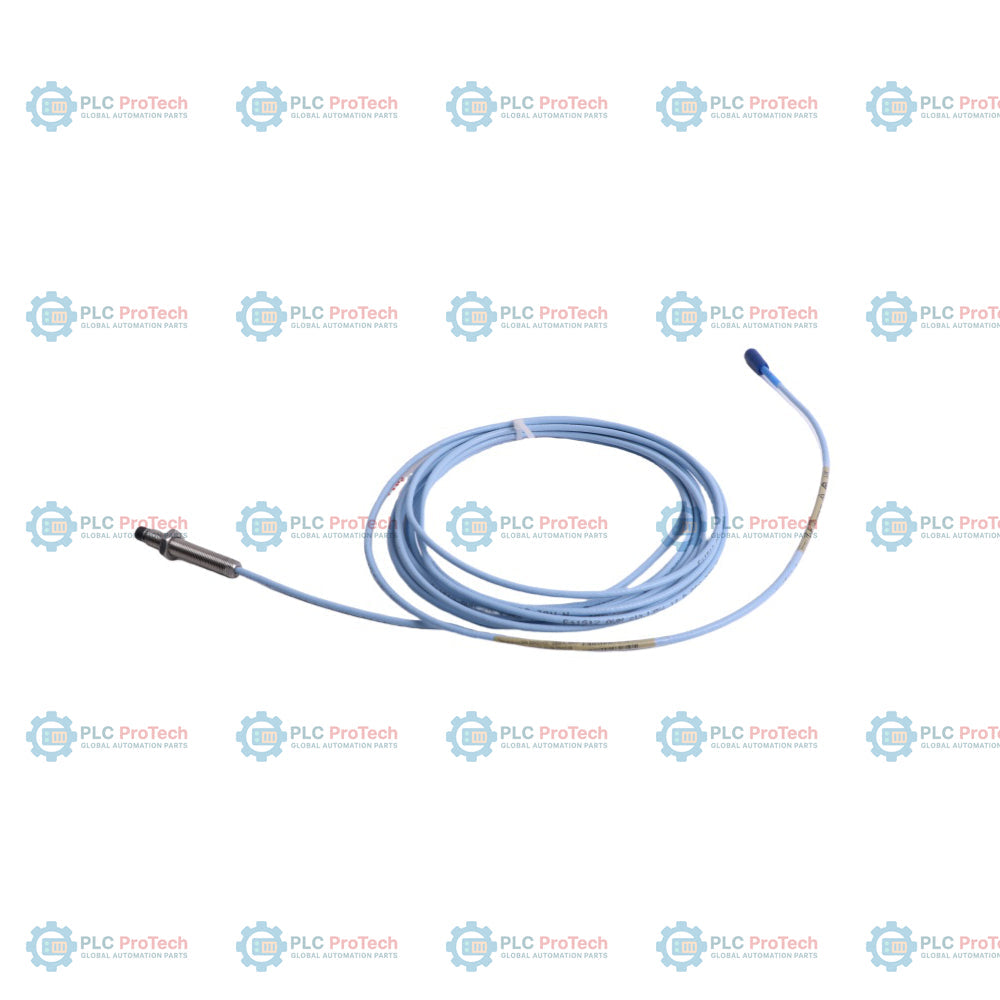

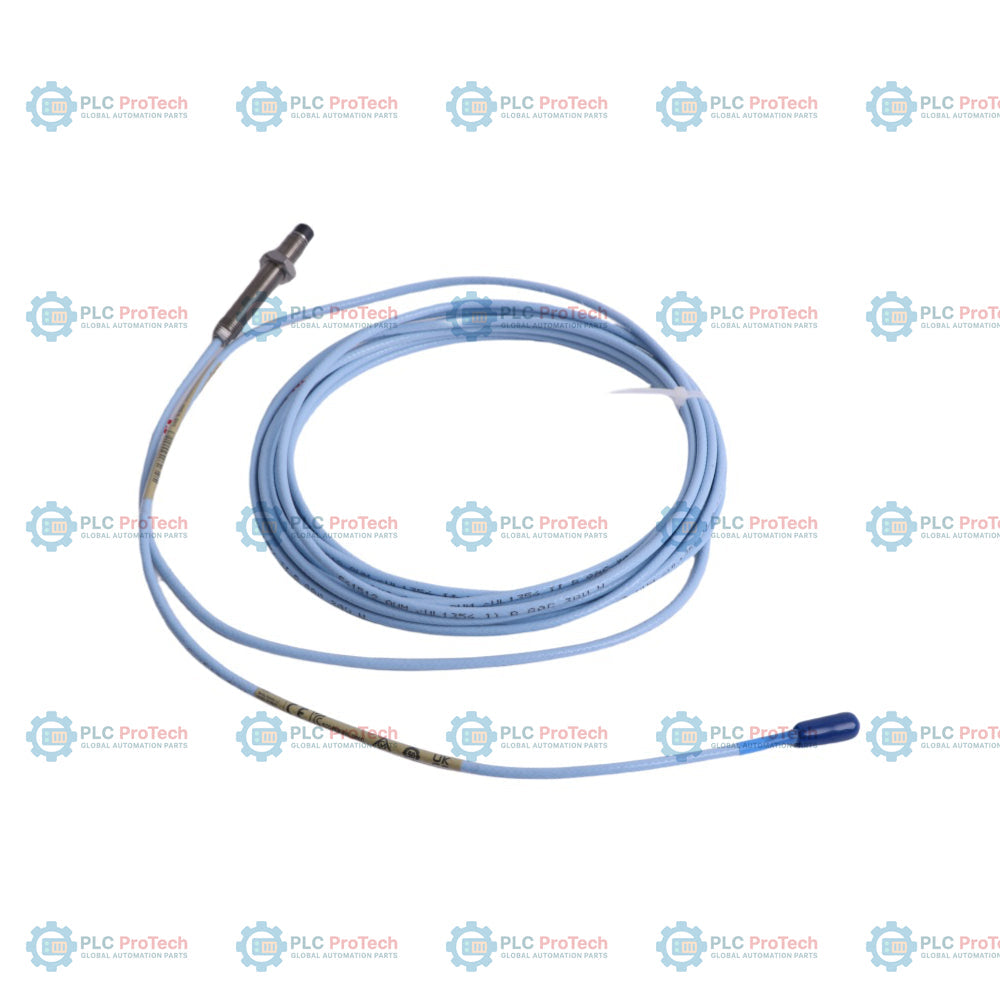

330103-00-06-50-02-05 specifies a metric-threaded 3300 XL 8 mm proximity probe configured with 0 mm unthreaded length and 60 mm overall case length. It features a 5.0-meter standard coaxial cable with a miniature coaxial ClickLoc connector and is certified under CSA, ATEX, and IECEx hazardous area approvals. This non-contacting eddy-current displacement probe is used in machinery protection systems to track radial vibration, shaft position, and axial movement in critical rotating machinery.
Unlike the 330104 series which includes stainless steel conduit armor, the 330103 configuration provides an unarmored standard cable jacket with a maximum outer diameter of 3.68 mm. The 5.0-meter total length option is calibrated for direct connection to a 5-meter Proximitor sensor without requiring an intermediate extension cable, minimizing connector junctions and reducing signal impedance in confined installation paths.
| Option / Segment | Code on This SKU | Description / Meaning |
|---|---|---|
| Orderable Part Number | 330103-00-06-50-02-05 | 3300 XL 8 mm proximity probe, M10 x 1 thread, without armor |
| A - Unthreaded Length | 00 | 0 mm (fully threaded) |
| B - Overall Case Length | 06 | 60 mm case length |
| C - Total Length | 50 | 5.0 meters (16.4 feet) |
| D - Connector and Cable-Type | 02 | Miniature coaxial ClickLoc connector, standard cable |
| E - Agency Approval | 05 | CSA, ATEX, IECEx Approvals |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Part Number / Model | 330103-00-06-50-02-05 |
| Product Series | 3300 XL 8 mm Proximity Transducer System |
| Probe Tip Diameter | 8.0 mm (0.31 in) |
| Thread Type | M10 x 1 (Metric) |
| Unthreaded Length | 0 mm |
| Case Length | 60 mm |
| Total Probe Length | 5.0 meters (16.4 feet) |
| Connector Type | Miniature coaxial male ClickLoc |
| Cable Type | 75 ohm standard coaxial cable (unarmored) |
| Cable Outer Diameter | 3.68 mm (0.145 in) |
| Operating Temperature (Probe) | -52 degC to +177 degC (-62 degF to +350 degF) |
| Differential Pressure Seal | Designed to seal differential pressure between the probe tip and case |
| Typical System Accuracy | 0.2 mm (80 mils) linear range, 7.87 V/mm (200 mV/mil) sensitivity |
| Recommended Torque | Finger tight for ClickLoc connectors |
| Agency Approvals | CSA, ATEX, IECEx (Option 05) |
| Weight | 0.24 kg |
| Dimensions | 150 mm x 150 mm x 30 mm (H x W x D) |
Proper physical installation maintains signal integrity and system longevity. Ensure the thread engagement of the M10 x 1 thread does not exceed 15 mm to prevent binding or mechanical deformation. Use a class of fit matching the probe body thread for all internal machine threads. When connecting the miniature ClickLoc coaxial connector to the extension cable, apply finger-tight tension only. Avoid routing the coaxial cable near high-voltage lines or sharp mechanical edges, and observe minimum bend radius recommendations to prevent impedance changes. If using in hazardous locations, verify the installation matches the safe wiring diagrams specified under the CSA, ATEX, or IECEx certification guidelines.
This transducer probe configuration complies with the relevant industry standards for machinery health monitoring and hazardous area deployment. Certified compliance includes:
