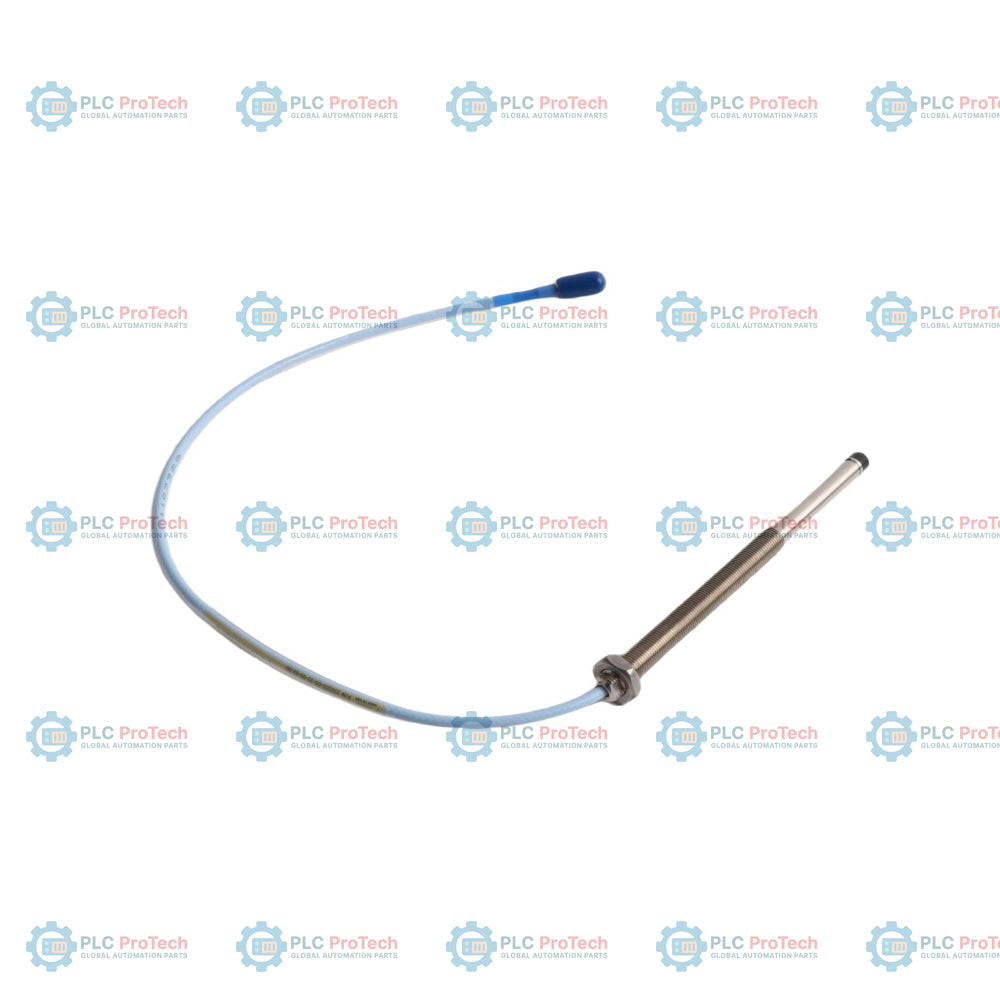

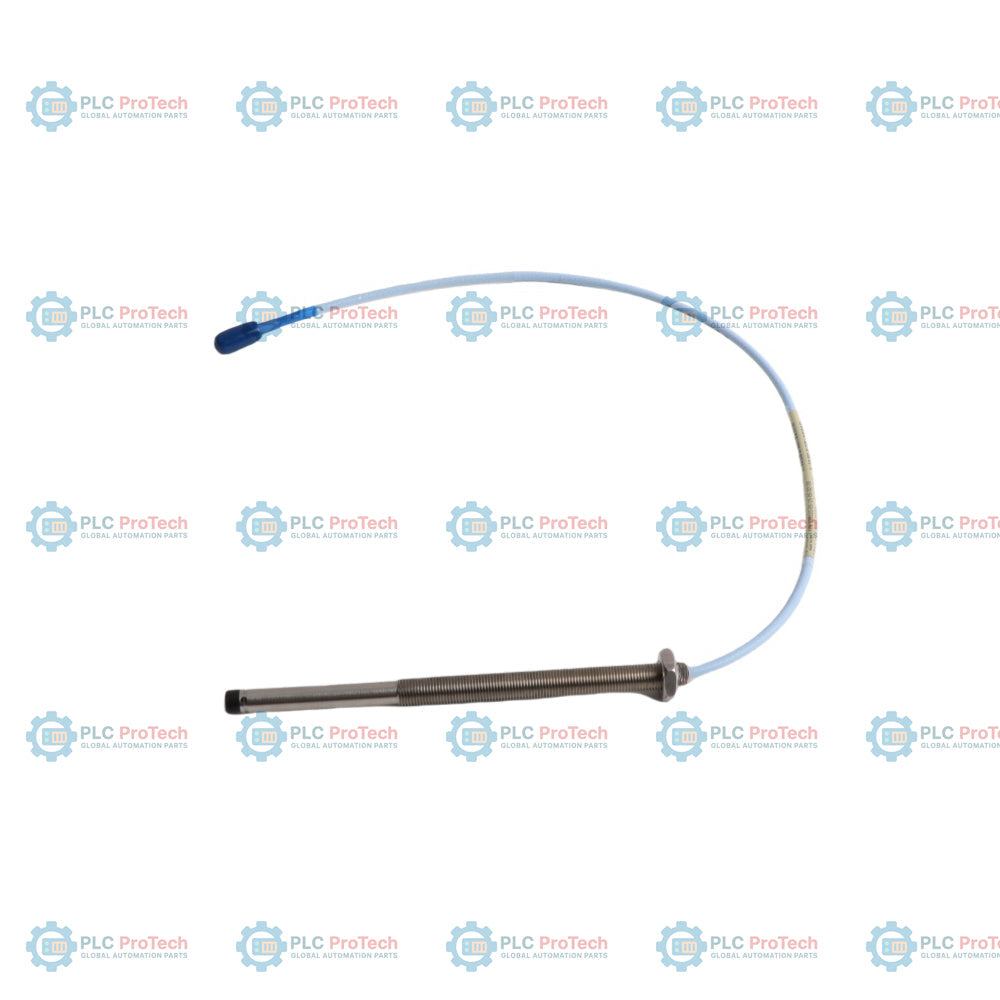

The 330103-05-15-05-02-00 is a 3300 XL 8 mm proximity probe configuration featuring an M10 x 1 thread, 0.5 mm unthreaded length (Option 05), 150 mm case length (Option 15), 0.5 m total length (Option 05), miniature ClickLoc connector without a connector protector (Option 02), and is approved for non-hazardous locations (Option 00). This probe is designed for use in 3300 XL 8 mm transducer systems to perform non-contact eddy-current displacement measurements, essential for monitoring shaft vibration and axial position on critical rotating machinery.
This probe is part of the Bently Nevada 3300 XL series, which is electrically and physically interchangeable with 3300-series 5 mm and 8 mm components. The 330103 model is an unarmored, metric-threaded probe. When integrated into a monitoring chain, it typically pairs with a 3300 XL Proximitor sensor and a 3300 XL extension cable. Calibration is factory-set to AISI 4140 steel, providing high-precision displacement data for vibration analysis and machine protection.
| Option | Code on This SKU | Description |
| Orderable Part Number | 330103-05-15-05-02-00 | 3300 XL 8 mm Proximity Probe, M10 x 1, Unarmored |
| A - Unthreaded Length | 05 | 0.5 mm unthreaded length |
| B - Case Length | 15 | 150 mm case length |
| C - Total Length | 05 | 0.5 meter (1.6 feet) |
| D - Connector | 02 | Miniature coaxial ClickLoc connector, standard cable |
| E - Agency Approval | 00 | Not required |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Part Number | 330103-05-15-05-02-00 |
| Probe Diameter | 8 mm |
| Thread Type | M10 x 1 |
| Case Length | 150 mm |
| Unthreaded Length | 0.5 mm |
| Total System Length | 0.5 meter |
| Connector Type | Miniature ClickLoc, standard cable |
| Agency Approvals | Not required |
| Armor | None (unarmored) |
Ensure the probe is installed with the correct gap as specified by the machine monitoring requirements. When routing the coaxial cable, observe the minimum bend radius to prevent cable damage or signal degradation. This probe is designed for use in a 3300 XL 8 mm system; ensure the Proximitor sensor and extension cable total length match the system calibration requirements. Grounding and shielding should be maintained according to standard Bently Nevada 3300 XL installation practices.
This configuration (Option 00) is intended for non-hazardous locations and does not carry additional CSA, ATEX, or IECEx certifications. If hazardous area approvals are required for your application, please select a configuration with the appropriate agency approval option.
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 330103-05-15-05-02-00
Country of origin:United States
Product Type: 3300 XL 8 mm Proximity Probe
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 140g
Dimensions: 45 mm x 95 mm x 95 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months
