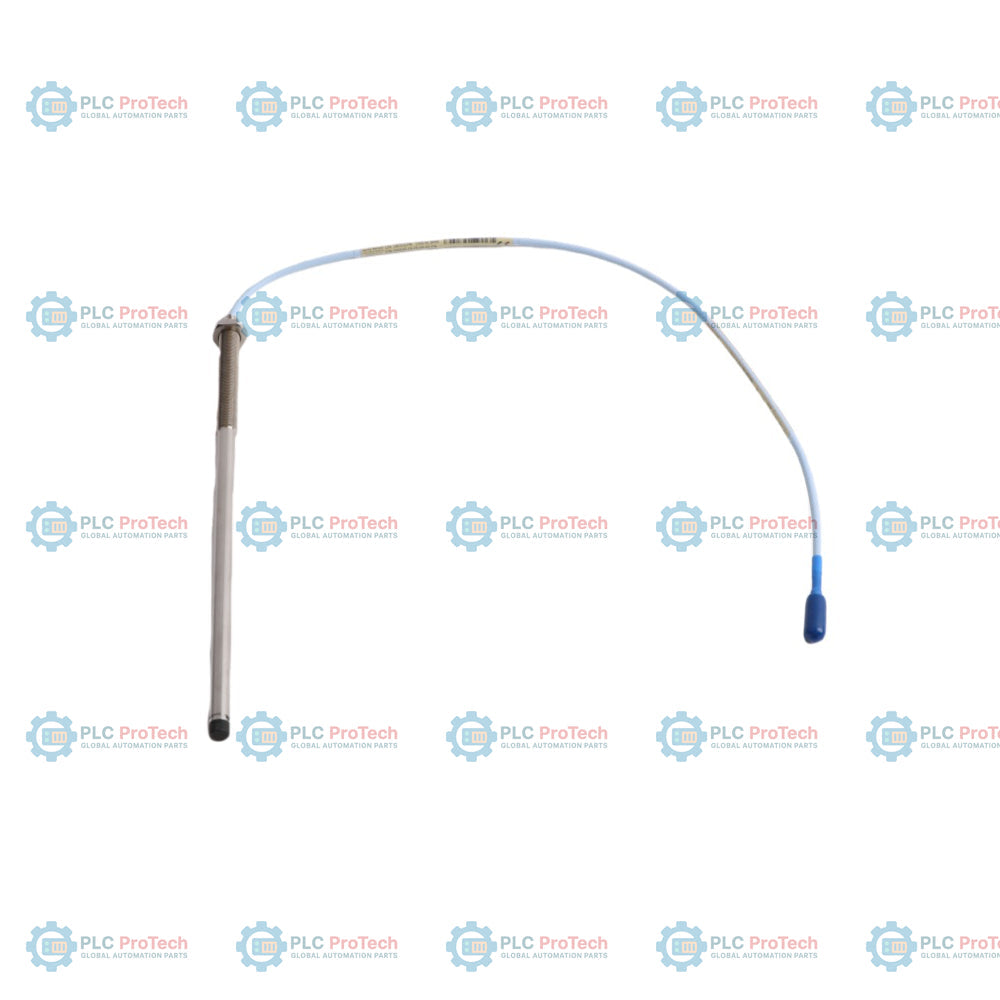

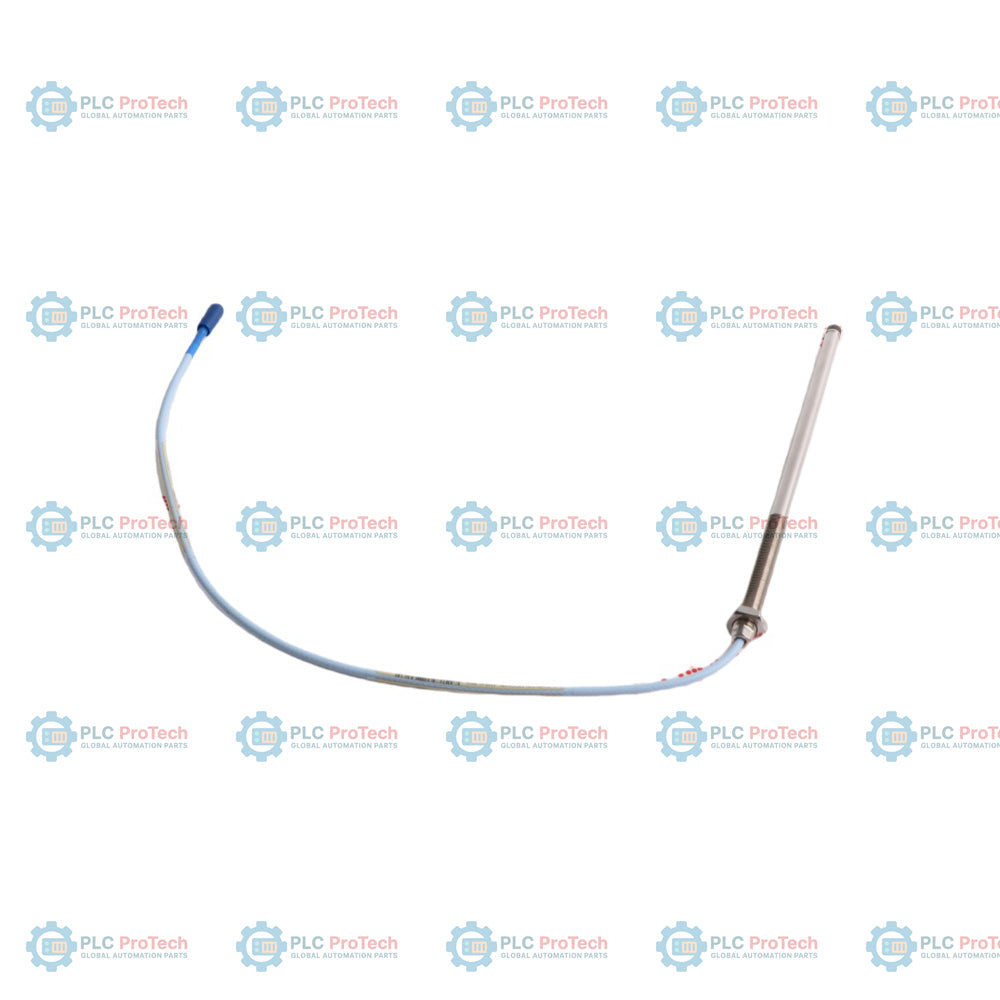

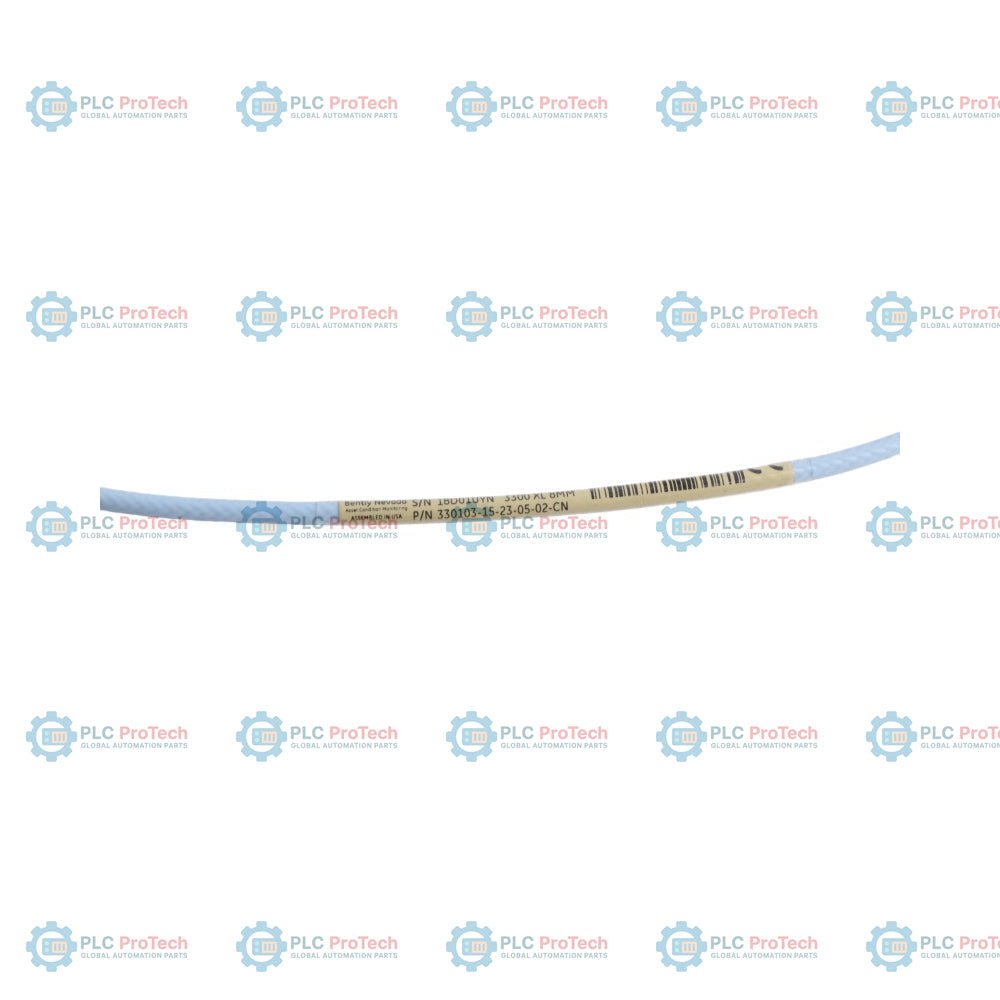

Bently Nevada 330103-15-23-05-02-CN 3300 XL 8 mm Proximity Probe

SKU 330103-15-23-05-02-CN

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Bently Nevada
  • Product No.: 330103-15-23-05-02-CN
  • Origin United States
  • Product Type: 3300 XL 8 mm Proximity Probe
  • Barcode: 8537101190
  • Payment: T/T, Western Union
  • Weight: 0.16 kg
  • Dimensions: 250 mm x 150 mm x 45 mm (H x W x D)
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

3300 XL Proximity Probes

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

Bently Nevada 330103-15-23-05-02-CN 3300 XL 8 mm Proximity Probe

Download Open in new tab
Quantità
Call sales Contact

Product Description

Description

Option 15 (150 mm unthreaded length) and Option 02 (ClickLoc connector, standard cable) specify this metric 3300 XL 8 mm probe configuration — 330103-15-23-05-02-CN proximity probe. This eddy-current transducer system component operates on a non-contact basis to monitor shaft vibration, position, and speed on rotating machinery. Featuring an unarmored cable design with an M10 x 1 thread, this specific configuration complies with national safety standards for explosive environments in industrial processing plants.

The probe utilizes a polyphenylene sulfide (PPS) tip and an AISI 303 or 304 stainless steel case to withstand high pressures and chemical exposure in industrial environments. Suffix -CN indicates compliance with Chinese hazardous area approvals (NEPSI and CCC), verifying that the electrical barrier and explosion-proof parameters are fully certified for safety-critical plant monitoring installations.

Features

  • M10 x 1 metric thread structure without protective armor (base configuration)
  • 150 mm unthreaded length (Option 15) for deep casing penetration
  • 230 mm overall case length (Option 23) providing physical reach
  • 0.5 meter (1.6 feet) total probe cable length (Option 05)
  • Miniature coaxial ClickLoc connector (Option 02) with standard triaxial FEP-insulated cabling
  • Integrated -CN suffix certification delivering compliance with NEPSI and CCC safety frameworks
  • Full backward compatibility and physical interchangeability with non-XL 3300 series 5 mm and 8 mm components

Applications

  • Radial vibration and axial thrust position monitoring on fluid-film bearing machines
  • High-speed industrial steam turbine and gas turbine machinery protection
  • Keyphasor reference and rotating shaft speed measurements
  • Centrifugal compressor and multi-stage pump vibration diagnostics in chemical processing plants

Ordering Information

Option Segment Code on This SKU Description / Meaning
Orderable Part Number 330103-15-23-05-02-CN 3300 XL 8 mm Proximity Probe, M10 x 1 thread, without armor
A - Unthreaded Length Option 15 150 mm unthreaded length
B - Overall Case Length Option 23 230 mm overall case length
C - Total Length Option 05 0.5 meter (1.6 feet)
D - Connector/Cable Option 02 Miniature coaxial ClickLoc connector, standard cable
Suffix -CN Option -CN China hazardous area approval package (NEPSI + CCC + applicable markings)

Technical Specifications

Manufacturer Bently Nevada (Baker Hughes)
Part Number 330103-15-23-05-02-CN
Product Type 3300 XL 8 mm Proximity Probe (Metric)
Thread Size M10 x 1
Armor Configuration Without armor
Unthreaded Length 150 mm
Case Length 230 mm
Total Length 0.5 meter (1.6 feet)
Connector Type Miniature coaxial ClickLoc connector
Cable Type 75 ohm triaxial fluoroethylene propylene (FEP) standard cable
Probe Tip Diameter 8.0 mm (0.31 in)
Probe Tip Material Polyphenylene sulfide (PPS)
Probe Case Material AISI 303 or 304 stainless steel (SST)
Temperature Range -52 degC to +177 degC (-62 degF to +350 degF)
Tensile Strength Limit 330 N (75 lbf) probe case to probe lead
Minimum Bend Radius 25.4 mm (1.0 in)
Weight 0.16 kg
Dimensions 250 mm x 150 mm x 45 mm (H x W x D)

Installation Guidelines

  • Observe a maximum thread engagement length of 15 mm for the metric M10 x 1 casing thread.
  • Tighten the standard forward-mount probe case to 7.5 N-m (66 in-lbf) recommended torque, with an absolute maximum rating of 22.6 N-m (200 in-lbf).
  • Verify that the gold-plated male ClickLoc connector is joined only finger-tight with its mating extension cable connector.
  • Maintain a cable routing path with a bend radius no smaller than 25.4 mm (1.0 inch) to prevent mechanical attenuation of the signal.

Compliance and Certifications

  • NEPSI (National Supervision and Inspection Centre for Explosion Protection and Safety of Instrumentation)
  • CCC (China Compulsory Certification) for hazardous environments
  • CE Compliant
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
Che cosa indica il suffisso -CN sulla sonda di prossimità 330103-15-23-05-02-CN?
Il suffisso -CN specifica il pacchetto di approvazioni per aree pericolose in Cina, certificando la conformità agli standard NEPSI e CCC per l'installazione in atmosfere industriali esplosive.
Quali sono le dimensioni della lunghezza non filettata e della lunghezza complessiva del corpo per questa configurazione specifica?
Questa configurazione della sonda è definita con l'Opzione 15, che indica una lunghezza non filettata di 150 mm, e l'Opzione 23, che indica una lunghezza complessiva del corpo di 230 mm.
Questa sonda è dotata di una guaina protettiva corazzata?
No, il modello base 330103 rappresenta una sonda metrica 3300 XL da 8 mm senza corazzatura fisica. Per una versione metrica corazzata, il modello base è 330104.
Qual è la coppia di serraggio consigliata per le filettature M10 x 1 di questa sonda?
La coppia di montaggio consigliata è di 7,5 N-m (66 in-lbf), con una coppia strutturale massima nominale di 22,6 N-m (200 in-lbf).
Quale tipo di connettore e cavo vengono forniti con questo modello?
Questa sonda presenta un connettore coassiale miniaturizzato ClickLoc con un cavo standard a tre assi con isolamento in FEP, della lunghezza complessiva di 0,5 metri (1,6 piedi).
