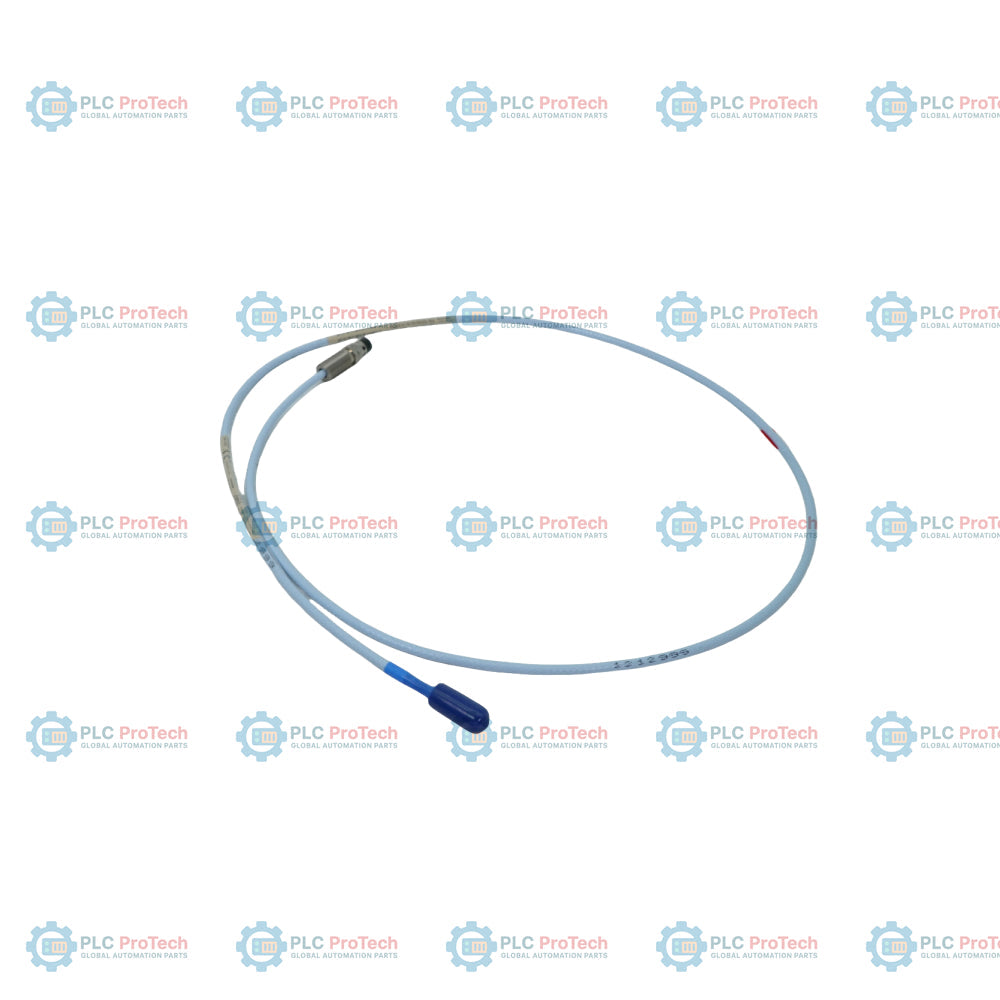

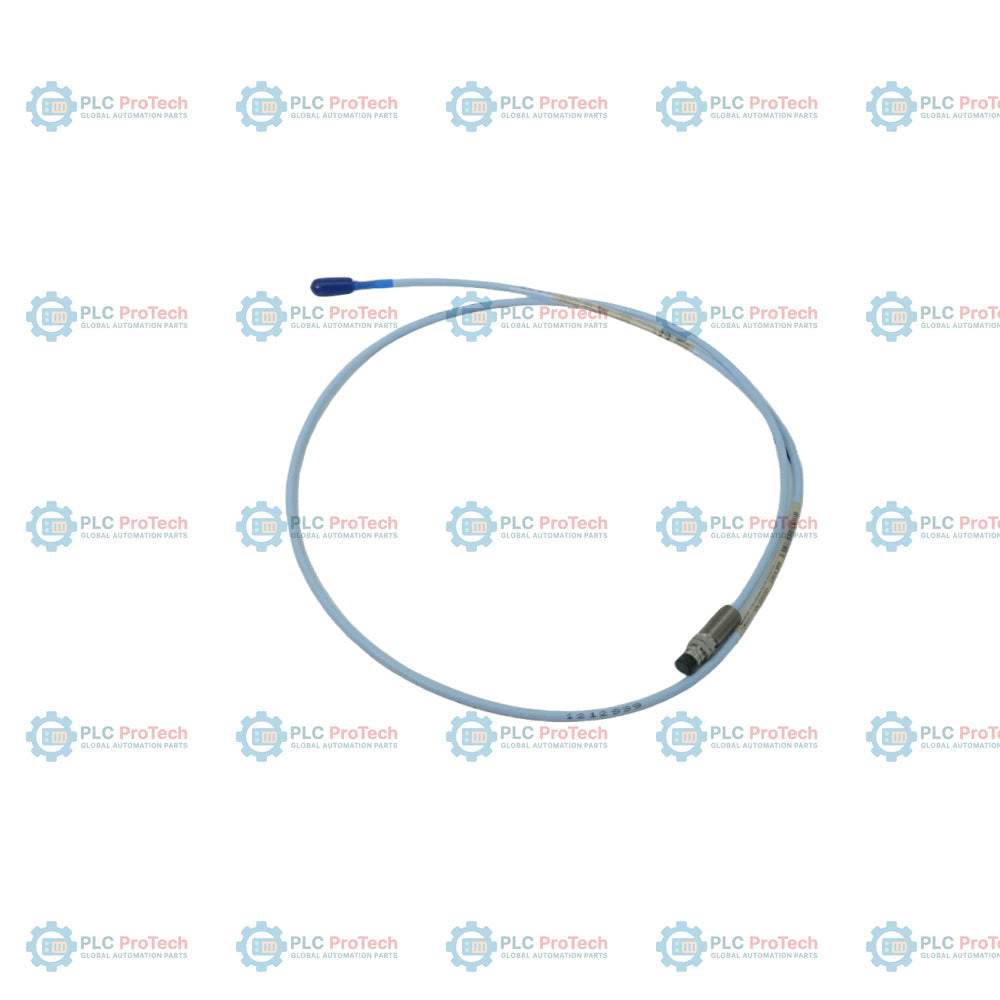

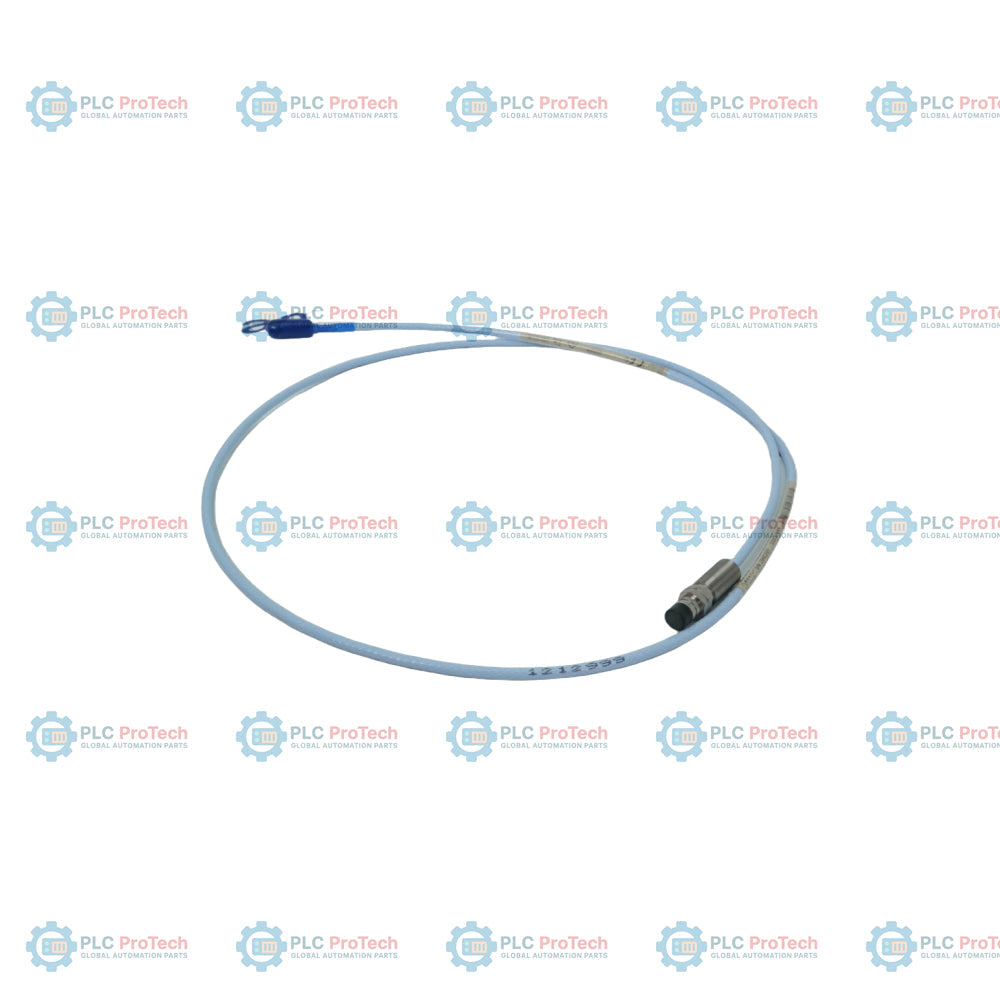

Metric M10 x 1 threaded steel probe body featuring a 5.0 mm unthreaded length, a 30 mm overall case length, a 1.0 meter (3.3 feet) standard coaxial cable, and a miniature ClickLoc connector without connector protector specifies the configuration of the Bently Nevada 330106-05-30-10-02-CN 3300 XL 8 mm reverse mount proximity probe. This reverse-mount variant mounts from the inside of a machine casing or sleeve using metric M10 x 1 threads, with the -CN suffix indicating China hazardous area approvals including NEPSI and CCC certifications.
Unlike sibling configurations with standard fractional inch threads (such as the 330105 3/8-24 UNF series) or armored cable protections, this 330106 option utilizes a standard unarmored coaxial cable. The miniature male ClickLoc coaxial connector (Option 02) terminates the 1.0 meter cable, connecting to a 3300 XL extension cable and Proximitor sensor to complete a 5 meter or 9 meter system loop. The system measures shaft vibration, axial position, and speed on rotating machinery.
| Option Segment | Code on This SKU | Description / Meaning |
|---|---|---|
| Base Model | 330106 | 3300 XL 8 mm Reverse Mount Proximity Probe, M10 x 1 threads |
| A - Unthreaded Length Option | 05 | 5.0 mm unthreaded length |
| B - Overall Case Length Option | 30 | 30 mm overall case length |
| C - Total Length Option | 10 | 1.0 meter (3.3 feet) total cable length |
| D - Connector Option | 02 | Miniature ClickLoc coaxial connector, standard cable |
| Suffix | -CN | China hazardous area approval package (NEPSI + CCC + applicable markings) |
| Parameter | Value / Specification |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Part Number / SKU | 330106-05-30-10-02-CN |
| Product Type | 3300 XL 8 mm Reverse Mount Proximity Probe |
| Thread Type | Metric M10 x 1 threads |
| Unthreaded Length | 5.0 mm (0.20 in) |
| Case Length | 30 mm (1.2 in) |
| Total Cable Length | 1.0 meter (3.3 feet) |
| Connector Type | Miniature male coaxial ClickLoc connector (7.24 mm maximum outside diameter) |
| Cable Type | Standard unarmored coaxial cable (3.68 mm outside diameter) |
| Nominal DC Resistance | 7.59 ohms +/- 0.50 ohms (center conductor to outer conductor) |
| System Target Calibration | AISI 4140 steel target |
| Operating Temperature Range | -52 degC to +177 degC (operating and storage) |
| Pressure Seal Limit | Differentially pressure sealed |
| Dimensions | 50 mm x 120 mm x 120 mm (H x W x D) |
| Weight | 0.14 kg |
| Connector Part | Signal Mapping |
|---|---|
| Center Conductor | Signal (RF/DC voltage) |
| Outer Conductor / Shield | Common / Shield ground |
