Product Overview

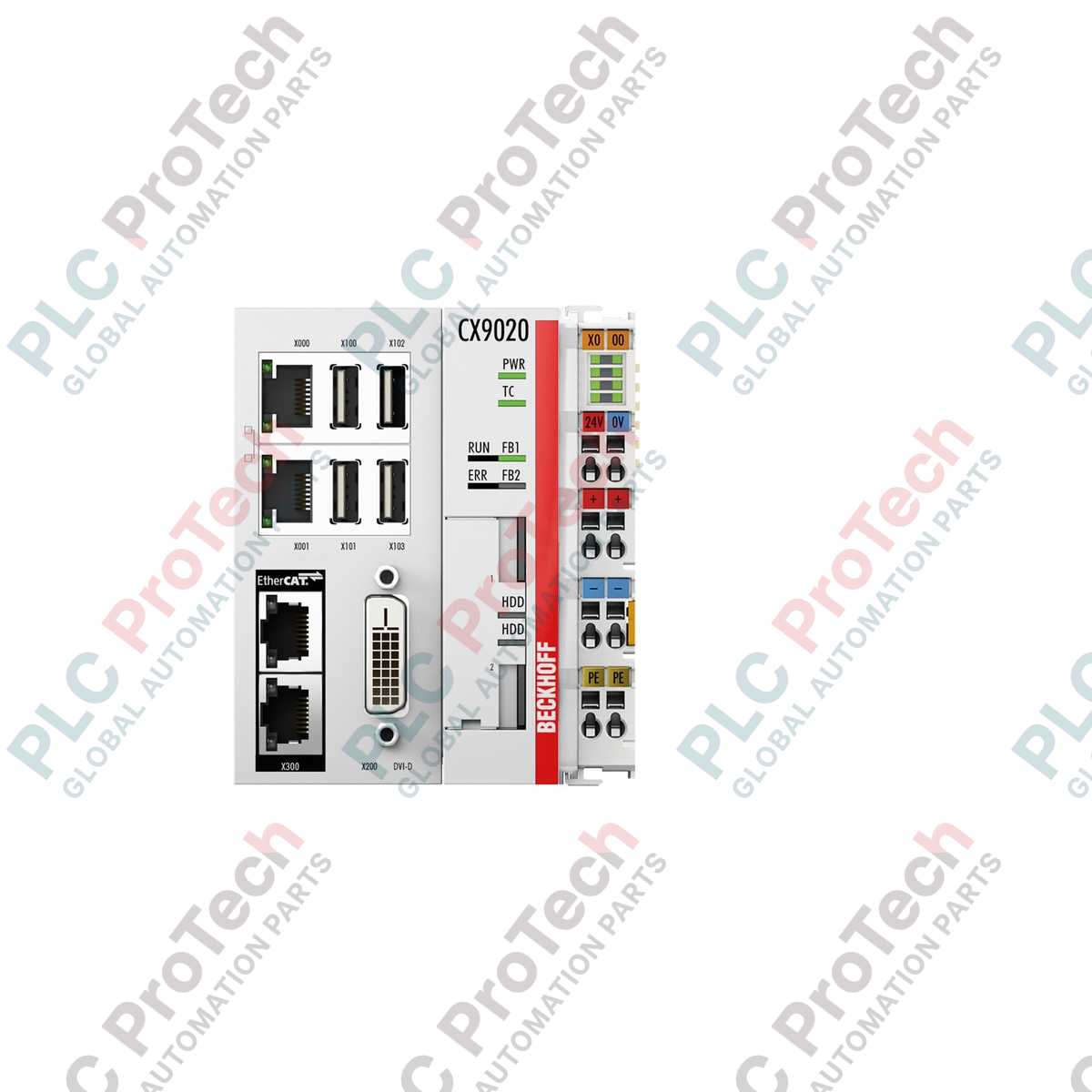

The CX9020-N031-0004 (CX9020-N031-0004) is a compact, DIN-rail mountable Ethernet control system designed for versatile industrial automation tasks. This Basic CPU module serves as the core processing unit for the CX9020 series, integrating a high-performance ARM Cortex™-A8 processor with a specialized RS422 interface configuration. In sectors such as building automation, solar energy management, and specialized machine construction, the CX9020-N031-0004 is essential for coordinating I/O systems and managing serial communication with peripheral devices. Its fanless design and lack of rotating parts ensure high operational reliability and reduced maintenance cycles in harsh factory floor environments where vibration and dust are prevalent.

Technical Configuration

The hardware architecture of the CX9020-N031-0004 is defined by its integrated N031 serial interface option. This specific variant provides an RS422 interface via a 9-pin D-sub socket, pre-configured as a full-duplex end point with internal termination enabled. This setup is optimized for point-to-point data transmission over long distances, offering superior noise immunity compared to standard RS232 connections. The CPU module handles the execution of TwinCAT PLC and Motion Control software, acting as the intelligent hub between the local I/O level (either Bus Terminals or EtherCAT Terminals) and the higher-level network via its dual switched Ethernet ports.

Technical Specifications

Technical FAQs

Can this CPU module support both K-bus and E-bus terminals?

Yes, the CX9020 series features an automatic bus detection system. The CX9020-N031-0004 can interface with either standard Beckhoff Bus Terminals (K-bus) or high-speed EtherCAT Terminals (E-bus) by simply attaching the corresponding terminal segment to the right-hand side of the CPU.

What is the significance of the "Full Duplex End Point" configuration on the RS422 port?

The full duplex configuration allows for simultaneous two-way communication between the CPU and the connected device. Being an "end point" with "termination on" means the module is designed to sit at the end of the communication line, utilizing internal resistors to prevent signal reflections and ensure data integrity over long cables.

Is the CX9020 fanless?

Yes, the CX9020-N031-0004 uses passive cooling and flash-based storage. The absence of a fan and hard drive makes it highly resistant to mechanical wear and suitable for deployment in high-vibration industrial environments.

Engineering & Installation Guide

RS422 Serial Wiring and Termination:

When connecting the CX9020-N031-0004 to a peripheral device, ensure that the cable length does not exceed 1200 meters, which is the theoretical limit for RS422. Since termination is internally set to "On," this module must be positioned at one physical end of the serial network. If the communication fails or data corruption occurs, verify that the remote device also has proper termination (typically 120 Ohms) to balance the line.

Storage and Power Management:

The CX9020 utilizes microSD cards for the operating system and TwinCAT runtime. Always use Beckhoff-certified industrial-grade microSD cards to ensure high write-cycle endurance and data retention. During installation, ensure the 24 VDC power supply is stable; a power failure during a write operation can corrupt the flash media. Using a Beckhoff UPS module (like the CX2100 series power supplies) is highly recommended for critical applications.

Mounting and Clearance:

The module must be mounted on a 35 mm DIN rail. To maintain the rated operating temperature of 60 deg C, provide at least 30 mm of clearance above and below the unit for natural convection. Avoid installing the CPU directly above heat-generating components like large frequency inverters or power transformers.
