Product Overview

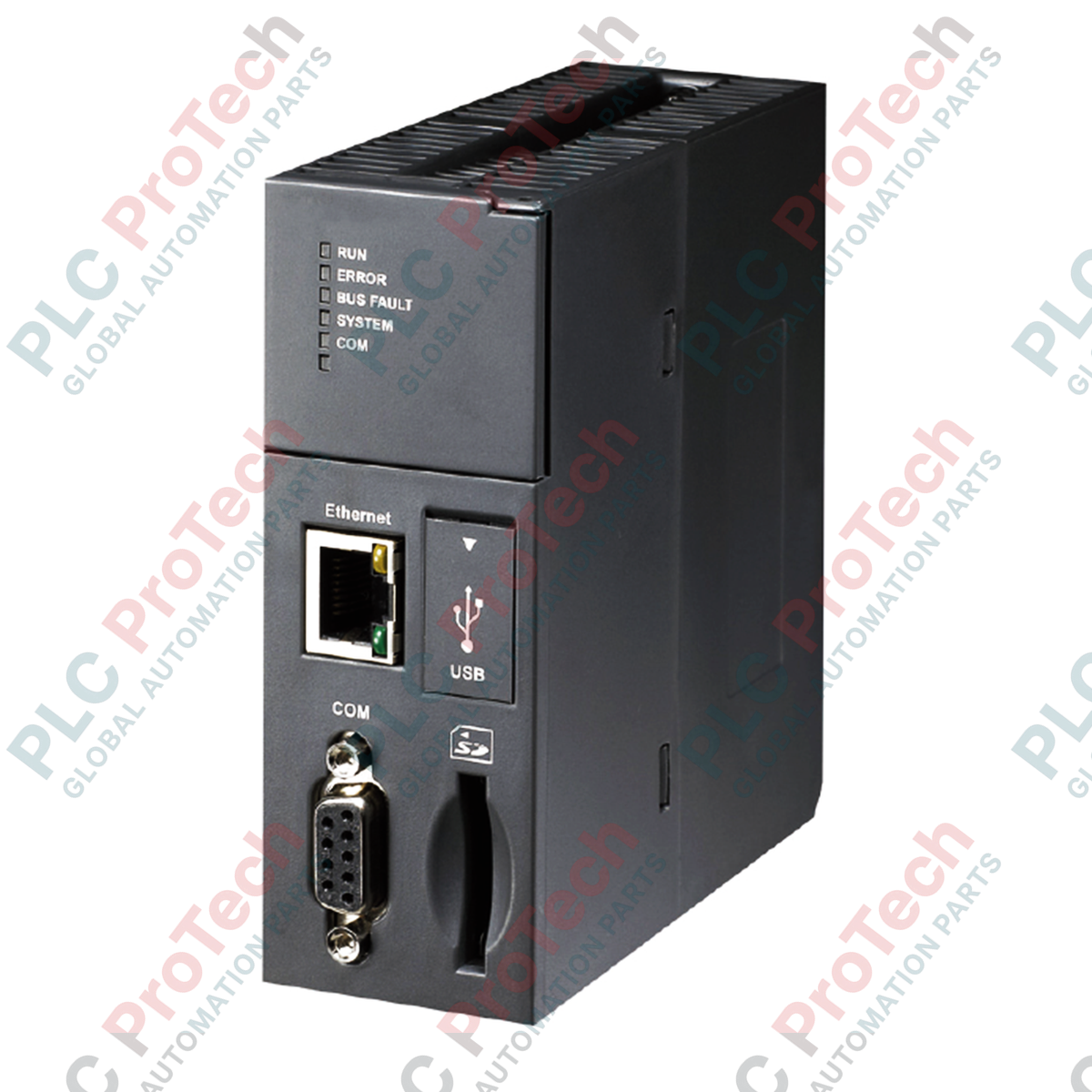

The AHCPU530-EN (AHCPU530EN) is a top-tier, high-capacity CPU module within Delta's AH series, specifically engineered for large-scale, complex automation systems that demand high processing power and extensive I/O management. With a program capacity of 256K steps (1 MB) and the capability to manage up to 4,352 local I/O points, this controller is the robust heart of advanced manufacturing lines, high-speed automated sorting facilities, and integrated building management systems. Its rapid execution speed and massive data register capacity (64K/64K/4096K words) allow it to handle intricate logic, multi-axis motion, and large-scale data logging with exceptional performance and reliability.

Technical Configuration

Designed for seamless integration into the AH-series backplane, the AHCPU530-EN supports up to seven extension backplanes, providing extensive modularity for scaling your control environment. It features comprehensive connectivity options, including a 100 Mbps Ethernet port and multi-mode serial ports, which facilitate rapid data exchange with other controllers and HMI units. The module utilizes high-density flash memory, eliminating the need for battery-backed program retention, and offers advanced features such as IP filtering, NTP synchronization, and web server capabilities for remote monitoring and enhanced security.

Technical Specifications

Frequently Asked Questions

How does the AHCPU530-EN compare to the AHCPU510-EN?

The AHCPU530-EN is significantly more powerful, offering four times the program capacity (256K steps vs. 64K steps) and quadruple the local I/O capacity (4,352 vs. 1,280 points). It is intended for systems that require larger programs and a more extensive distributed I/O network.

Is the NTP network time correction function useful in a factory setting?

Absolutely. By syncing with a central Network Time Protocol (NTP) server, the PLC maintains a highly accurate system time across all controllers in your facility. This is critical for synchronizing time-stamped alarm logs and diagnostic data across multiple distributed modules.

Can this module handle complex, high-level programming?

Yes, the support for multiple languages including Function Block (FBD) and Structured Text (ST), combined with its support for 1,024 function blocks, makes it ideal for complex algorithmic tasks like PID loop control, batch processing, and intricate motion sequencing.

Installation and Engineering Recommendations

• Backplane Expansion: Because this module supports up to 7 extension backplanes, ensure that the power supply module used is sized appropriately for the total electrical load of all modules on the extended rack. Exceeding the backplane current limits can lead to unpredictable voltage drops and communication errors.
• Network Security: The built-in WEB and E-mail functions provide convenient access, but they also expose the PLC to network-borne threats. Always use the IP Filter function to whitelist only the specific IP addresses of your engineering workstations and HMI units, and consider isolating the control network from the general office network using a firewall.
• Interrupt Planning: With 256 available interrupts, it is easy to over-program the controller. Prioritize interrupts for time-critical tasks (e.g., hardware high-speed counters or critical emergency sensor inputs) and ensure your interrupt routines are kept concise to prevent scan-time spikes.
