Product Overview

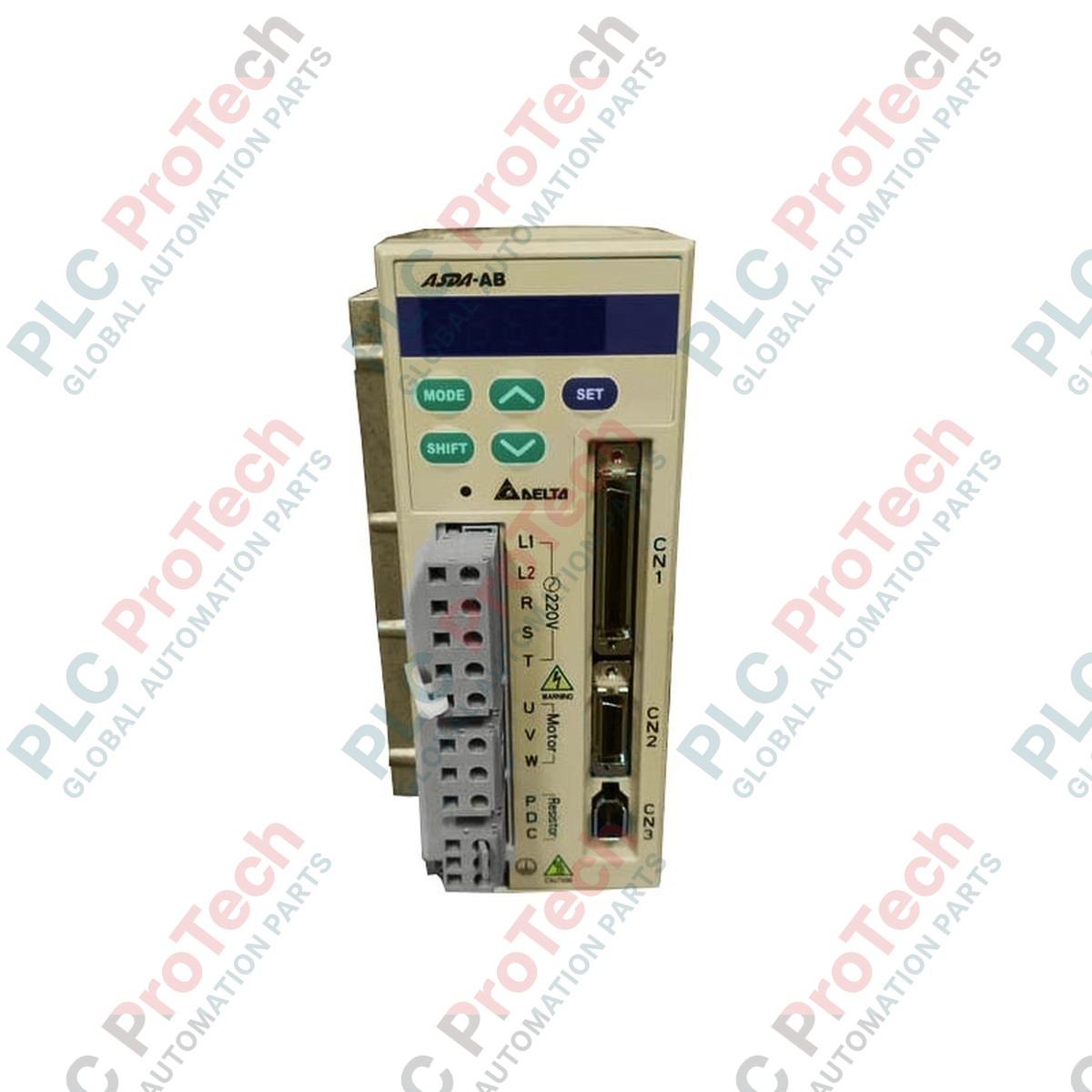

The ASD-A0421-AB (ASDA0421AB) is a precision AC servo drive designed for motion control systems requiring high accuracy and reliable response. With a power rating of 400 W, this drive is tailored for smaller-scale industrial machinery, such as automated component insertion equipment, precision positioning tables, and light-duty robotic arms. It utilizes advanced Space Vector Pulse Width Modulation (SVPWM) for efficient motor control, ensuring smooth operation and high-performance torque delivery. Its compact design and natural air circulation cooling make it an ideal choice for space-constrained control cabinets where forced-air ventilation is not feasible.

Technical Configuration

The ASD-A0421-AB features an integrated dynamic braking system, which is crucial for managing inertial loads during rapid deceleration, effectively preventing over-voltage faults. The drive supports a wide range of pulse input types—including Pulse+Direction and CCW+CW—providing flexibility for integration with various PLC platforms or dedicated motion controllers. Its high-speed pulse processing (up to 500 Kpps via Line Driver) ensures precise command following, while the built-in low-pass and P-curve filters contribute to a smooth acceleration profile, significantly reducing mechanical resonance in high-precision motion systems.

Technical Specifications

Frequently Asked Questions

Why does this drive use natural air circulation instead of a fan?

The ASD-A0421-AB is engineered with highly efficient internal power stages, resulting in low heat generation. This design reduces maintenance by eliminating the need to clean or replace cooling fans, which are common failure points in dusty industrial environments.

How do I choose between Line Driver and Open Collector pulse inputs?

Line Driver is recommended for systems where the distance between the controller and the drive is significant (greater than 1–2 meters) to minimize electromagnetic interference (EMI). Open Collector is suitable for short, low-speed connections.

What is the advantage of using P-curve filtering?

P-curve (or S-curve) filtering smooths the jerk at the start and end of a motion profile. This prevents the "kick" associated with sudden start/stop acceleration, which protects your mechanical transmission (gearboxes, couplings, and lead screws) from high-impact wear.

Installation and Operational Best Practices

• Thermal Mounting: Although the unit uses natural convection, do not mount it horizontally or in a confined, sealed box without adequate heat-dissipating volume. Ensure a minimum of 50 mm of vertical space above and below the unit to allow heat to rise and exit.
• Signal Shielding: To maintain the integrity of the 500 Kpps pulse signal, route control cabling in a dedicated wireway isolated from high-voltage AC power lines. Use twisted-pair, shielded cables and bond the shield to the common ground at the drive side only to avoid ground loops.
• Voltage Input Calibration: The drive’s ±10 VDC analog input has a 10k Ohm input resistance. When using an external speed command, ensure your PLC or controller output can drive this load impedance accurately to maintain linear speed control over the full range.
