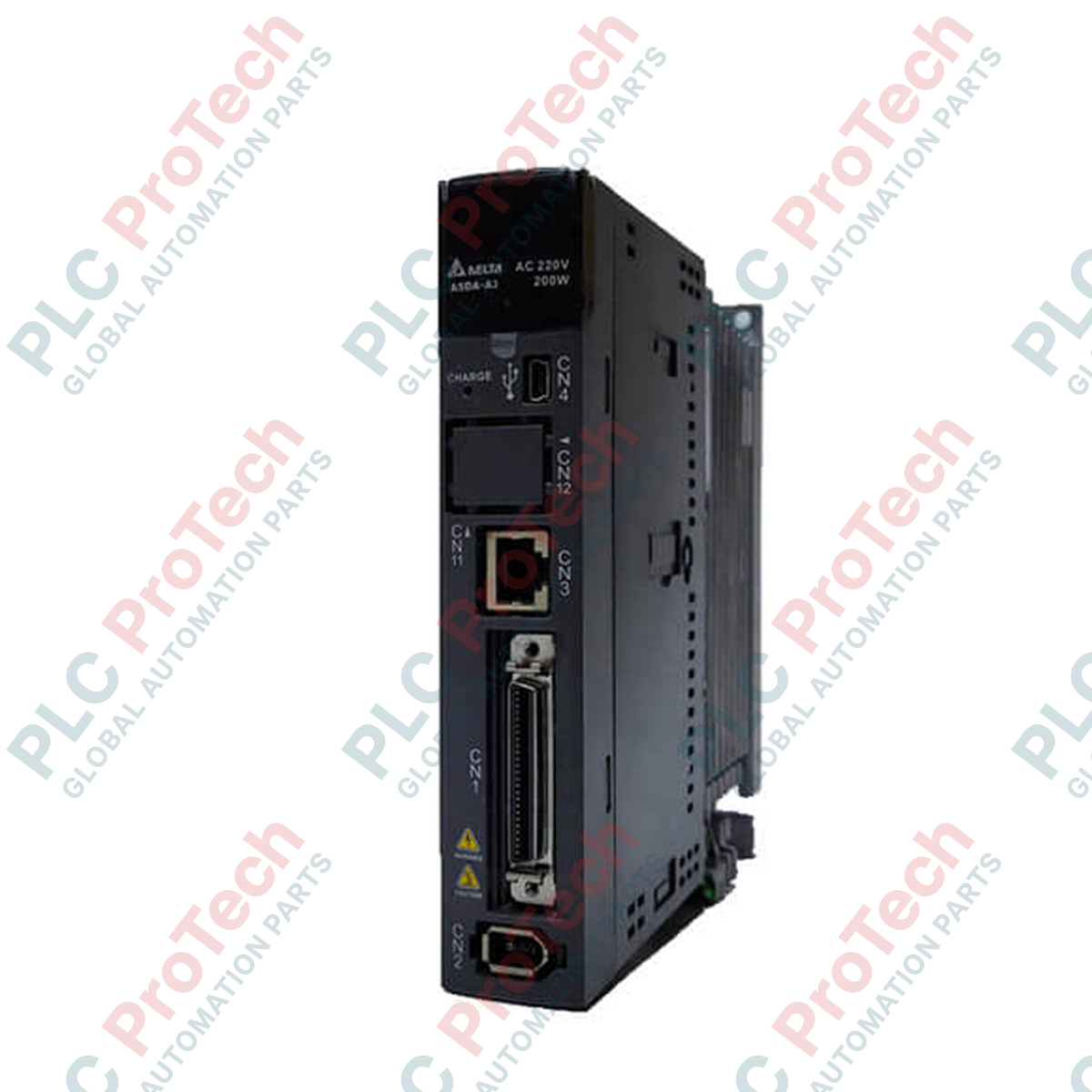

The ASD-A3-0721-F (ASDA30721F) is a high-performance AC Servo Drive engineered by Delta for the A3 Series, delivering a rated output power of 750 W. This drive is optimized for high-speed motion control and precision positioning, supporting the proprietary DMCNET communication protocol for seamless integration into advanced automation architectures. Designed to minimize machine cycle times and enhance throughput, the ASD-A3-0721-F is widely deployed in high-precision CNC machining, electronic assembly, and semiconductor manufacturing. By providing a full closed-loop control interface and integrated E-CAM functionality, this unit ensures robust system stability and eliminates mechanical backlash, significantly reducing unplanned downtime in 24/7 industrial production environments.
The model number ASD-A3-0721-F follows a specific alphanumeric logic that defines its hardware capabilities and control features:
ASD: Identifies the product category as a Delta AC Servo Drive.
A3: Represents the high-performance A3 Series, characterized by superior frequency response and advanced motion control.
07: Denotes the rated output power rating of 750 W.
21: Indicates an input voltage range of 220 VAC, compatible with both 1-phase and 3-phase power supplies.
F: The functional suffix designating specialized control modes:
DMCNET: Support for Delta's high-speed motion control network.
PR Mode: Built-in 64-segment position register for simplified internal programming.
E-CAM: Built-in Electronic Cam functions for complex trajectory planning.
Full Closed Loop: Support for secondary encoder feedback to ensure ultimate accuracy at the load side.
| Feature | Specification |
| Model | ASD-A3-0721-F |
| Brand | DELTA |
| Series | ASDA-A3 |
| Rated Output Power | 750 W |
| Input Voltage | 220 VAC (1-phase / 3-phase) |
| Communication Interface | DMCNET |
| Control Loop | Full Closed Loop Control Supported |
| Integrated Functions | E-CAM, PR Mode |
| Weight | 1.3 kg |
| Shipping Weight | 4.0 kg |
| Operating Temperature | 0 to 55 deg C |
| Cooling Method | Natural Air Circulation / Fan Cooling |
Can the ASD-A3-0721-F be used with a 1-phase 220V power source?
Yes, this drive is designed to accept both 1-phase and 3-phase 220 VAC input. However, when using a 1-phase supply, ensure the power capacity of the source is sufficient to handle the 750 W rated load to prevent undervoltage faults.
Does this model support Pulse Train (PT) control?
No, the "F" suffix model is specifically optimized for network-based control (DMCNET) and internal PR mode. It does not support external Pulse Train input. If PT mode is required, an alternate model suffix should be selected.
How does the Full Closed Loop control benefit my application?
By connecting an external linear scale or encoder directly to the drive, the ASD-A3-0721-F compensates for mechanical imperfections such as thermal expansion or lead screw backlash, ensuring the actual position of the tool or load is accurate, regardless of mechanical wear.
EMC and Shielding: To ensure reliable DMCNET communication and prevent EMI interference, always use shielded twisted-pair cables for signal lines. The shield must be grounded at the drive side using a 360-degree metal clamp to the mounting plate to minimize high-frequency noise.
Thermal Management: Ensure a minimum clearance of 50 mm above and below the drive, and 10 mm between adjacent drives if installed in a multi-axis rack. In high-ambient environments (above 45 deg C), forced air cooling within the cabinet is mandatory to prevent thermal derating of the internal power electronics.
Full Closed Loop Configuration: When utilizing the full closed loop interface, verify that the resolution of the external scale is compatible with the drive’s maximum input frequency. Improper scaling factors in the parameters can lead to "Position Deviation Too Large" errors or system oscillation.
