Product Overview

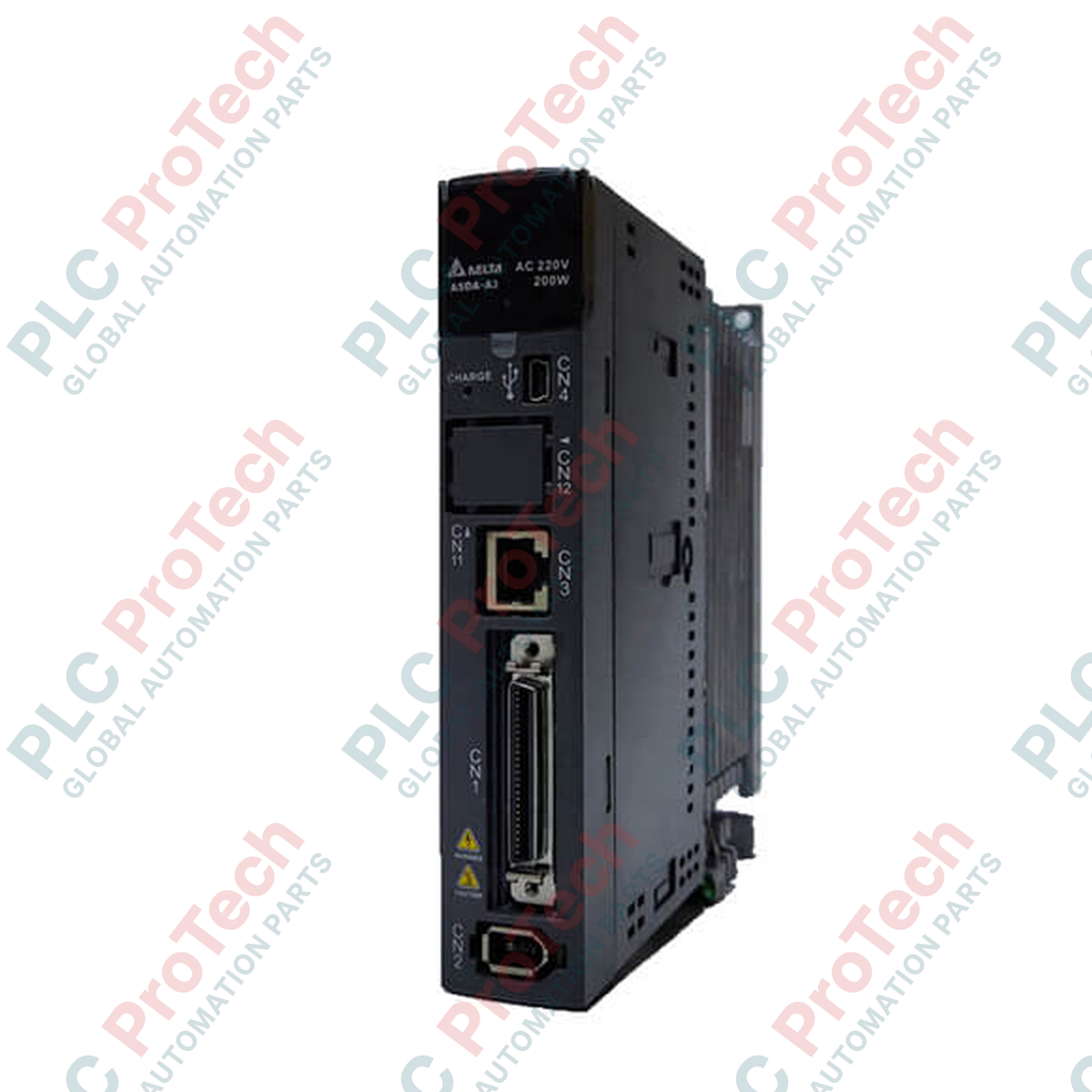

The ASD-A3-0721-M (ASDA30721M) is a high-performance AC servo drive from the Delta A3 series, engineered for precision motion control in demanding industrial environments such as high-speed automated assembly, CNC machining, and semiconductor manufacturing. Designed to minimize machine downtime through superior responsiveness and vibration suppression, this 400 W drive integrates seamlessly into complex automation architectures. Its robust hardware configuration ensures consistent throughput and reliability in mission-critical applications where high-frequency cycles and accurate positioning are non-negotiable.

Technical Configuration

The ASD-A3-0721-M is built on an advanced control platform that supports multi-mode operations, including Pulse Train (PT) mode and Position Register (PR) mode. The drive is equipped with comprehensive communication interfaces, featuring native RS-485 and CANopen support, allowing for flexible integration with PLC-based control systems. The inclusion of STO (Safe Torque Off) functionality enhances operator safety by disabling the drive output without removing main power, while the Full Closed Loop Control capability ensures high-precision feedback even in high-load scenarios. Furthermore, the unit supports E-CAM (Electronic Cam) functions for synchronized mechanical movements and Analog Voltage Control for velocity or torque regulation.

Technical Specifications

Frequently Asked Questions

Does the ASD-A3-0721-M support EtherCAT communication?

No, this specific model (suffix M) does not include EtherCAT or DMCNET. It is configured for Pulse Train, PR, RS-485, and CANopen connectivity.

Can this drive be used in high-vibration environments?

Yes, the A3 series hardware is designed to withstand standard industrial vibration levels; however, it should be mounted within a NEMA-rated enclosure if exposed to extreme industrial dust or moisture.

What is the primary benefit of the PR mode in this drive?

PR (Position Register) mode allows the drive to store and execute motion profiles internally, which reduces the computational load on the host controller and simplifies high-speed point-to-point positioning tasks.

Is this drive compatible with older A2 series motors?

Compatibility depends on the specific motor encoder type and wiring configuration. It is recommended to check the hardware manual for encoder signal matching before replacing legacy A2 drives.

Installation Guidelines and Safety Protocols

• Thermal Management: The ASD-A3-0721-M generates heat during operation. Maintain a minimum clearance of 50 mm above and below the unit, and 20 mm on the sides, to ensure effective airflow within the cabinet. Ensure the ambient temperature does not exceed 55 deg C.
• Shielding and Grounding: To prevent electromagnetic interference (EMI) affecting the control signals, utilize shielded twisted-pair cables for the encoder and I/O connections. Ensure the cable shield is grounded at the drive terminal using a 360-degree metallic clamp for optimal performance.
• Safety Precaution: The STO function is designed to prevent the motor from generating torque; however, it does not provide electrical isolation from the main power source. Always perform a full lock-out/tag-out (LOTO) procedure before attempting any mechanical maintenance or wiring adjustments on the drive or motor.
