AH10PM-5A

Delta Electronics

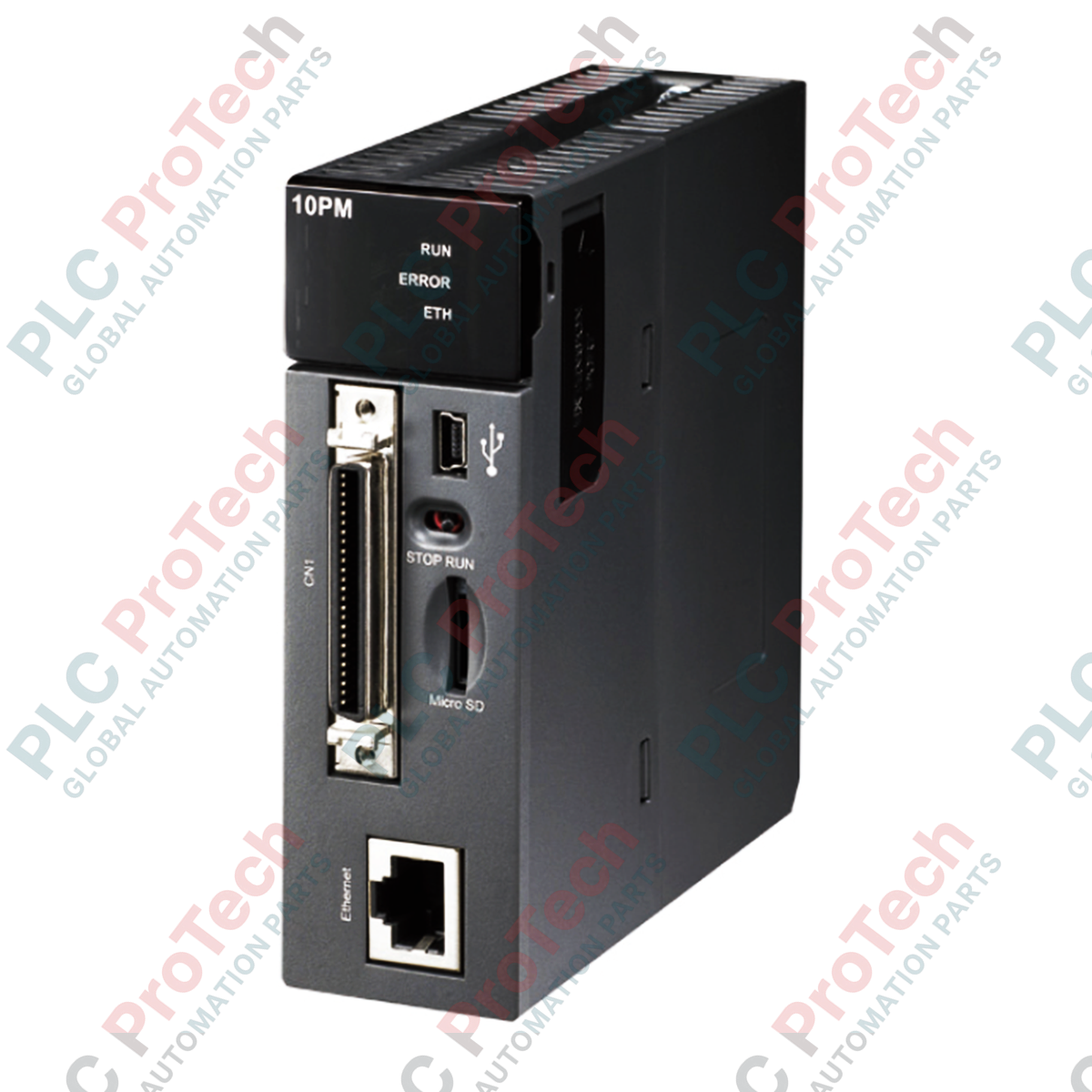

Delta Electronics AH10PM-5A AH Series Motion Control Module

SKU AH10PM-5A

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Delta Electronics
  • Product No.: AH10PM-5A
  • Origin United States
  • Product Type: Motion Control Modules
  • Payment: T/T, Western Union
  • Weight: 2.0 kg
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

AH Series Motion Control Modules
Quantità
Call sales Contact

Product Description

Description

Designed for complex multi-axis motion applications, the AH10PM-5A is a high-performance 6-axis pulse train motion control module within the Delta AH Series PLC system architecture. This module provides precise positioning, synchronization, and path control for servo drives and stepper motor systems. It operates with a dedicated local CPU, allowing independent program execution and reducing the processing load on the main backplane controller.

The unit features multiple advanced interpolation algorithms, allowing coordinated movement across up to 6 axes simultaneously. System configuration and diagnostic tasks are simplified via its integrated Ethernet and Mini USB communication ports. Built-in storage capability through a Micro SD card slot enables local recipe handling, logging, and program storage, while hot-swapping capability ensures continuous system availability during field maintenance.

Features

  • Provides 6-axis pulse train control (4 axes up to 1 MHz output, 2 axes up to 200 kHz output).
  • Supports comprehensive path interpolation including 2-to-6 axis linear, 2-axis arc, and 3-axis helical configurations.
  • Equipped with high-density HDC connector interface for secure signal routing.
  • Includes localized execution engine with 64K steps program capacity and high-speed CPU processing (LD instruction at 0.13 microseconds).
  • Supports standard G-code commands for direct path programming.
  • Multiple feedback modes supported: UD, PD, AB, and 4AB encoder pulse inputs.
  • Hot-swapping functionality allows module exchange without interrupting system operations.

Applications

  • Multi-axis packaging machinery and cartoning lines.
  • High-speed labeling, sorting, and pick-and-place robotics.
  • Textile, printing, and paper-converting machinery.
  • Automated assembly systems and dedicated CNC machining centers.

Technical Specifications

Manufacturer Delta Electronics
Model / Part Number AH10PM-5A
Product Series AH Series PLCs
Module Type 6-Axis Pulse Train Motion Control Module
Terminal Block Type HDC (Heavy Duty Connector)
Internal Power Consumption 2.7 W
Control Axes 6 Axes (Pulse Train Output)
Pulse Output Frequency 4 axes: 1 MHz max; 2 axes: 200 kHz max
Input Pulse Modes UD (Up/Down), PD (Pulse/Direction), AB, 4AB
Interpolation Modes 2 to 6 axis linear, 2-axis arc, 3-axis helical
Program Capacity 64K steps
Data Registers D = 10K words, W = 64K words
Instruction Execution Speed 0.13 microseconds (LD instruction)
Communication Interfaces 1 x Ethernet Port, 1 x Mini USB Port
Storage Options Micro SD Card Slot
Programming Support G-code, standard PLC languages
Special Features Hot-swapping support, diagnostic LEDs
Shipping Weight Approx. 2.0 kg

Installation Guidelines

  • Mount the module onto the compatible AH Series backplane, securing it tightly via the integrated guide and mounting mechanisms.
  • Ensure all field wiring to the HDC terminal block is rated for the electrical signals handled and routed securely using proper strain relief.
  • Separate low-voltage signal cables (pulse train, encoder feedback, and communication) from high-voltage AC supply and motor lines to minimize electromagnetic noise.
  • Utilize the built-in diagnostic LED status indicators on the front panel to verify proper communication and module health upon power-up.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the maximum output frequency supported by the AH10PM-5A?
The AH10PM-5A supports high-speed pulse outputs up to 1 MHz on 4 axes, and up to 200 kHz on the remaining 2 axes.
Can I program the AH10PM-5A motion control module using G-code?
Yes, the module has a built-in programming engine that natively supports G-code programming for complex multi-axis motion paths.
Does the AH10PM-5A support hot-swapping?
Yes, the AH10PM-5A is designed with a hot-swap feature, enabling replacement under power to reduce industrial process downtime.
What feedback modes are compatible with this module?
It supports UD, PD, AB, and 4AB input encoder pulse modes for flexible motor and drive feedback alignment.
