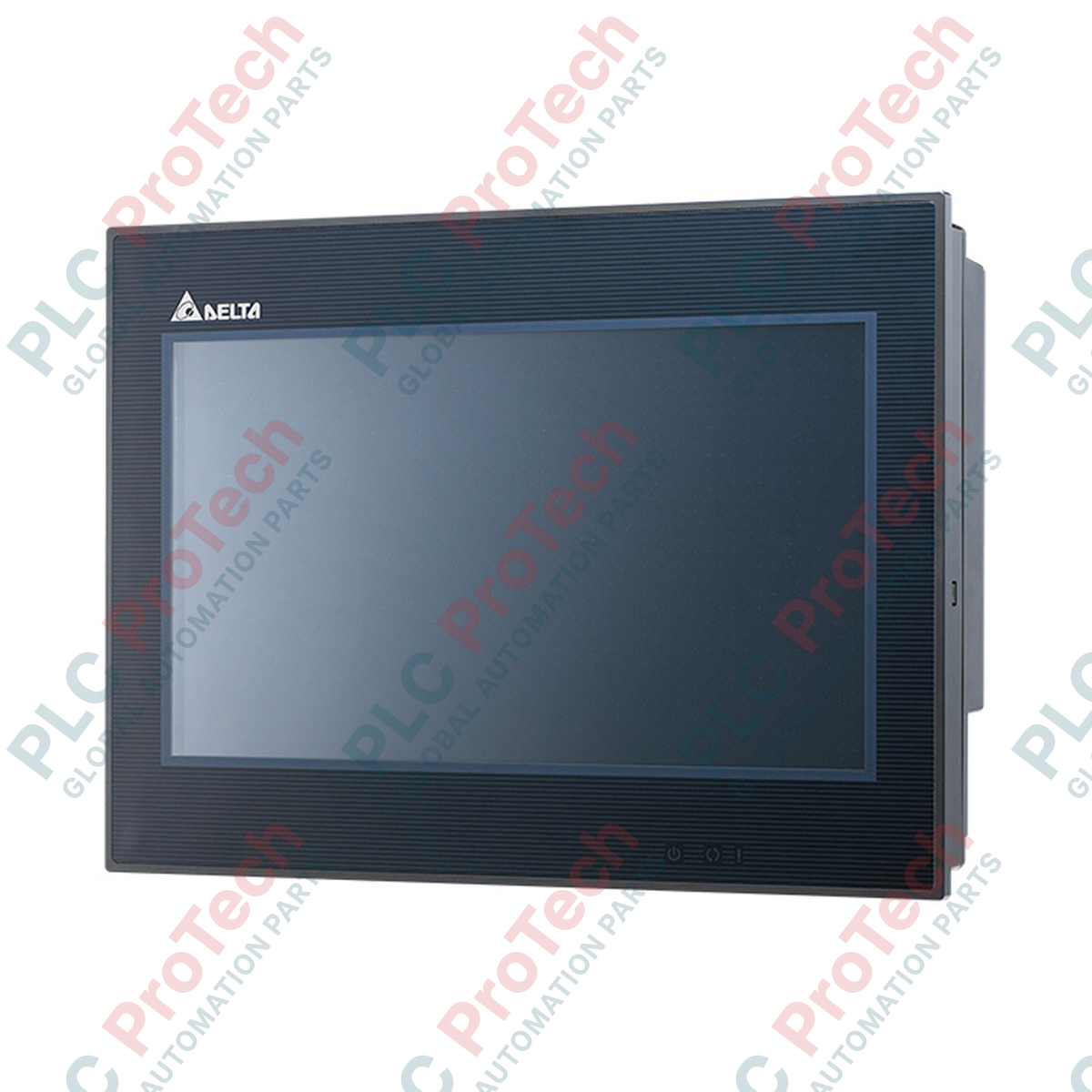

Engineered to provide high-resolution visualization and stable operator control in complex industrial environments, the Delta Electronics DOP-B10S615 is a premium 10.1-inch widescreen Touch Panel Human Machine Interface. This unit leverages a high-performance 32-bit RISC micro-controller running Delta's proprietary Real Time Operating System to deliver rapid response times, instant boot sequences, and dependable process monitoring. Equipped with a bright, widescreen TFT LCD, the DOP-B10S615 provides clear display readability for machine builders and system integrators. Integrated memory modules, including 128 MB Flash ROM and 64 MB SDRAM, ensure ample storage capacity for advanced graphic elements, multi-language recipes, and extensive alarm logs.
| Specification Parameter | Value / Rating |
|---|---|
| Manufacturer | Delta Electronics |
| Model Number | DOP-B10S615 |
| Display Size & Type | 10.1-inch Widescreen TFT LCD |
| Display Dimensions | 226 x 128.7 mm |
| Resolution | 1024 x 600 Pixels |
| Backlight Type | LED Backlight |
| Operating System | Delta Real Time OS |
| Processor (MCU) | 32-bit RISC Micro-controller |
| NOR Flash ROM | 128 MB (30MB OS / 16MB Backup / 82MB User Application) |
| SDRAM | 64 MB |
| Backup Memory | 16 MB |
| Input Power Voltage | 24 VDC (-10% to +15%) |
| Power Consumption | 12 W |
| Backup Battery | 3V Lithium Battery (CR2032 x 1) |
| Module Dimensions (W x H x D) | 272 x 200 x 61 mm |
| Net Weight | 1.52 kg |
| Shipping Weight (Calculated) | 2.50 kg |
The DOP-B10S615 belongs to Delta's legacy DOP-B widescreen series. When planning system retrofits or migrations to newer DOP-100 series panels, ensure you review physical cabinet cutout dimensions, as modern variants may utilize different bezel arrangements. Program configurations created in ScreenEditor for older DOP panels can be imported directly into Delta DOPSoft software for migration with minor adjustments to communication driver addressing.
To maximize the operational life of the internal Flash memory, avoid setting up continuous high-frequency write operations (such as sub-second logging intervals) directly to the system Flash. Instead, utilize the integrated SDHC slot or direct data registers within a connected PLC. In high-temperature electrical panels, ensure there is at least 100mm of free space around the HMI chassis to prevent thermal throttling of the 32-bit RISC processor.
Always ground the Functional Ground (FG) terminal of the power input plug to a low-impedance ground source to prevent static charge buildup and high-frequency communication interference. When powering the screen, verify that the 24VDC supply lines remain within the specified range (-10% to +15%), as voltage dips below 21.6VDC during heavy inductive motor startups can lead to unexpected HMI reboots.
Isolate and verify the de-energized state of all 24 VDC supply lines before making physical connections to the terminal block. Ensure that polarity (+ and -) is precisely aligned with the terminal layout markings on the HMI housing. Reversing power polarity or hot-swapping power terminals can lead to catastrophic damage to the internal mainboard.
