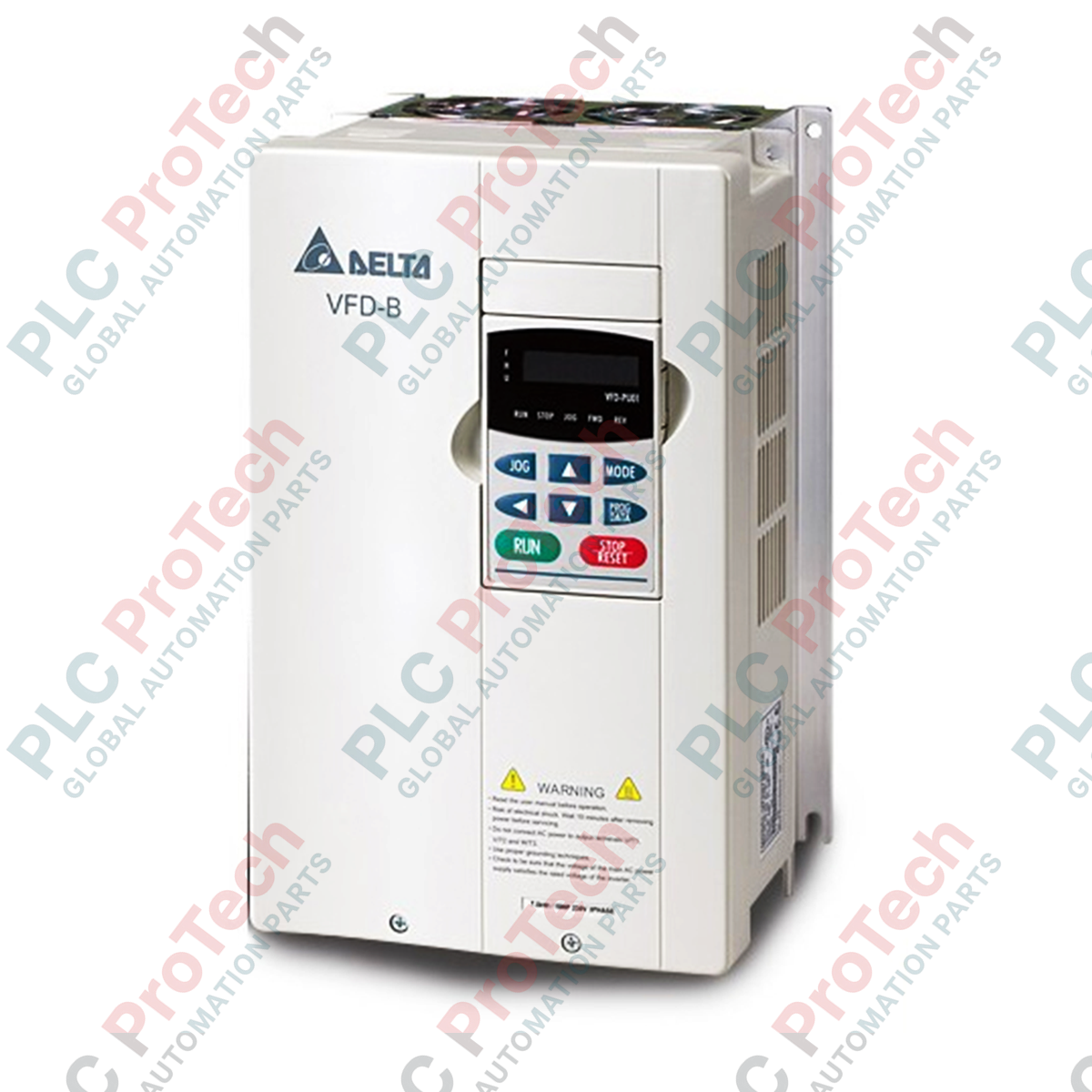

The VFD022B43B (VFD 022B43B) is a rugged, high-performance general-purpose AC drive from Delta’s classic VFD-B series. Designed for a 2.2 kW (3 HP) motor capacity with a 460 V three-phase input, this drive is a cornerstone for industrial applications requiring constant torque and high reliability. The VFD022B43B is particularly favored for heavy-duty environments like metal processing, punching machines, and elevator systems. Known for its exceptional thermal management and advanced stall prevention, this drive ensures stable operation under fluctuating load conditions, providing the precise speed and torque control necessary for high-quality industrial manufacturing.
The VFD-B series architecture is engineered for durability and precision. The "B" version designation indicates an updated hardware revision optimized for stable performance. This drive features a high frequency setting resolution of 0.01 Hz, allowing for ultra-smooth velocity adjustments. Its control logic includes sophisticated Skip Frequency settings across three zones, which protects mechanical equipment by avoiding resonance frequencies. Furthermore, the VFD022B43B incorporates an adjustable Stall Prevention Level (20% to 250%), ensuring the motor continues to operate safely even during sudden load spikes or mechanical obstructions.
| Feature | Specification |
| Model | VFD022B43B |
| Brand | Delta |
| Series | VFD-B (General Purpose / High Performance) |
| Motor Capacity | 2.2 kW / 3 HP |
| Input Voltage | Three-Phase 460 VAC (380 V to 480 V) |
| Output Frequency | 0.1 to 400 Hz |
| Frequency Resolution | 0.01 Hz |
| Overload Endurance | 150 percent of rated current for 1 minute |
| Cooling Method | Fan Cooled |
| Stall Prevention | 20 percent to 250 percent (rated current) |
| Operating Humidity | Below 90 percent RH (non-condensing) |
| Storage Temperature | -20 to 60 deg C |
| Weight | 5.5 kg (7 kg shipping weight) |
How does the Skip Frequency function protect my machine?
Every mechanical system has a natural resonance frequency. Operating at that frequency causes excessive vibration. The VFD022B43B allows you to define three "Skip Zones" where the drive will not linger, effectively jumping over those specific frequencies to prevent mechanical fatigue and noise.
What is the difference between version "A" and version "B" of this drive?
The VFD022B43B (Version B) represents a revised hardware iteration over the older "A" version. While the primary electrical ratings remain the same, Version B often includes improved component longevity and updated internal firmware for better compatibility with modern motor designs.
Can I use this drive for a constant torque application?
Yes. The VFD-B series is specifically designed for constant torque loads. It provides stable current output even at low speeds, making it much more capable than standard fan/pump drives for applications like conveyors, mixers, or extruders.
Vibration and Stall Prevention: In high-inertia applications, set the Stall Prevention Level to prevent the drive from tripping during rapid acceleration. If the motor current exceeds the set limit, the drive will automatically decrease its acceleration rate to maintain stability.
Thermal Management: The 5.5 kg frame of the VFD022B43B requires proper airflow. Since it is fan-cooled, ensure that the air intake at the bottom and the exhaust at the top are not obstructed. In dusty environments, regular inspection of the fan and heat sink is mandatory to prevent "Overheat" (OH) faults.
Electrical Grounding: To minimize electromagnetic interference, always use a four-core motor cable (three phases plus ground) and ensure the ground wire is connected directly to the drive’s PE terminal. Keep the motor cable as short as possible to reduce capacitive leakage current.
Global Express Shipping
Returns & Warranty
Manufacturer: Delta Electronics
Product No.: VFD022B43B
Country of origin:United States
Product Type: AC Drive Motors
Payment: T/T, Western Union
Weight: 5500g
Shipping port: Xiamen
Warranty: 12 months
