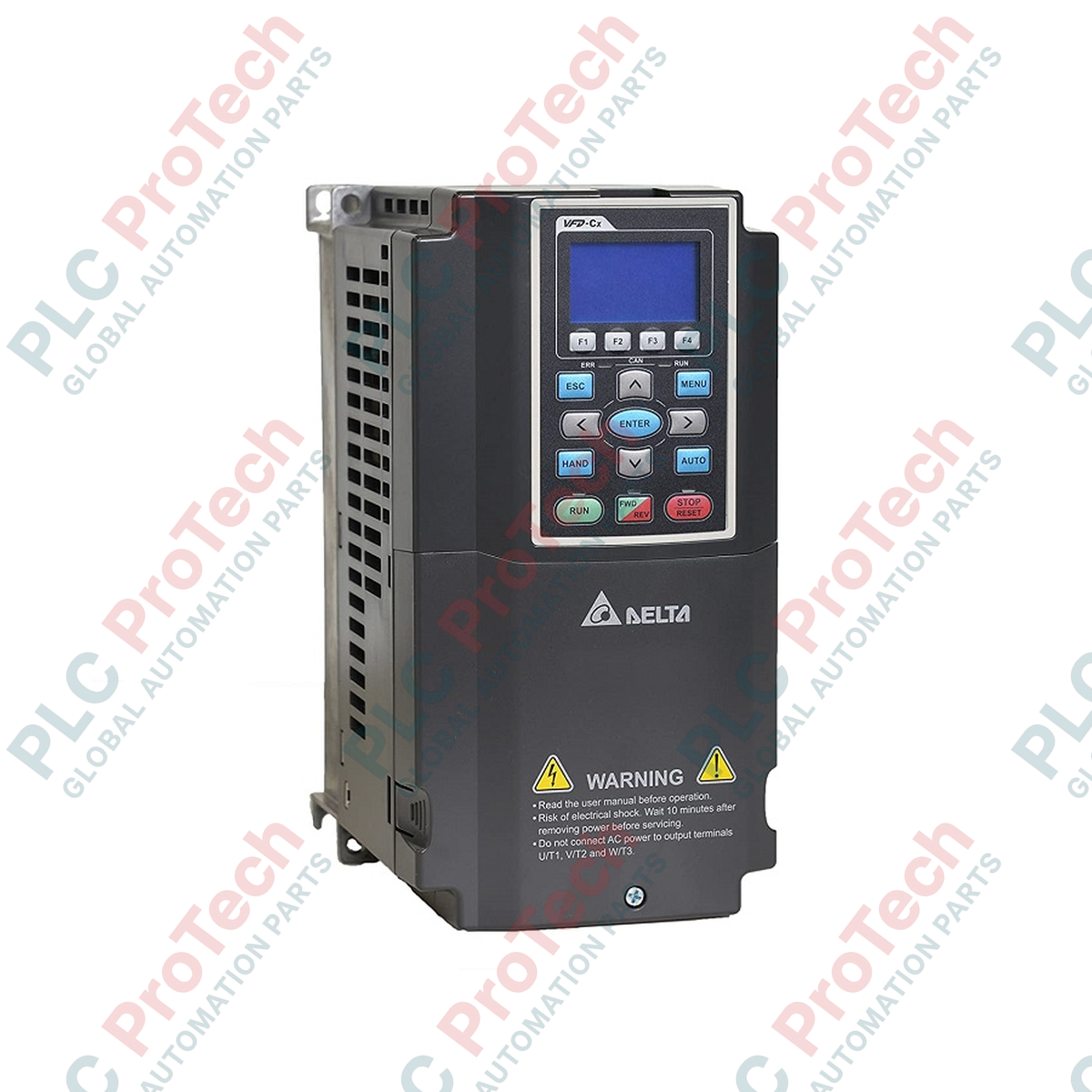

The VFD022C43A (VFD022C43A) is a high-performance variable frequency drive from Delta’s flagship C2000 series, designed for demanding industrial automation. This drive provides sophisticated field-oriented control (FOC) for optimal motor performance in heavy-duty applications such as extruders, cranes, large conveyors, and precision processing machinery. By enabling precise torque regulation and high-speed response, the C2000 series significantly enhances production efficiency, improves energy management, and reduces mechanical wear on driven components.
The VFD022C43A features dual-rating functionality, allowing it to be configured for either Normal Duty or Heavy Duty applications, providing flexibility for varied load profiles. It supports a wide output frequency range, reaching up to 599.0 Hz in Normal Duty mode, and offers an adjustable carrier frequency (up to 15 kHz) to balance the need for quiet motor operation against thermal performance. Engineered for reliability, this drive serves as a versatile solution for systems requiring robust power control and seamless integration into larger plant management networks.
| Feature | Normal Duty | Heavy Duty |
| Applicable Motor | 2.2 kW (3 HP) | 1.5 kW (2 HP) |
| Rated Output Current | 6.0 A | 5.7 A |
| Rated Output Capacity | 4.8 kVA | 4.5 kVA |
| Output Frequency | 0.00 to 599.0 Hz | 0.00 to 300.0 Hz |
| Carrier Frequency | 2 to 15 kHz | 2 to 6 kHz |
| Weight | 2.6 kg | 2.6 kg |
What is the advantage of the C2000's dual-rating capability?
The dual-rating allows you to use the same hardware for different requirements. You can utilize the full 2.2 kW capacity for variable torque loads (pumps/fans) or prioritize high-starting-torque performance for heavy-duty applications (conveyors/extruders) up to 1.5 kW.
Why is the carrier frequency adjustable?
The carrier frequency affects motor noise and drive heat. A higher frequency (up to 15 kHz) provides quieter motor operation but increases switching losses in the drive. The default setting (8 kHz for Normal Duty) provides an optimal balance for most industrial motors.
Is this drive suitable for high-speed motor applications?
Yes, the C2000 series supports output frequencies up to 599.0 Hz in Normal Duty, making it well-suited for high-speed motor control, provided the motor insulation and mechanical bearings are rated for those speeds.
Thermal Management: The VFD022C43A generates heat during operation. Maintain a vertical mounting orientation on a non-combustible surface. Ensure at least 100 mm of clearance above and below the drive to facilitate proper airflow through the internal heatsink.
EMC Protocols: Use shielded motor cables and ground the shield directly to the drive’s grounding lug using a 360-degree clamp. This is critical for preventing high-frequency interference from affecting sensitive instrumentation in the same cabinet.
Tightening Protocols: Before commissioning, verify the torque of all power terminal connections. Loose connections are the most frequent cause of terminal melting and drive faults in C2000 applications. Ensure all connections match the manufacturer's specified torque values.
