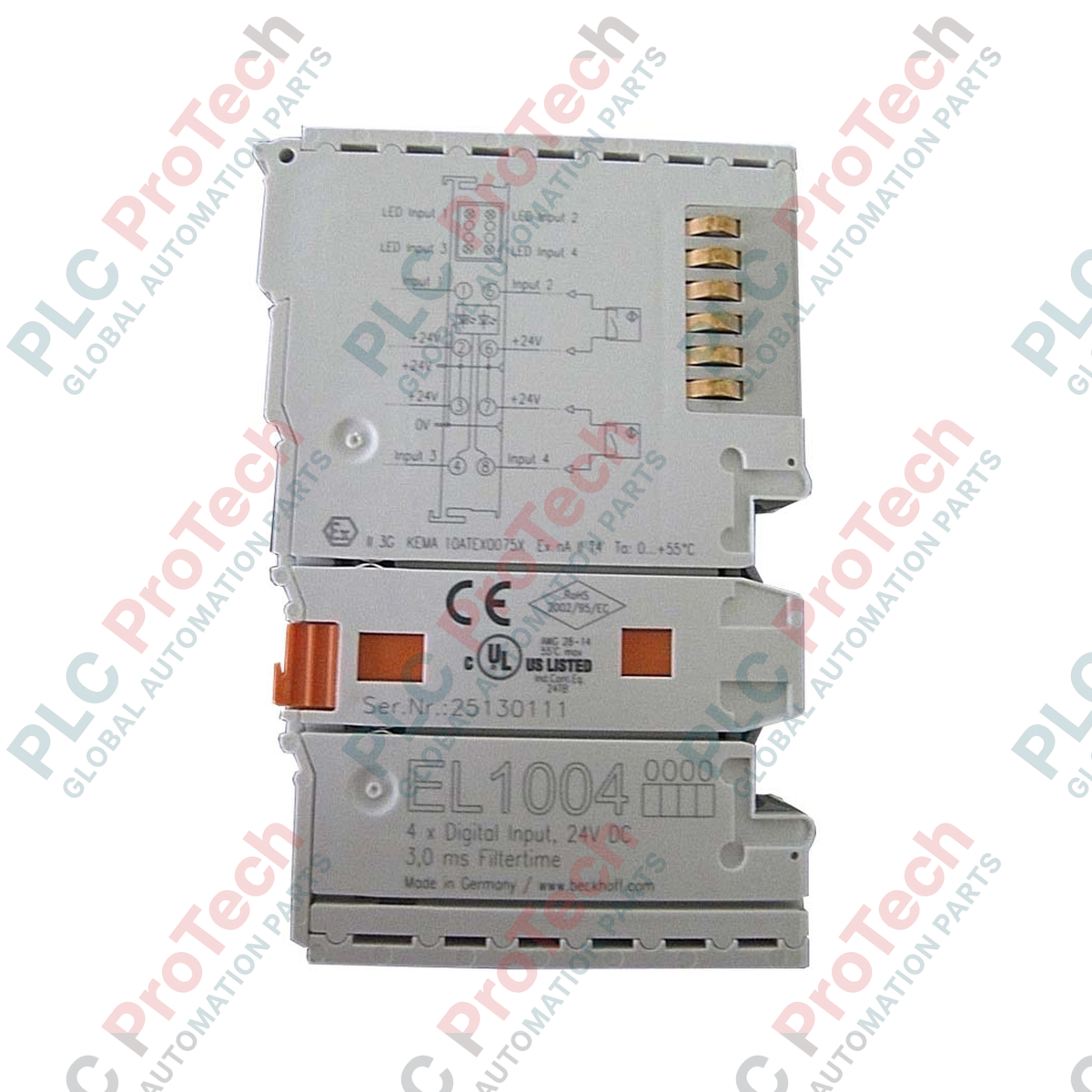

The EL1004 (EL1004) is a high-performance 4-channel digital input terminal designed for the EtherCAT I/O system. Engineered to interface seamlessly with various field sensors—including proximity switches, limit switches, and pressure sensors—the EL1004 converts binary 24 VDC control signals into a digital format for the EtherCAT master. Compliant with EN 61131-2 Type 1/3 specifications, this module is a staple in B2B industrial automation sectors like high-speed packaging, automotive assembly, and material handling. Its 2-wire connection technology allows for direct wiring of sensors with a common ground, significantly reducing wiring complexity and cabinet space requirements.
The EL1004 utilizes the high-speed E-bus communication backplane to provide real-time status updates to the controller. The inputs are designed with a hardware filter to suppress electrical noise and contact bounce, ensuring signal integrity in electromagnetically noisy environments.
As a Type 1/3 input, the module is optimized for both traditional mechanical switches (Type 1) and modern electronic sensors (Type 3) that require higher current sinking capability to maintain a stable "ON" state. The module features integrated signal LEDs for each channel, providing immediate visual diagnostics for field-side troubleshooting. With its ultra-slim 12 mm (approx. 1.5 cm including locking tabs) profile, the EL1004 offers an excellent density-to-footprint ratio for modern control cabinets.
| Attribute | Specification Details |
| Model | EL1004 |
| Brand | BECKHOFF |
| Number of Inputs | 4 Channels |
| Connection Technology | 2-wire |
| Specification | EN 61131-2, Type 1/3 |
| Nominal Voltage | 24 VDC (-15 % / +20 %) |
| Input Filter | Typically 3.0 ms |
| “0” Signal Voltage | -3 to +5 V (EN 61131-2, Type 3) |
| “1” Signal Voltage | 11 to 30 V (EN 61131-2, Type 3) |
| Current Consumption (E-bus) | Typically 90 mA |
| Electrical Isolation | 500 V (E-bus / Field Potential) |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
| Operating Temperature | -25 to +60 Celsius |
| Protection Rating | IP20 |
What is the difference between 1-wire and 2-wire connection technology in the EL1004?
The 2-wire technology in the EL1004 allows you to connect the signal wire and the return (ground) wire directly to the terminal for each channel. This is particularly useful for sensors that do not share a common ground at the mounting point, ensuring a clear reference potential for each input.
Can the EL1004 be used with NPN sensors?
The EL1004 is designed as a sinking input (Positive switching), meaning it expects a PNP sensor that switches the +24 VDC signal to the input pin. For NPN applications, a different terminal model or an interposing relay would be required.
How do I identify a faulty channel?
The terminal features status LEDs for each of the 4 channels. If a 24 VDC signal is present at the input but the corresponding LED does not illuminate, it indicates a hardware fault or a lack of power to the field-side power contacts.
Field Power Contacts: The EL1004 draws its field power from the internal power contacts. Ensure that a power feed terminal (such as an EK1100 or EL9100) is placed upstream to provide the necessary 24 VDC to the terminal segment.
Wiring Practice: Use standard industrial-grade 0.08 to 2.5 mm² wire. For high-vibration applications, utilize ferrules to prevent wire fraying and ensure a gas-tight connection within the spring-clamp terminal.
EMC Shielding: While the module complies with EN 61000-6-2, always route sensor cables away from high-power AC lines to prevent capacitive coupling and "ghost" signals on the digital inputs.
The EL1004 stands out for its reliability and compliance with global standards. By adhering to the EN 61131-2 Type 3 standard, it provides a more robust input characteristic that is less susceptible to leakage currents from electronic sensors compared to older Type 2 inputs. Its rugged polycarbonate housing and vibration resistance (conforming to EN 60068-2-6) make it ideal for mounting directly on machinery. The seamless integration into the TwinCAT software environment allows for instant "Scan and Connect" functionality, reducing commissioning time for B2B engineering projects.
Global Express Shipping
Returns & Warranty
Manufacturer: BECKHOFF
Product No.: EL1004
Country of origin:Germany
Product Type: Digital input terminal
Payment: T/T, Western Union
Weight: 2000g
Dimensions: Appro x 1.5 cm x 10.0 cm x 7 cm
Shipping port: Xiamen
Warranty: 12 months
