Description

The GE IS420ESWBH3A is an industrial unmanaged Ethernet switch designed for real-time control applications within the Mark VIe and Mark VIeS Safety control systems. As a core component of the IONet infrastructure, this device provides the deterministic, high-speed connectivity required for critical turbine control networks. Operating with a dual independent 24/28 V dc input structure that is Diode-OR'd for hardware-level power redundancy, the module ensures high system availability. Unlike variants equipped with fiber-optic uplinks, this specific model features a high-density 16-port copper configuration using standard RJ-45 interfaces, delivering seamless physical system compatibility without the complexity of optical transceivers in localized control panels.

Features

• Full operational compatibility with IEEE 802.3, 802.3u, and 802.3x automation networking standards.

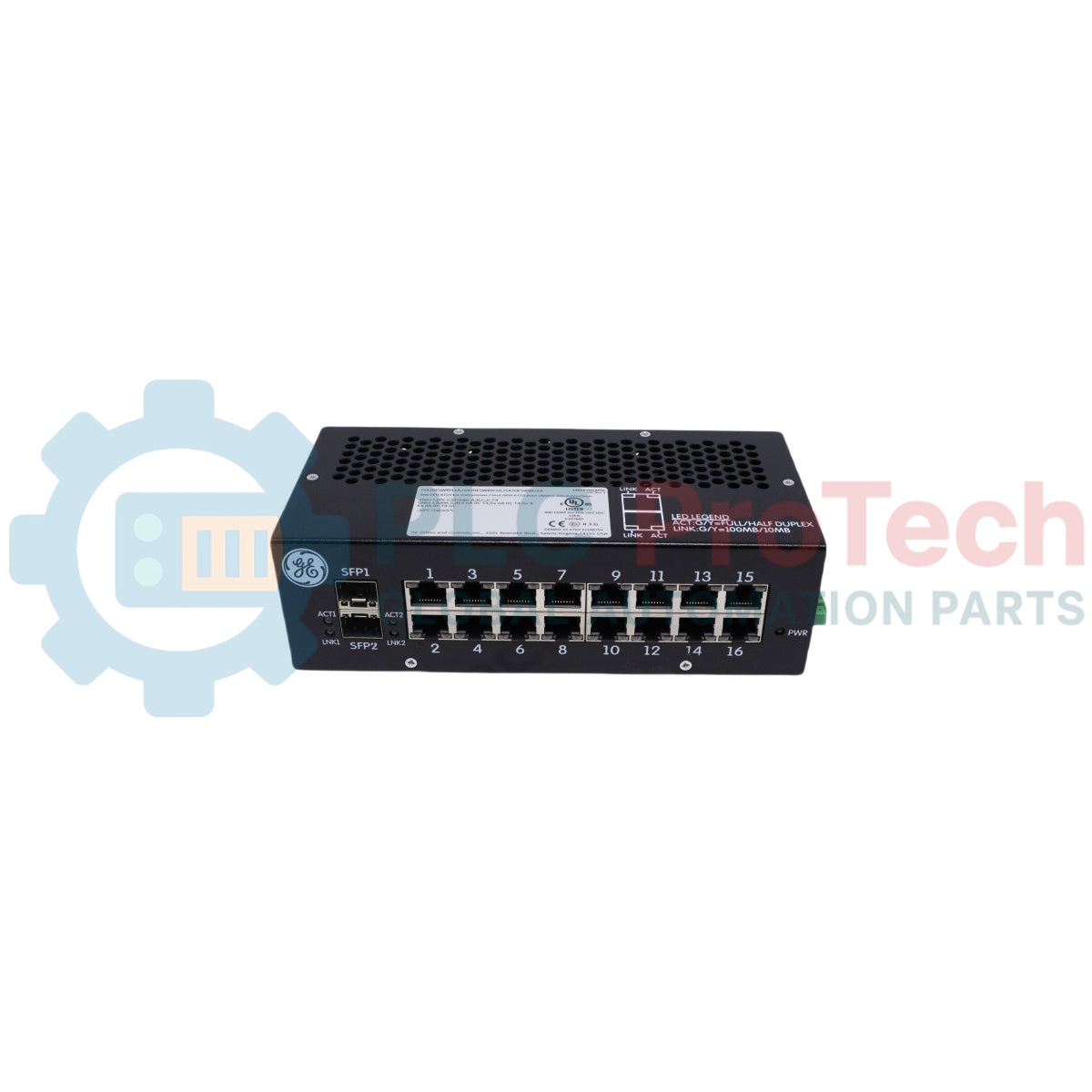

• Provides 16 auto-negotiating 10/100Base-TX copper ports equipped with robust RJ-45 connectors.
• Integrated HP-MDIX auto-sensing across all ports to eliminate internal crossover cabling dependencies.
• Dual-color port LEDs providing real-time local diagnostics for Link Presence, Activity, Duplex, and Channel Speed.
• Dedicated power diagnostic LED verifying operational voltage across the internal logic circuitry.
• High-capacity memory architecture including a minimum 256 KB packet buffer and a 4 K MAC address table.
• G3 conformal coating as standard for advanced environmental protection against airborne contaminants.
• Non-interfering safety rating allowing mixed deployment across standard and safety-instrumented system layers.

Applications

• Real-time deterministic IONet switches inside Mark VIe gas, steam, or hydro turbine control frameworks.
• Safety network distribution layers within Mark VIeS Functional Safety control enclosures.
• High-density distribution blocks for power generation balance-of-plant (BOP) unmanaged sub-networks.
• Corrosive industrial environments requiring certified Class 1, Div 2 or ATEX Zone 2 protection.

Ordering Information

Technical Specifications Table

Connections and Interfaces

Alternative Models & Compatibility

When updating network assets within the Mark VIe topology, engineers must cross-reference the fiber requirements of the downstream I/O racks. The IS420ESWBH3A contains zero fiber interfaces and cannot directly replace an IS420ESWBH1A if the existing infrastructure utilizes the 100Base-FX multi-mode LC uplink port to span long structural distances. However, if the fiber interface on an existing H1A module is unused, the H3A serves as a direct drop-in replacement with identical power layouts and physical envelope. For fields migrating from the compact 8-port ESWA form factor to the 16-port ESWB layout, ensure control cabinet layouts can support the increased height clearance (18.8 cm vs 13.8 cm).

Application Pitfalls & Engineering Notes

A common operational mistake involves combining multi-mode fiber runs with single-mode variations (H4A/H5A models) when trying to scale out copper lines with alternative ESWB units. Because the H3A completely omits optical elements, it is immune to optical signal attenuation pitfalls but remains limited to the 100-meter copper transmission ceiling defined by Cat 5e specifications. In unventilated control boxes experiencing high ambient thermal loads near the 70 degC maximum operating limit, the switch must be spaced away from adjacent high-dissipation power modules to prevent localized thermal clustering, as it relies strictly on convection passive cooling mechanisms.

Commissioning & Wiring Tips

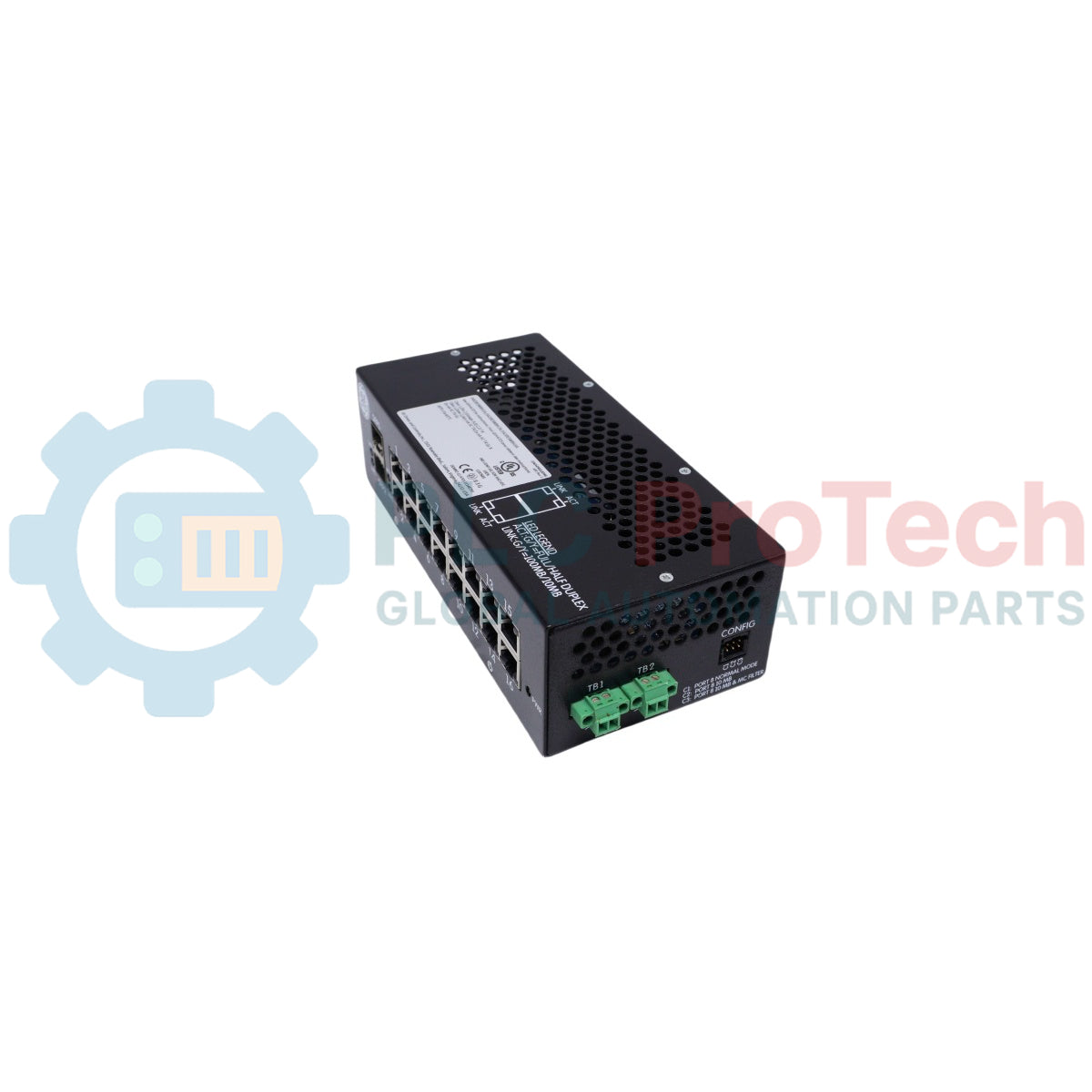

During the commissioning phase, verify that both separate terminal paths (TB1 and TB2) originate from isolated power distribution points to achieve genuine dual-source infrastructure redundancy. When attaching network cables, ensure the shield of the Cat 5e cable makes continuous low-resistance contact with the metal shroud of the RJ-45 ports. This configuration routes high-frequency electrical noise out of the signal lines and into the DIN rail ground path, preventing network packet loss caused by nearby turbine ignition systems or variable frequency drives.
