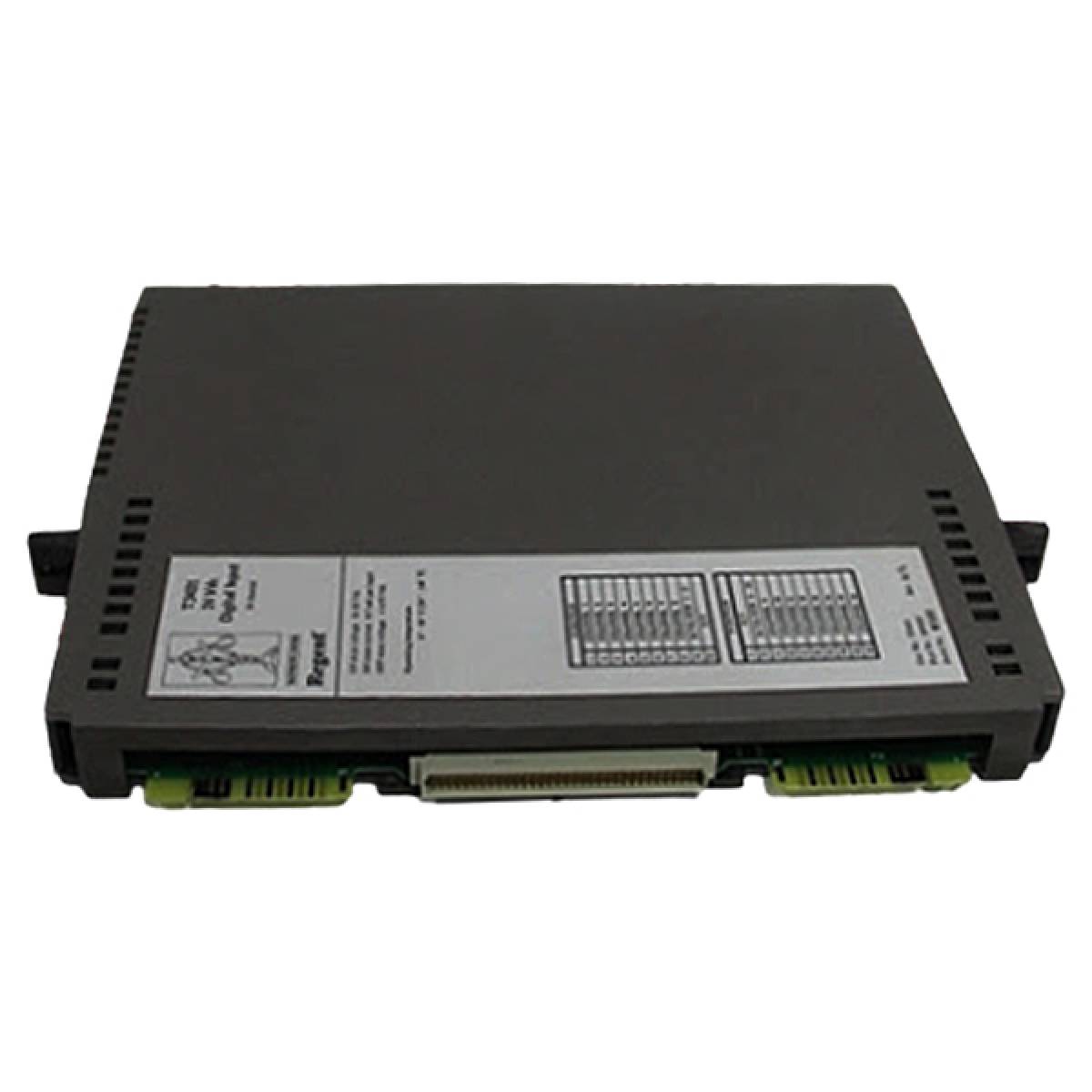

ICS Triplex T8110B Trusted TMR Processor Module

SKU T8110B

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: ICS Triplex
  • Product No.: T8110B
  • Origin United States
  • Product Type: Processor Module
  • Barcode: 8537101190
  • Payment: T/T, Western Union
  • Weight: 2.94 kg
  • Dimensions: 266 mm x 93 mm x 303 mm (H x W x D)
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

ICS Triplex Processor Modules

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

ICS Triplex T8110B Trusted TMR Processor Module

Download Open in new tab
Quantità
Call sales Contact

Product Description

Description

ICS Triplex T8110B is a Triple Modular Redundant (TMR), fault-tolerant main processor module operating in a lock-step configuration. The module serves as the primary processing component in a Trusted System, providing overall system control, monitoring facilities, and processing input and output data across a Trusted TMR Inter-Module Communications Bus. Equipped with a Hardware Implemented Fault Tolerant (HIFT) architecture and three Motorola PowerPC series processors, it performs 2-out-of-3 (2oo3) voted operations to eliminate divergent execution. The ICS Triplex T8110B features hardware-based time synchronization support via IRIG-B002 and IRIG-B122 signals, configurable serial communication links, and integrated fault historian capabilities for high-integrity applications such as emergency shutdown, fire and gas control, and turbine control.

Features

  • Triple Modular Redundant (TMR), fault-tolerant (3-2-0) operation using Hardware Implemented Fault Tolerant (HIFT) architecture
  • Three Motorola PowerPC series processors executing in lock-step synchronization with voted 2oo3 memory access
  • Time-stamped Sequence of Events (SOE) log with IRIG-B002 and IRIG-B122 time synchronization support
  • Built-in hardware diagnostic port, active/standby processor support, and fault/fail relay contacts

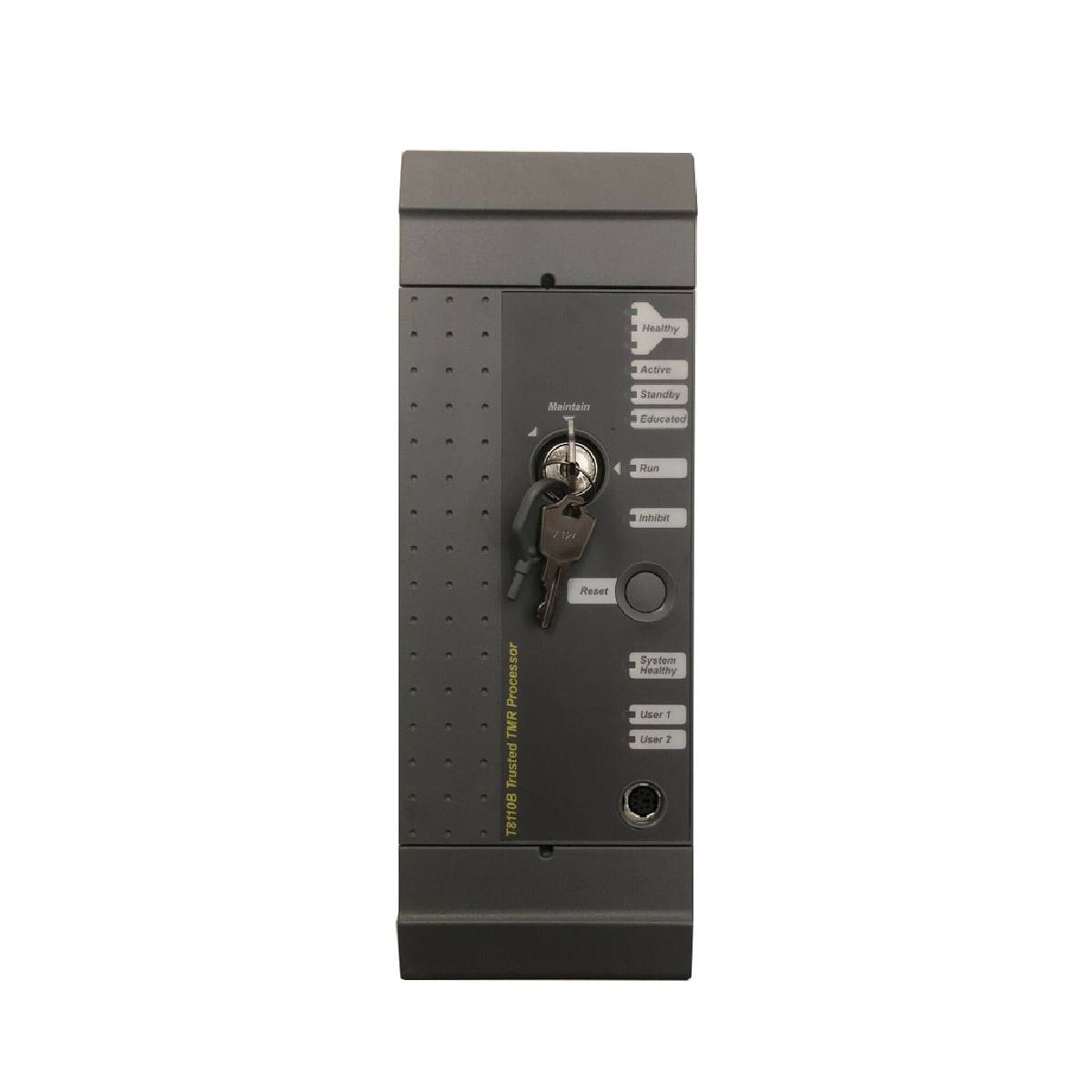

  • Front panel status LEDs indicating individual slice health, active/standby status, and system health
  • Hot-replacement capability without requiring program re-loads
  • Non-volatile memory data retention for up to 10 years

Applications

  • Emergency Shutdown (ESD) Systems
  • Fire and Gas (F&G) Protection Systems
  • Critical Burner Management Systems (BMS)
  • Turbine Control and Protection Systems
  • High-Integrity Pressure Protection Systems (HIPPS)

Technical Specifications

Parameter Specification
Manufacturer ICS Triplex
Model T8110B
Product Type Trusted TMR Processor Module
Voltage Range 20 Vdc to 32 Vdc
Maximum Load 80 W
Heat Dissipation 80 W
Chassis Compatibility T8100
Processor Clock 100 MHz
DRAM Memory 16 MB EDO 60 ns
EPROM Memory 512 kB
FLASH Memory 2 MB
NVRAM Memory 128 kB
Retained Variable Storage 4 KB
SOE Buffer Size 1000 events (transferred to CI buffer of 4000 events)
I/O Interface Triple redundant Inter-Module Bus
Operating Temperature 0 degC to 60 degC
Non-Operating Temperature -25 degC to 70 degC
Relative Humidity 10% to 95%, non-condensing
Height 266 mm
Width 93 mm
Depth 303 mm
Weight 2.94 kg

Connections/Interfaces

Connector Pin Function
PL1 Row A Pin 2 Fault relay (NC)
PL1 Row A Pin 4 Fault relay (common)
PL1 Row A Pin 6 Fault relay (NO)
PL1 Row A Pin 10 5V D
PL1 Row A Pin 12 DATA_OUT
PL1 Row A Pin 14 ENABLE
PL1 Row A Pin 16 DATA_IN
PL1 Row A Pin 18 CLK
PL1 Row A Pin 20 0V
PL1 Row A Pin 22 / 24 / 26 Chassis GND
PL1 Row A Pin 28 24 V PSU 1 LV Warning
PL1 Row A Pin 30 24 V PSU 2 LV Warning
PL1 Row A Pin 32 24 V Return
PL1 Row C Pin 2 DIAG_RTN
PL1 Row C Pin 4 DIAG_IN_1
PL1 Row C Pin 6 0 V Port 1
PL1 Row C Pin 8 Serial Port 1 B
PL1 Row C Pin 10 Serial Port 1 A
PL1 Row C Pin 12 0V Port 2
PL1 Row C Pin 14 Serial Port 2 B TX
PL1 Row C Pin 16 Serial Port 2 A TX
PL1 Row C Pin 18 Serial Port 2 B RX/TX
PL1 Row C Pin 20 Serial Port 2 A RX/TX
PL1 Row C Pin 22 0 V Port 3
PL1 Row C Pin 24 Serial Port 3 B TX
PL1 Row C Pin 26 Serial Port 3 A TX
PL1 Row C Pin 28 Serial Port 3 B RX/TX
PL1 Row C Pin 30 Serial Port 3 A RX/TX
PL1 Row C Pin 32 24 V Return
PL1 Row E Pin 2 Failed relay (NC)
PL1 Row E Pin 4 Failed relay (common)
PL1 Row E Pin 6 Failed relay (NO)
PL1 Row E Pin 10 IRIG-B122+
PL1 Row E Pin 12 IRIG-B122-
PL1 Row E Pin 18 IRIG-B002-
PL1 Row E Pin 20 IRIG-B002+
PL1 Row E Pin 22 / 24 / 26 Chassis GND
PL1 Row E Pin 28 24V PSU 1 Fail Shutdown
PL1 Row E Pin 30 24V PSU 2 Fail Shutdown
PL1 Row E Pin 32 24V Return



Installation Guidelines

  • Module Insertion: Ensure field cable assemblies are correctly located. Release ejector tabs using the release key to ensure they are fully open. Insert the module firmly into its slot until front panel LEDs illuminate, then push fully home and lock the ejector tabs.
  • ESD Precautions: Static handling precautions must be strictly observed. Do not touch exposed connector pins, and under no circumstances remove or dismantle the protective module housing.
  • Visual Inspection: Prior to installation, inspect the rear I/O connector pins for physical damage or bends. Never force a module into a slot if high resistance is encountered.
  • Grounding & Shielding: Ensure proper connection of the chassis connection signal to establish effective electromagnetic interference shield grounding on the backplane.

Compliance and Certifications

  • IEC 61508: TÜV Certified SIL 3
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What architecture is used by the module for fault tolerance?
The module utilizes a Triple Modular Redundant (TMR) lock-step architecture with Hardware Implemented Fault Tolerant (HIFT) technology and 2-out-of-3 (2oo3) voting.
Which time synchronization formats are supported by this device?
This module supports both IRIG-B002 and IRIG-B122 time synchronization signals.
What is the recommended operating temperature range for the processor?
The recommended operating temperature range is from 0 degC to 60 degC.

Reviews

More from this brand

ICS Triplex T9100 AADvance Processor Base Unit
T9100ICS Triplex T9100 AADvance Processor Base Unit
ICS Triplex T8110 Trusted TMR Processor Module
T8110ICS Triplex T8110 Trusted TMR Processor Module
GE Energy IS200TPIMG1A Mark VI Protective Interface Board
IS200TPIMG1AGE Energy IS200TPIMG1A Mark VI Protective Interface Board
ICS Triplex T8402 Trusted Dual 24 Vdc Digital Input Module - 60 Channel
T8402ICS Triplex T8402 Trusted Dual 24 Vdc Digital Input Module - 60 Channel

T8110B

Stock & lead time on request

Call
  • T8110B
  • T8110B
1 2

ICS Triplex T8110B Trusted TMR Processor Module

Only 18 item(s) left in stock

  • Manufacturer: ICS Triplex

  • Product No.: T8110B

  • Country of origin:United States

  • Product Type: Processor Module

  • Barcode: 8537101190

  • Payment: T/T, Western Union

  • Weight: 2940g

  • Dimensions: 266 mm x 93 mm x 303 mm (H x W x D)

  • Shipping port: Xiamen

  • Warranty: 12 months

Visualizza dettagli completi
Product Description
FAQ
Shipping Returns
Additional details
Reviews

Description

ICS Triplex T8110B is a Triple Modular Redundant (TMR), fault-tolerant main processor module operating in a lock-step configuration. The module serves as the primary processing component in a Trusted System, providing overall system control, monitoring facilities, and processing input and output data across a Trusted TMR Inter-Module Communications Bus. Equipped with a Hardware Implemented Fault Tolerant (HIFT) architecture and three Motorola PowerPC series processors, it performs 2-out-of-3 (2oo3) voted operations to eliminate divergent execution. The ICS Triplex T8110B features hardware-based time synchronization support via IRIG-B002 and IRIG-B122 signals, configurable serial communication links, and integrated fault historian capabilities for high-integrity applications such as emergency shutdown, fire and gas control, and turbine control.

Features

  • Triple Modular Redundant (TMR), fault-tolerant (3-2-0) operation using Hardware Implemented Fault Tolerant (HIFT) architecture
  • Three Motorola PowerPC series processors executing in lock-step synchronization with voted 2oo3 memory access
  • Time-stamped Sequence of Events (SOE) log with IRIG-B002 and IRIG-B122 time synchronization support
  • Built-in hardware diagnostic port, active/standby processor support, and fault/fail relay contacts
  • Front panel status LEDs indicating individual slice health, active/standby status, and system health
  • Hot-replacement capability without requiring program re-loads
  • Non-volatile memory data retention for up to 10 years

Applications

  • Emergency Shutdown (ESD) Systems
  • Fire and Gas (F&G) Protection Systems
  • Critical Burner Management Systems (BMS)
  • Turbine Control and Protection Systems
  • High-Integrity Pressure Protection Systems (HIPPS)

Technical Specifications

Parameter Specification
Manufacturer ICS Triplex
Model T8110B
Product Type Trusted TMR Processor Module
Voltage Range 20 Vdc to 32 Vdc
Maximum Load 80 W
Heat Dissipation 80 W
Chassis Compatibility T8100
Processor Clock 100 MHz
DRAM Memory 16 MB EDO 60 ns
EPROM Memory 512 kB
FLASH Memory 2 MB
NVRAM Memory 128 kB
Retained Variable Storage 4 KB
SOE Buffer Size 1000 events (transferred to CI buffer of 4000 events)
I/O Interface Triple redundant Inter-Module Bus
Operating Temperature 0 degC to 60 degC
Non-Operating Temperature -25 degC to 70 degC
Relative Humidity 10% to 95%, non-condensing
Height 266 mm
Width 93 mm
Depth 303 mm
Weight 2.94 kg

Connections/Interfaces

Connector Pin Function
PL1 Row A Pin 2 Fault relay (NC)
PL1 Row A Pin 4 Fault relay (common)
PL1 Row A Pin 6 Fault relay (NO)
PL1 Row A Pin 10 5V D
PL1 Row A Pin 12 DATA_OUT
PL1 Row A Pin 14 ENABLE
PL1 Row A Pin 16 DATA_IN
PL1 Row A Pin 18 CLK
PL1 Row A Pin 20 0V
PL1 Row A Pin 22 / 24 / 26 Chassis GND
PL1 Row A Pin 28 24 V PSU 1 LV Warning
PL1 Row A Pin 30 24 V PSU 2 LV Warning
PL1 Row A Pin 32 24 V Return
PL1 Row C Pin 2 DIAG_RTN
PL1 Row C Pin 4 DIAG_IN_1
PL1 Row C Pin 6 0 V Port 1
PL1 Row C Pin 8 Serial Port 1 B
PL1 Row C Pin 10 Serial Port 1 A
PL1 Row C Pin 12 0V Port 2
PL1 Row C Pin 14 Serial Port 2 B TX
PL1 Row C Pin 16 Serial Port 2 A TX
PL1 Row C Pin 18 Serial Port 2 B RX/TX
PL1 Row C Pin 20 Serial Port 2 A RX/TX
PL1 Row C Pin 22 0 V Port 3
PL1 Row C Pin 24 Serial Port 3 B TX
PL1 Row C Pin 26 Serial Port 3 A TX
PL1 Row C Pin 28 Serial Port 3 B RX/TX
PL1 Row C Pin 30 Serial Port 3 A RX/TX
PL1 Row C Pin 32 24 V Return
PL1 Row E Pin 2 Failed relay (NC)
PL1 Row E Pin 4 Failed relay (common)
PL1 Row E Pin 6 Failed relay (NO)
PL1 Row E Pin 10 IRIG-B122+
PL1 Row E Pin 12 IRIG-B122-
PL1 Row E Pin 18 IRIG-B002-
PL1 Row E Pin 20 IRIG-B002+
PL1 Row E Pin 22 / 24 / 26 Chassis GND
PL1 Row E Pin 28 24V PSU 1 Fail Shutdown
PL1 Row E Pin 30 24V PSU 2 Fail Shutdown
PL1 Row E Pin 32 24V Return



Installation Guidelines

  • Module Insertion: Ensure field cable assemblies are correctly located. Release ejector tabs using the release key to ensure they are fully open. Insert the module firmly into its slot until front panel LEDs illuminate, then push fully home and lock the ejector tabs.
  • ESD Precautions: Static handling precautions must be strictly observed. Do not touch exposed connector pins, and under no circumstances remove or dismantle the protective module housing.
  • Visual Inspection: Prior to installation, inspect the rear I/O connector pins for physical damage or bends. Never force a module into a slot if high resistance is encountered.
  • Grounding & Shielding: Ensure proper connection of the chassis connection signal to establish effective electromagnetic interference shield grounding on the backplane.

Compliance and Certifications

  • IEC 61508: TÜV Certified SIL 3

RECOMMENDED RELATED MODELS

Product Image Model Number / Title Condition Availability Action
1SAP131000R0278 PM5630-2ETH ABB 1SAP131000R0278 PM5630-2ETH AC500 Processor Module Original New In Stock View Details
Key Features:
#ICS Triplex #Processor Modules

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

ICS Triplex T8110B Trusted TMR Processor Module

Download Open in new tab

What architecture is used by the module for fault tolerance?
The module utilizes a Triple Modular Redundant (TMR) lock-step architecture with Hardware Implemented Fault Tolerant (HIFT) technology and 2-out-of-3 (2oo3) voting.

Which time synchronization formats are supported by this device?
This module supports both IRIG-B002 and IRIG-B122 time synchronization signals.

What is the recommended operating temperature range for the processor?
The recommended operating temperature range is from 0 degC to 60 degC.
