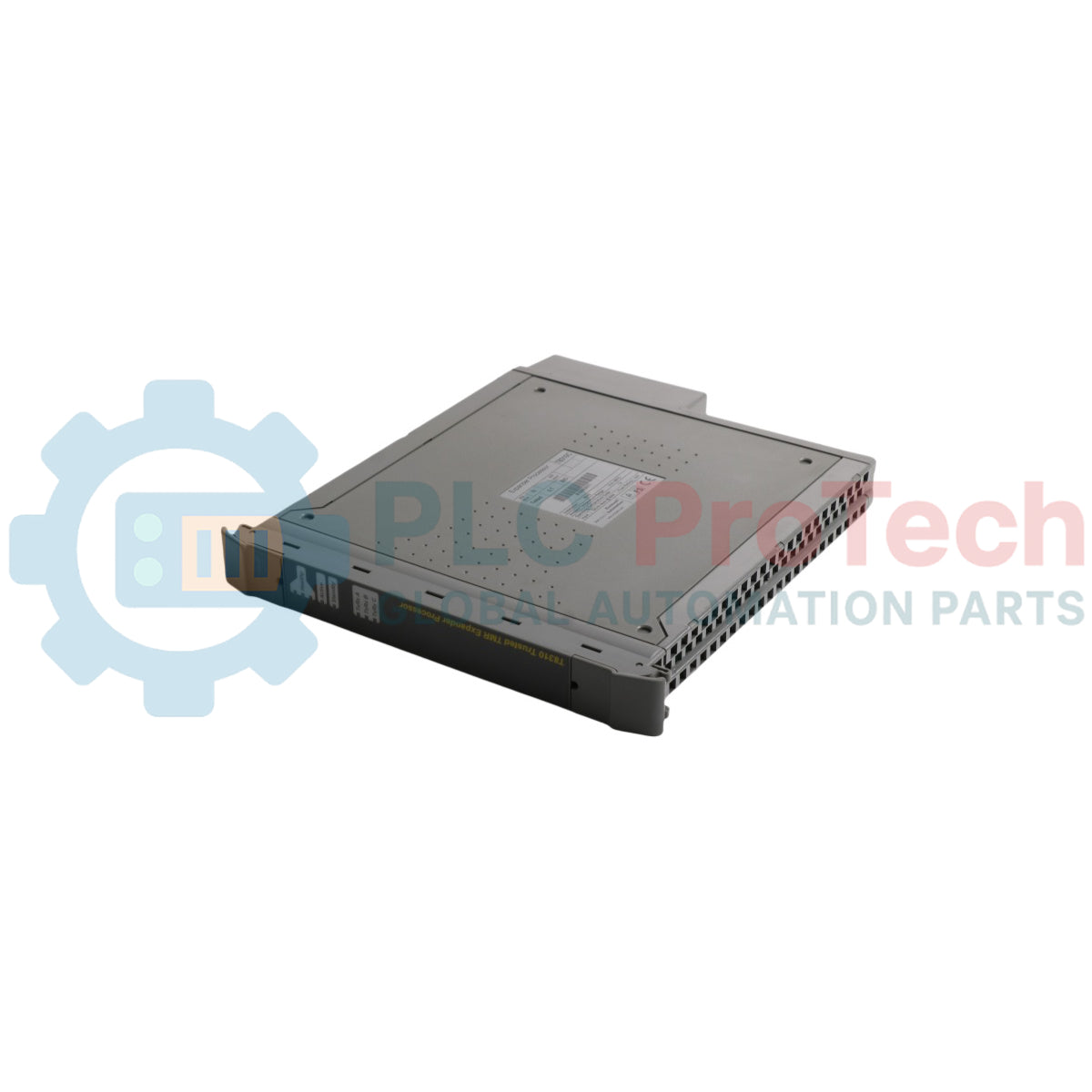

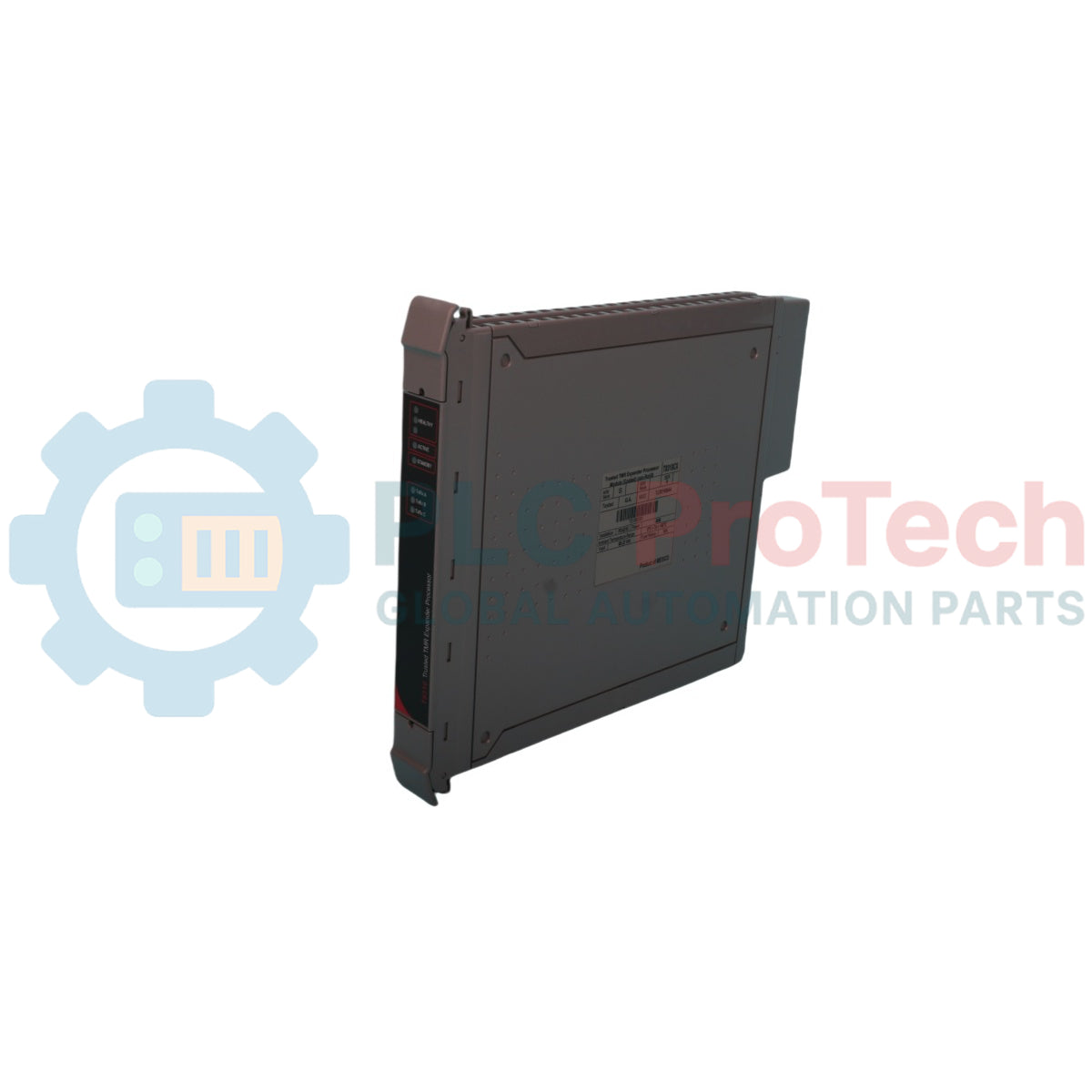

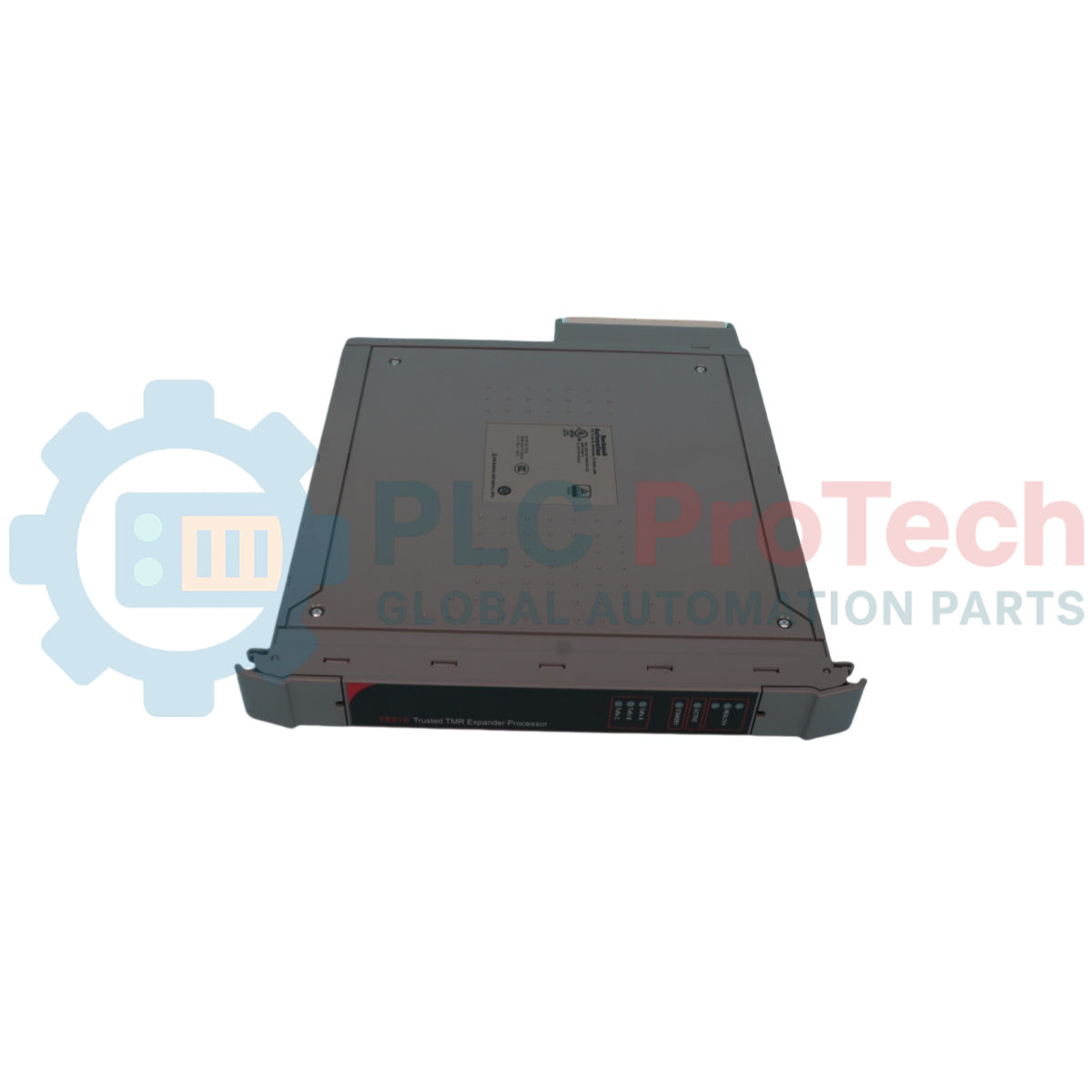

ICS Triplex T8310 Expander Processor Module

SKU T8310

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: ICS Triplex
  • Product No.: T8310
  • Origin United States
  • Product Type: Trusted Expander Processor
  • Barcode: 8537101190
  • Payment: T/T, Western Union
  • Weight: 1.33 kg
  • Dimensions: 31 mm x 266 mm x 303 mm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

ICS Triplex Processor Modules

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

ICS Triplex T8310 Expander Processor Module

Download Open in new tab
Quantità
Call sales Contact

Product Description

Description

The T8310 is an expander processor module designed for use within the ICS Triplex Trusted Triple Modular Redundant (TMR) fault tolerant programmable controller system. The device acts as the main processing and interface link between an expander chassis and the main controller chassis. Utilizing a Hardware Implemented Fault Tolerance (HIFT) TMR architecture with three distinct fault containment regions (FCR), the module provides high-speed, continuous 250 Mbps communications via dedicated link cabling or fiber optic interface units. It supports dual redundant 24 Vdc power inputs from the expander chassis backplane and features built-in 2oo3 voting and diagnostic routines to maintain continuous system operation without performance degradation.

Features

  • Triple Modular Redundant (TMR) architecture with Hardware Implemented Fault Tolerance (HIFT)
  • Supports 250 Mbps data transfer rate over expander interface hot link cabling
  • Hot-swappable module design supporting active and standby module configurations
  • Front panel status LEDs indicating slice health, active status, standby status, and Tx/Rx activity
  • Automatic fault isolation and bumpless transfer capability

Applications

  • Emergency Shutdown Systems (ESD)
  • Fire and Gas Detection Systems (F&G)
  • Critical Process Control and Safety Instrumented Systems (SIS)
  • Turbomachinery and Burner Management Systems (BMS)

Technical Specifications

Parameter Specification
System Compatibility ICS Triplex Trusted System
Chassis Location Expander Chassis (Slots 13 and 14)
Power Requirements Dual redundant +24 Vdc (via backplane)
Data Transfer Rate 250 Mbps
Operating Temperature -5 degC to +60 degC
Non-Operating Temperature (Packed) -40 degC to +100 degC
Non-Operating Temperature (Unpacked) -25 degC to +70 degC
Relative Humidity 5% to 95%, non-condensing
Vibration / Shock 1g sinusoidal sweep, 57 Hz to 150 Hz
Heat Dissipation 40 W
Weight 1.33 kg (2.93 lbs)

Installation Guidelines

  • Install the module exclusively into the two leftmost dedicated slots (slot positions 13 or 14) of the expander chassis.
  • Ensure ejector levers are fully disengaged before inserting the module into the chassis rail guides.
  • Press the module firmly into the backplane connector and engage both top and bottom ejector levers flush with the front faceplate to lock the interlock switches.
  • Ensure proper chassis grounding via the upper left chassis ground terminal and rear ground bar.
  • Maintain forced cooling via fan trays installed above the chassis to keep enclosure operating temperatures within specifications.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the primary function of the expander processor module?
The module resides in an expander chassis to manage high-speed communications and interface field I/O data with the main controller chassis.
Does the module support hot swapping during operation?
Yes, the module supports hot replacement under power without disrupting system operation or degrading performance.
What chassis slots are designated for this module?
The module must be installed in the two leftmost slots (positions 13 and 14) of a Trusted expander chassis.
