Description

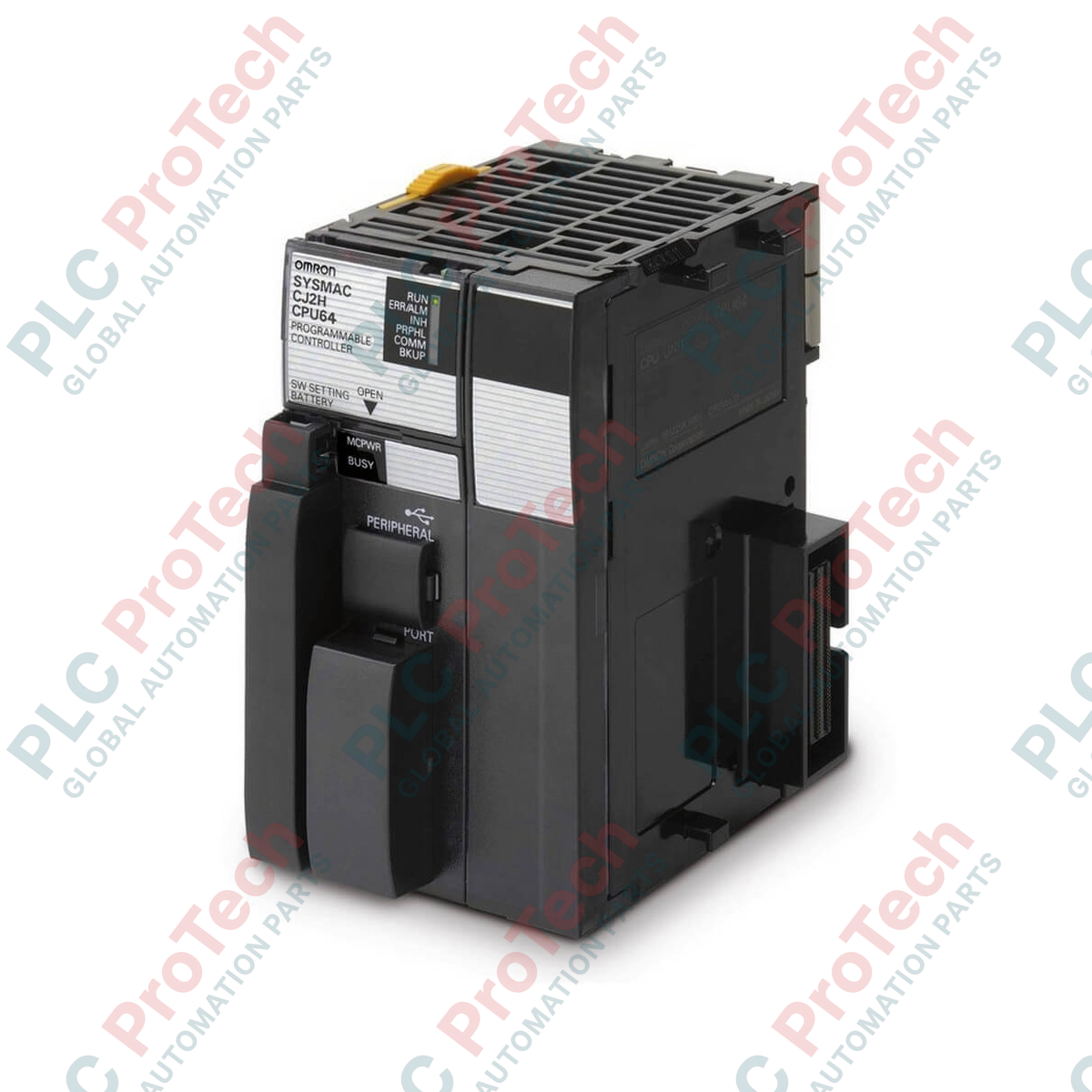

Engineered for high-speed machine control and complex system coordination, the Omron CJ2H-CPU64 central processing unit serves as a high-performance core for CJ2 Family programmable logic controller architectures. This module delivers exceptional instruction execution times, making it highly effective for high-precision motion synchronization and multi-axis positioning. With a user program capacity of 50K steps and support for advanced function blocks, the CJ2H-CPU64 simplifies modular software engineering while maintaining optimal execution efficiency across distributed system topologies.

Features

• Executes basic instructions in as little as 0.016 us and special instructions in 0.048 us.
• Provides a robust user program capacity of 50K steps.
• Manages up to 2560 I/O bits for expansive field device integration.
• Supports up to 2048 function block definitions and 2048 instances for modular programming.
• Features an integrated memory card slot supporting 128 MB, 256 MB, or 512 MB capacities.
• Enables force-setting and resetting of EM Area bits across Banks 0 to 3 hex.

Applications

• High-speed packaging and labeling machinery
• Multi-axis pick-and-place assembly systems
• Semiconductor manufacturing and processing equipment
• Material handling systems and automated warehousing conveyors
• Water and wastewater municipal treatment processes

Technical Specifications

Connections and Interfaces

Installation Guidelines

• Install the CPU module inside an enclosed, IP-rated industrial control panel shielding the unit from conductive contaminants.
• Ensure grounding resistance is strictly maintained at less than 100 ohms using a dedicated ground line.
• Always turn off the system power supplies before mounting, removing, or wiring the controller module.
• Leave sufficient ventilation clearance around the unit's cooling vents to maintain thermal stability.
