Description

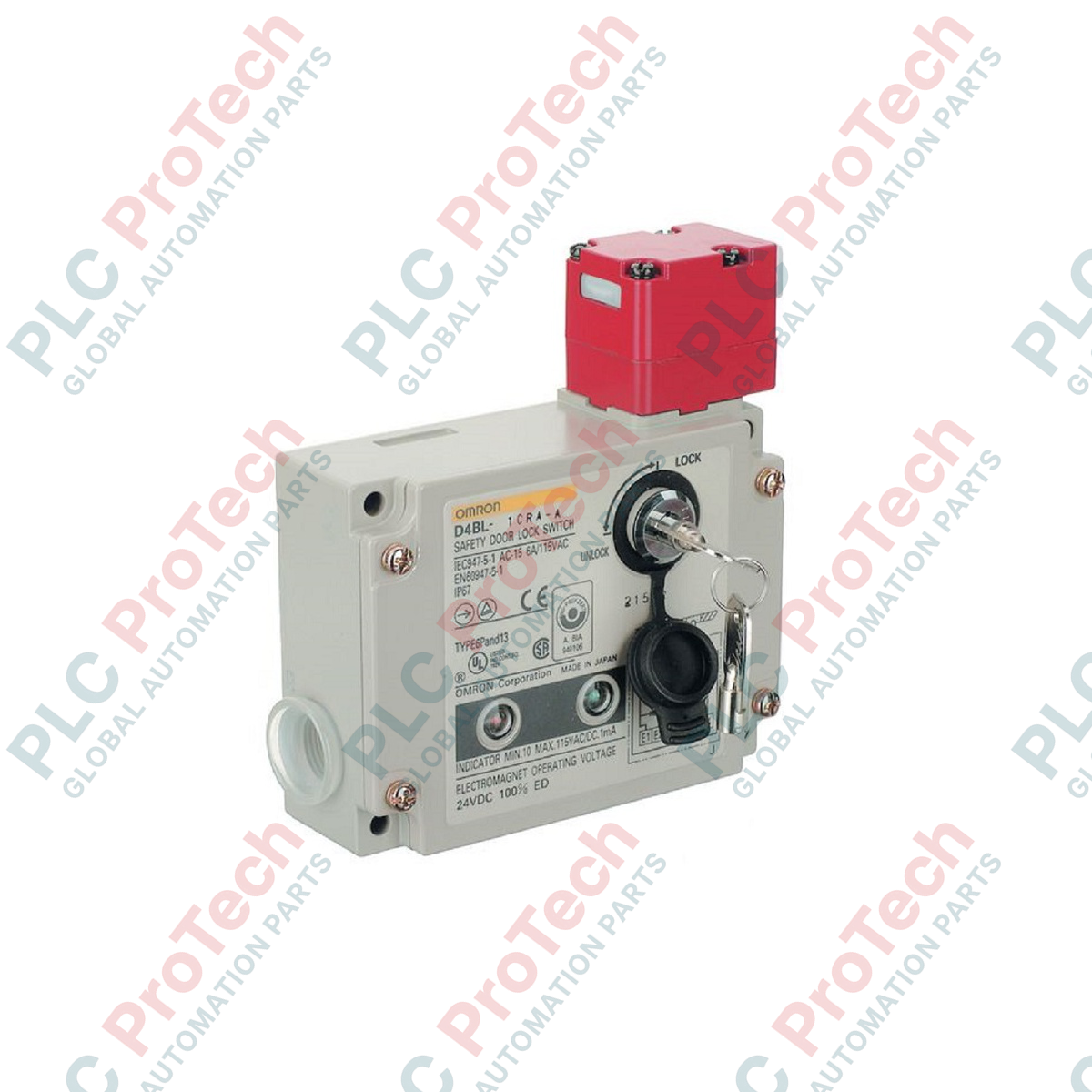

Engineered for robust mechanical interlocking of industrial machine guards and safety doors, the Omron D4BL-1CRA provides heavy-duty physical containment of hazards until safe operating conditions are met. This model features a highly secure mechanical lock combined with a 24 VDC solenoid-activated release, ensuring that access panels remain locked even during sudden power loss. With its rugged die-cast aluminum housing and an IP67 environmental protection rating, the device is optimized for reliable operations under demanding factory conditions.

Features

• Dual-Channel Detection: Equipped with an independent door open/closed detection switch and lock monitor switch contacts for complete safety loop feedback.
• Four-Position Adjustable Head: Head mounting direction can be rotated in four orientations (ships with right-side mounting) to accommodate diverse machine layouts.
• Robust Locking Force: High mechanical locking retention force designed to prevent accidental or forced guard entry during hazardous machine cycles.
• Die-Cast Aluminum Housing: Heavy-duty metallic construction offers excellent resistance to impact, chemical washdowns, and physical wear.
• Conduit Access: Dual PG13.5 conduit entry points simplify routing and segregation of control and solenoid power wiring.

Applications

• Robot work cells and automated assembly lines requiring controlled access.
• Heavy industrial machinery, including stamping presses, CNC enclosures, and packaging equipment.
• High-inertia machine safety guarding where run-down times require delayed entry.

Technical Specifications

Connections and Interfaces

Empirical Engineering Insights

Alternative Models & Compatibility

The D4BL series comprises mechanical-lock models (such as this D4BL-1CRA) and solenoid-lock variants. Because the mechanical-lock design relies on internal spring tension to secure the guard and requires electrical power (24 VDC) to release, it is the safest option for systems with prolonged machine run-down times. Ensure that replacement units match this physical profile, as swapping to a solenoid-lock style changes the safety-fault state logic under loss-of-power scenarios.

Application Pitfalls & Engineering Notes

To prevent premature mechanical failure, the actuator key must enter the switch head smoothly without vertical or horizontal binding. Do not use the safety switch as a physical mechanical stop for the door or gate; separate hard stops must be installed to absorb the impact of door closure. Keep the auxiliary release key stored in a secure location accessible only to authorized maintenance personnel, as its use bypasses all safety locking functions.

Commissioning & Wiring Tips

When wiring the PG13.5 conduits, use matching liquid-tight conduit fittings to maintain the IP67 integrity. Check that the terminal screws are torqued to the OEM-specified limits to prevent loose connections under high-vibration conditions. Verify that safety loop evaluation relays or safety PLCs monitor both channels to successfully detect any potential single-channel faults or short circuits.

Installation Guidelines

1. 1
   Mounting the Main Body: Securely bolt the switch body to the rigid, non-movable frame of the machinery using M5 screws. Ensure the mounting surface is flat to prevent mechanical distortion of the enclosure.
2. 2
   Aligning the Actuator Key: Mount the corresponding actuator key (sold separately) to the moving door or guard. Align the key entry angle within the specified tolerance limits to prevent mechanical wear on the switch head entrance.
3. 3
   Head Orientation Adjustment: If needed, remove the four head screws, rotate the head to the desired mounting direction (front, back, left, or right), and securely re-fasten the screws.
4. 4
   Conduit and Wire Termination: Run multi-core safety cabling through the PG13.5 conduit openings. Use insulated crimp terminals on the wire ends, torque all internal connection terminals, and hand-tighten the cover screws to maintain environmental seals.
