Siemens 6AV3607-7JC20-1AQ0 SIMATIC HMI OP7 Operator Panel

SKU 6AV3607-7JC20-1AQ0

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6AV3607-7JC20-1AQ0
Origin Germany
Product Type: Operator Panels
Barcode: 85371091
Payment: T/T, Western Union
Weight: 1.36 kg
Dimensions: 25.70cm x 19.50cm x 8.90cm
Shipping port: Xiamen
Warranty: 12 months

Product Description

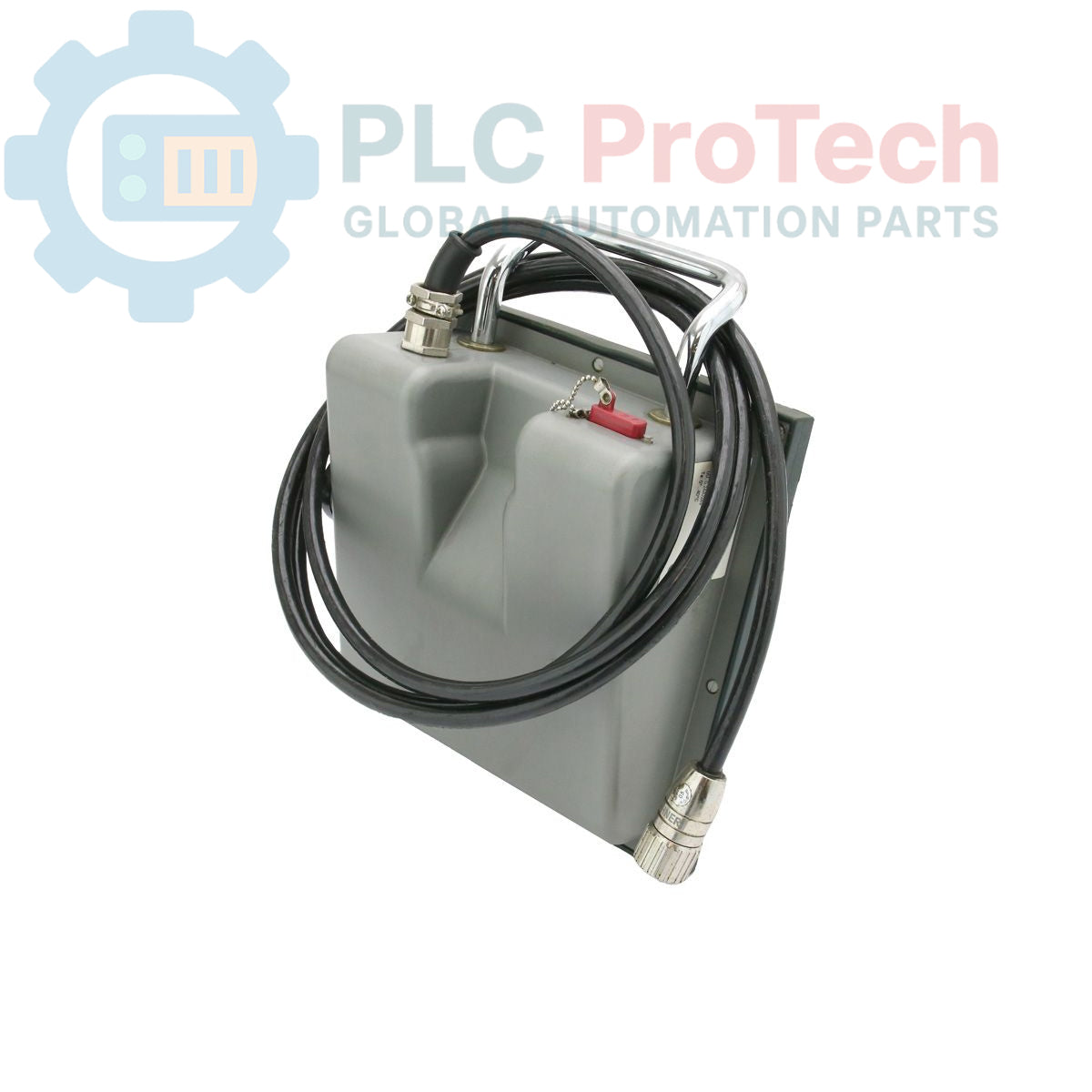

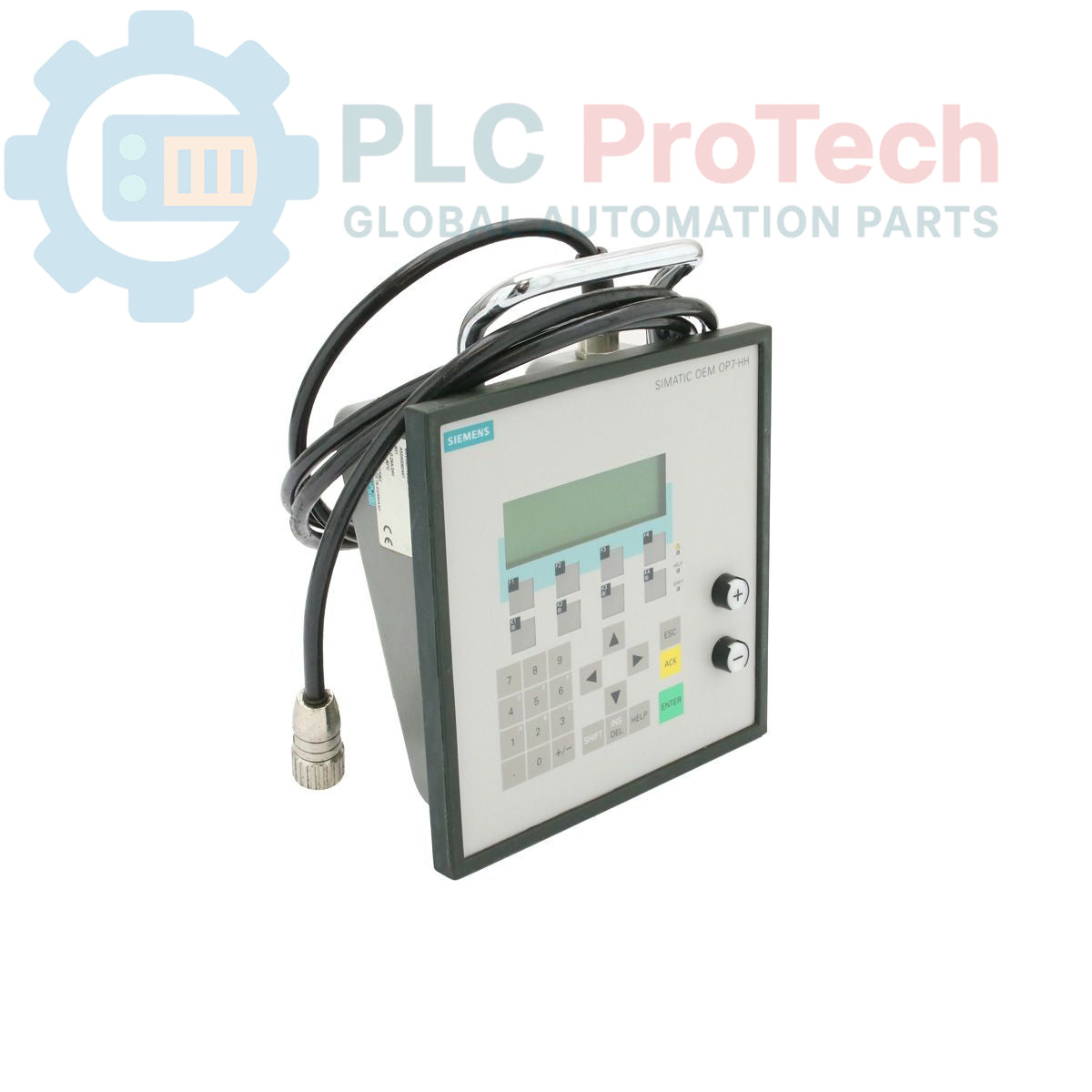

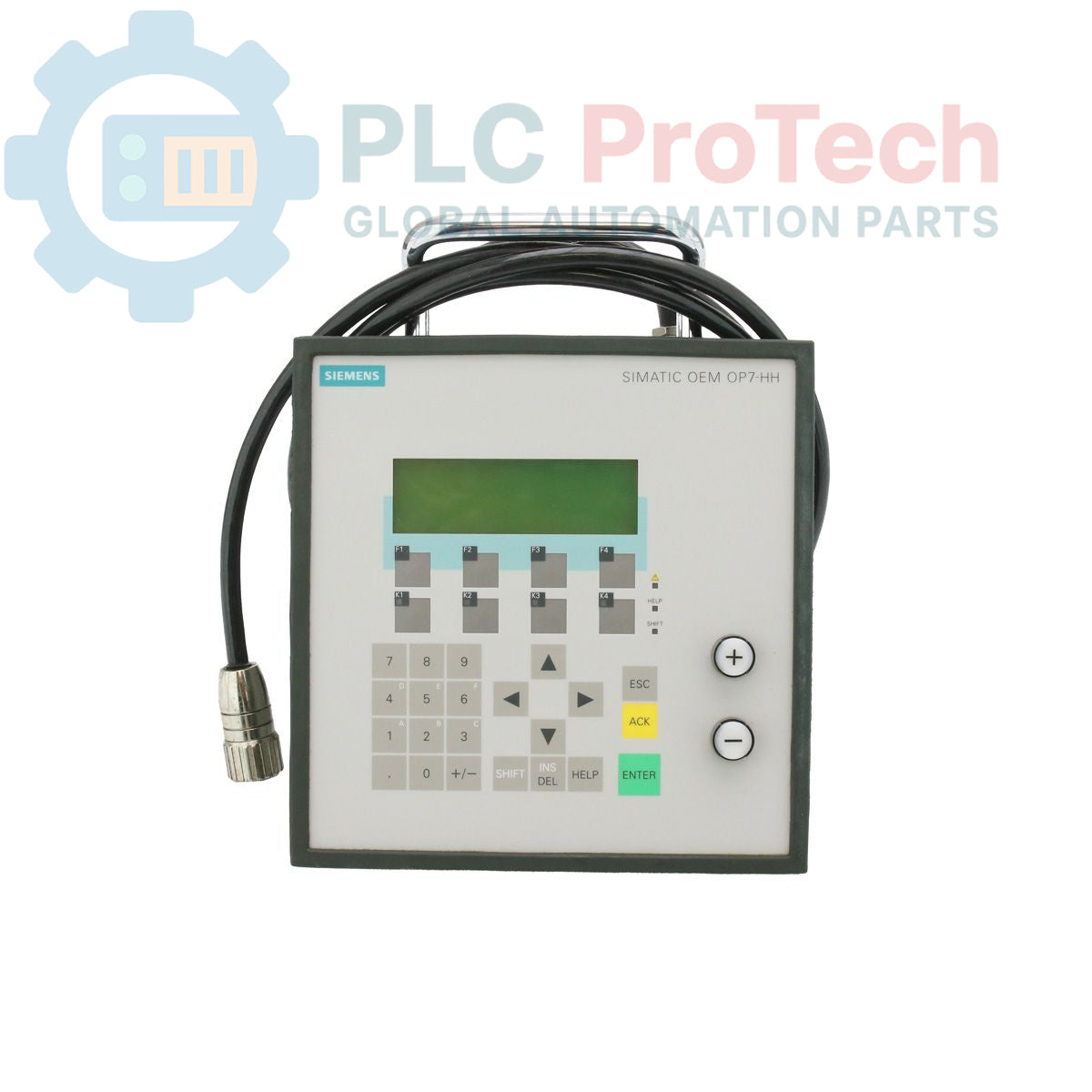

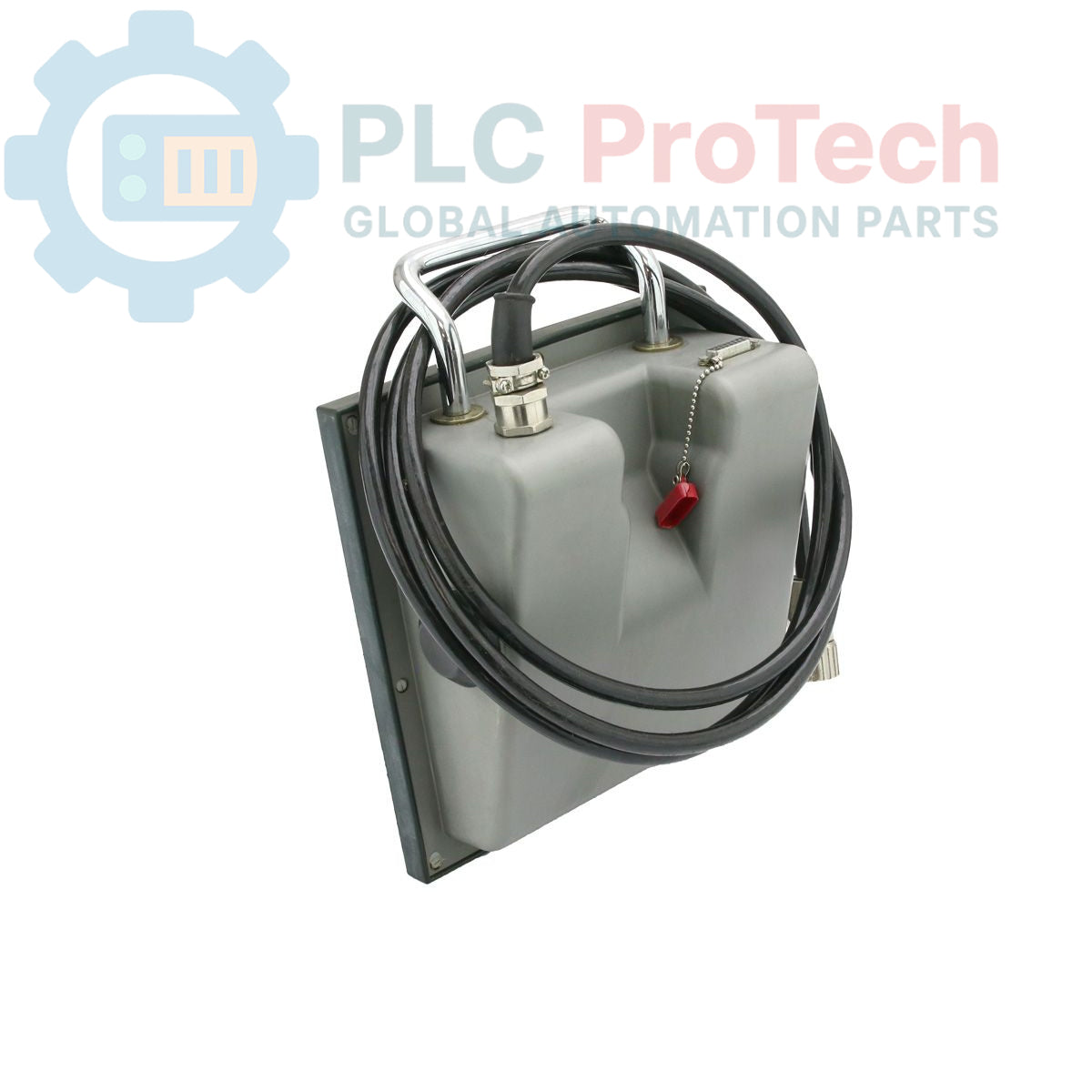

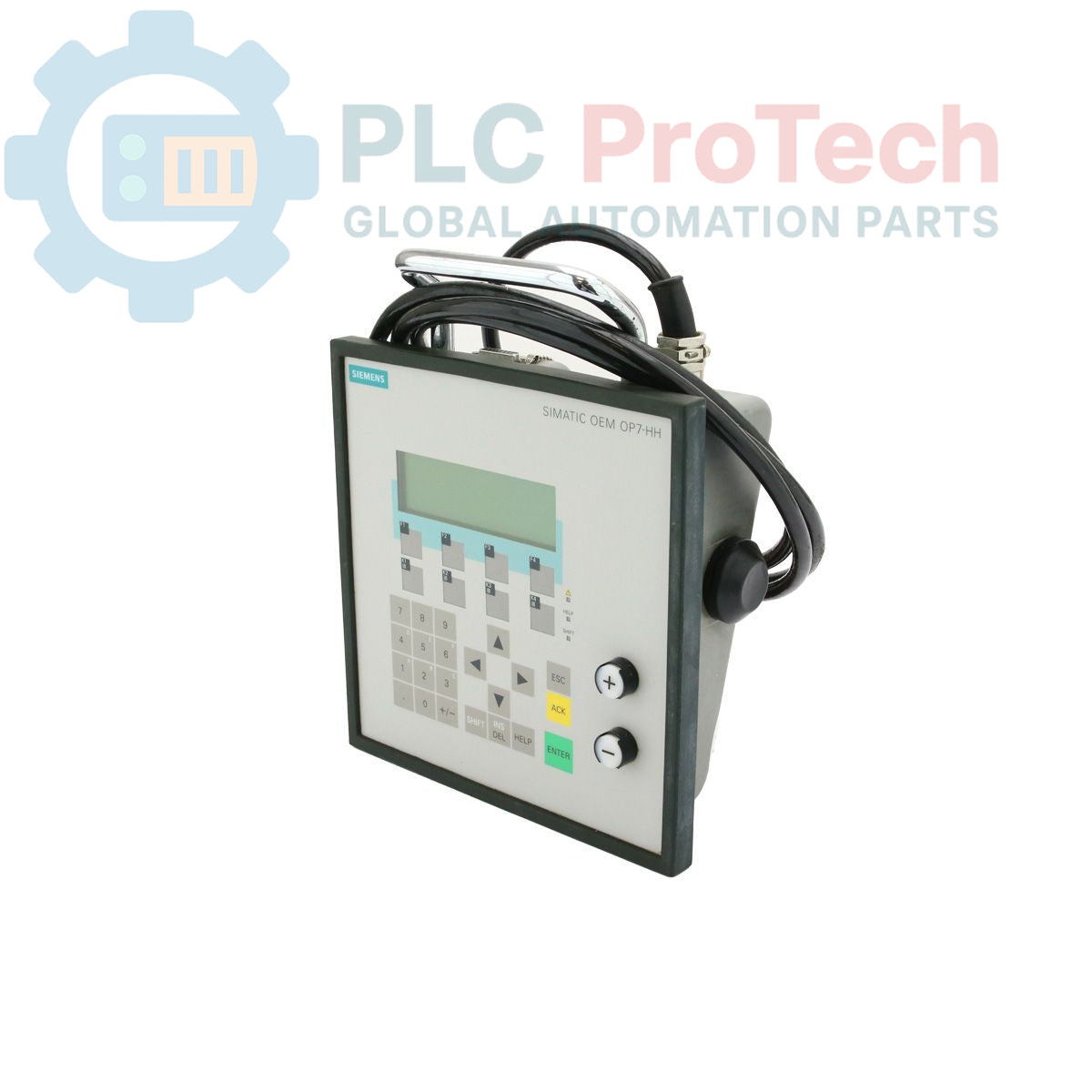

The 6AV3607-7JC20-1AQ0 is a specialized SIMATIC HMI OP7 handheld operator panel, engineered for flexible, mobile control of industrial automation systems. This ruggedized handheld housing unit comes equipped with a 2.5-meter connection cable and features two integrated pushbuttons, allowing for ergonomic manual control directly at the point of operation. Designed for integration into PROFIBUS/MPI networks, this device provides a reliable human-machine interface for machine monitoring and parameter adjustment in constrained spaces.

Features

Series: SIMATIC HMI OP7 Series
Form Factor: Handheld unit with ergonomic housing
Connectivity: Includes a 2.5m cable with an integrated Euchner connector
Control Elements: 2 physical pushbuttons for direct operator interaction
Interface: MPI communication capability
Status: Obsolete

Applications

Mobile machine diagnostic and maintenance tasks
Manual setup and positioning of motion axes
Emergency interaction points in robotic cells (Note: This specific model does not feature an Emergency-Off button)
Decentralized monitoring of production lines
Troubleshooting in confined industrial environments

Technical Specifications

Parameter	Specification
Brand	Siemens
Model	6AV3607-7JC20-1AQ0
Range	SIMATIC HMI
Subrange	OP7 series
Product Type	Operator panels
Cable Length	2.5 m
Connector Type	Euchner
Pushbuttons	2
Emergency-Off	Not included
Dimensions	25.70 x 19.50 x 8.90 cm
Weight	1.36 kg
Commodity Code	85371091
Export Control (ECCN)	N
Product Phase	Obsolete

Installation Guidelines

Connection: The Euchner connector must be securely mated to the corresponding industrial receptacle. Ensure the locking mechanism is fully engaged to prevent intermittent signal loss.
Cable Management: Use proper strain relief for the 2.5m cable to prevent damage to the internal wiring or the connector housing during routine mobile use.
Environmental Protection: While designed for industrial use, ensure the handheld housing is stored in a clean, dry location when not in use to maintain the integrity of the keypad and display.
Grounding: Ensure the machine-side receptacle is properly grounded to maintain signal integrity for the MPI interface.
Operational Safety: Since this unit lacks an emergency-off button, ensure that all critical safety stops are managed by independent, hardwired safety circuits elsewhere on the machine.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

Does the 6AV3607-7JC20-1AQ0 include an integrated emergency-off button?

No, this specific model does not feature an Emergency-Off button. Safety stop functions must be handled by separate, independent hardwired systems.

What is the length of the cable provided with this unit?

The unit is supplied with a 2.5-meter connection cable.

What type of connection interface does this handheld panel use?

It utilizes an MPI interface for communication and connects via an industrial Euchner connector.

Since this is an obsolete product, can it still be used in new systems?

As an obsolete product, it is primarily intended for maintaining existing legacy systems. For new installations, we recommend consulting current SIMATIC HMI mobile panel series.
