Description

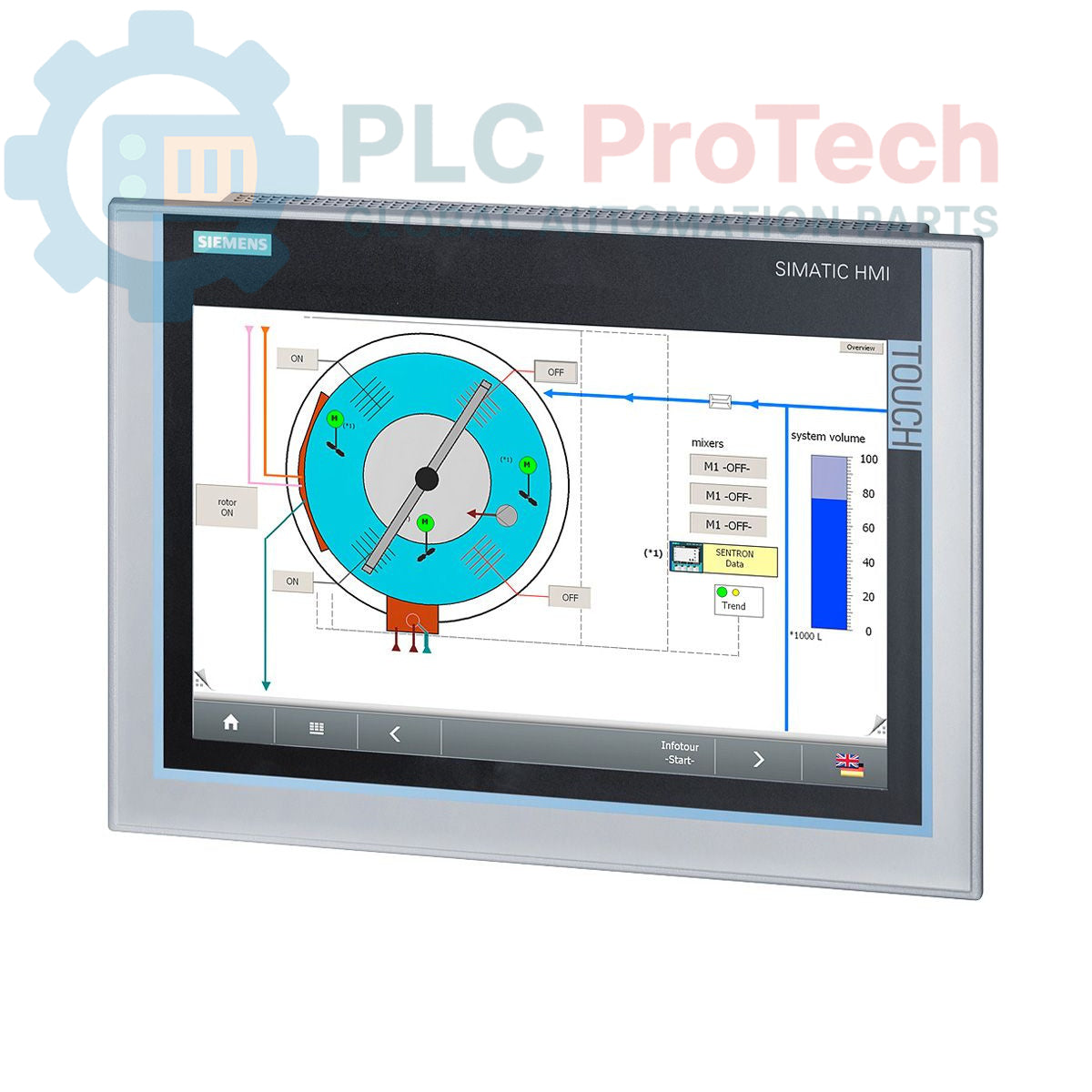

The Siemens 6AV7240-0AC07-0HA0 is a SIMATIC IPC 477D Industrial PC featuring a 12-inch touch display. This unit is equipped with a Celeron U827E processor and 4 GB of memory, making it suitable for various industrial control and visualization tasks. It includes comprehensive connectivity with four USB ports (located at the back), two Gbit Ethernet (IE/PN) interfaces, and an additional Ethernet (10/100/1000) port. For serial communication, it provides one RS232 port. The IPC operates on Windows 7 Ultimate, 64-bit, and features an 80 GB SSD (MLC) for internal mass storage, with swappable mass storage capabilities that allow replacement without requiring a drive. It is powered by a 24 V DC industrial power supply and does not include SIMATIC software.

Features

• 12-inch Touch Display
• Celeron U827E Processor
• 4 GB System Memory
• 80 GB SSD (MLC) Internal Mass Storage
• Windows 7 Ultimate, 64-bit Operating System
• Multiple Connectivity: 4x USB (back), 2x Gbit Ethernet (IE/PN), 1x Ethernet (10/100/1000), 1x RS232
• 24 V DC Industrial Power Supply
• Swappable Mass Storage (replaceable without drive)

Applications

The Siemens 6AV7240-0AC07-0HA0 SIMATIC Panel PC is designed for deployment in industrial environments requiring robust computing and visualization capabilities. Typical applications include:

• Human Machine Interface (HMI) for machine and process control
• Data acquisition and processing in manufacturing lines
• Visualization and monitoring systems
• Embedded control applications
• Industrial automation systems requiring a compact and integrated PC solution

Technical Specifications

Connections / Interfaces

• USB Ports: 4 ports, located at the back of the unit.
• Ethernet Ports: 2x Gbit Ethernet (Industrial Ethernet/PROFINET) and 1x standard Ethernet (10/100/1000 Mbps).
• Serial Port: 1x RS232 interface for serial communication.
• Power Supply: Dedicated terminals for 24 V DC industrial power input.

Installation Guidelines

1. De-energize System: Before beginning any installation or maintenance, ensure that all power to the system and associated equipment is completely disconnected and locked out according to safety procedures.
2. Mounting: The SIMATIC Panel PC is typically designed for panel mounting. Secure the unit using appropriate mounting hardware, ensuring adequate ventilation space around the device to prevent overheating.
3. Power Connection: Connect the 24 V DC industrial power supply to the designated terminals. Observe correct polarity to prevent damage. Ensure the power supply is stable and within the specified voltage range.
4. Ethernet Connections: Connect industrial Ethernet cables to the Gbit Ethernet (IE/PN) ports for network integration with PLCs, drives, or other automation components. Use the standard Ethernet port for general network connectivity if required.
5. USB and RS232 Connections: Connect peripheral devices, such as keyboards, mice, or barcode scanners, to the USB ports. Use the RS232 port for communication with serial devices.
6. Grounding: Ensure the Panel PC is properly grounded to the control cabinet's protective earth (PE) busbar to minimize electromagnetic interference and enhance safety.
7. Cable Routing: Route all cables neatly and securely, separating power cables from signal cables to reduce interference. Use cable ties and conduits where necessary.
8. Environmental Considerations: Install the unit in an environment free from excessive dust, moisture, and extreme temperatures, within the operational limits specified for industrial PCs.
9. Initial Power-Up: After all connections are verified, re-energize the system. Monitor the Panel PC for proper boot-up and functionality.
