Description

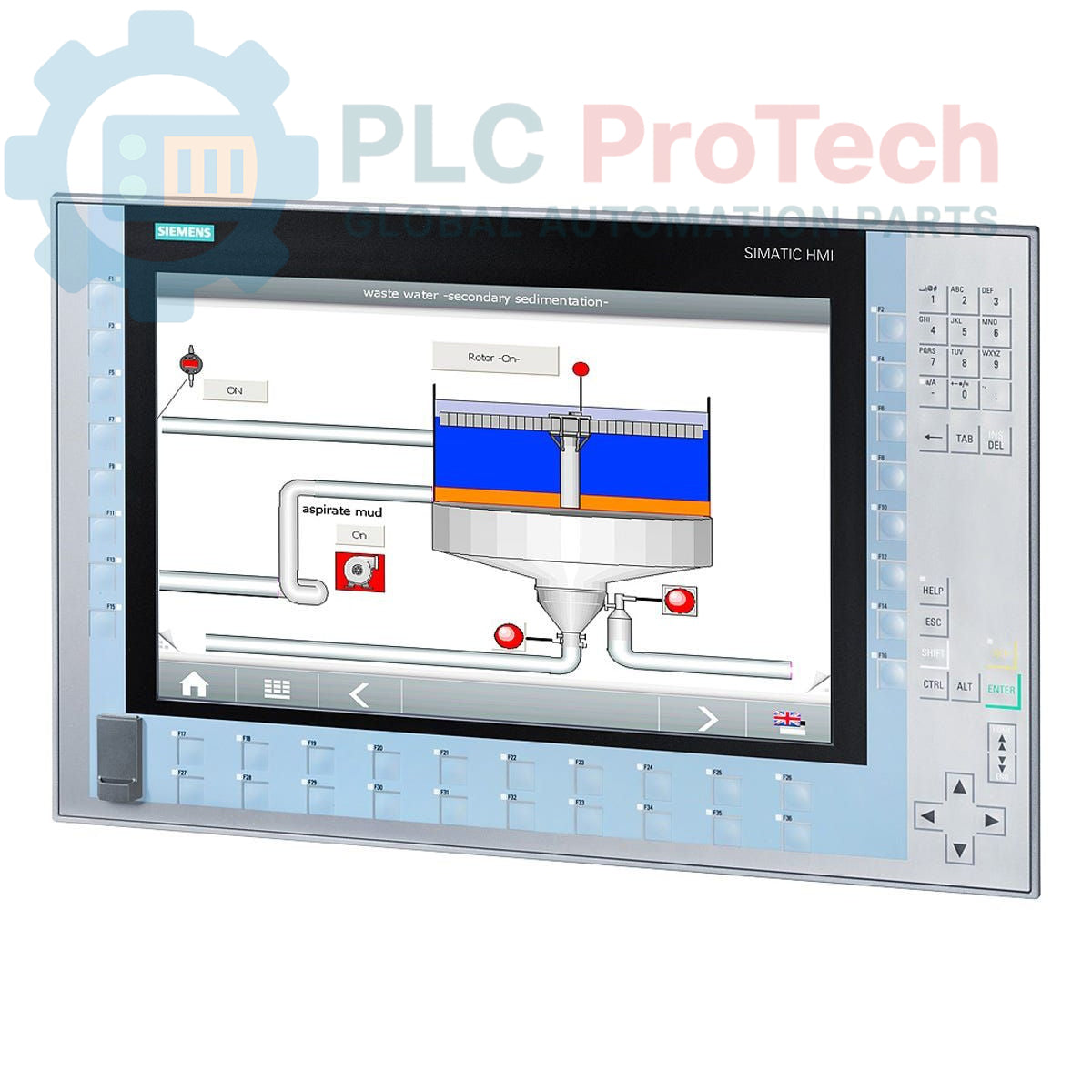

This is a Siemens SIMATIC IPC 477D Panel PC, model 6AV7240-3CC10-4AA0, designed for machine-level visualization and control tasks in industrial environments. This specific configuration features a 15-inch touch and key display, an Intel Core i3-3217UE processor, 4 GB of RAM, and an 80 GB MLC Solid-State Drive for reliable data storage. It is equipped with a versatile set of interfaces, including dual Gigabit Ethernet ports, multiple USB connections, an RS-232 serial port, and a PCIe expansion slot. The unit is powered by an integrated 110/230V AC industrial power supply and is delivered without a pre-installed operating system, providing flexibility for custom software deployment.

Features

• 15-inch display with combined touch and key input methods
• Powered by an Intel Core i3-3217UE processor
• Equipped with 4 GB of system memory
• Includes an 80 GB MLC Solid-State Drive (SSD)
• Integrated 110/230V AC industrial power supply with NAMUR compliance
• Dual Gigabit Ethernet ports for network connectivity (IE/PN)
• Five USB ports (4 rear, 1 front) for peripheral devices
• One RS-232 serial port and one PCIe expansion slot
• Supplied without an operating system or SIMATIC software

Applications

• Human-Machine Interface (HMI) for machinery control
• Process visualization and data logging
• Supervisory Control and Data Acquisition (SCADA) nodes
• Industrial data gateways and communication hubs
• Manufacturing Execution Systems (MES) terminals

Technical Specifications

Installation Guidelines

1. 1 Verify the panel cutout dimensions are correct for the IPC 477D chassis. Ensure the mounting surface is clean, flat, and free of debris to achieve a proper seal.
2. 2 Insert the Panel PC into the prepared cutout from the front. Secure the unit from the rear using all provided mounting clamps, tightening them in a cross-pattern to distribute pressure evenly.
3. 3 Connect the protective earth (PE) conductor to the designated terminal on the chassis. A low-impedance ground connection is critical for safety and noise immunity.
4. 4 Connect the 110/230V AC power supply cable to the unit's power input connector. Ensure the power source is stable and within the specified voltage and frequency range.
5. 5 Connect all required data cables (Ethernet, USB, RS-232). Use shielded cables where specified and route them separately from high-power AC lines to prevent electromagnetic interference.
