Description

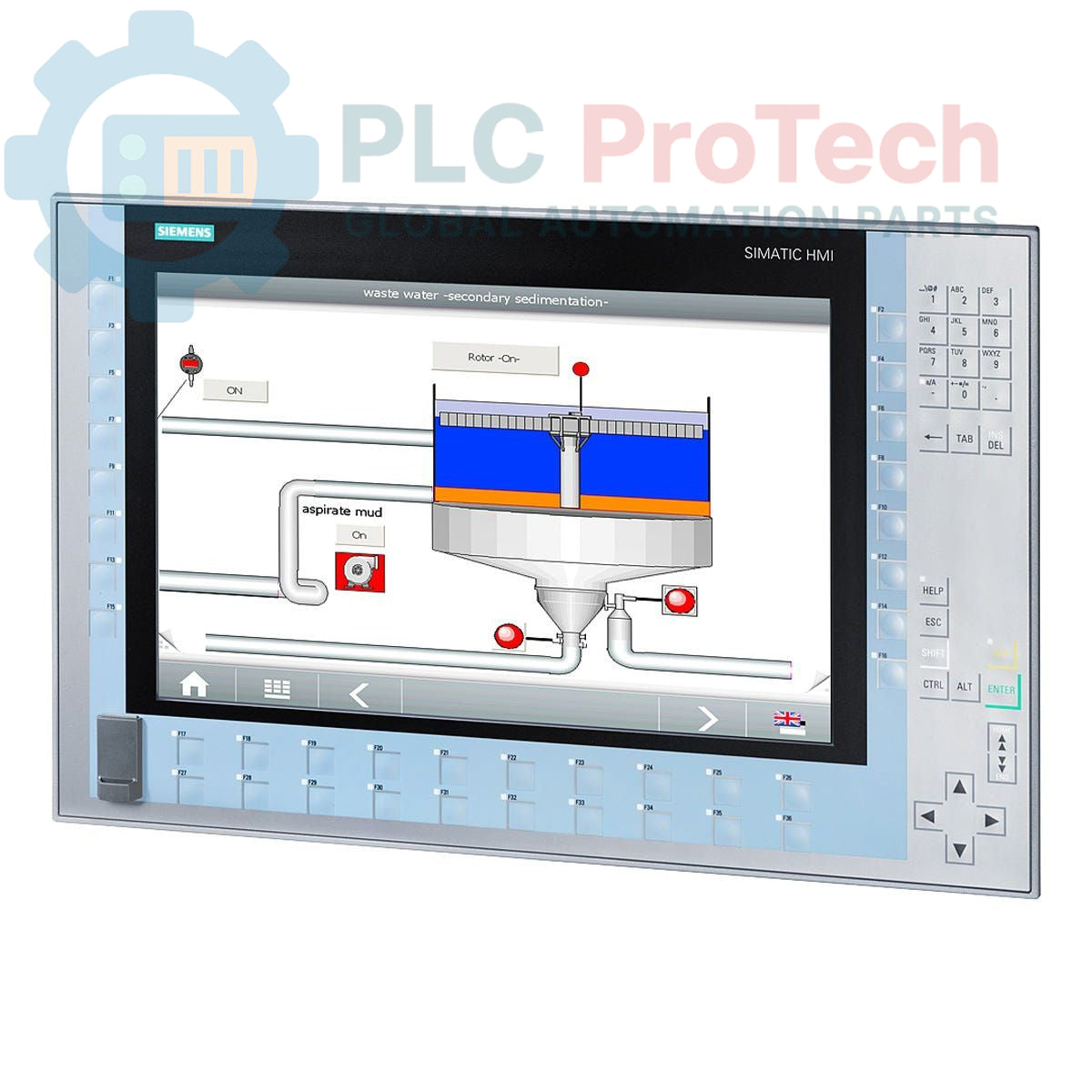

The Siemens 6AV7240-3CC04-4AE0 is a SIMATIC IPC 477D Industrial Panel PC featuring a 15-inch touch/key display. This unit is equipped with an Intel Core i3-3217UE processor, 4 GB of RAM, and is specified to support Windows Embedded Standard 7 (32-bit). It provides extensive connectivity with multiple USB ports, dual Gigabit Ethernet (IE/PN), and an RS-232 interface. Designed for industrial environments, it operates on a 24 V DC industrial power supply and includes support for WinCC RT Advanced V13 SP1 (2048 PT, including logging and recipes) and WinCC RT Advanced V15 license packages. The unit supports CFAST 16 GB for mass storage, as it is delivered without internal mass storage.

Features

• 15-inch Touch/Key Display
• Intel Core i3-3217UE Processor
• 4 GB RAM
• Multiple USB Ports (4 rear, 1 front)
• Dual Gigabit Ethernet (IE/PN)
• 1x RS-232 Serial Interface
• Supports Windows Embedded Standard 7 (32-bit)
• CFAST 16 GB Support (for OS if no internal mass storage)
• 24 V DC Industrial Power Supply
• Integrated WinCC RT Advanced V13 SP1 and V15 License Package Support

Applications

The Siemens SIMATIC IPC 477D Panel PC is suitable for a wide range of industrial automation applications, including:

• Human Machine Interface (HMI) for machine and plant operation
• Data acquisition and processing in manufacturing environments
• Process visualization and control systems
• Embedded control tasks requiring a robust industrial computing platform
• Distributed control systems and supervisory control applications

Technical Specifications

Connections / Interfaces

Installation Guidelines

1. Power Supply: Connect the unit to a stable 24 V DC industrial power supply. Ensure proper polarity and adequate current capacity for the IPC and any connected peripherals.
2. Mounting: Securely mount the panel PC in an appropriate enclosure or panel cutout, ensuring sufficient ventilation and access for cabling.
3. Grounding: Establish a reliable protective earth (PE) connection to the chassis of the IPC to ensure electrical safety and minimize electromagnetic interference.
4. Cable Routing: Route power, data, and I/O cables separately where possible to prevent signal interference. Use shielded cables for communication lines in noisy industrial environments.
5. Environmental Considerations: Ensure the operating environment adheres to the specified temperature and humidity ranges to maintain optimal performance and longevity. Protect the unit from excessive dust, moisture, and vibration.
6. Initial Setup: After physical installation and power connection, proceed with software configuration, including operating system setup (if not pre-installed) and WinCC RT Advanced application deployment.
