Description

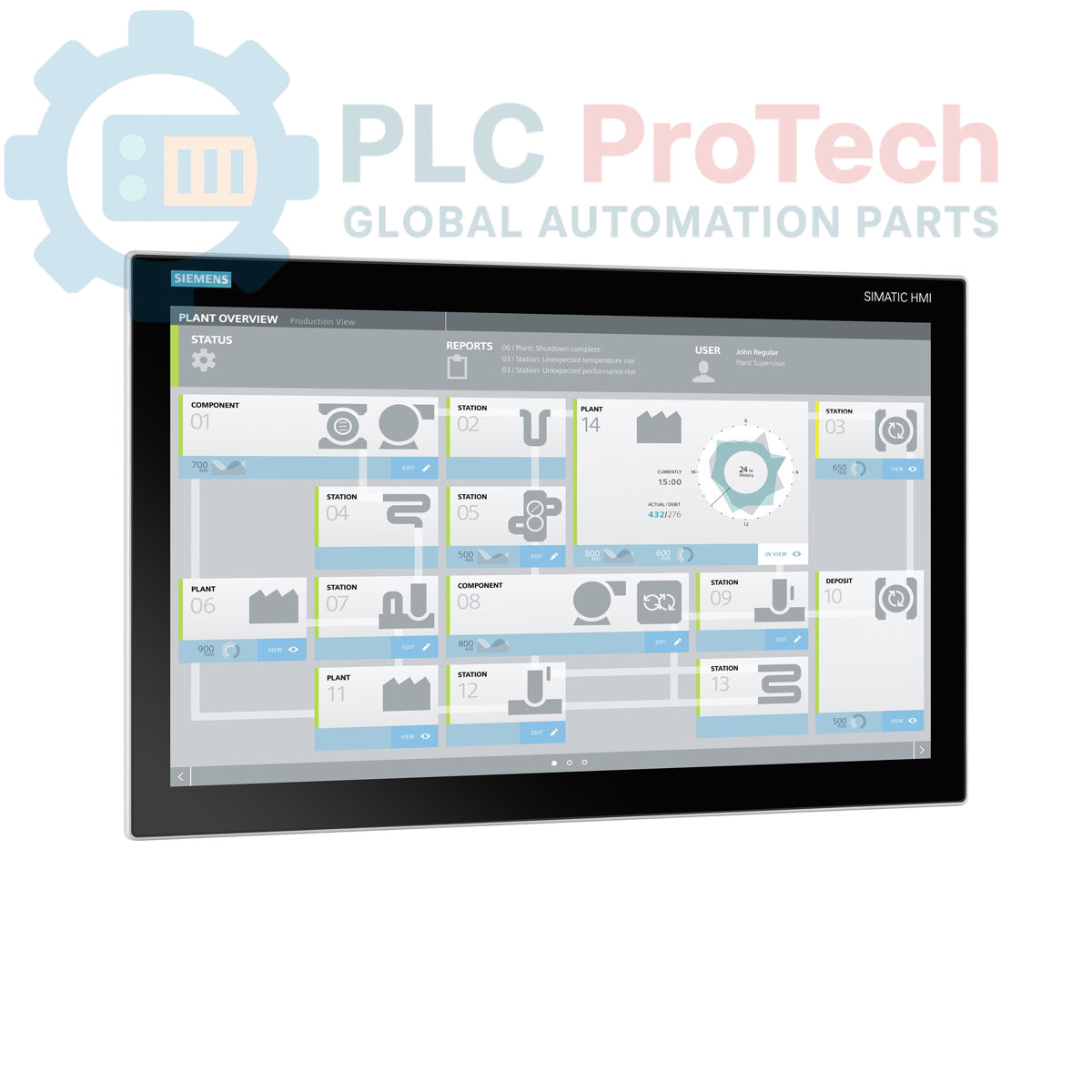

The Siemens 6AV7241-5BA14-0FA0 is a SIMATIC IPC 477E Industrial Panel PC designed for robust industrial applications. This unit features a 15-inch touch display with a resolution of 1280 x 800 pixels, providing a clear human-machine interface. It is equipped with an Intel Core i5-6442EQ processor, 4 GB of RAM, and a 240 GB SATA Solid-State Drive for reliable performance and data storage. The panel PC comes pre-installed with Windows 7 Ultimate SP1 (64-bit, multi-language support for DE, EN, ES, FR, IT) and is powered by a 24 V DC industrial power supply. Connectivity options include a front USB port, four rear USB ports, standard Ethernet (10/100/1000), and three Gigabit Ethernet ports (IE/PN). It also includes one PCIe (x4) slot but does not feature RS232/RS485 interfaces or replaceable mass storage.

Features

• 15-inch Touch Display (1280 x 800 resolution)
• Intel Core i5-6442EQ Processor
• 4 GB RAM
• 240 GB SATA Solid-State Drive
• Multiple USB Ports (1 front, 4 rear)
• Standard Ethernet (10/100/1000) and 3x Gigabit Ethernet (IE/PN)
• Windows 7 Ultimate SP1, 64-bit, Multi-language (DE, EN, ES, FR, IT)
• 24 V DC Industrial Power Supply
• 1x PCIe (x4) Slot

Applications

The Siemens SIMATIC IPC 477E Panel PC is suitable for a wide range of industrial applications requiring reliable computing and visualization. Typical deployments include:

• Human-Machine Interface (HMI) for machine control and operation
• Data acquisition and processing in manufacturing environments
• Process visualization and monitoring in automation systems
• Embedded control applications
• Industrial workstation for plant floor operations

Technical Specifications

Connections / Interfaces

Installation Guidelines

1. Power Supply: Connect the unit to a stable 24 V DC industrial power supply. Ensure correct polarity and adequate current capacity.
2. Mounting: Securely mount the panel PC into a suitable enclosure or control cabinet opening, ensuring proper ventilation and access for connections.
3. Grounding: Establish a proper protective earth (PE) connection to the panel PC chassis to ensure electrical safety and minimize electromagnetic interference.
4. Cable Routing: Route power and communication cables separately from high-voltage or noisy lines to prevent interference. Use shielded cables for Ethernet connections where necessary.
5. Environmental Conditions: Ensure the operating environment meets the specified temperature and humidity ranges for industrial equipment to maintain optimal performance and longevity.
6. Initial Power-Up: Before applying power, double-check all connections. Power up the unit and verify system boot-up and display functionality.
