Description

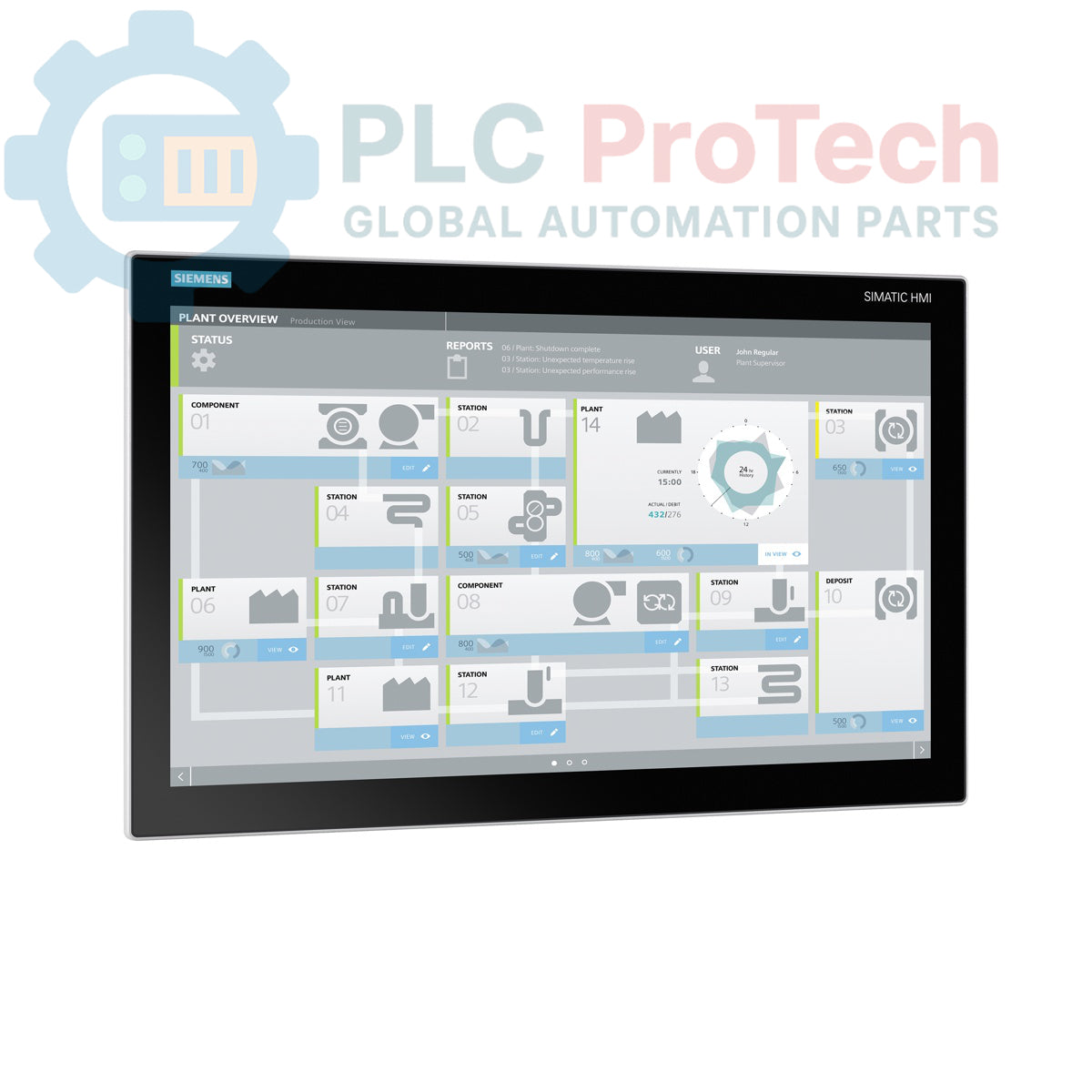

This is a Siemens 6AV7241-5BB17-0FA0, a SIMATIC IPC 477E series industrial panel PC designed for demanding HMI and control applications. It features a 15-inch widescreen touch display with a native resolution of 1280 x 800 pixels. The unit is powered by an Intel Core i5-6442EQ processor and is equipped with 8 GB of RAM for robust performance. Storage is provided by a 240 GB SATA solid-state drive, and it operates on a standard 24 V DC industrial power supply. This configuration includes multiple Ethernet ports for versatile network integration, including PROFINET connectivity.

Features

• 15-inch widescreen touch display (1280 x 800 resolution)
• Intel Core i5-6442EQ processor
• 8 GB installed system memory
• 240 GB SATA Solid-State Drive (SSD) for fast data access
• Pre-installed with Windows 10 IoT Enterprise 2016 LTSB (64-bit)
• Integrated PROFINET/IE interface with three Gigabit Ethernet ports
• One front-accessible USB port and four rear USB ports
• One PCIe (x4) expansion slot for additional hardware
• Designed for 24 V DC industrial power environments

Applications

• Human-Machine Interface (HMI) for process visualization
• SCADA and data acquisition systems
• Machine-level control and monitoring in manufacturing
• Industrial data logging and analysis
• Automation gateways in factory and process control

Technical Specifications

Installation Guidelines

1. 1 Verify that the control panel cutout dimensions precisely match the requirements for the SIMATIC IPC 477E 15" chassis to ensure a proper fit and environmental seal.
2. 2 Before proceeding, de-energize the main control cabinet and apply all required Lockout/Tagout (LOTO) safety procedures to prevent accidental power-up.
3. 3 Insert the Panel PC into the prepared cutout from the front of the enclosure.
4. 4 From the rear, install and evenly tighten the supplied mounting clamps to the manufacturer's specified torque. This ensures both mechanical stability and maintains the panel's IP rating.
5. 5 Connect the 24 V DC power supply wiring to the designated power terminals on the unit, strictly observing correct polarity (+/-).
6. 6 Establish a secure protective earth (PE) connection from the chassis grounding point to the main cabinet ground bus using a low-impedance conductor.
7. 7 Connect Ethernet, USB, and any other required peripheral cables. Ensure all cables are properly routed and secured with strain relief to prevent disconnection from vibration.
