Description

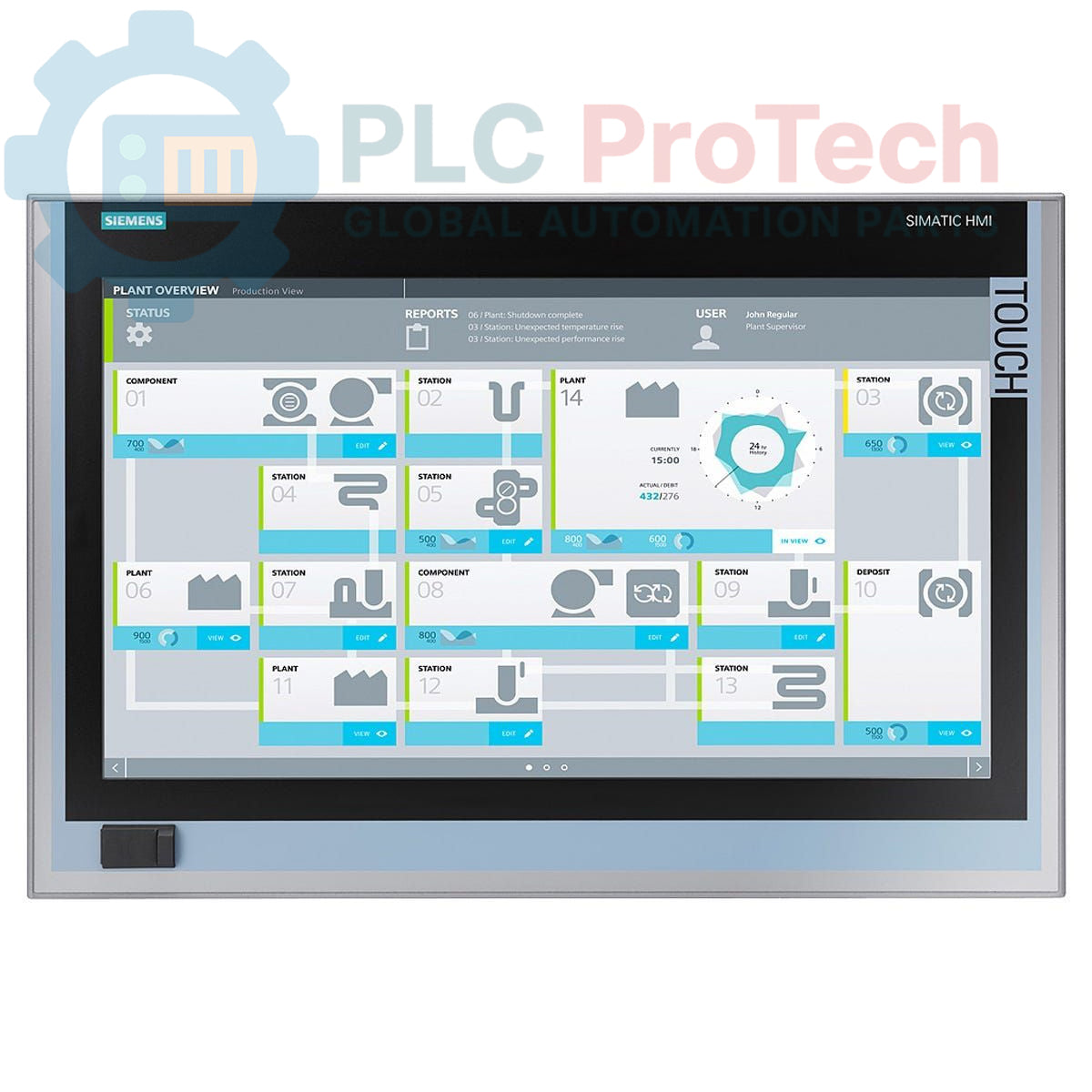

The Siemens 6AV7260-1GM41-0BX6 is a SIMATIC IPC677D Panel PC designed for robust industrial applications. This integrated system features a 19-inch touch display with a resolution of 1366x768, providing an intuitive human-machine interface. It is powered by an Intel Xeon E3-1268LV3 processor (4 cores/8 threads, 2.3 GHz base, 3.3 GHz turbo, 8 MB cache with VT-D and AMT support) and includes 16 GB DDR3 1600 DIMM memory, alongside a 240 GB Solid-State Drive for reliable storage. Connectivity options include two 10/100/1000 Mbit/s Ethernet ports, four USB V3.0 ports (with front USB access), and one serial COM1 port. The unit incorporates a watchdog, temperature, and fan monitoring system, as well as an onboard RAID controller to enhance system integrity and data security. It operates on a 24 V DC industrial power supply and comes pre-installed with Windows 7 Ultimate 64 Bit SP1, supporting multiple user interface languages (German, English, French, Spanish, Italian). Hardware expansion is available via one PCIe (x16) slot and one PCI slot.

Features

• Integrated 19-inch Touch Display (1366x768 resolution)
• Intel Xeon E3-1268LV3 Processor (4C/8T, 2.3 (3.3) GHz, 8 MB Cache)
• 16 GB DDR3 1600 DIMM Memory
• 240 GB Solid-State Drive (SSD)
• Dual 10/100/1000 Mbit/s Ethernet Ports
• Four USB V3.0 Ports (including front access)
• One Serial (COM1) Port
• Onboard Watchdog, Temperature, and Fan Monitoring
• Integrated RAID Controller
• 24 V DC Industrial Power Supply
• Pre-installed Windows 7 Ultimate 64 Bit SP1 (MUI)
• Hardware Expansion: 1x PCIe (x16), 1x PCI

Applications

The Siemens SIMATIC IPC677D Panel PC is suitable for a wide range of industrial automation and visualization tasks. Typical applications include:

• Machine control and operation
• Process visualization and monitoring
• Data acquisition and logging
• Factory automation systems
• Human-Machine Interface (HMI) for complex machinery
• Industrial data processing and communication gateways

Technical Specifications

Installation Guidelines

1. Power Supply: Connect the unit to a stable 24 V DC industrial power supply. Ensure proper polarity and adequate current capacity.
2. Mounting: Mount the Panel PC securely into a control cabinet or panel cutout, ensuring sufficient space for ventilation around the unit.
3. Grounding: Establish a robust protective earth (PE) connection to the Panel PC chassis to prevent electrical hazards and ensure EMI/EMC compliance.
4. Cable Routing: Route power, data, and I/O cables separately to minimize interference. Use shielded cables for Ethernet and serial communication where required by the application environment.
5. Environmental Considerations: Operate the device within specified temperature and humidity ranges. Protect against excessive dust, moisture, and vibration.
6. De-energization: Always de-energize the power supply before performing any installation, wiring, or maintenance work on the Panel PC.
