Description

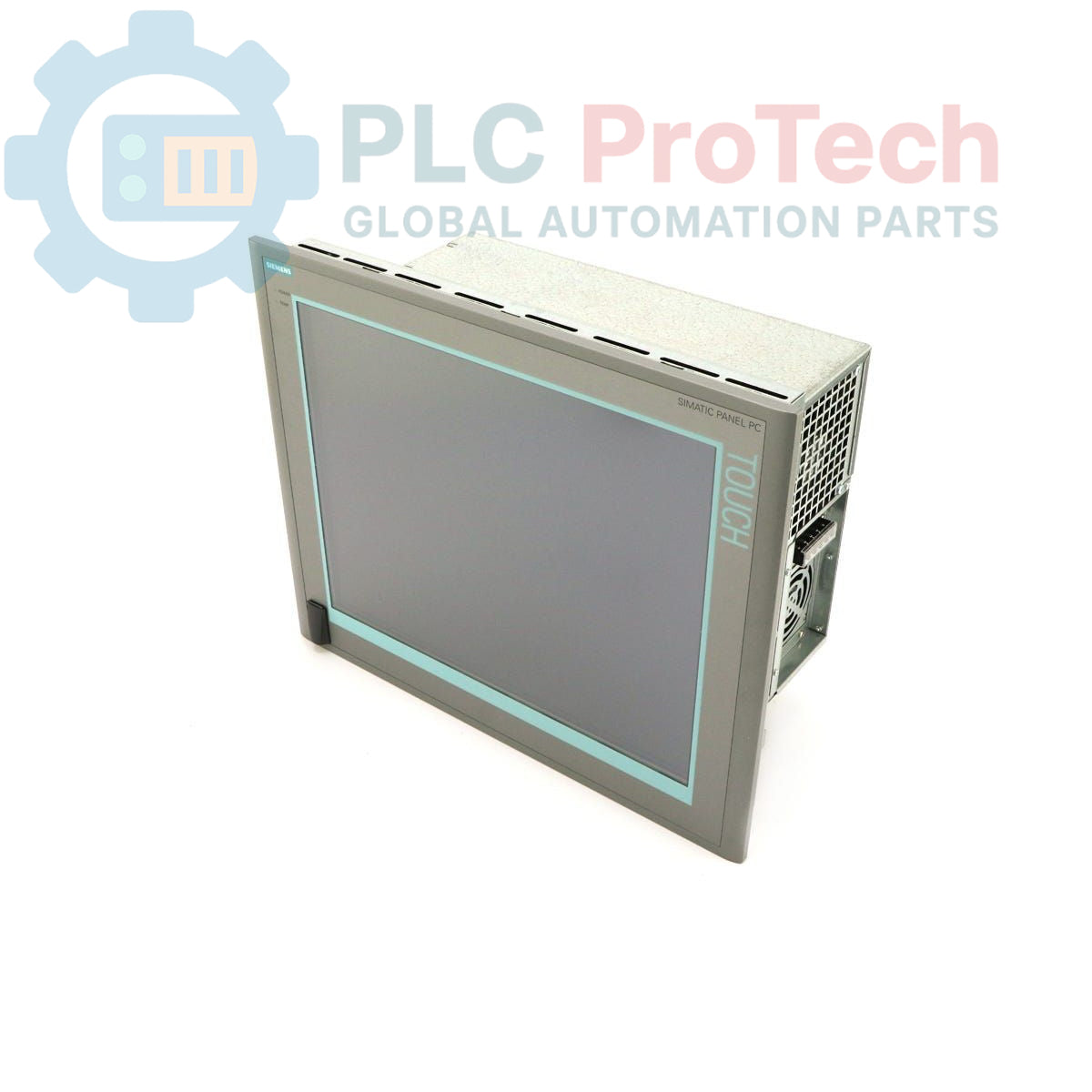

The Siemens 6AV7813-0AC10-1AB0 is a SIMATIC Panel PC 877 designed for industrial human-machine interface (HMI) and control applications. This unit features a 15-inch display with a keypad interface and is powered by an Intel Pentium 4 Mobile 2.2 GHz processor. It is equipped with 512 MB of DDR266 SDRAM, a 40 GB EIDE hard drive, and an integrated DVD-ROM drive. The system comes pre-installed with Windows 2000 Professional (MUI) and requires a 24V DC power supply. Please note, this product is classified by the manufacturer as obsolete, making it suitable for maintaining or repairing existing legacy automation systems.

Features

• ■15-inch display with keypad interface (1024 x 768 resolution)
• ■Front-side accessible USB interface for peripheral connection
• ■Intel Pentium 4 Mobile processor operating at 2.2 GHz
• ■512 MB DDR266 SDRAM installed
• ■40 GByte EIDE 3.5-inch hard disk drive for local storage
• ■Integrated DVD-ROM optical drive
• ■Pre-installed with Windows 2000 Professional (Multi-User Interface)

Applications

• ■Legacy HMI system replacement and maintenance
• ■Machine control and process visualization
• ■Data acquisition and logging in industrial environments
• ■Supervisory control panels

Technical Specifications

Installation Guidelines

1. 1 De-energize Equipment: Before installation, ensure all power sources to the control cabinet are de-energized and locked out/tagged out (LOTO) according to site safety procedures.
2. 2 Verify Panel Cutout: Confirm that the panel cutout dimensions match the requirements for the Panel PC 877 chassis. Ensure the mounting surface is clean, flat, and rigid.
3. 3 Mount the Unit: Insert the Panel PC into the cutout from the front of the panel. Secure it from the rear using the provided mounting clamps, tightening them evenly to ensure a proper seal against the panel gasket.
4. 4 Connect Power and Ground: Connect a stable, filtered 24V DC power supply to the designated power terminals, observing correct polarity. Connect the chassis to the panel's protective earth (PE) ground using a low-impedance connection.
5. 5 Connect Peripherals: Connect all required communication cables (e.g., Ethernet, serial) and peripherals (e.g., USB devices). Ensure proper cable strain relief and routing to prevent interference.
6. 6 Power-On and Test: After verifying all connections, remove the LOTO and re-energize the cabinet. Power on the Panel PC and confirm that the operating system boots correctly and all interfaces are functional.
