Description

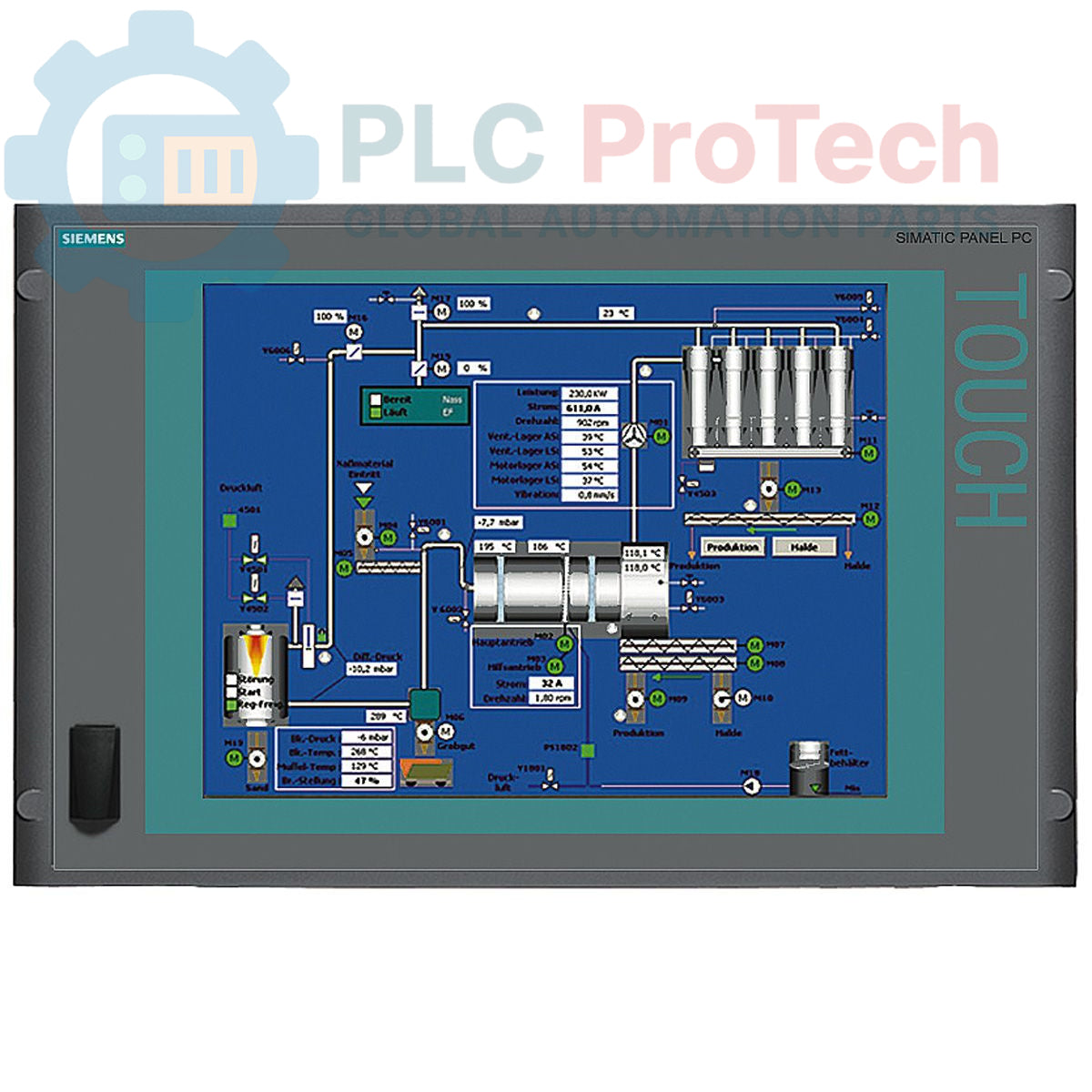

The Siemens 6AV7822-0AB20-2AC0 is a SIMATIC Panel PC 577 designed for industrial human-machine interface (HMI) and visualization applications. This unit features a 15-inch touch display, a Pentium 4 2.4 GHz processor, and 1 GByte DDR400 SDRAM. It includes an integrated DVD +-R+-RW burner and comes pre-installed with Windows XP SP1 Professional MUI, supporting multiple languages (English, German, French, Italian, Spanish, Japanese, Chinese, Korean) for global deployment in automation environments.

Features

• 15-inch Touch Display for operator interaction
• Pentium 4 2.4 GHz Processor for industrial computing tasks
• 1 GByte DDR400 SDRAM for system memory
• Integrated DVD +-R+-RW Burner
• Pre-installed Windows XP SP1 Professional MUI (Multi-User Interface)

Applications

The Siemens SIMATIC Panel PC 577 is suitable for a range of industrial applications, including:

• Machine operation and control panels
• Process visualization and monitoring systems
• Data acquisition and logging
• Factory automation and manufacturing execution systems (MES)
• Building automation and infrastructure control

Technical Specifications

Installation Guidelines

1. De-energize System: Before beginning any installation, ensure all power to the system and associated equipment is completely de-energized and locked out according to safety protocols.
2. Mounting: Securely mount the Panel PC into the designated panel cutout or enclosure using appropriate fasteners. Ensure adequate clearance for ventilation and cable routing.
3. Power Connection: Connect the Panel PC to a stable and filtered power supply. Verify correct voltage and polarity before applying power.
4. Grounding: Establish a proper earth ground connection for the Panel PC chassis to minimize electrical noise and ensure safety.
5. Peripheral Connections: Connect necessary peripherals such as keyboards, mice, and external storage devices to the appropriate ports.
6. Network Connection: Connect to the industrial network (e.g., Ethernet) using shielded cables if required by the application environment to maintain signal integrity.
7. Cable Management: Route all cables neatly and securely, ensuring they are not subjected to strain, sharp bends, or interference from power lines.
8. Environmental Considerations: Ensure the installation location provides adequate cooling and protection from excessive dust, moisture, and vibration, consistent with industrial PC requirements.
9. Power Up: Once all connections are verified, re-energize the system and observe for proper boot-up and operation.
