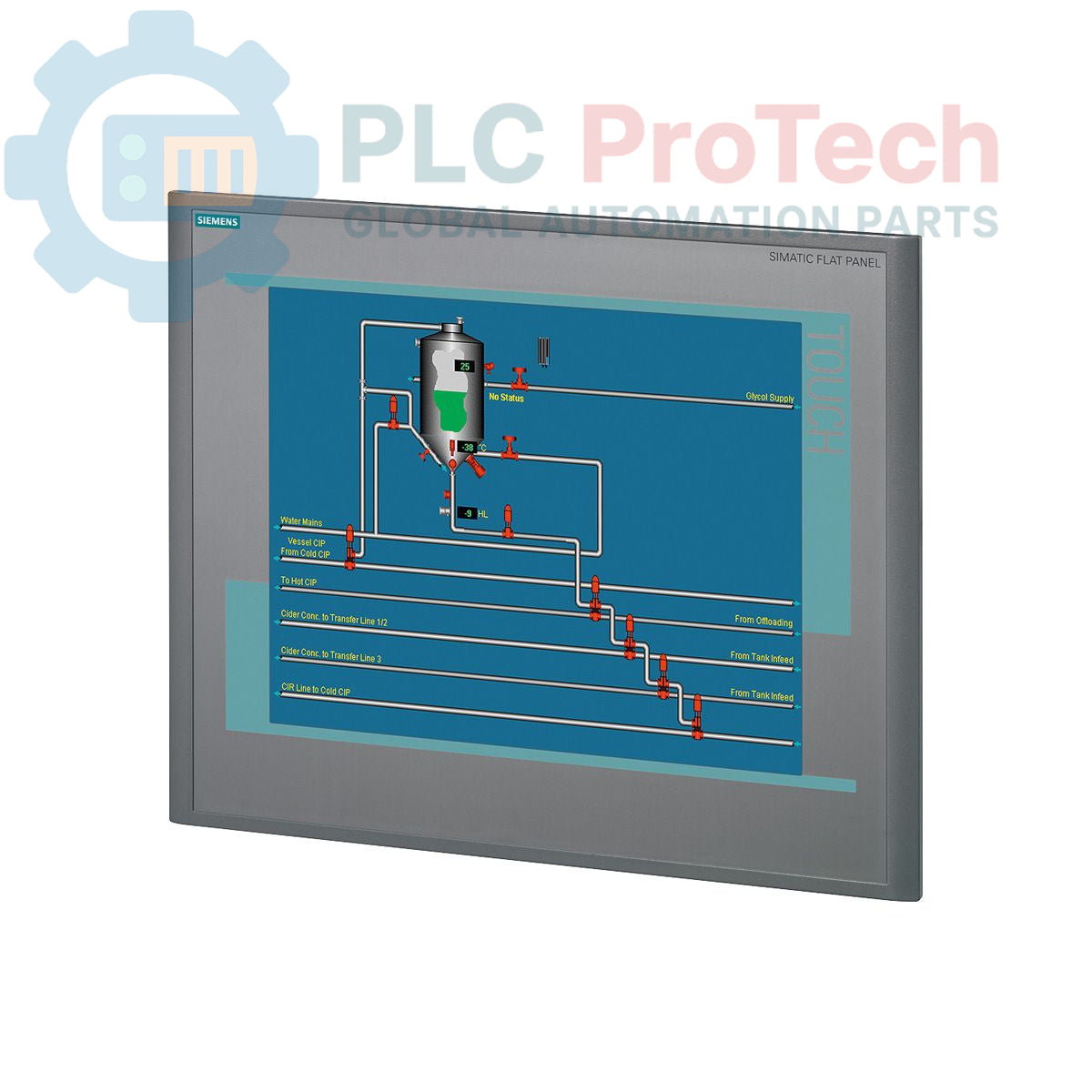

Siemens 6AV7861-4TB00-1AA0 SIMATIC FP Flat Panel

SKU 6AV7861-4TB00-1AA0

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Siemens
  • Product No.: 6AV7861-4TB00-1AA0
  • Origin Germany
  • Product Type: Flat Panel
  • Barcode: 85285931
  • Payment: T/T, Western Union
  • Weight: 0.003 kg
  • Dimensions: 39.50 x 30.00 x 17.00 cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Flat Panels SIMATIC FP
Quantità
Call sales Contact

Product Description

Description

The Siemens 6AV7861-4TB00-1AA0 is a SIMATIC Flat Panel 17T, designed as a 17-inch touch-sensitive TFT-display for industrial human-machine interface (HMI) applications. This unit features a 1280x1024 pixel resolution, ensuring clear visual output for process monitoring and control. It supports flexible power input options, operating on either 24V DC or 120/240V AC, and provides both VGA and DVI-D interfaces for video signal input. The panel is supplied with a 1.8-meter VGA cable, facilitating immediate integration into existing systems.

Features

  • 17-inch Touch TFT-Display
  • 1280x1024 Pixel Resolution
  • Flexible Power Input: 24V DC and 120/240V AC
  • VGA and DVI-D Video Interfaces
  • Includes 1.8m VGA-Cable
  • Designed for SIMATIC systems

Applications

  • Industrial Human-Machine Interface (HMI)
  • Process Visualization and Control
  • Machine Operation and Monitoring
  • Factory Automation Systems
  • Control Room Displays

Technical Specifications

Brand Siemens
Manufacturer Siemens
Range SIMATIC
Subrange FP
Type of Product Flat Panel
Product Phase Obsolete
Display Size 17 inch
Display Type Touch TFT-Display
Resolution 1280x1024 pixels
Input Voltage 24V DC, 120/240V AC
Video Interfaces VGA, DVI-D
Included Cable VGA-cable 1.8m
Package Dimensions (Calculated) 39.50 x 30.00 x 17.00 cm
Shipping Weight 3.00 kg
Commodity Code 85285931
Export Control Regulations (ECCN) EAR99

Connections / Interfaces

Interface Type Function
VGA Video Input (Analog)
DVI-D Video Input (Digital)
Power Input 24V DC or 120/240V AC

Installation Guidelines

  1. De-energize System: Before beginning any installation work, ensure that all power to the system and the flat panel is disconnected and secured against accidental re-energization.
  2. Mounting: Securely mount the flat panel in its designated enclosure or panel cutout. Ensure adequate clearance for ventilation and cable routing.
  3. Power Connection: Connect the appropriate power supply (24V DC or 120/240V AC) to the panel's power input terminals. Verify correct polarity for DC connections and proper grounding for AC connections.
  4. Video Signal Connection: Connect the video source (e.g., industrial PC, PLC with display output) to either the VGA or DVI-D interface on the flat panel using the provided VGA cable or a suitable DVI-D cable.
  5. Touch Interface Connection: If a separate USB or serial cable is required for the touch functionality, connect it to the host system as per standard HMI setup procedures.
  6. Cable Routing: Route all cables to prevent strain, interference, and damage. Use cable ties and conduits where necessary to maintain an organized and protected installation.
  7. Grounding: Ensure the flat panel and its associated equipment are properly grounded to minimize electrical noise and ensure safety.
  8. Power On: After all connections are verified, re-energize the system and test the display and touch functionality.
