Description

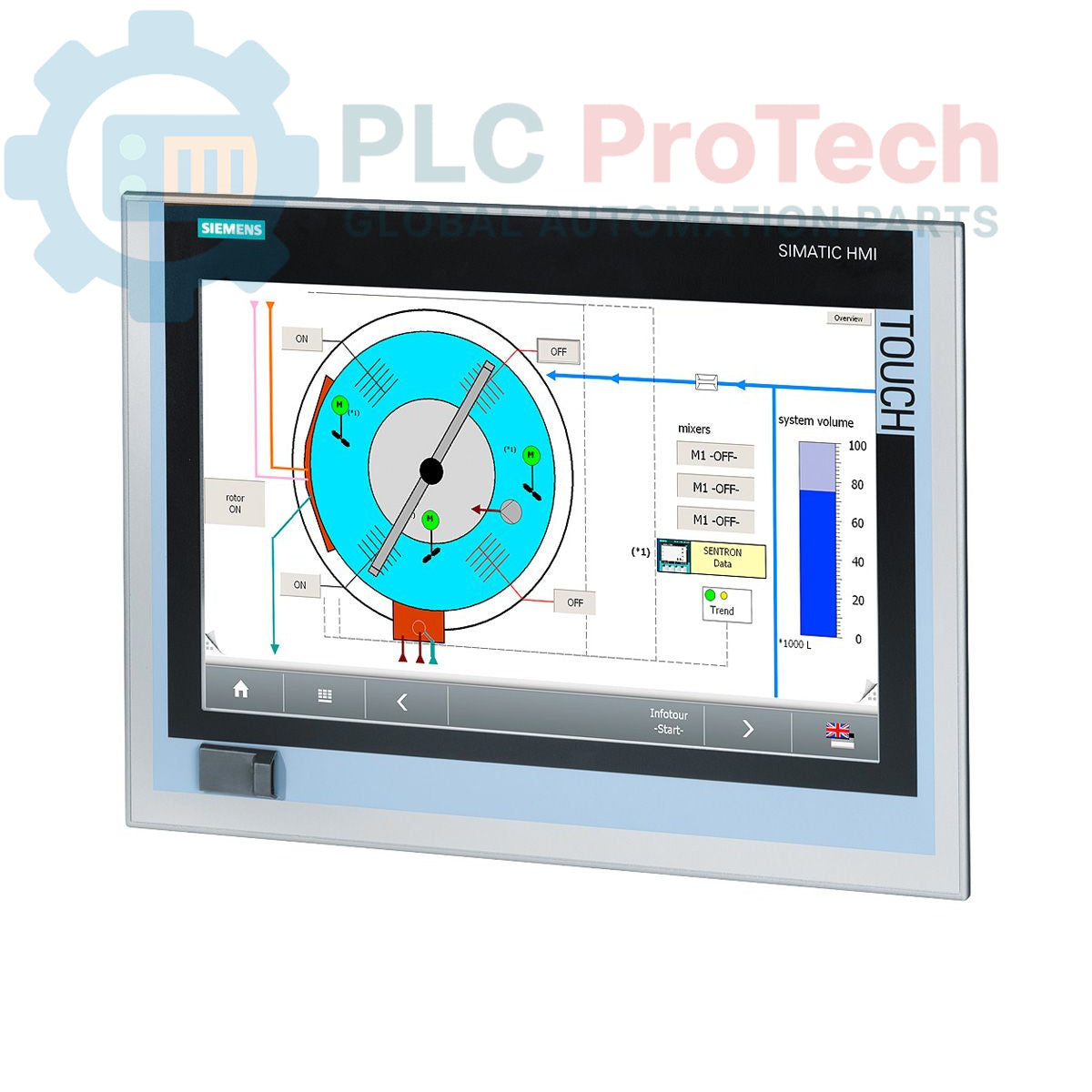

The Siemens 6AV7882-0DA20-2CA0 is a SIMATIC IPC277E Nanopanel PC designed for embedded control and visualization tasks in industrial environments. This unit features a 15-inch Touch TFT display, an Intel Celeron N2807 processor, 4 GB of RAM, and a 240 GB solid-state drive. It operates on a 24 V DC power supply and comes pre-installed with Windows Embedded Standard 7E SP1. The device offers a comprehensive set of interfaces, including dual Gigabit Ethernet, USB 3.0, and a DisplayPort for external monitors, making it a versatile human-machine interface (HMI) and control platform.

Features

• 15-inch widescreen Touch TFT display for operator interaction.
• Powered by an Intel Celeron N2807 dual-core processor.
• Equipped with 4 GB of system memory (RAM).
• Includes a 240 GB solid-state drive for fast boot and data access.
• Pre-installed with Windows Embedded Standard 7E SP1 (64-bit, English).
• Dual 10/100/1000 Mbps Ethernet ports for robust network communication.
• Extensive peripheral support with USB 3.0, USB 2.0, and a serial COM port.
• Integrated CFast slot for removable storage media.

Applications

• Human-Machine Interface (HMI) for process visualization and control.
• Data acquisition and logging at the machine level.
• Gateway applications for industrial communication protocols.
• Embedded control systems in manufacturing and automation cells.
• Supervisory control in building automation and infrastructure projects.

Technical Specifications

Installation Guidelines

1. 1 Ensure the control cabinet or mounting panel is fully de-energized and verified to be at zero potential.
2. 2 Verify the panel cutout dimensions match the requirements for the IPC277E chassis. Ensure the mounting surface is clean, flat, and free of debris.
3. 3 Carefully insert the Panel PC into the cutout from the front of the panel. Ensure the gasket provides a proper seal against the panel surface.
4. 4 From the rear, install and tighten the mounting clamps in a staggered sequence to apply even pressure and secure the unit firmly in place. Do not overtighten.
5. 5 Connect a stable, correctly rated 24 V DC power source to the power supply terminal. Verify correct polarity (+/-) before connecting.
6. 6 Connect the protective earth (PE) terminal to the cabinet's main grounding point using a low-impedance conductor.
7. 7 Connect Ethernet, USB, DisplayPort, and any other required peripheral cables. Ensure all connectors are fully seated.
8. 8 Once all connections are secure, re-energize the cabinet and power on the Panel PC to verify correct startup and operation.
