Description

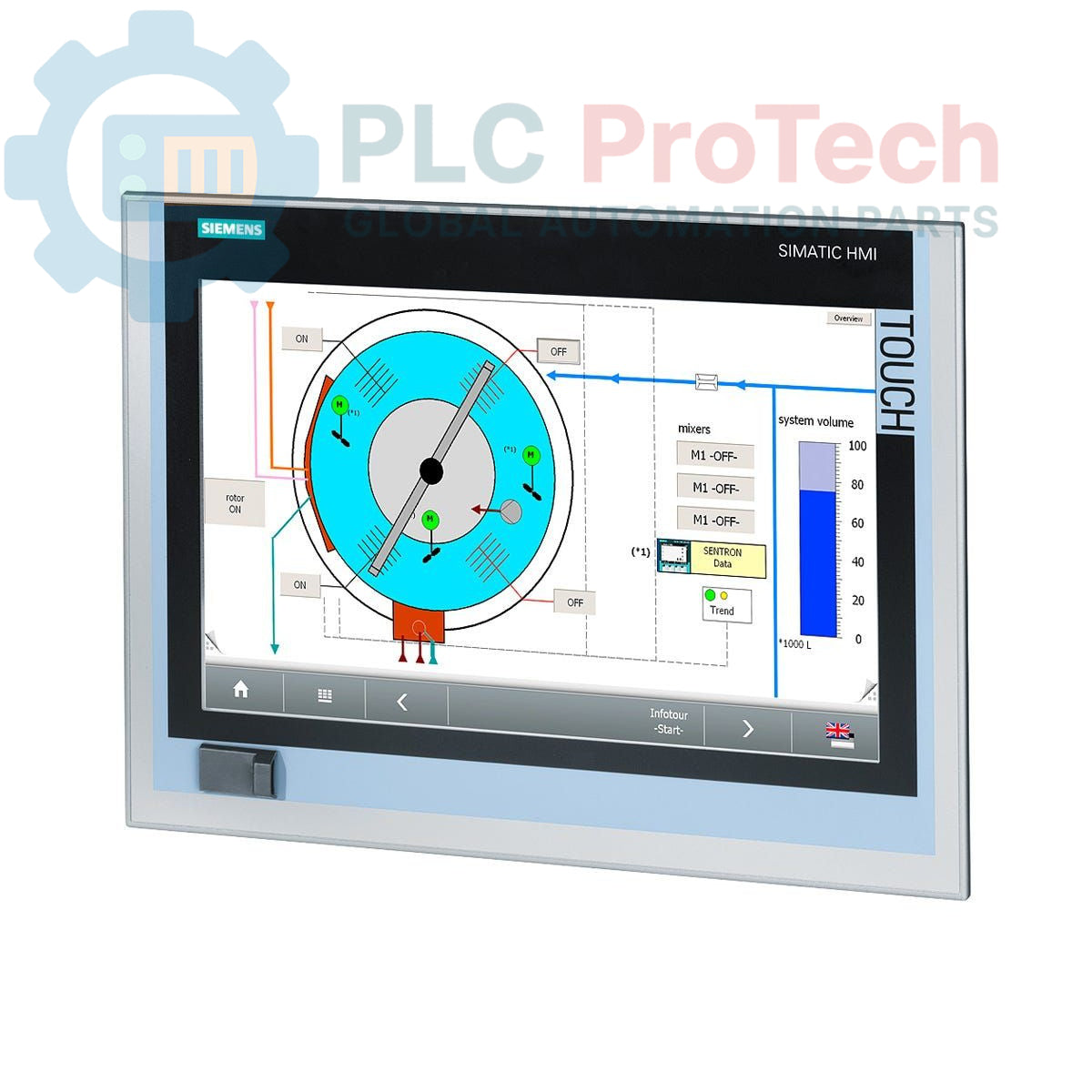

The Siemens 6AV7882-0DA20-5BA0 is a SIMATIC IPC277E Nanopanel PC, featuring a 15-inch Touch TFT display for human-machine interface (HMI) applications. This industrial panel PC is equipped with a Celeron N2807 (2C/2T) processor, 4 GB of RAM, and an 80 GB SSD for reliable operation. It comes pre-installed with Windows 7 Ultimate SP1 (32-bit) with a Multi-User Interface (MUI) supporting German, English, French, Spanish, and Italian languages. Connectivity options include two 10/100/1000 Mbps Ethernet RJ45 ports, one DisplayPort for graphics output, one USB 3.0 port, three USB 2.0 ports, one serial (COM 1) port, and a CFAST slot. Power is supplied via a 24 V DC input, and it includes a convenient front-mounted USB port. This unit is part of the SIMATIC Panel PC range and is currently in a Phase-Out product lifecycle stage.

Features

• 15-inch Touch TFT Display
• Celeron N2807 (2C/2T) Processor
• 4 GB RAM
• 80 GB SSD Storage
• Windows 7 Ultimate SP1 (32-bit) with MUI (DE, EN, FR, ES, IT)
• 2x 10/100/1000 Mbps Ethernet RJ45 Ports
• 1x DisplayPort Graphic Output
• 1x USB 3.0 Port, 3x USB 2.0 Ports, 1x Front-USB Port
• 1x Serial (COM 1) Port
• CFAST Slot
• 24 V DC Power Supply

Applications

The Siemens SIMATIC IPC277E Nanopanel PC is suitable for a wide range of industrial automation applications, including:

• Machine operation and control
• Process visualization and monitoring
• Data acquisition and processing at the machine level
• Embedded control systems requiring a compact HMI
• Factory automation and production line management

Technical Specifications

Installation Guidelines

1. De-energization: Ensure all power to the installation area is disconnected and locked out before beginning any work.
2. Mounting: Mount the Nanopanel PC securely into a control cabinet or panel cutout, ensuring adequate ventilation space around the unit to prevent overheating.
3. Power Connection: Connect the 24 V DC power supply to the designated terminals, observing correct polarity. Verify the power source meets the specified voltage and current requirements.
4. Grounding: Establish a proper protective earth (PE) connection to the panel PC chassis to ensure electrical safety and minimize electromagnetic interference.
5. Ethernet Connections: Connect industrial Ethernet cables to the RJ45 ports for network communication, ensuring secure and robust connections.
6. USB and Serial Connections: Connect peripheral devices such as keyboards, mice, or barcode scanners to the USB ports, and serial devices to the COM 1 port as required.
7. Display Output: If an external monitor is used, connect it to the DisplayPort.
8. Cable Management: Route all cables neatly and securely, separating power and signal cables to reduce interference. Use strain relief where necessary.
9. Environmental Considerations: Ensure the operating environment complies with the panel PC's specified temperature, humidity, and vibration ratings to ensure long-term reliability.
10. Power-Up: After all connections are verified, re-energize the system and observe for proper boot-up and functionality.
