Description

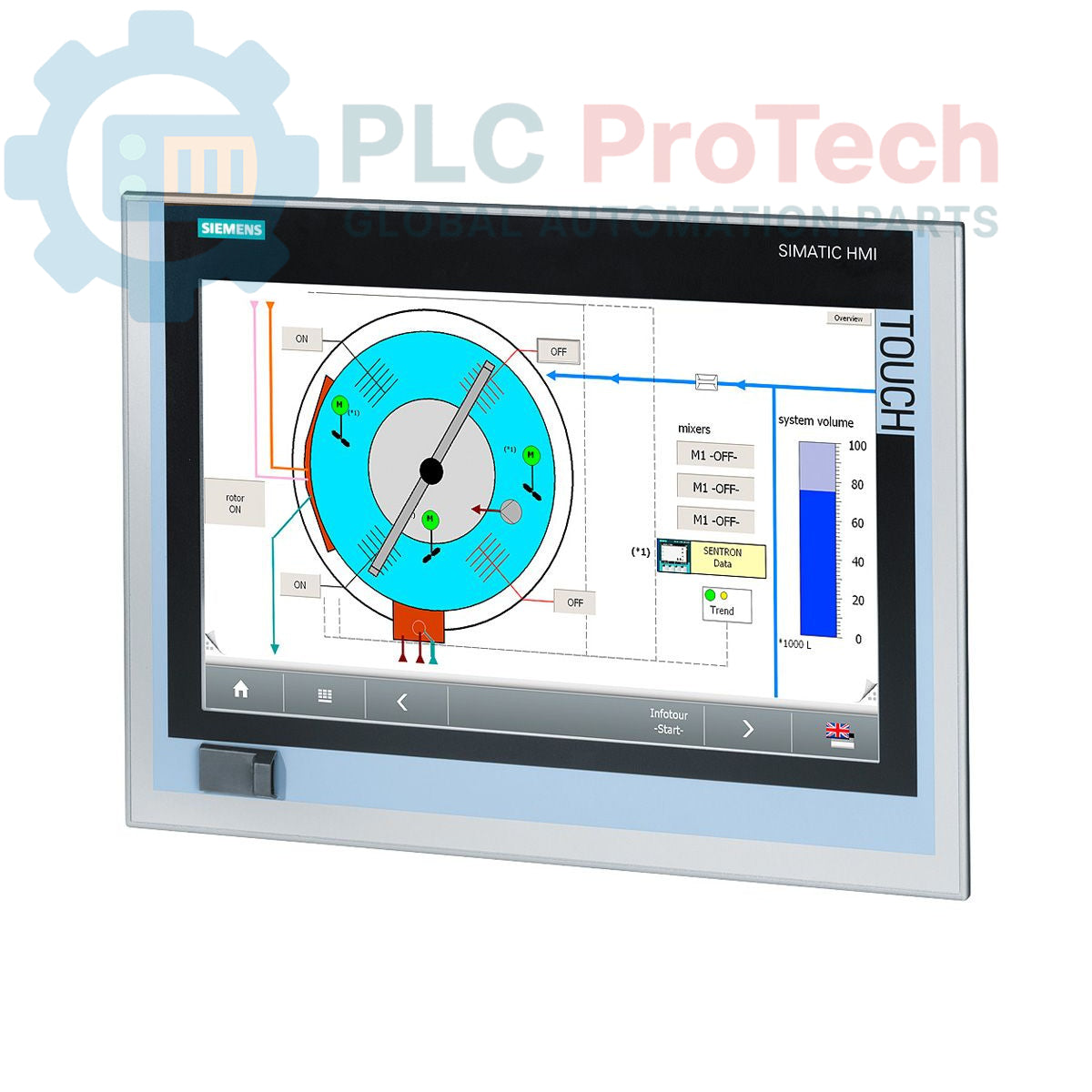

The Siemens 6AV7882-0DB20-2BA0 is a SIMATIC IPC277E Nanopanel PC designed for demanding visualization and control tasks in industrial environments. This unit features a 15-inch touch TFT display, powered by an Intel Celeron N2930 processor with four cores. It is equipped with 4 GB of RAM and an 80 GB SSD for reliable, fast-booting operation. Connectivity is provided through dual Gigabit Ethernet ports, multiple USB interfaces, and a serial port. The system operates on a 24 V DC power supply and comes pre-installed with Windows Embedded Standard 7E SP1 (64-bit, English). This model is supplied without additional SIMATIC software, providing a flexible platform for custom applications.

Features

• 15-inch resistive touch TFT display for operator interaction.
• Intel Celeron N2930 processor (4 cores, 4 threads).
• Equipped with 4 GB of system memory (RAM).
• Includes a durable 80 GB Solid State Drive (SSD).
• Pre-installed with Windows Embedded Standard 7E SP1 (64-bit, English).
• Dual 10/100/1000 Mbps Ethernet ports for network redundancy or separation.
• Comprehensive I/O including USB 3.0, USB 2.0, DisplayPort, and a serial COM port.
• Features a front-accessible USB port for convenience.
• CFast slot for removable storage media.

Applications

• Human Machine Interface (HMI) for machinery and process control.
• SCADA client nodes in manufacturing and utility facilities.
• Data acquisition and logging systems.
• Industrial gateways and communication controllers.
• Machine vision and quality control stations.

Technical Specifications

Installation Guidelines

1. 1 Verify that the control cabinet is de-energized and locked out (LOTO) before beginning work. Confirm zero-energy state with a calibrated voltmeter.
2. 2 Prepare the panel cutout according to the manufacturer's dimensional drawings. Ensure the mounting surface is clean, flat, and rigid.
3. 3 Insert the Panel PC into the cutout from the front of the enclosure. Secure it from the rear using the provided mounting clamps, tightening them evenly to the specified torque to ensure a proper seal.
4. 4 Connect the functional earth (FE) or protective earth (PE) terminal on the PC chassis to the cabinet's main ground bus using a low-impedance conductor.
5. 5 Connect the 24 V DC power supply to the designated power input terminals. Ensure correct polarity is observed. Use appropriately sized wiring for the load.
6. 6 Connect Ethernet, USB, and any other required peripheral cables. Route cables to prevent strain and interference. Use shielded cables for communication lines where specified.
7. 7 After verifying all connections are secure and correct, remove the lockout/tagout and re-energize the cabinet. Power on the Panel PC and confirm proper boot-up and functionality.
