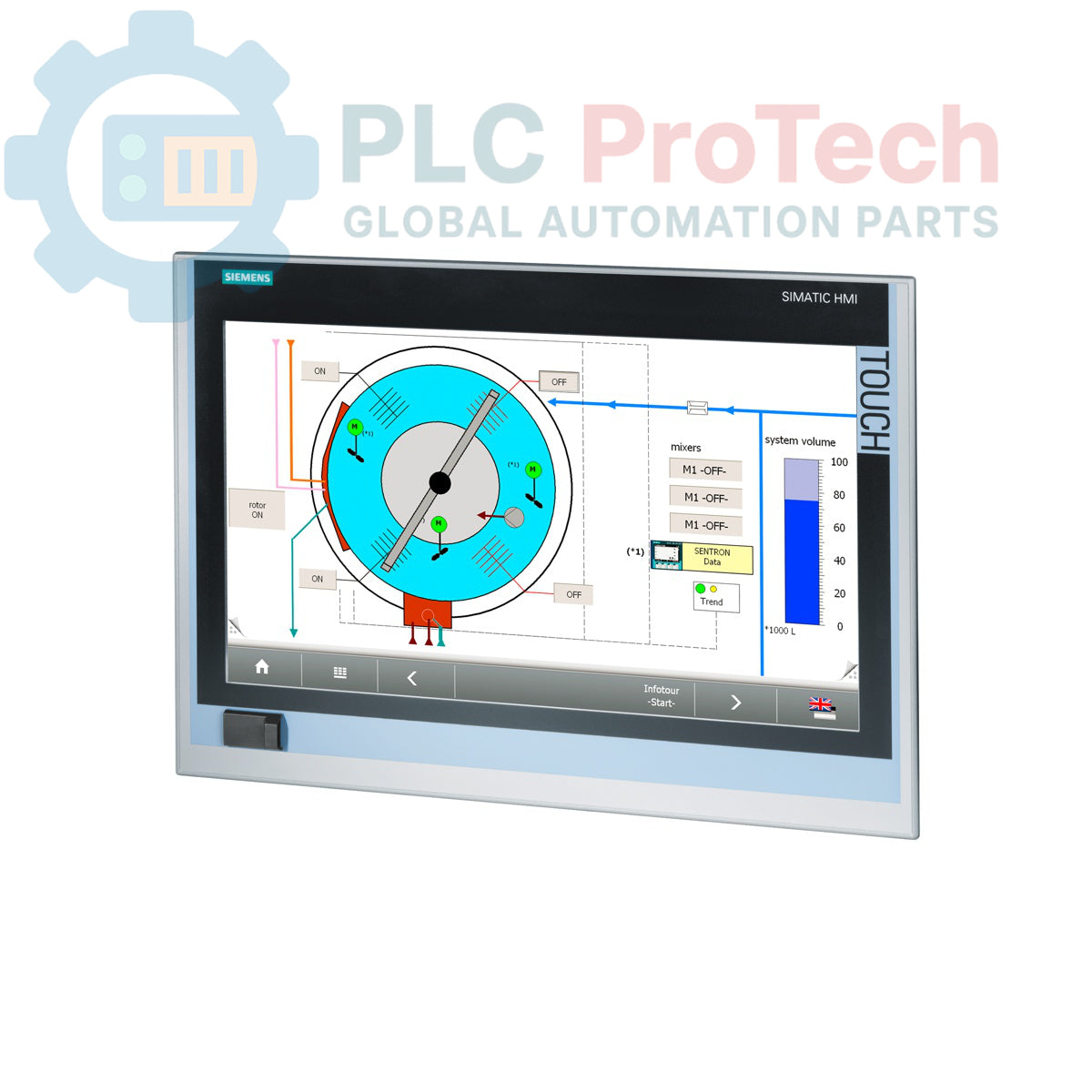

Siemens 6AV7882-0EA20-6BA0 SIMATIC IPC277E Nanopanel PC

SKU 6AV7882-0EA20-6BA0

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6AV7882-0EA20-6BA0
Origin Germany
Product Type: Panel PC
Barcode: 85371098
Payment: T/T, Western Union
Weight: 5.7 kg
Dimensions: 55 x 40 x 15 cm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

This device is a Siemens 6AV7882-0EA20-6BA0 SIMATIC IPC277E Nanopanel PC, an embedded industrial computer designed for demanding visualization and control tasks. It features a 19-inch touch TFT display, an Intel Celeron N2807 processor, 4 GB of RAM, and an 80 GB SSD for reliable, fanless operation. The unit is configured with a pre-installed Windows 7 Ultimate (64-bit) operating system and requires a 24 V DC power supply, making it suitable for integration into standard industrial control cabinets and operator stations.

Features

19-inch TFT display with integrated touch screen
Intel Celeron N2807 dual-core processor
4 GB of system RAM
80 GB Solid-State Drive (SSD) for storage
Pre-installed Windows 7 Ultimate SP1, 64-bit Edition
Dual Gigabit Ethernet ports for network connectivity
Multiple USB ports, including USB 3.0 and a front-accessible port
CFast card slot for removable storage
DisplayPort for connecting an external monitor

Applications

Machine-level human-machine interface (HMI)
Process visualization and control
Data acquisition and logging systems
Factory automation control panels
Building management systems

Technical Specifications

Specification	Value
Manufacturer	Siemens
Part Number	6AV7882-0EA20-6BA0
Series	SIMATIC IPC277E (Nanopanel PC)
Product Lifecycle	Phase-Out
CPU	Intel Celeron N2807 (2 Cores / 2 Threads)
Memory	4 GB RAM
Storage	80 GB SSD
Display	19-inch Touch TFT
Operating System	Windows 7 Ultimate SP1, 64-bit, MUI (DE, EN, FR, ES, IT)
Software	Without SIMATIC Software
Power Supply	24 V DC
Shipping Weight	5.70 kg
Commodity Code	85371098
ECCN	5A992
Country of Origin	Germany (Estimate)
Package Dimensions (Calculated)	55 x 40 x 15 cm

Connections and Interfaces

Interface	Details
Ethernet	2x RJ45 (10/100/1000 Mbps)
USB	1x USB 3.0 (Rear), 3x USB 2.0 (Rear), 1x USB (Front)
Video Output	1x DisplayPort
Serial	1x Serial (COM 1)
Storage Expansion	1x CFast Slot

Installation Guidelines

CRITICAL: This unit is a Phase-Out product. Verify software compatibility and availability of support before integrating into new systems. Failure to do so may result in project delays and unsupported deployments.

1
De-energize Equipment: Before installation, ensure all related machinery and control panel power sources are de-energized and follow Lock-Out/Tag-Out (LOTO) procedures.
2
Panel Mounting: Install the Panel PC into the designated cutout of a suitable industrial enclosure. Ensure all mounting clamps are tightened evenly to maintain the specified ingress protection rating.
3
Protective Earth Connection: Connect the chassis grounding terminal to the main system protective earth (PE) busbar using a low-impedance conductor of appropriate gauge.
4
Power Supply Wiring: Connect a stable, filtered 24 V DC power source to the designated power input terminals. Verify correct polarity before applying power.
5
Interface Connections: Connect Ethernet, USB, DisplayPort, and serial cables as required by the application. Ensure proper cable routing and strain relief.
6
System Power-Up: After verifying all connections are secure and correct, remove LOTO devices and re-energize the system. Perform initial boot checks and software configuration.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What operating system is pre-installed on the 6AV7882-0EA20-6BA0?

This Panel PC comes with Windows 7 Ultimate SP1 (64-bit) pre-installed. It includes a Multi-User Interface (MUI) supporting German, English, French, Spanish, and Italian.

What are the main connectivity options available on this device?

The unit is equipped with two Gigabit Ethernet ports (RJ45), one USB 3.0 port, three rear USB 2.0 ports, one front-accessible USB port, one DisplayPort for video output, and one serial COM port.

What is the required input power for this SIMATIC Panel PC?

The 6AV7882-0EA20-6BA0 requires a 24 V DC power supply for operation.

Does this model include any pre-loaded SIMATIC HMI or SCADA software?

No, the product specification explicitly states that this unit is supplied 'WITHOUT SIMATIC SOFTWARE'. Any required Siemens software must be licensed and installed separately.
