Description

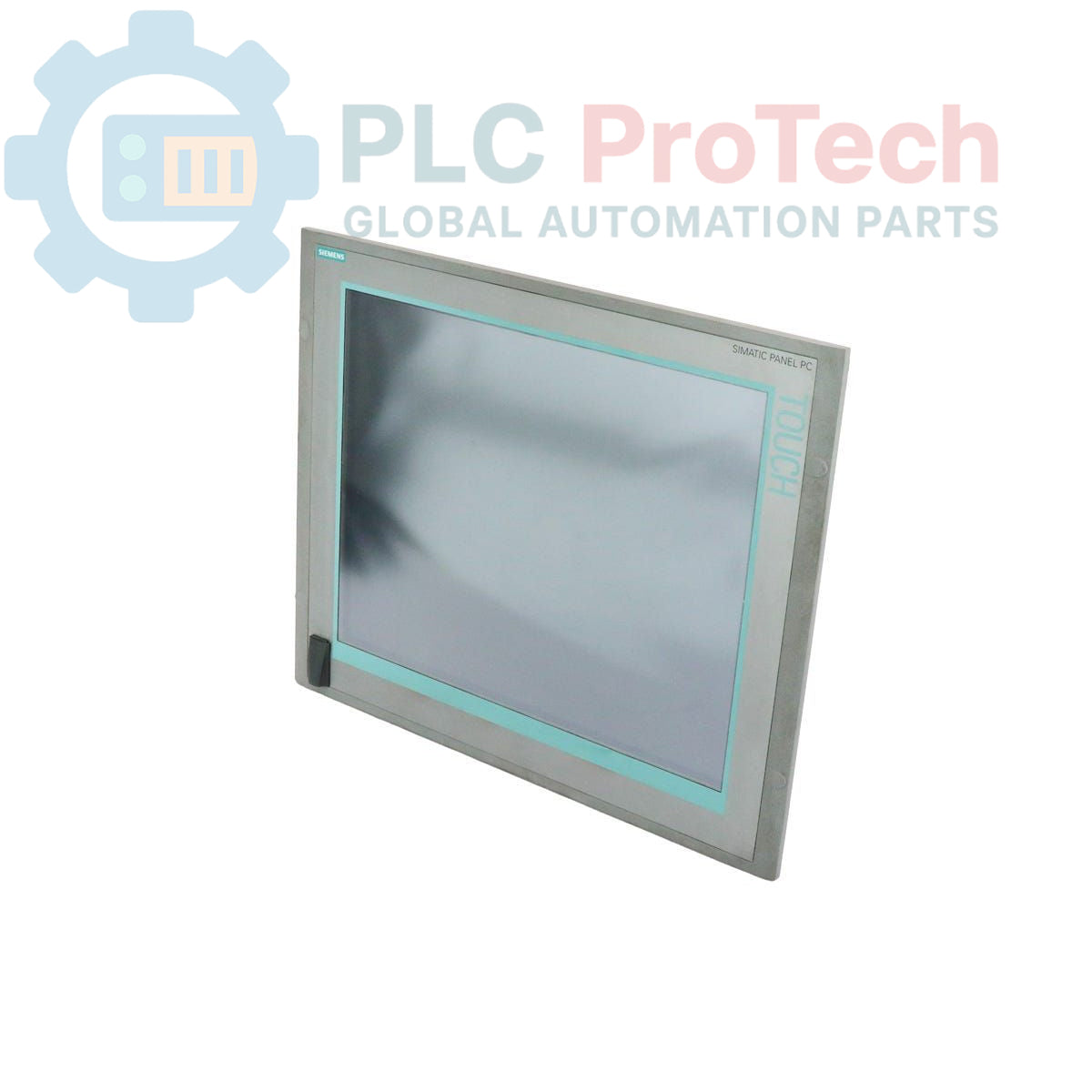

The Siemens 6AV7884-5AG20-3BA0 is a SIMATIC HMI IPC 477C Panel PC, offered as an optional bundle designed for industrial visualization and control applications. This unit features a 19-inch Touch Display with a resolution of 1280x1024 pixels, providing a clear interface for operator interaction. It is equipped with a Core 2 Duo 1.2 GHz processor, 2 GB of DDR3 RAM, and a 4 GB CompactFlash (CF) card for storage. The system comes with Windows Embedded Standard 2009 pre-installed, without additional SIMATIC software. Connectivity includes PROFINET (IE) with two 1 Gbit Ethernet ports and a total of five USB ports (four at the back, one at the front). This Panel PC is compatible with WinCC flexible 2008 and WinAC for integrated automation solutions.

Features

• 19-inch Touch Display with 1280x1024 resolution
• Core 2 Duo 1.2 GHz Processor
• 2 GB DDR3 RAM
• 4 GB CompactFlash (CF) Card
• PROFINET (IE) interface with 2x 1 Gbit Ethernet ports
• 5x USB ports (4 rear, 1 front)
• Windows Embedded Standard 2009 pre-installed (without SIMATIC software)
• Designed for compatibility with WinCC flexible 2008/WinAC

Applications

• Human Machine Interface (HMI) tasks in industrial environments
• Process visualization and control in manufacturing and automation
• Data acquisition and processing for machine operation
• Integration into PROFINET-based control systems
• Operator panels for production lines and machinery

Technical Specifications

Connections / Interfaces

• Ethernet: 2x 1 Gbit ports for PROFINET (IE) connectivity.
• USB: 4 ports located at the rear, 1 port located at the front for peripheral connections.

Installation Guidelines

1. De-energize System: Before installation, ensure all power to the system and associated equipment is completely de-energized and locked out.
2. Mounting: Securely mount the Panel PC into a suitable industrial enclosure or panel cutout, ensuring adequate space for ventilation and cable routing.
3. Power Connection: Connect the appropriate power supply cable to the Panel PC's power input. Verify correct voltage and polarity before applying power.
4. Grounding: Establish a proper protective earth (PE) connection to the Panel PC chassis to ensure electrical safety and minimize electromagnetic interference.
5. Ethernet Connections: Connect PROFINET (IE) and other network cables to the designated 1 Gbit Ethernet ports. Use shielded cables for industrial environments to maintain signal integrity.
6. USB Peripherals: Connect any required USB devices (e.g., keyboard, mouse, barcode scanner) to the available USB ports.
7. Cable Management: Route all cables neatly and securely, separating power and signal cables to prevent interference.
8. Environmental Check: Ensure the installation environment meets the Panel PC's operating temperature, humidity, and vibration specifications.
