Description

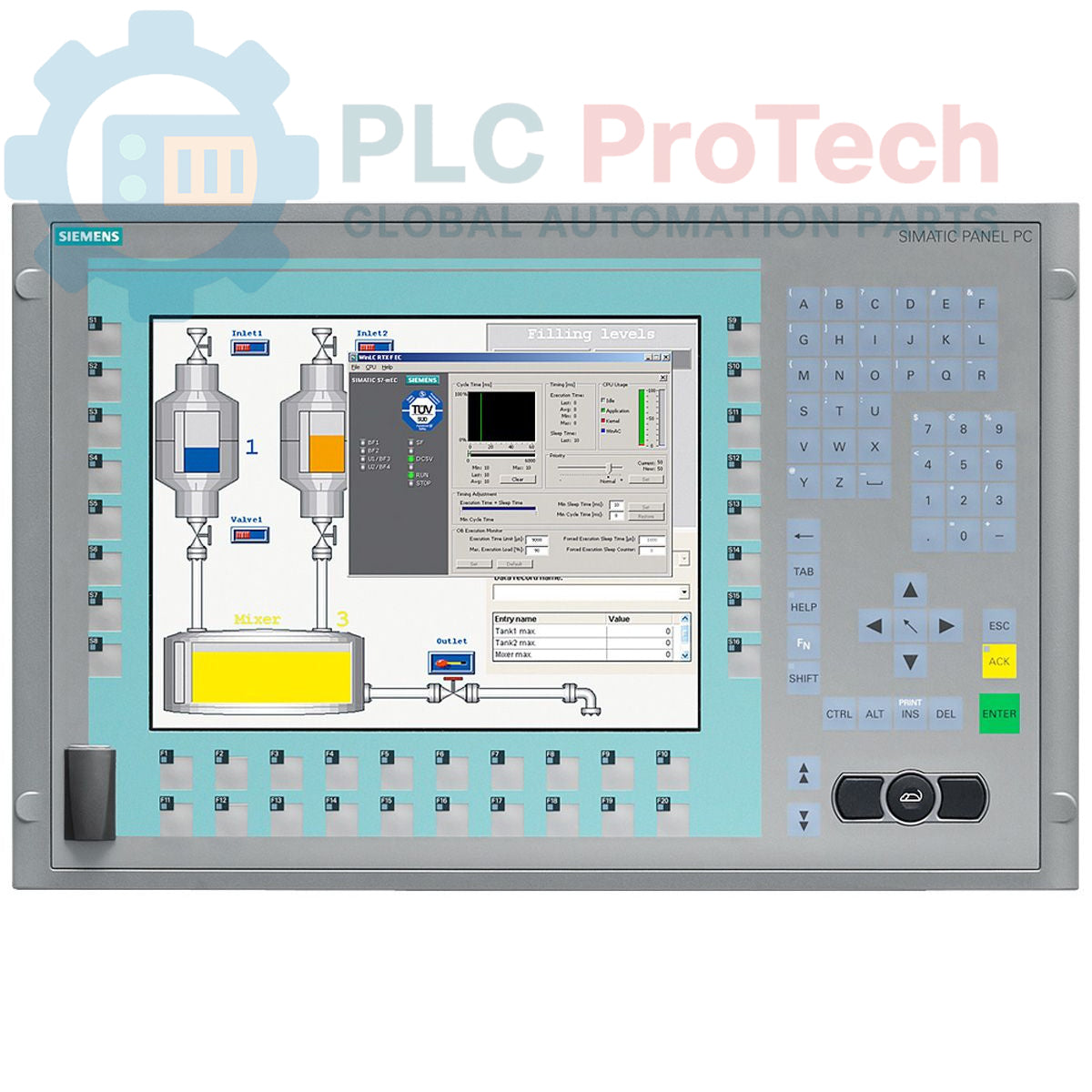

The Siemens 6AV7884-1AH30-4EB0 is a SIMATIC HMI IPC 477C, a robust Panel PC designed for human-machine interface applications in industrial environments. This specific model is a bundled unit featuring a 12-inch key-operated display with an 800 x 600 pixel resolution. It is powered by an Intel Core 2 Duo 1.2 GHz processor and is equipped with 4 GB of DDR3 RAM. For storage and operating system, it includes an 8 GB CompactFlash card pre-installed with Windows Embedded Standard 7. The bundle also includes licenses for WinCC flexible 2008 and WinAC RTX software, providing a comprehensive platform for control and visualization tasks.

Features

• 12-inch display with physical keys for operator input.
• Intel Core 2 Duo 1.2 GHz processor for demanding HMI tasks.
• 4 GB of DDR3 system memory.
• Windows Embedded Standard 7 pre-installed on an 8 GB CF card.
• Integrated PROFINET (IE) and PROFIBUS DP 12 communication ports.
• Total of five USB ports for peripheral connectivity (4 rear, 1 front).
• Includes WinCC flexible 2008 and WinAC RTX software bundle.

Applications

• Machine-level visualization and control.
• Process monitoring in manufacturing and production lines.
• Data acquisition and logging systems.
• PC-based automation solutions requiring integrated HMI.

Technical Specifications

Installation Guidelines

1. 1 Panel Cutout and Mounting: Prepare the control cabinet panel cutout according to the device's mechanical drawings. Ensure the mounting surface is clean, flat, and free of debris. Insert the Panel PC into the cutout and secure it evenly using all provided mounting clamps to maintain the specified IP rating. Do not overtighten.
2. 2 Protective Earth (PE) Connection: Connect the chassis to the cabinet's protective earth system using a low-impedance conductor. The connection point on the device is typically marked with the PE symbol. A secure and reliable ground connection is essential for operator safety and electromagnetic compatibility (EMC).
3. 3 Power Supply Connection: Connect the specified DC power supply to the power input terminals. Verify the supply voltage matches the rating on the device label. Use appropriately sized conductors and ensure correct polarity. Route power cables separately from high-voltage or communication lines to minimize noise interference.
4. 4 Communication Cable Installation: Connect PROFINET, PROFIBUS, and USB cables as required. Use shielded cables for all data communication. Ensure cable shields are properly terminated at both ends to the grounded chassis or designated shield terminals to maintain signal integrity and EMC performance. Secure all connectors firmly.
