Description

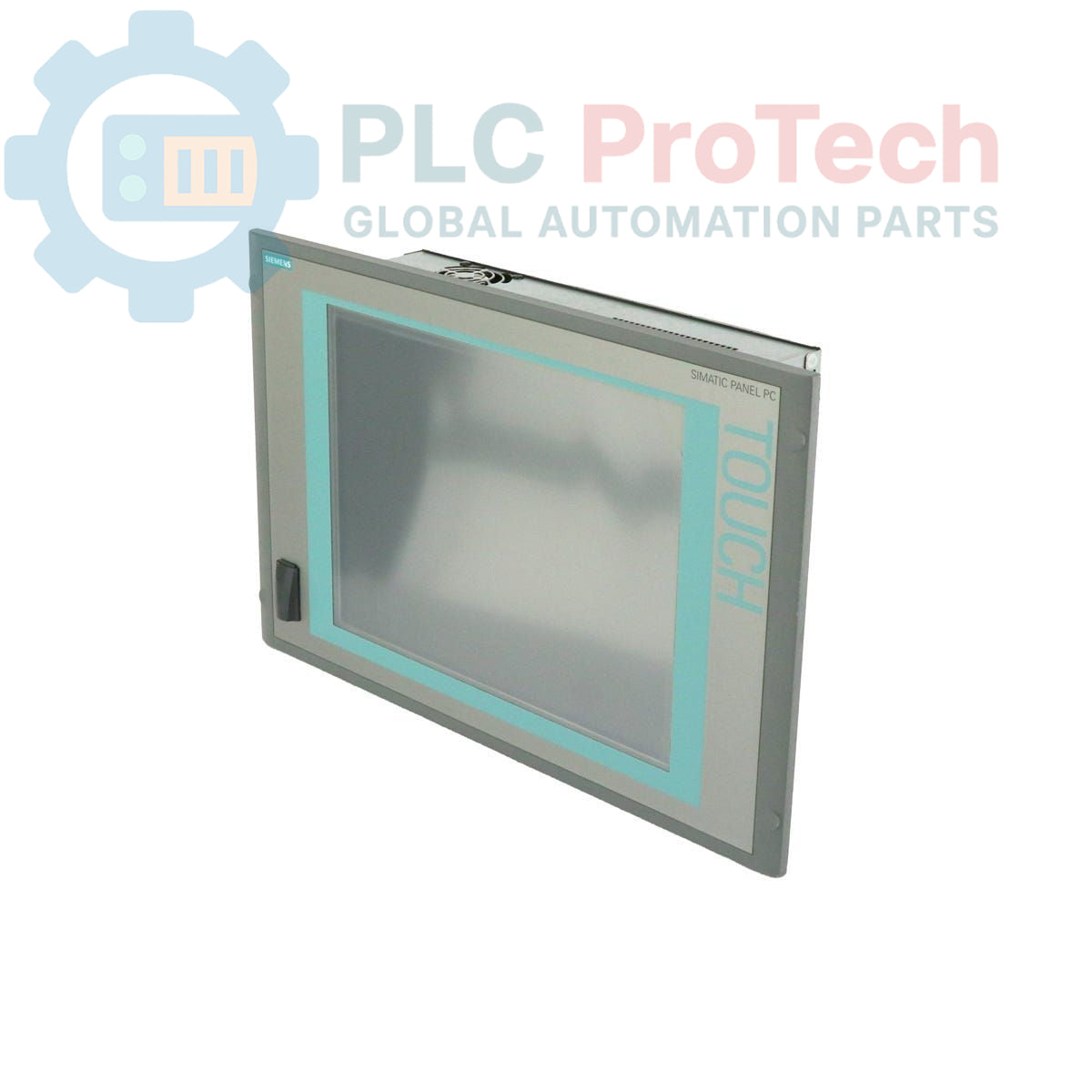

The Siemens 6AV7885-2AK10-1DA8 is a SIMATIC HMI IPC 577C Panel PC designed for industrial human-machine interface (HMI) and control applications. This unit features a 15-inch touch display, an Intel Core 2 Duo 1.86 GHz processor, and 1 GB DDR3 RAM. It comes equipped with a 320 GB SATA HDD with Windows XP Professional pre-installed, offering a robust platform for visualization and operational tasks. Connectivity options include integrated Ethernet (10/100/1000), PROFINET (IE), and multiple USB ports, making it suitable for integration into various automation environments. The unit is powered by a 24 V DC supply and includes a PCI slot for expansion.

Features

• 15-inch Touch Display
• Intel Core 2 Duo 1.86 GHz Processor
• 1 GB DDR3 RAM (2x 1 Gbit)
• 320 GB SATA HDD (with Windows XP Professional pre-installed)
• Integrated Ethernet (10/100/1000)
• PROFINET (IE) Interface
• 5x USB ports (4 rear, 1 front)
• PCI Slot for expansion
• 24 V DC Power Supply

Applications

The Siemens SIMATIC HMI IPC 577C Panel PC is typically deployed in industrial settings requiring local visualization, operator control, and data acquisition. Common applications include:

• Machine operation and control panels
• Process monitoring and control in manufacturing plants
• Building automation systems
• Data visualization and trending
• Supervisory control and data acquisition (SCADA) systems

Technical Specifications

Connections / Interfaces

The 6AV7885-2AK10-1DA8 Panel PC provides the following primary interfaces:

• Ethernet: 10/100/1000 Mbps port for network connectivity.
• PROFINET (IE): Industrial Ethernet interface for real-time communication.
• USB: Five USB ports (four at the back, one at the front) for peripheral connections.

Installation Guidelines

Proper installation ensures reliable operation and longevity of the Panel PC.

1. Power Supply: Connect the unit to a stable 24 V DC power source. Ensure correct polarity and adequate current capacity for the system.
2. Mounting: Mount the Panel PC securely into a control cabinet or panel cutout, ensuring sufficient space for ventilation and cable routing.
3. Grounding: Establish a robust protective earth (PE) connection to the chassis of the Panel PC to minimize electromagnetic interference and ensure safety.
4. Cable Routing: Route power and communication cables separately from high-voltage or noisy lines to prevent interference. Use shielded cables for sensitive signals where appropriate.
5. Environmental Considerations: Ensure the operating environment meets the specified temperature and humidity ranges. Avoid direct sunlight, excessive dust, and vibration.
6. Peripheral Connections: Connect USB devices, Ethernet cables, and PROFINET cables to their respective ports. Ensure all connections are secure.
