Description

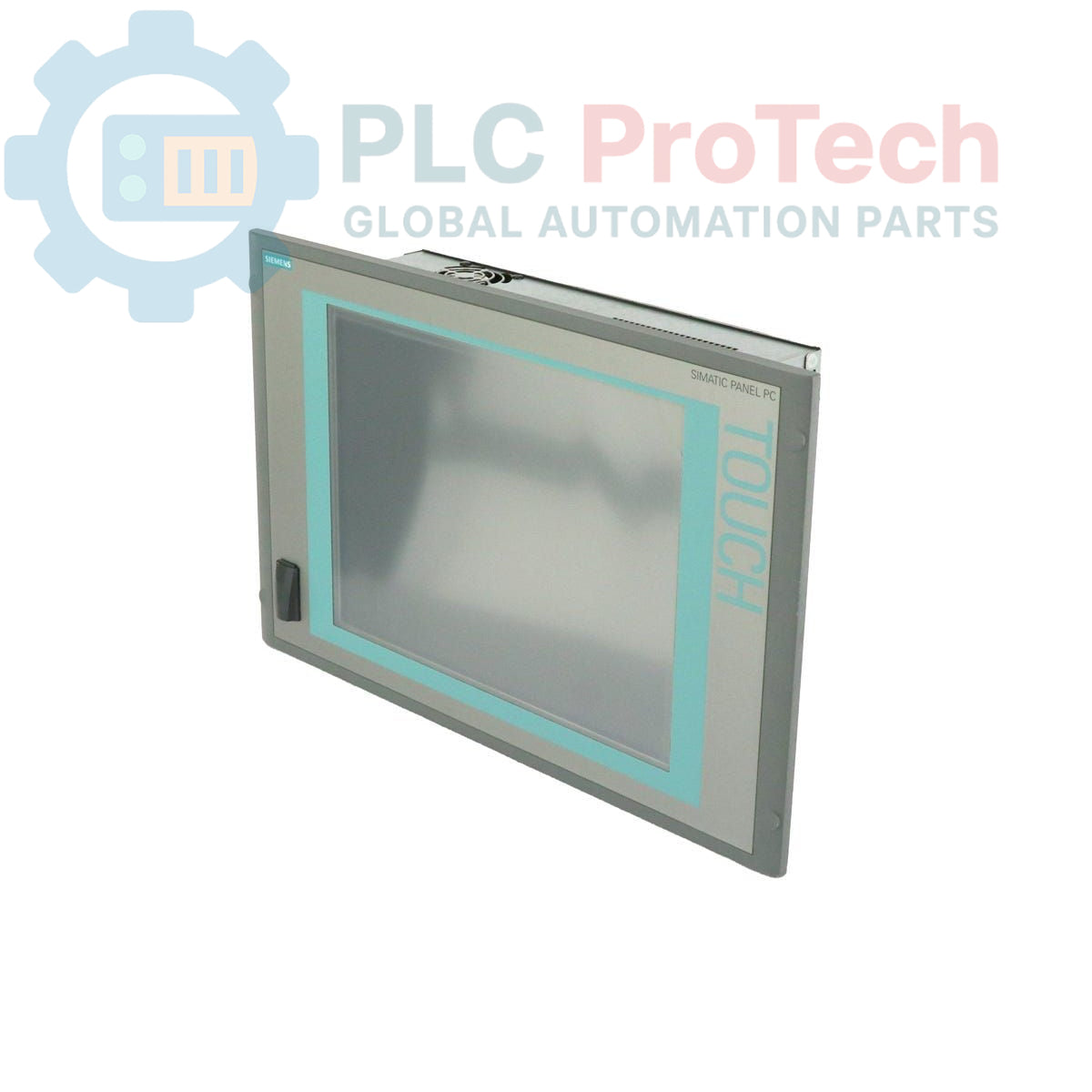

This device is a Siemens 6AV7885-2AK20-3BA8 SIMATIC HMI IPC 577C, a robust Panel PC designed for human-machine interface (HMI) applications in industrial environments. It features a 15-inch touch display, an Intel Core 2 Duo 1.86 GHz processor, and 2 GB of DDR3 RAM. The system is configured with a 4 GB CompactFlash card as the primary storage medium, which comes pre-installed with the Windows Embedded Standard 2009 operating system. Connectivity is provided through dual Gigabit Ethernet ports, an integrated PROFINET interface, and multiple USB ports. The unit operates on a 24 V DC power supply and includes a PCI slot for hardware expansion.

Features

• 15-inch integrated touch screen display
• Intel Core 2 Duo processor operating at 1.86 GHz
• 2 GB of DDR3 system memory
• 4 GB CompactFlash card for primary storage
• Windows Embedded Standard 2009 operating system pre-installed
• Integrated PROFINET (IE) communication interface
• Dual 1 Gbit (10/100/1000) Ethernet ports
• One available PCI expansion slot
• Operates on a 24 V DC power source

Applications

• Machine-level control and visualization
• Process monitoring and data acquisition systems
• Operator control stations in manufacturing
• Factory and process automation control panels

Technical Specifications

Installation Guidelines

1. 1 De-energize System: Ensure the main power to the control cabinet or enclosure is completely shut off and locked out before beginning any work. Verify the absence of voltage.
2. 2 Prepare Panel Cutout: Verify that the panel cutout dimensions match the requirements for the IPC 577C. Ensure the mounting surface is clean, flat, and free of debris to guarantee a proper seal.
3. 3 Mount the Unit: Insert the Panel PC into the cutout from the front of the panel. Secure it from the rear using the provided mounting clamps, tightening them evenly to the specified torque to ensure environmental sealing.
4. 4 Connect Power: Connect the 24 V DC power supply to the designated power terminal. Strictly observe correct polarity (+/-) to prevent damage to the unit. Use appropriately sized conductors for the load.
5. 5 Establish Ground Connection: Connect the chassis of the Panel PC to the protective earth (PE) ground of the control cabinet using a low-impedance conductor. A reliable ground connection is essential for safety and noise immunity.
6. 6 Connect Peripherals and Networks: Connect Ethernet, PROFINET, and any required USB devices. Ensure all cables are properly routed and secured to prevent strain on the connectors.
7. 7 Final Check and Power-Up: After all connections are made and verified, close the control cabinet door. Remove the lockout/tagout device and re-energize the system. Verify that the Panel PC boots correctly.
