Description

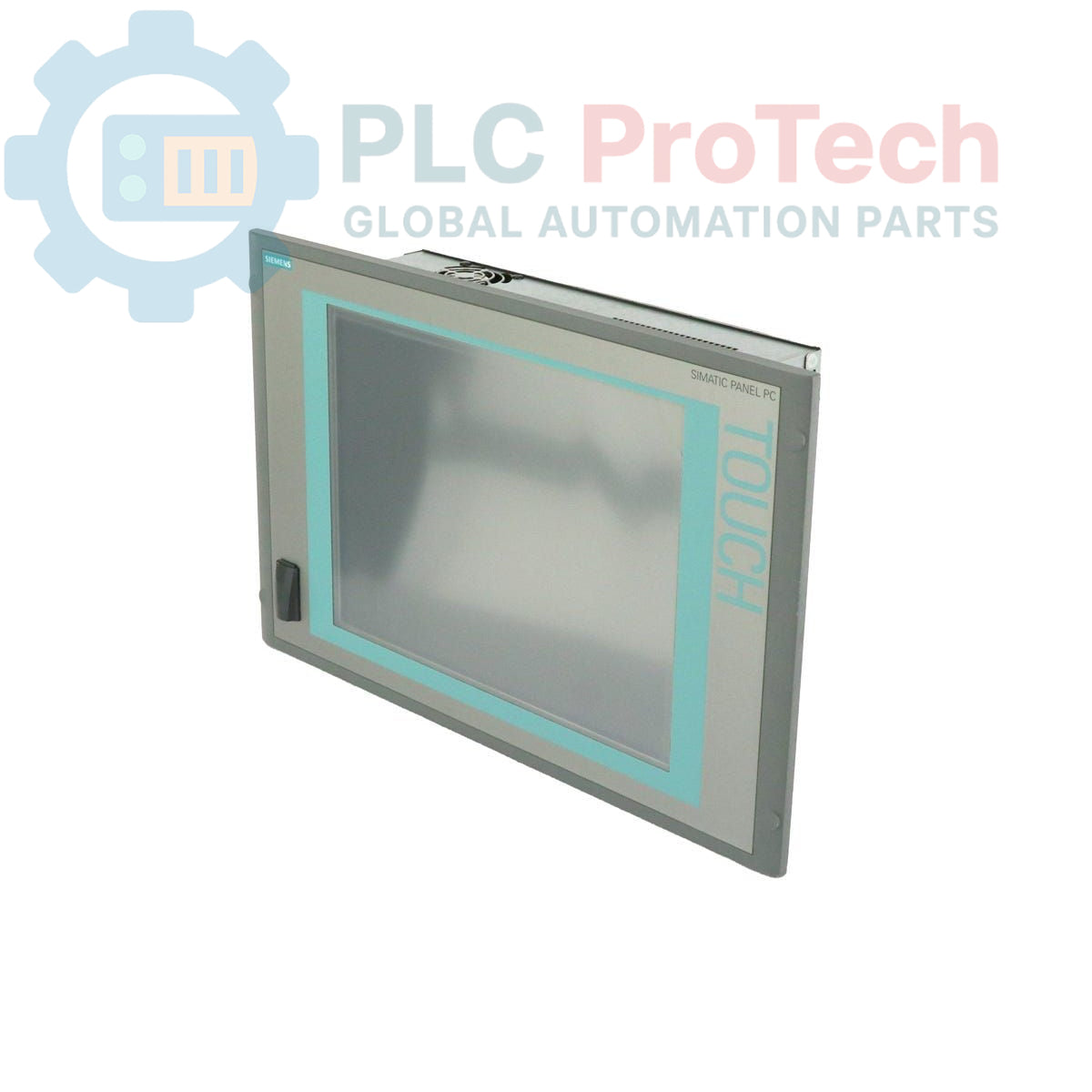

The Siemens 6AV7885-2AK20-1GA2 is a SIMATIC HMI IPC 577C Industrial PC designed for reliable operation in demanding production environments. This model features a robust 15-inch touch display, providing clear visualization and intuitive control for industrial processes. Powered by an Intel Core 2 Duo 1.86 GHz processor and equipped with 2 GB DDR3 RAM, the 6AV7885-2AK20-1GA2 ensures responsive performance across various industrial applications.

Connectivity options for the Siemens 6AV7885-2AK20-1GA2 include four USB ports on the back, one USB port on the front, Ethernet support (10/100/1000 Mbps), and two Profinet (IE) interfaces, facilitating straightforward integration with existing networks. The unit comes with a 320 GB SATA HDD and Windows 7 Ultimate MUI pre-installed, supporting operational efficiency and data management. It operates on a 110/230 V AC power supply unit with NAMUR compatibility and includes a European power cable.

Features

• Integrated 15-inch Touch Display
• Intel Core 2 Duo 1.86 GHz Processor
• 2 GB DDR3 RAM
• 320 GB SATA Hard Disk Drive (HDD)
• Pre-installed Windows 7 Ultimate MUI Operating System
• Multiple USB Ports (4x Rear, 1x Front)
• Ethernet (10/100/1000 Mbps) Connectivity
• Two Profinet (IE) Interfaces
• PCI Expansion Slot
• 110/230 V AC Power Supply Unit with NAMUR compatibility

Applications

The Siemens 6AV7885-2AK20-1GA2 Industrial PC is suitable for a range of industrial applications requiring a robust Human-Machine Interface (HMI) and computing platform. Typical deployments include:

• Machine control and visualization in manufacturing plants.
• Process monitoring and data acquisition systems.
• Operator workstations in harsh industrial environments.
• Integration into automation systems requiring local data processing and display.
• Supervisory control and data management in production lines.

Technical Specifications

Connections / Interfaces

Installation Guidelines

1. Safety First: Ensure all power to the installation area is de-energized and locked out before beginning any work.
2. Mounting: Securely mount the SIMATIC HMI IPC 577C into its designated panel cutout or mounting location, ensuring proper ventilation clearances are maintained around the unit.
3. Power Connection: Connect the provided European power supply cable to the 110/230 V AC power input. Verify the power source matches the unit's requirements.
4. Grounding: Ensure the unit is properly grounded according to local electrical codes and manufacturer recommendations to prevent electrical hazards and ensure signal integrity.
5. USB Device Connection: Connect any required USB peripherals to the available front or rear USB ports.
6. Network Connections: Connect Ethernet and Profinet cables to the respective ports. Use appropriate industrial-grade cabling for reliable communication in demanding environments.
7. PCI Expansion (If Applicable): If utilizing the PCI slot, carefully install the expansion card following the card manufacturer's instructions and secure it properly.
8. Cable Management: Route all cables neatly, ensuring they are secured and do not obstruct ventilation or access to other components. Avoid placing signal cables near high-voltage power lines.
9. Power Up: Once all connections are verified and secure, re-energize the power supply to the unit.
