Description

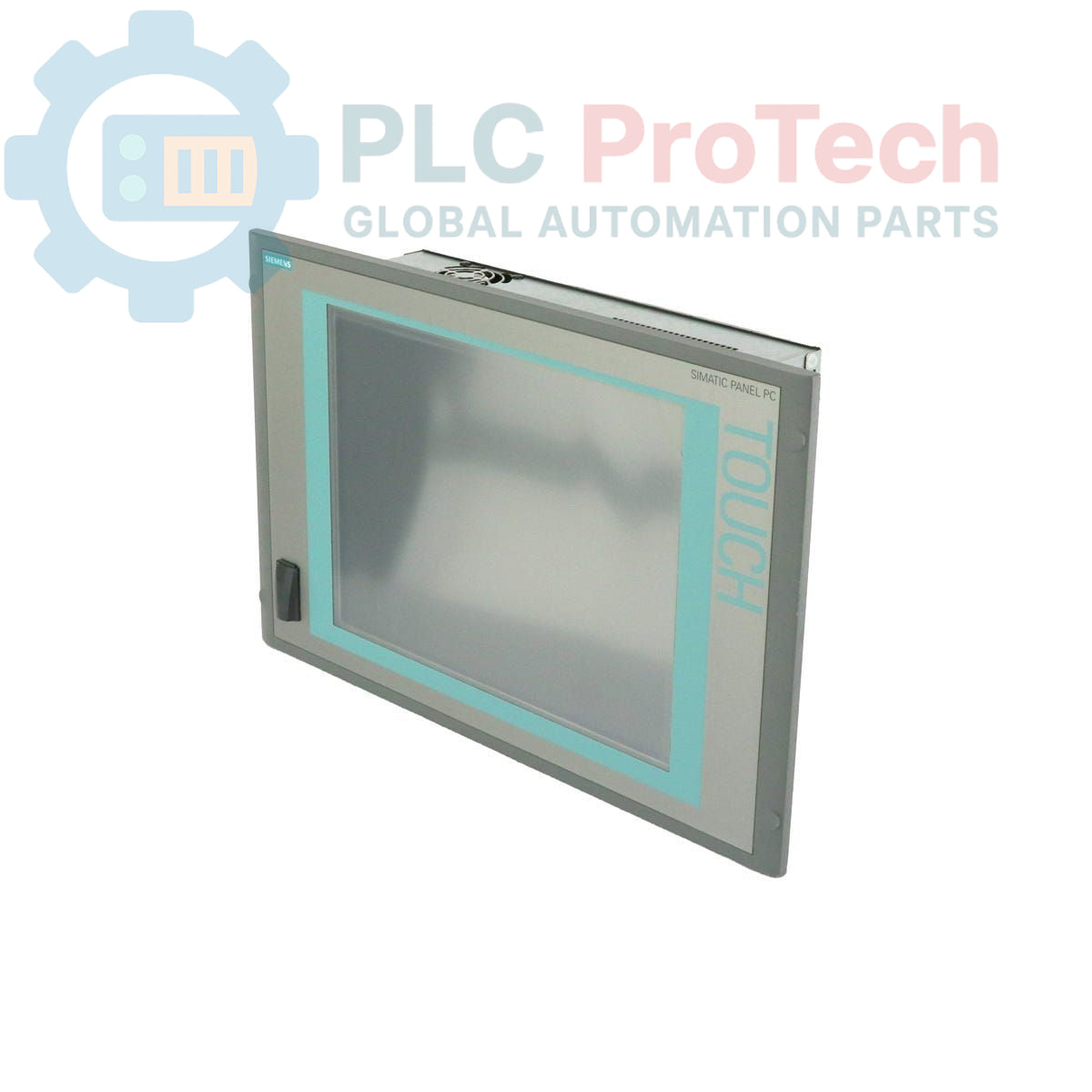

The Siemens 6AV7885-2AK21-1DA2 is a SIMATIC HMI IPC 577C industrial-grade panel PC engineered for demanding production environments. This unit integrates a 15-inch touch display with a Core 2 Duo 1.86 GHz processor and 2 GB DDR3 RAM, providing robust performance for process visualization and control applications. The 6AV7885-2AK21-1DA2 offers extensive connectivity, including a PCI slot, five USB ports (four rear, one front), and dual Ethernet interfaces (10/100/1000 Mbps) with PROFINET support, facilitating integration into modern industrial networks. It features a 320 GB HDD SATA as the primary mass storage (with optional Windows XP Professional pre-installation) and a DVD RW for secondary mass storage. Powered by a 110/230 V AC supply unit with NAMUR compliance, the Siemens 6AV7885-2AK21-1DA2 ensures reliable and safe operation, delivered with a European power cable for immediate deployment.

Features

• 15-inch Touch Display
• Core 2 Duo 1.86 GHz Processor
• 2 GB DDR3 RAM
• PCI Expansion Slot
• 5x USB Ports (4 rear, 1 front)
• Dual Ethernet Interfaces (10/100/1000 Mbps)
• PROFINET (IE) Support
• 320 GB HDD SATA Primary Mass Storage
• DVD RW Secondary Mass Storage
• 110/230 V AC Power Supply Unit with NAMUR Compliance
• Includes European Power Cable

Applications

• Process Visualization and Control Tasks
• Human-Machine Interface (HMI) for Industrial Operations
• Integration into Modern Industrial Networks
• Deployment in Demanding Production Environments

Technical Specifications

Connections / Interfaces

Installation Guidelines

1. Power Supply: Connect the unit to a stable 110/230 V AC power source using the provided European power cable. Ensure the power supply adheres to NAMUR compliance standards for industrial environments.
2. Mounting: Securely mount the panel PC in its intended industrial enclosure or panel cutout, ensuring adequate ventilation to prevent overheating.
3. Connectivity: Connect Ethernet cables to the dual 10/100/1000 Mbps ports for network integration, including PROFINET communication. Utilize the front and rear USB ports for peripheral device connections as required.
4. PCI Expansion: If a PCI expansion card is to be installed, follow standard electrostatic discharge (ESD) precautions and ensure the card is correctly seated and secured within the designated PCI slot.
5. Grounding: Ensure proper grounding of the panel PC to minimize electrical interference and enhance operational safety in an industrial setting.

Compliance and Certifications

• NAMUR Compliant Power Supply
