Description

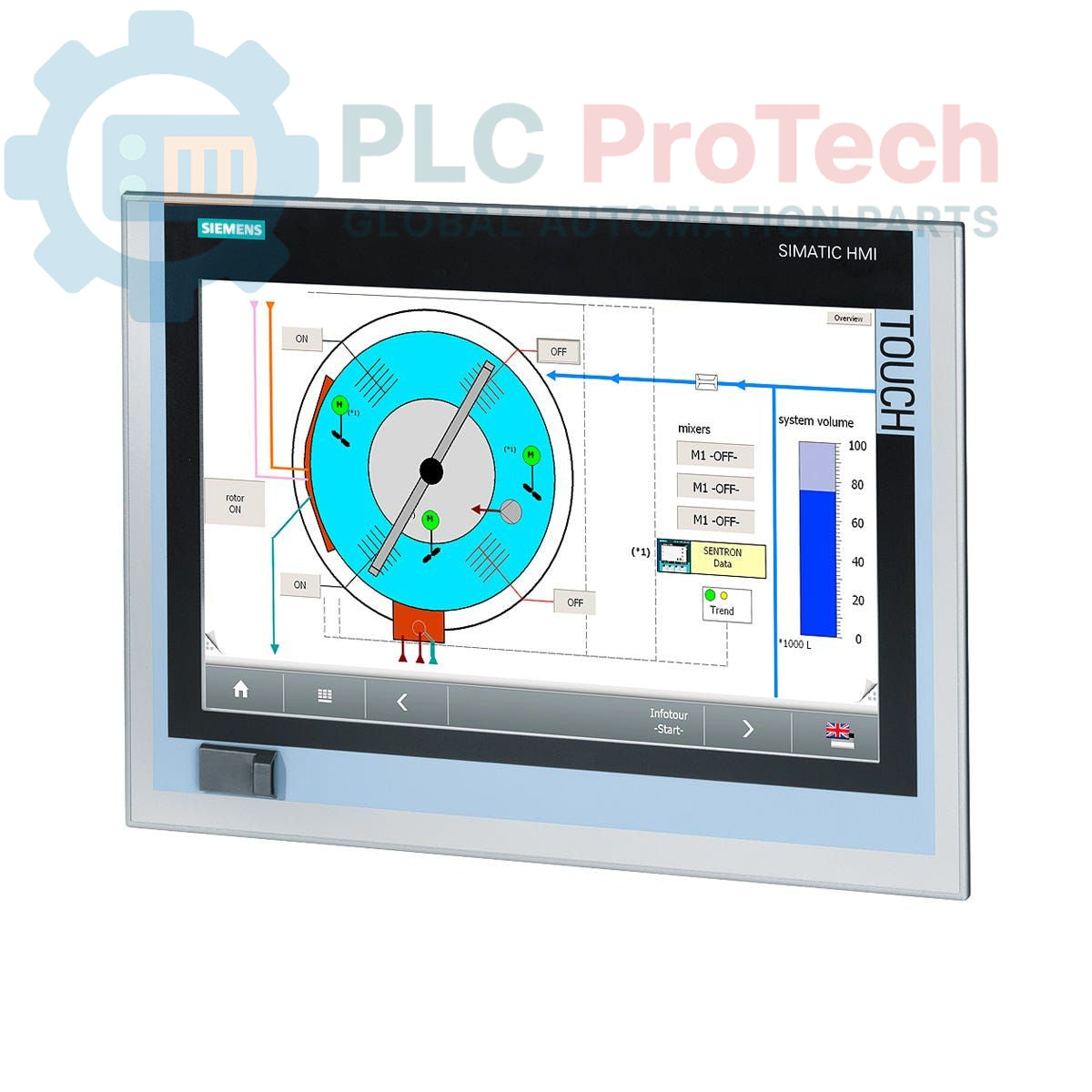

The Siemens 6AV7882-0DB20-2AB0 is a SIMATIC IPC277E Nanopanel PC, specifically engineered for industrial human-machine interface (HMI) and control applications. This compact panel PC features a 15-inch Touch TFT display, providing an intuitive and robust interface for operators in demanding environments. It is powered by a Celeron N2930 (4C/4T) processor and includes 4 GB of RAM, ensuring reliable performance for embedded control and visualization tasks. The unit offers comprehensive connectivity with multiple Ethernet, USB, Display Port, and serial interfaces, facilitating seamless integration into diverse automation systems. While designed to support Windows Embedded Standard 7E SP1 (64-bit, English), the device is delivered without the operating system software installed, allowing for customized software deployment.

Features

• 15-inch Touch TFT Display
• Celeron N2930 (4C/4T) Processor
• 4 GB RAM
• 2x 10/100/1000 Mbps Ethernet RJ45 Ports
• 1x Display Port Graphic Interface
• 1x USB 3.0 Port
• 3x USB 2.0 Ports
• 1x Front-USB Port
• 1x Serial (COM 1) Port
• CFAST Slot for mass storage expansion
• 24 V DC Power Supply
• Pre-configured for Windows Embedded Standard 7E SP1 (64-bit, English)

Applications

The Siemens SIMATIC IPC277E Nanopanel PC is well-suited for a variety of industrial applications that require a robust and integrated HMI and control solution, including:

• Machine operation and visualization panels
• Process control and monitoring systems
• Data acquisition and logging in manufacturing
• Building automation and facility management
• Logistics and material handling systems
• Embedded control and data processing tasks

Technical Specifications

Installation Guidelines

1. Safety First: Always ensure that all power to the installation area and associated equipment is de-energized and locked out before commencing any installation or maintenance work.
2. Mounting: Securely mount the Nanopanel PC into a pre-prepared panel cutout. Ensure adequate space for ventilation around the unit to prevent overheating, adhering to any specific clearances recommended by Siemens.
3. Power Connection: Connect the 24 V DC power supply to the designated terminals on the unit. Verify correct polarity before applying power. Use appropriately sized wiring for the power requirements to ensure stable operation.
4. Grounding: Establish a robust protective earth (PE) connection from the panel PC chassis to the main grounding system. This is crucial for electrical safety and to minimize electromagnetic interference (EMI).
5. Interface Connections: Connect Ethernet cables to the RJ45 ports, USB devices to the available USB ports, and display cables to the Display Port as required by the application. Ensure all connections are firm and properly seated.
6. Cable Management: Route all power, signal, and communication cables neatly to prevent strain, abrasion, and potential interference. Separate power cables from signal cables where possible.
7. Environmental Considerations: Confirm that the operating environment's temperature, humidity, and vibration levels fall within the specified ranges for the device to ensure optimal performance and longevity.
8. Power Up: After all connections have been thoroughly checked and verified, restore power to the system and monitor the Nanopanel PC's startup sequence.
