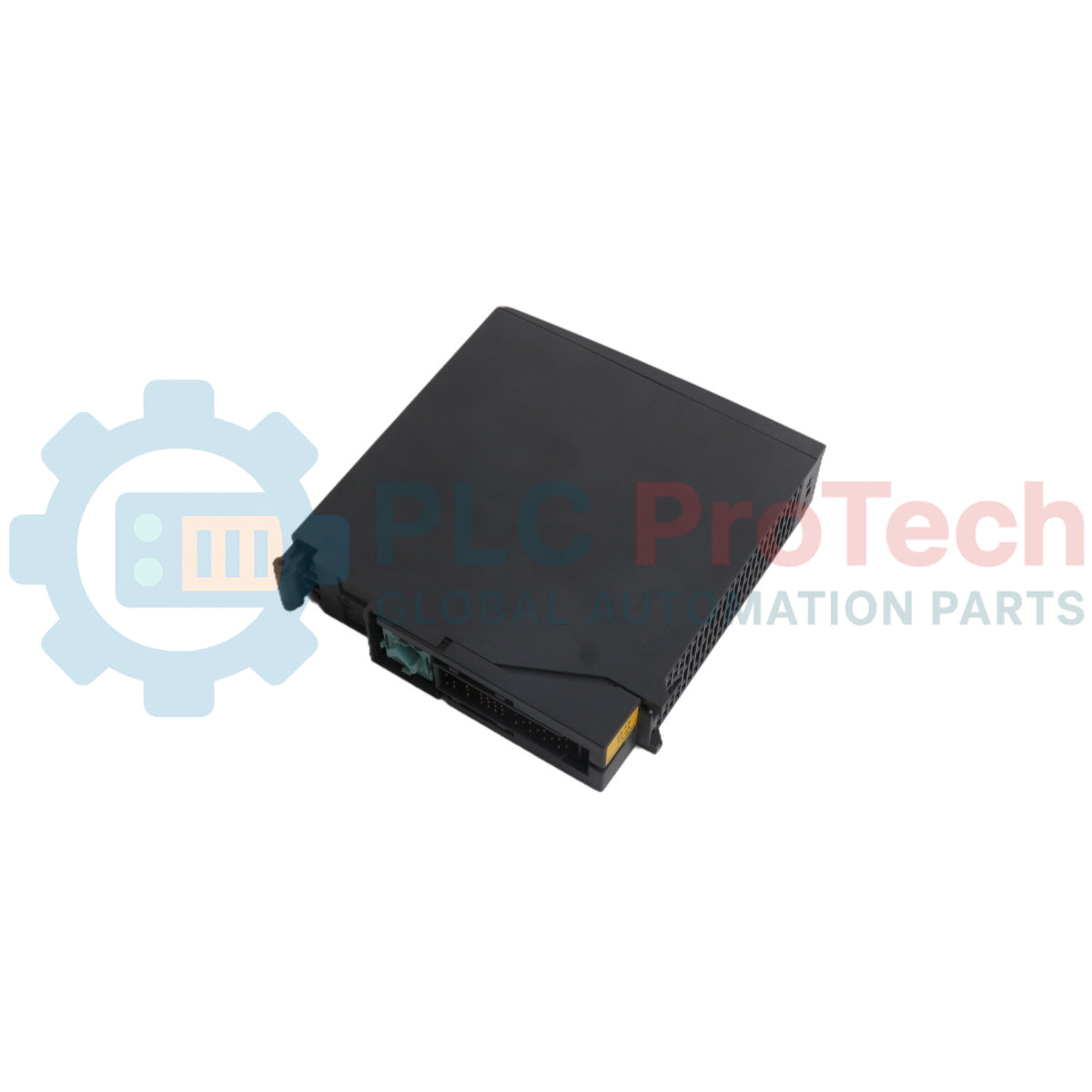

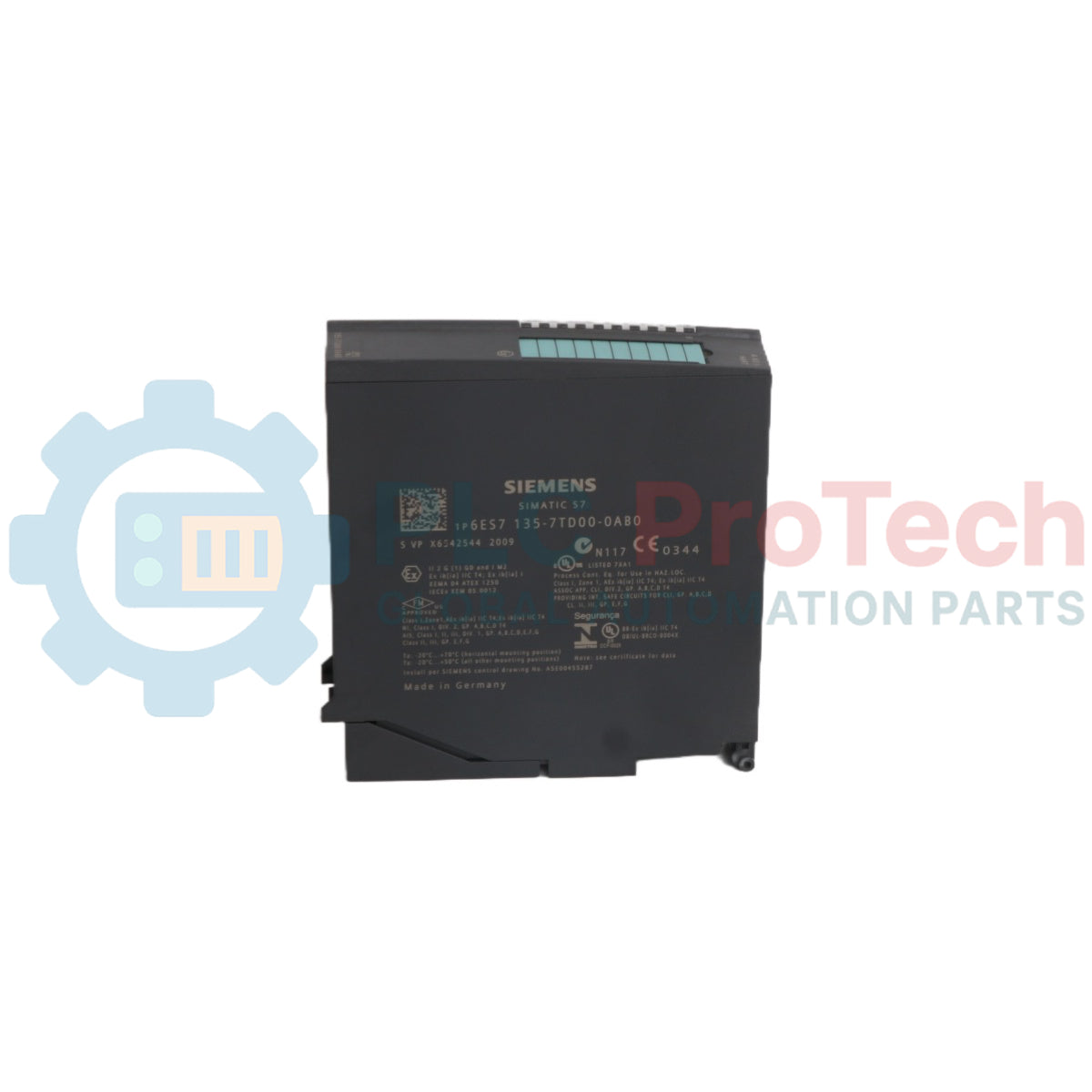

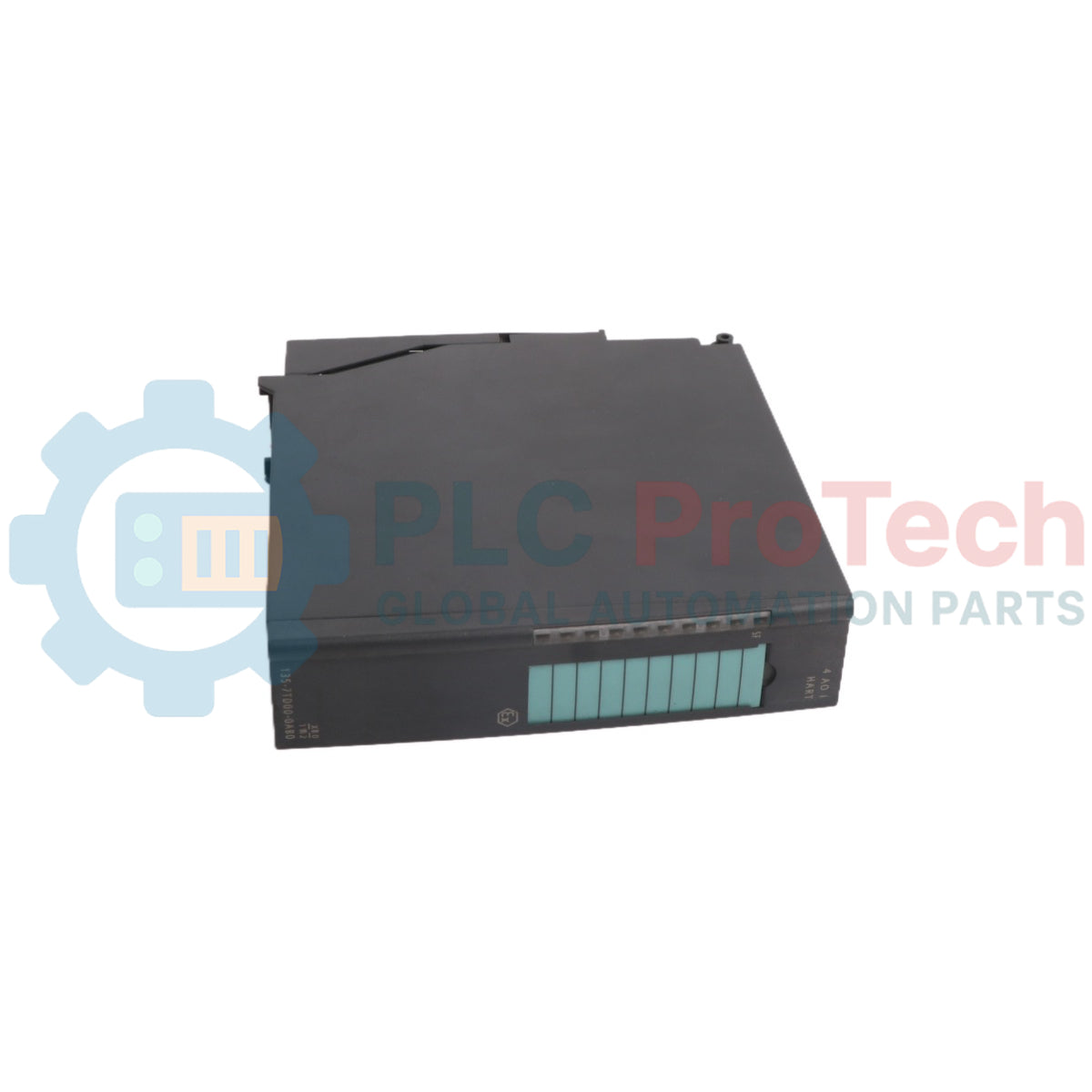

Siemens 6ES7135-7TD00-0AB0 SIMATIC ET 200iSP Analog Output Module

SKU 6ES7135-7TD00-0AB0

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6ES7135-7TD00-0AB0
Origin Germany
Product Type: Analog Output Module
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 0.24 kg
Dimensions: 10.5 x 12.5 x 4 cm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

This Siemens 6ES7135-7TD00-0AB0 is an intrinsically safe analog output module designed for the SIMATIC ET 200iSP distributed I/O system. It provides four channels of 4-20mA analog output with integrated HART protocol version 6.0 support. Engineered for deployment in hazardous environments, the module meets stringent explosion protection standards, including Ex ib (ia Ga) IIC T4 Gb certification, ensuring reliable and safe operation in process control applications. The module's HART capability allows for seamless communication with smart field devices for configuration, diagnostics, and monitoring without interrupting the primary control signal.

Features

■Four-channel 4-20mA analog output.
■Supports HART protocol version 6.0 for smart device communication.
■Certified for use in hazardous areas with intrinsic safety protection.
■Designed for integration with the SIMATIC ET 200iSP system.
■Supports hot swapping during operation to minimize system downtime.

Applications

This module is specifically intended for process automation systems requiring precise analog control in potentially explosive atmospheres. Common industries include:

■Oil and Gas
■Chemical Processing
■Pharmaceutical Manufacturing
■Petrochemical Plants

Technical Specifications

Specification	Value
Manufacturer	Siemens
Part Number	6ES7135-7TD00-0AB0
Product Type	Analog Output Module
System Compatibility	SIMATIC ET 200iSP
Number of Channels	4
Output Signal	4-20mA
Communication Protocol	HART v6.0
Hazardous Area Certifications	Ex ib (ia Ga) IIC T4 Gb; Ex ib [ia IIIC Da] IIC T4 Gb; Ex ib [ia] I Mb
Shipping Weight	0.24 kg
Package Dimensions (Calculated)	10.5 x 12.5 x 4 cm
Country of Origin	Germany
HS Code	8537101190

Installation Guidelines

CRITICAL WARNING: HAZARDOUS AREA INSTALLATION

This equipment is designed for intrinsically safe (IS) circuits in hazardous locations. Installation must be performed by qualified personnel in strict accordance with local and national electrical codes (e.g., NEC, CEC, ATEX directives). Failure to comply with IS installation practices, including proper grounding, segregation, and use of approved IS barriers, can result in fire or explosion, leading to severe injury or death.

1 De-energize the entire ET 200iSP station and connected circuits before installation. Apply appropriate Lockout/Tagout (LOTO) procedures to prevent accidental power-up.
2 Securely mount the module onto the corresponding ET 200iSP terminal block on the DIN rail inside a suitably rated enclosure. Ensure it clicks firmly into place.
3 Connect the 4-20mA field wiring to the designated terminals. Use shielded, twisted-pair cable for HART communication to minimize noise interference. Ensure shield is grounded correctly at one end only, typically at the control cabinet side.
4 Verify all wiring terminations are secure and that IS circuit wiring is properly segregated from non-IS wiring as per regulatory requirements.
5 After removing LOTO and re-energizing the system, configure the module's parameters, including HART settings, using the SIMATIC engineering software (e.g., TIA Portal).
