Description

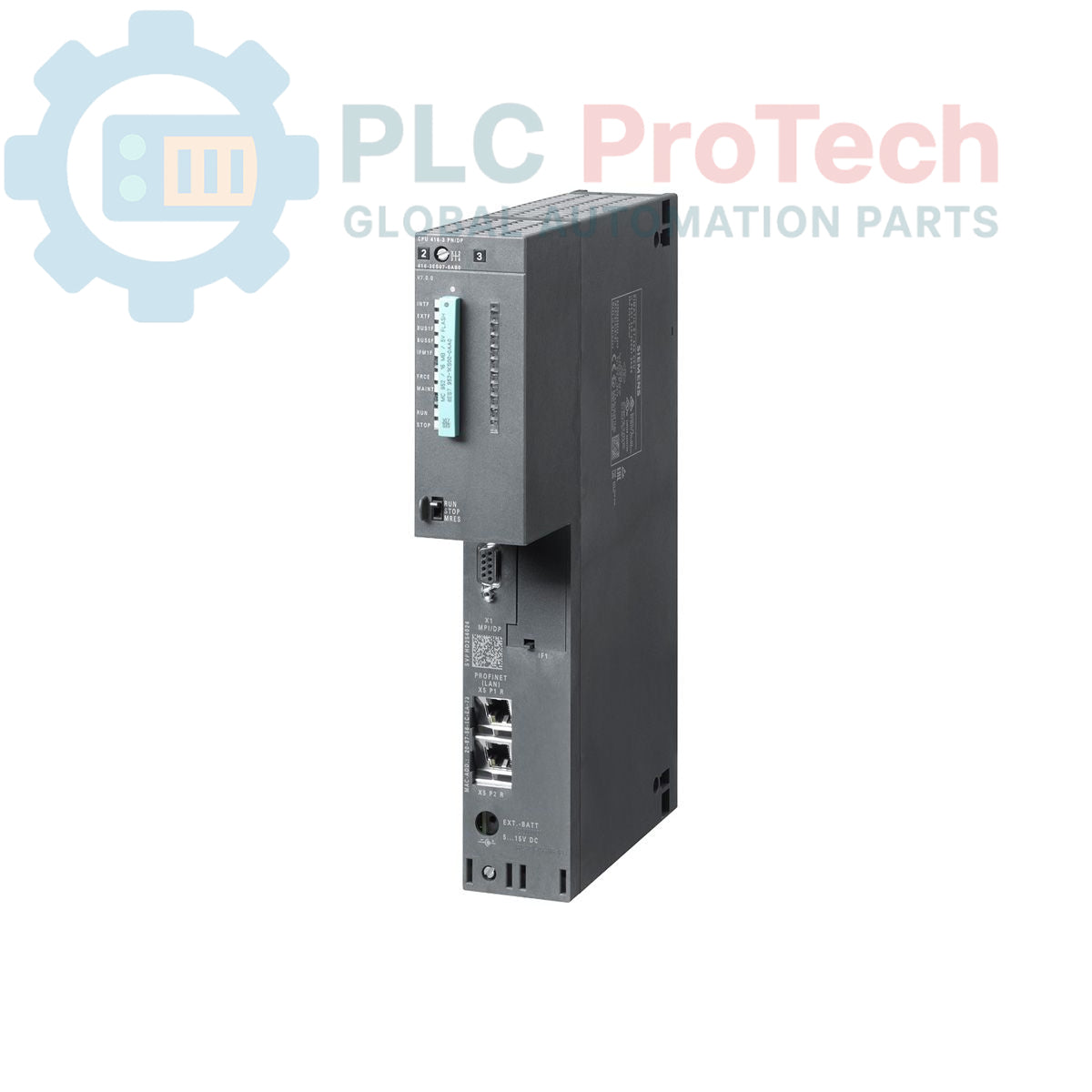

The Siemens 6ES7416-3ES07-0AB0 is a SIMATIC S7-400 CPU module, specifically the CPU 416-3 PN/DP Central Processing Unit. Designed for demanding industrial automation environments, this CPU features a total of 16 MB working memory, equally divided with 8 MB for code and 8 MB for data. This memory configuration supports the reliable execution of complex control tasks and the management of substantial data volumes.

The 6ES7416-3ES07-0AB0 is equipped with multiple integrated interfaces for flexible network integration. These include an MPI/DP interface operating at 12 Mbit/s (X1), an Ethernet/PROFINET interface (X5), and a pluggable IF964-DP interface (IF1). This connectivity allows for seamless integration into various production networks and supports robust communication within automation systems.

Features

• Total 16 MB working memory (8 MB code, 8 MB data)
• Integrated MPI/DP interface (12 Mbit/s)
• Integrated Ethernet/PROFINET interface
• Pluggable IF964-DP interface
• Designed for demanding industrial automation environments
• Modular PLC model

Applications

The Siemens 6ES7416-3ES07-0AB0 CPU module is suitable for a wide range of industrial automation applications requiring high processing power and extensive communication capabilities. Typical deployments include:

• Complex machine control systems
• Process automation in manufacturing plants
• Distributed control systems with PROFINET/PROFIBUS integration
• Critical infrastructure monitoring and control
• High-performance data acquisition and processing

Technical Specifications

Connections / Interfaces

The 6ES7416-3ES07-0AB0 CPU module provides the following communication interfaces:

• Interface 1 (X1): MPI/DP (Multi-Point Interface / Decentralized Periphery) with a data rate of 12 Mbit/s.
• Interface 2 (X5): Ethernet/PROFINET for industrial Ethernet communication.
• Interface 3 (IF1): Pluggable IF964-DP interface, offering additional PROFIBUS DP connectivity.

Installation Guidelines

Proper installation ensures reliable operation and longevity of the SIMATIC S7-400 CPU module. Adhere to the following general guidelines:

1. De-energization: Before installation, ensure all power to the automation system and associated components is completely de-energized and secured against accidental re-energization.
2. Mounting: Install the CPU module into the designated slot of a SIMATIC S7-400 rack. Ensure it is securely seated and locked into place according to the rack's mechanical design.
3. Power Supply: Connect the rack's power supply module(s) according to system specifications. Verify correct voltage and polarity before applying power.
4. Grounding: Ensure the rack and all connected components are properly grounded to the central protective earth. This is crucial for electrical safety and electromagnetic compatibility.
5. Cable Routing: Route communication and power cables separately to minimize interference. Use shielded cables for communication interfaces where specified and ensure proper shield termination.
6. Interface Connections: Connect communication cables (MPI/DP, Ethernet/PROFINET, IF964-DP) to their respective ports. Ensure connectors are securely fastened.
7. Environmental Considerations: Operate the module within specified temperature and humidity ranges. Ensure adequate ventilation around the rack to prevent overheating.
8. Configuration: After physical installation, configure the CPU and its interfaces using the appropriate Siemens engineering software (e.g., STEP 7) to integrate it into the automation project.
