Siemens

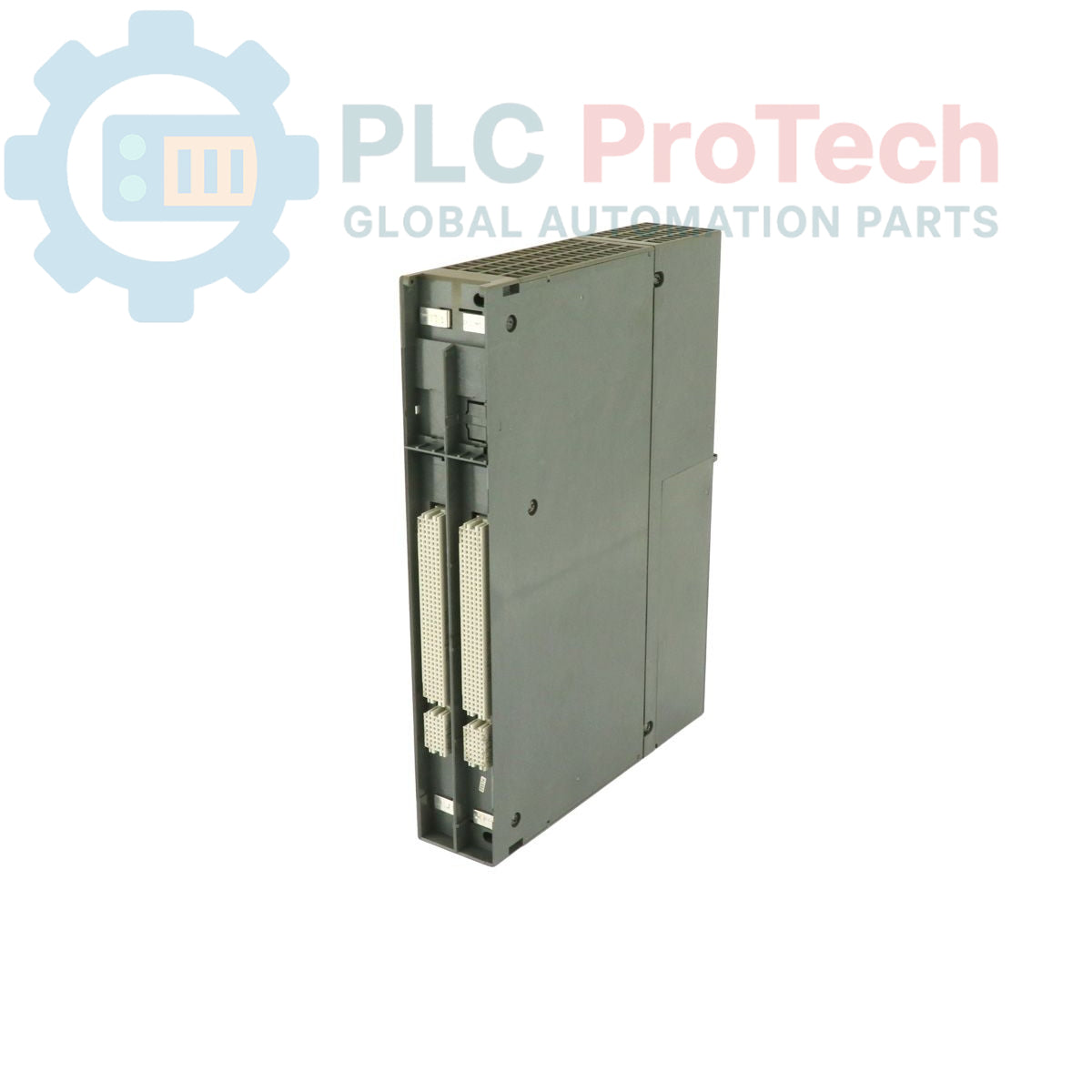

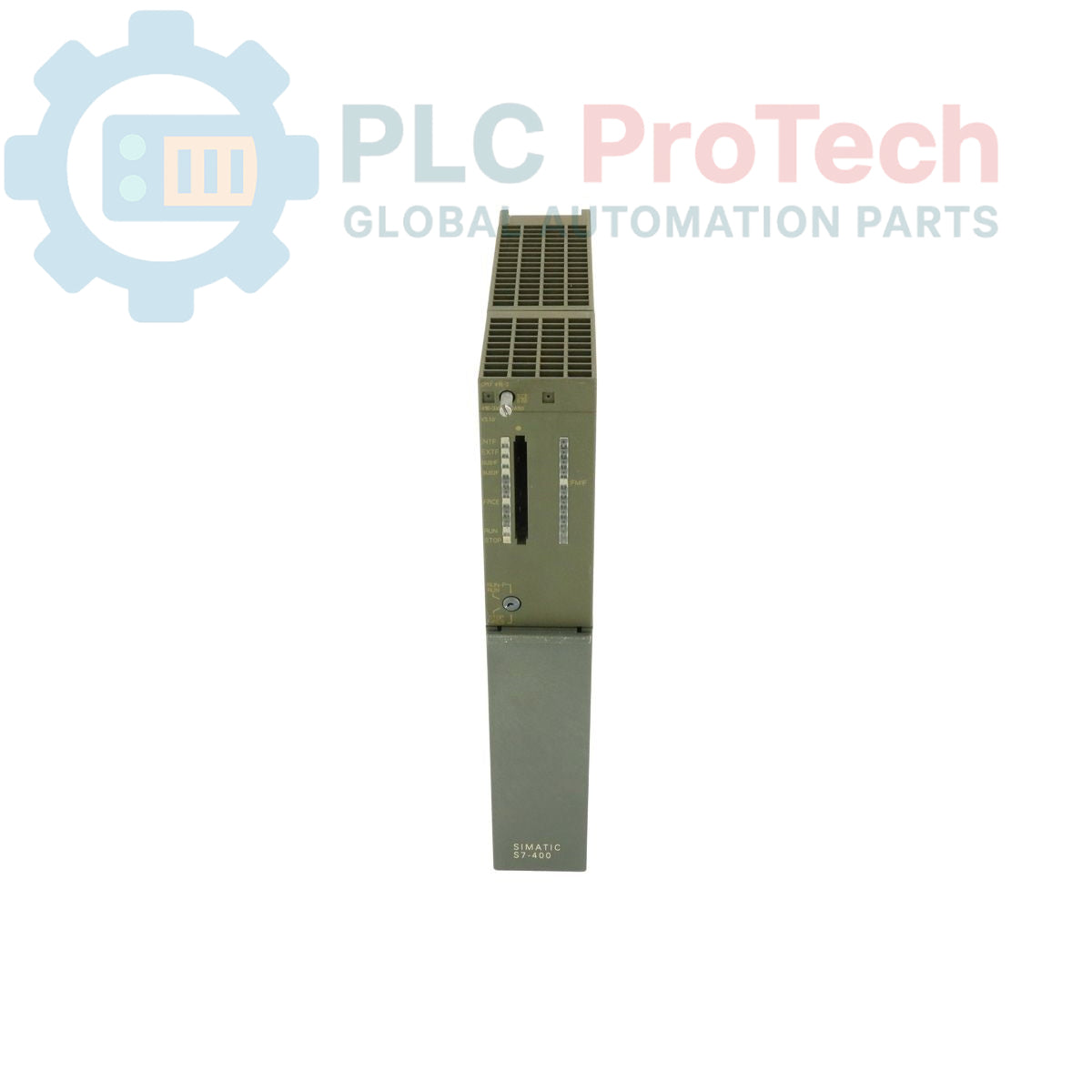

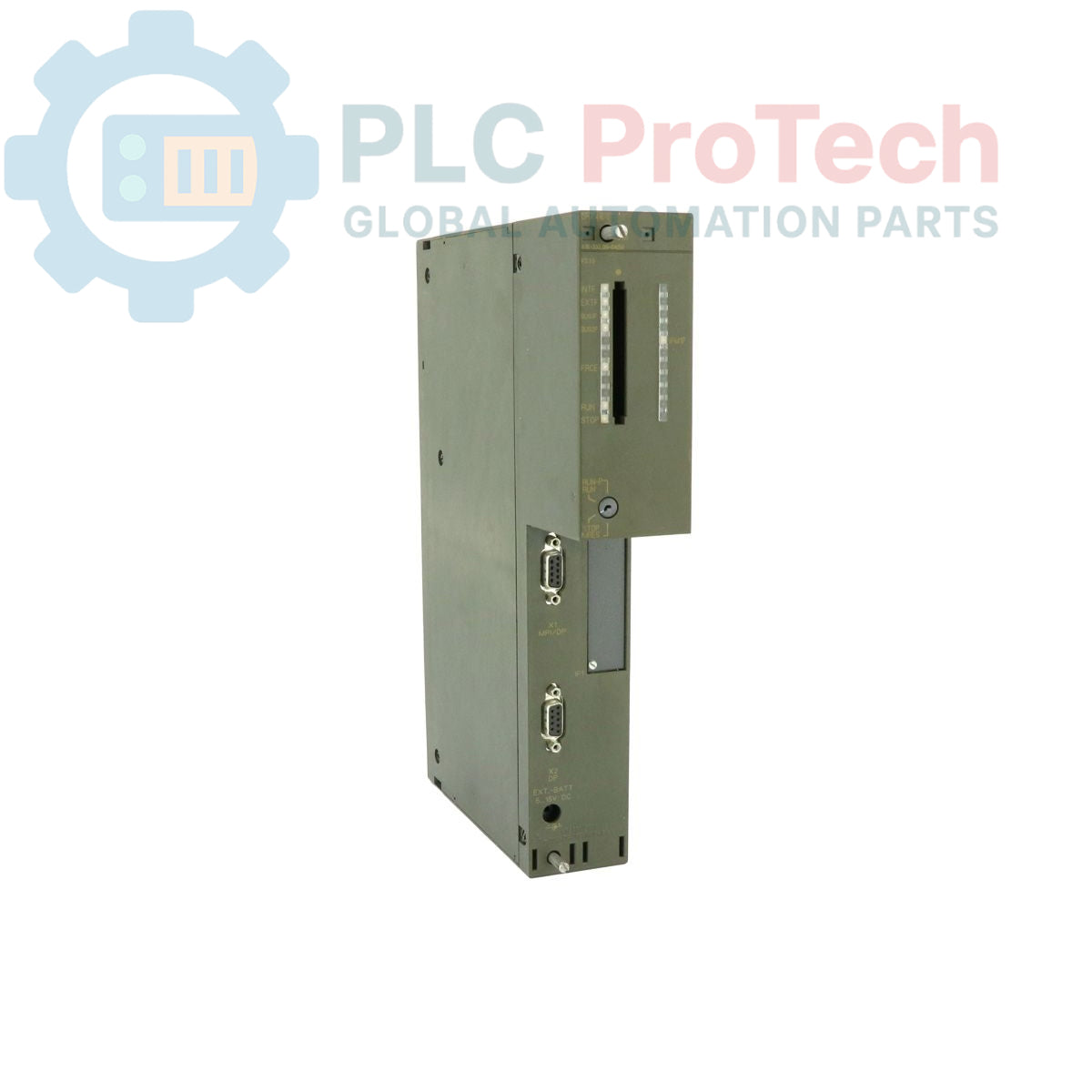

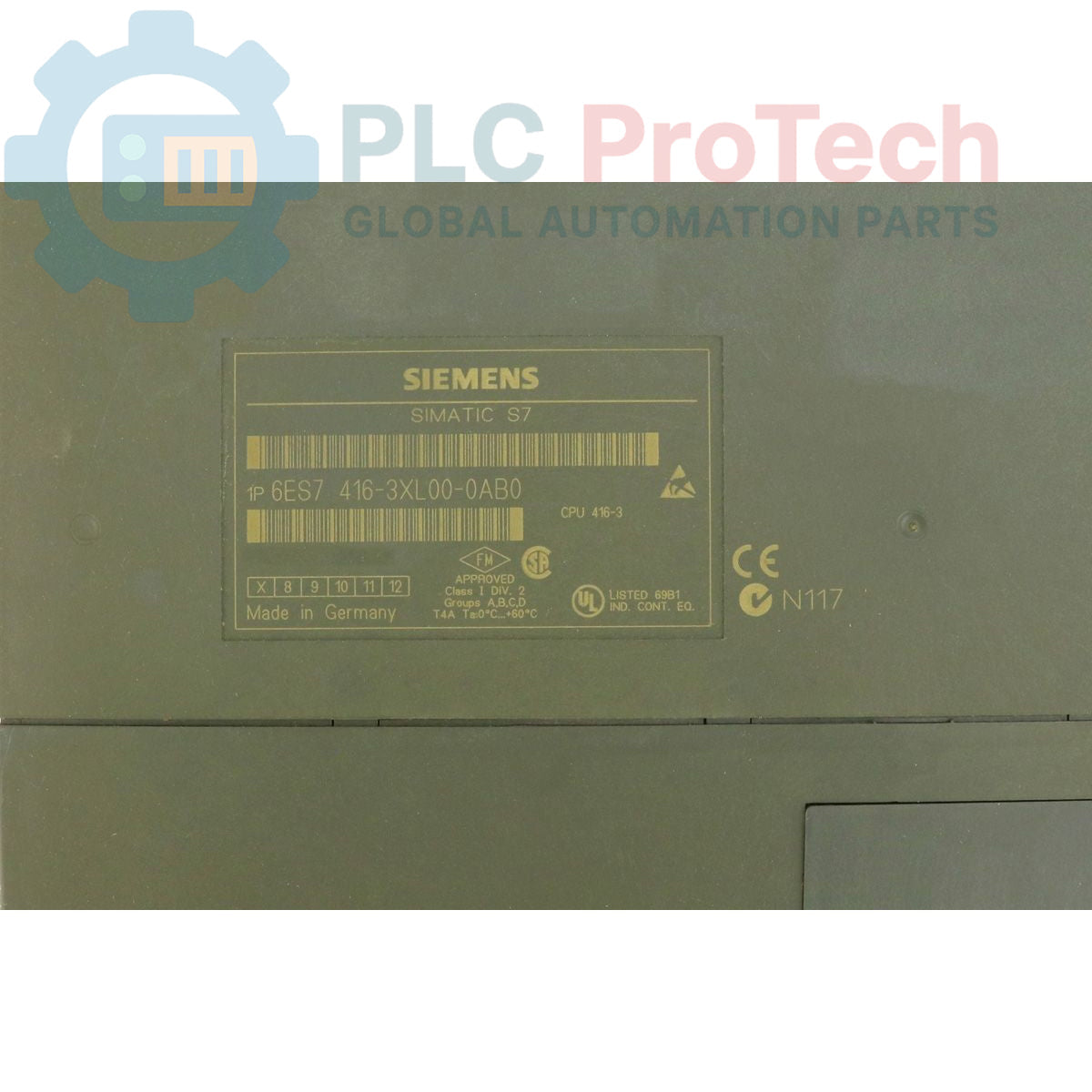

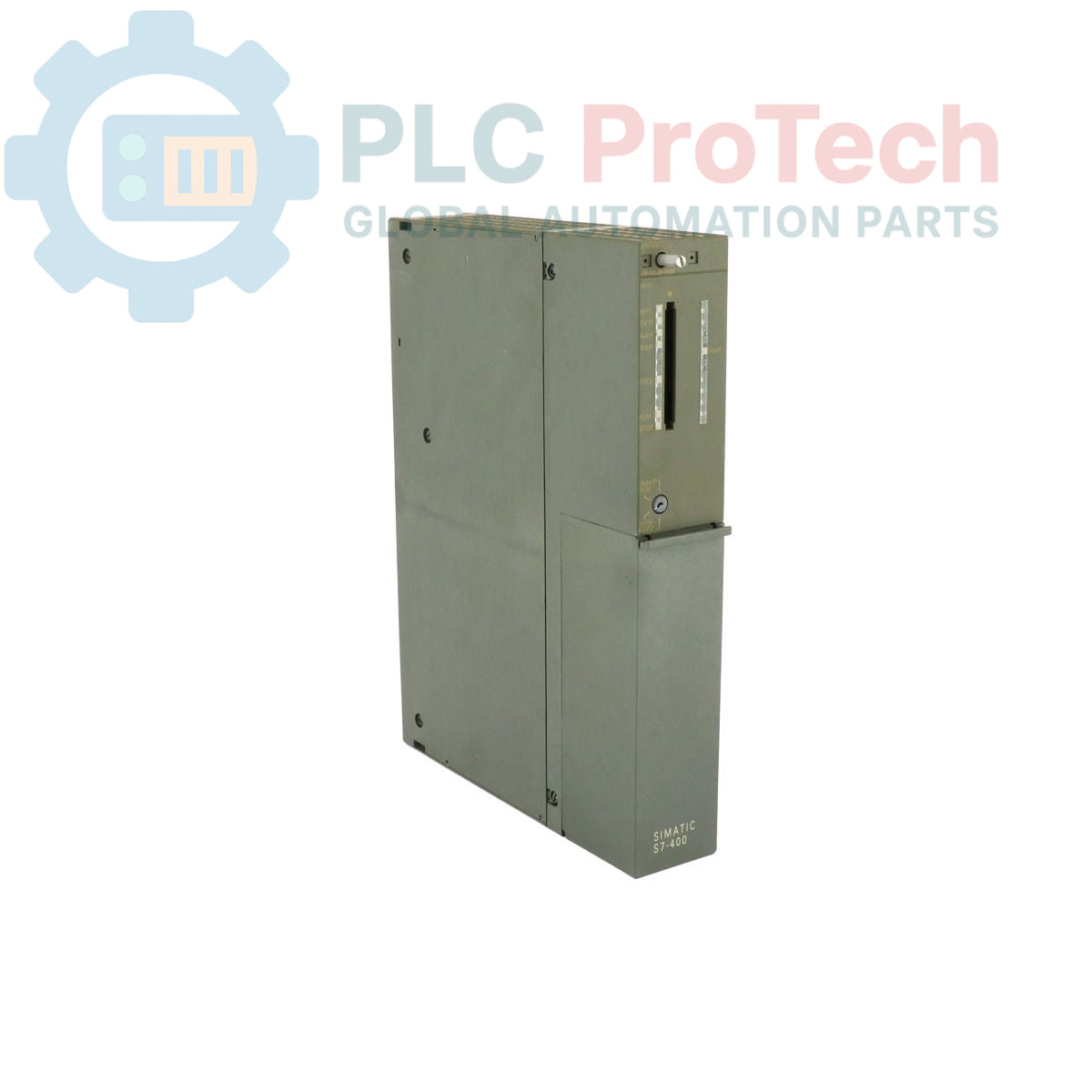

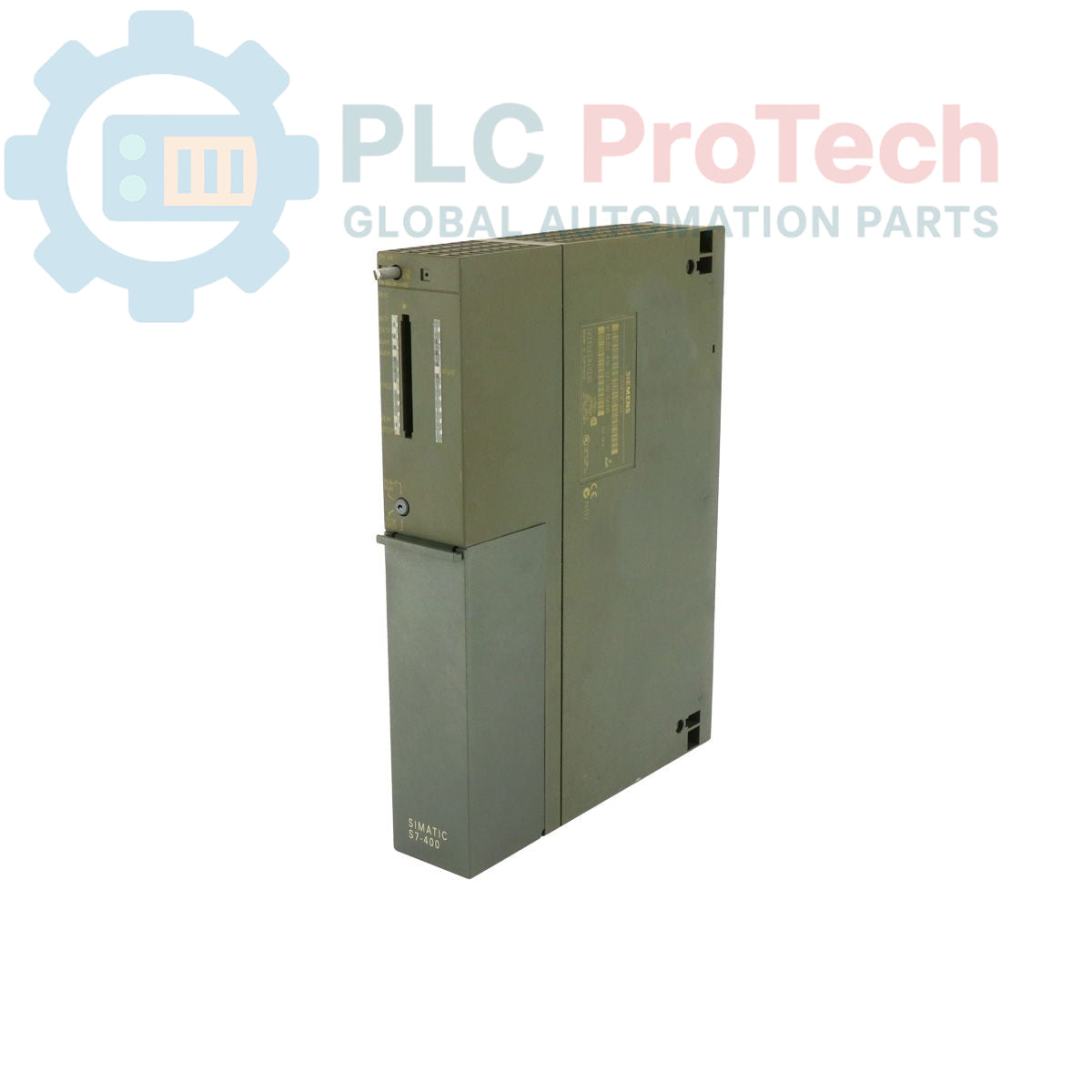

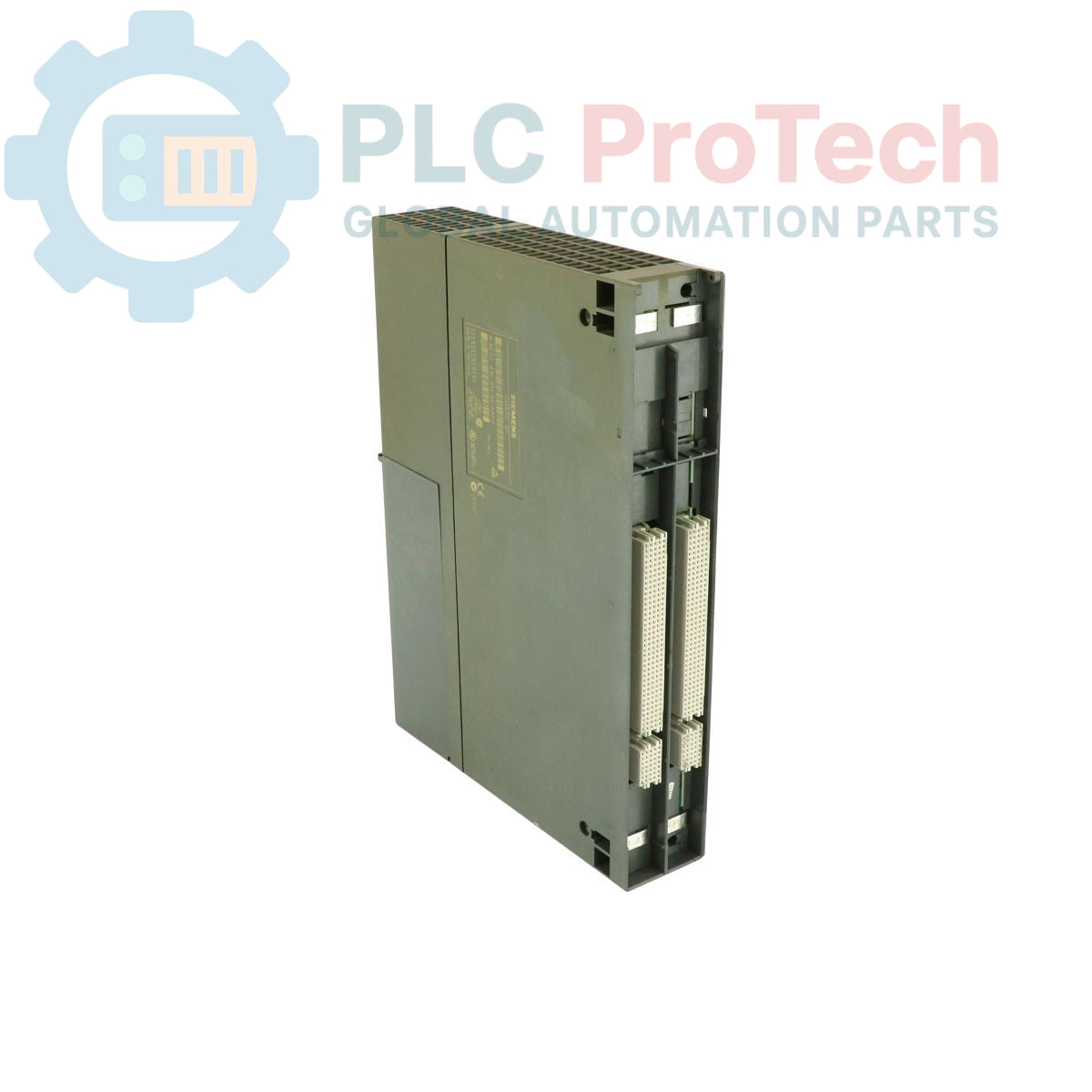

Siemens 6ES7416-3XL00-0AB0 SIMATIC S7-400 CPU 416-3

SKU 6ES7416-3XL00-0AB0

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Siemens
  • Product No.: 6ES7416-3XL00-0AB0
  • Origin Germany
  • Product Type: Standard CPUs
  • Barcode: 85389091
  • Payment: T/T, Western Union
  • Weight: 1.35 kg
  • Dimensions: 5.00cm x 29.00cm x 21.90cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

SIMATIC S7-400 Standard CPUs
Quantità
Call sales Contact

Product Description

Description

The 6ES7416-3XL00-0AB0 is a high-performance SIMATIC S7-400 CPU 416-3 controller designed for complex, large-scale automation tasks. This central processing unit features a total work memory of 3.2 MB, intelligently segmented into 1.6 MB for program code and 1.6 MB for data storage. It provides extensive connectivity through three independent interfaces: a combined MPI/DP port (up to 12 Mbit/s), a dedicated PROFIBUS DP interface for fieldbus communication, and a third interface specifically for IFM (Interface Module) expansion. Engineered for reliability in demanding production and process control environments, this CPU ensures high-speed execution and seamless integration with distributed I/O systems.

Features

  • High-Speed Processing: Optimized for demanding control tasks and large-scale plant automation.
  • Balanced Memory Structure: 3.2 MB total work memory with distinct allocation for code and data.
  • Tri-Interface Connectivity: Includes MPI/DP, PROFIBUS DP, and IFM module support for versatile communication.
  • Scalable Integration: Designed as part of the S7-400 series for modular expansion in control racks.
  • Reliability: Built to meet the standards of mission-critical industrial processes.

Applications

  • Distributed control systems (DCS) for process plants
  • High-density industrial production lines
  • Complex machine automation and multi-axis coordination
  • Integration with PROFIBUS-based fieldbus networks
  • Centralized data processing for large I/O configurations

Technical Specifications

Feature Specification
Manufacturer Siemens
Brand SIMATIC S7
Range S7-400
Model 6ES7416-3XL00-0AB0
Product Type Standard CPU
Product Phase Obsolete
Work Memory 3.2 MB (1.6 MB Code / 1.6 MB Data)
Interface 1 MPI / DP (12 Mbit/s)
Interface 2 PROFIBUS DP
Interface 3 IFM Module Slot
Weight 1.35 kg
Dimensions 5.00 x 29.00 x 21.90 cm
Commodity Code 85389091
Export Control (ECCN) EAR99

Installation Guidelines

  • Rack Mounting: Ensure the CPU is inserted into the correct slot of the S7-400 central rack (typically the first slot after the power supply).
  • Environment: Install in a dust-free environment with sufficient cabinet ventilation, as the S7-400 series relies on proper airflow for thermal management.
  • Communication Cables: Use high-quality PROFIBUS-certified shielded cables for the MPI/DP and PROFIBUS interfaces to maintain communication stability.
  • Module Handling: Always power down the central rack before inserting or removing the CPU to prevent electrical damage to the backplane pins.
  • Configuration: Utilize SIMATIC Manager or TIA Portal to configure the interface addresses and memory allocation settings before deployment.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
How is the 3.2 MB work memory allocated in this CPU?
The memory is divided into 1.6 MB dedicated to program code and 1.6 MB dedicated to data storage.
Does the 6ES7416-3XL00-0AB0 support PROFIBUS?
Yes, it features a dedicated PROFIBUS DP interface in addition to the combined MPI/DP interface.
What is the primary function of the third interface?
The third interface is reserved for IFM (Interface Module) connectivity, allowing for additional module expansion.
What is the predecessor model for this CPU?
The predecessor to this unit is the 6ES7416-2XL01-0AB0.
