Description

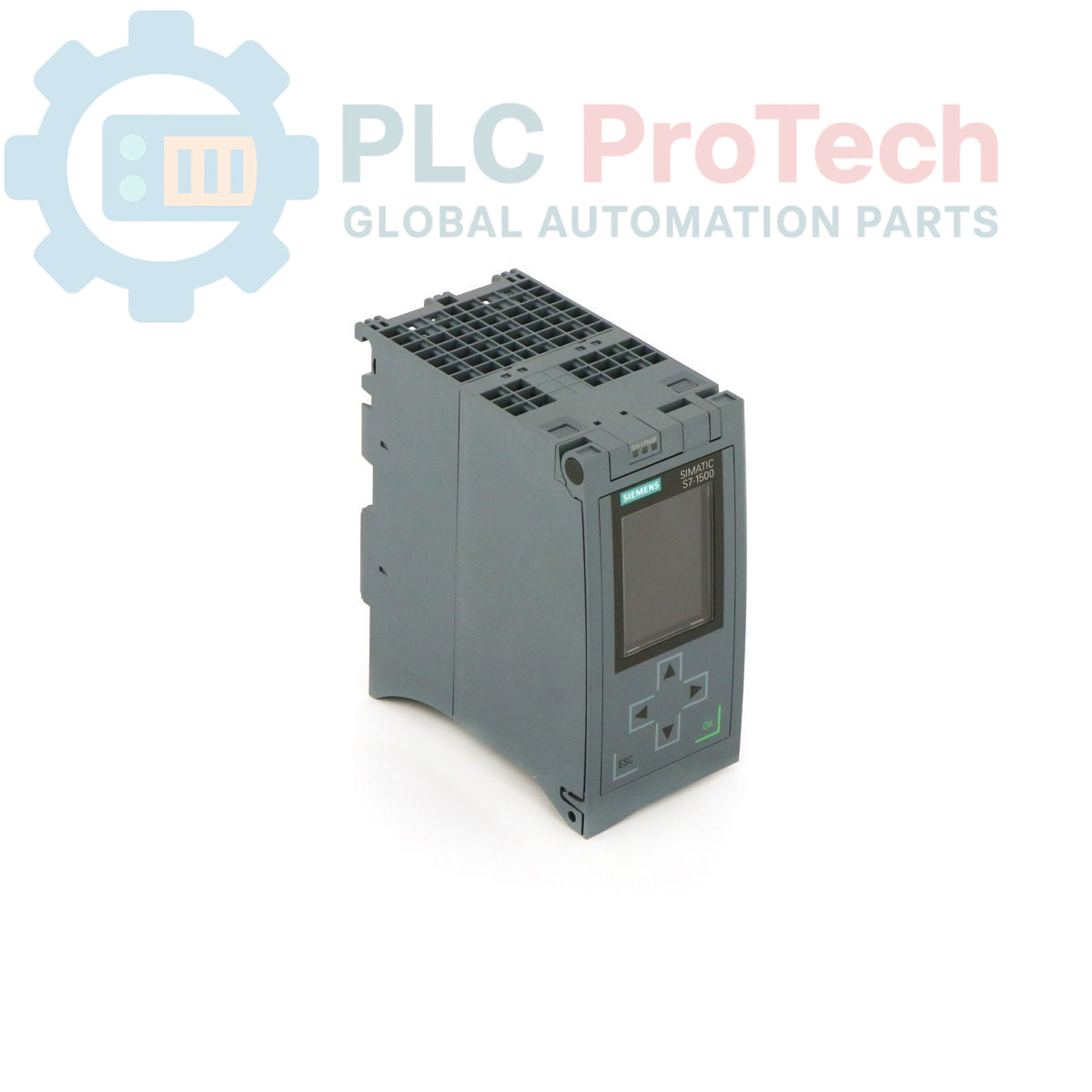

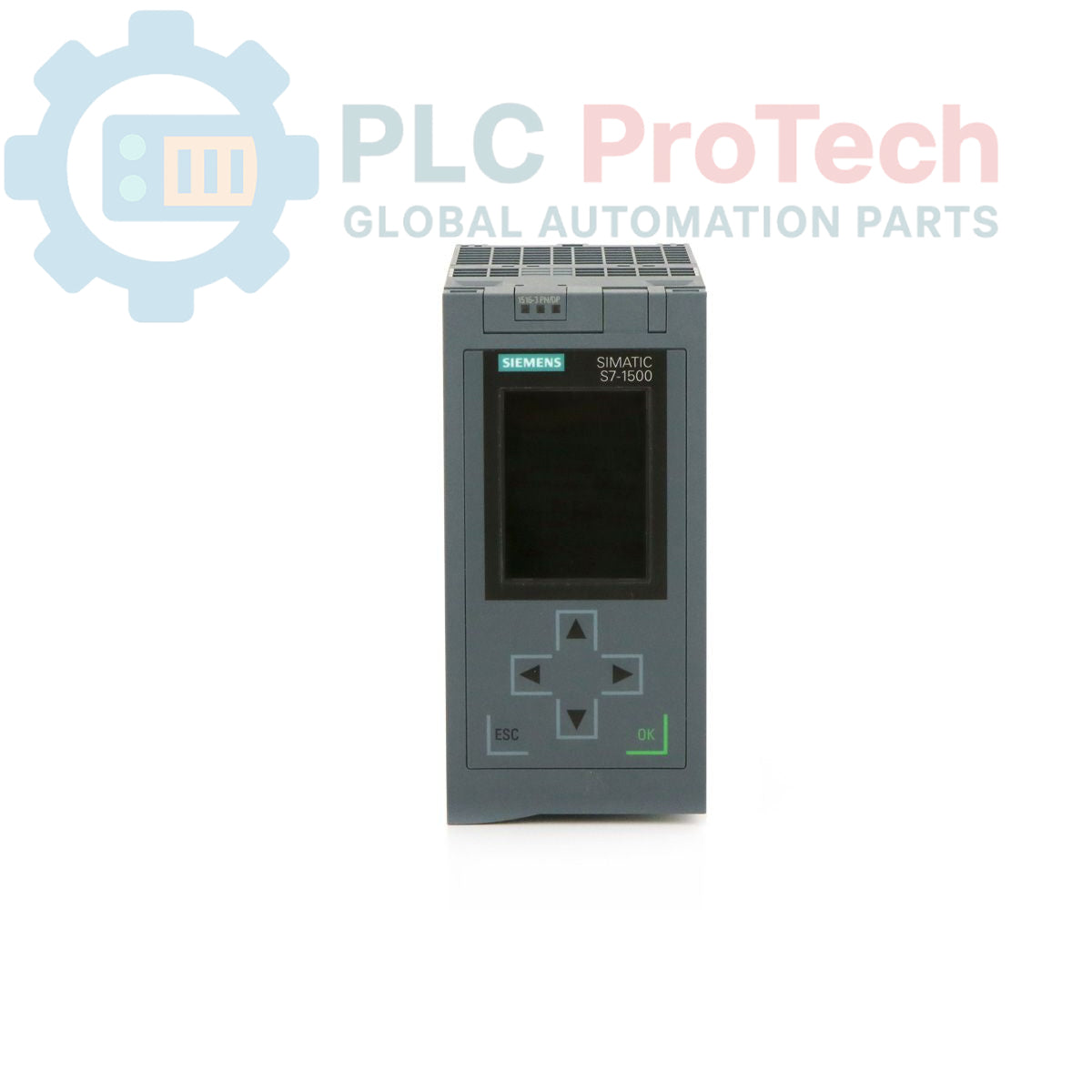

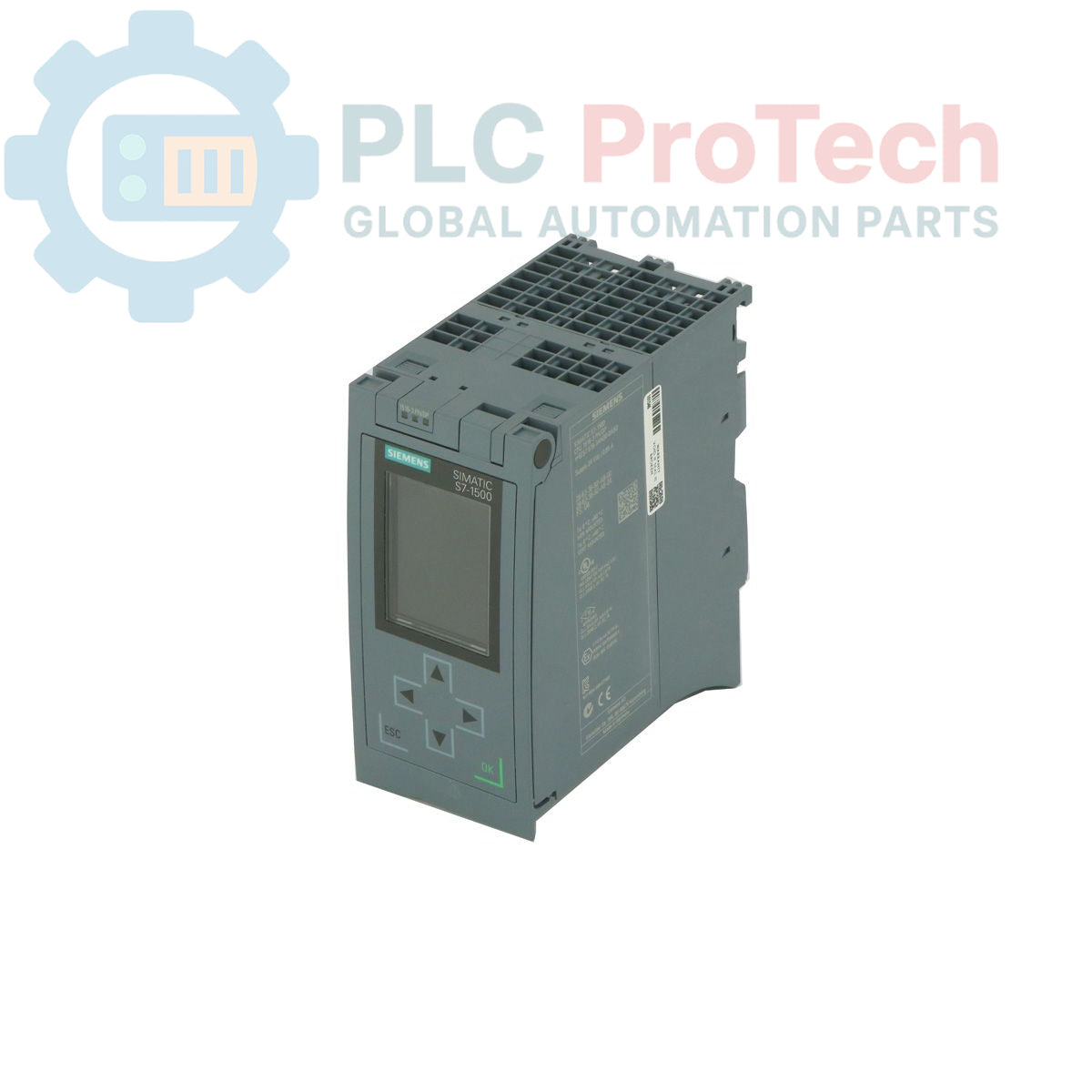

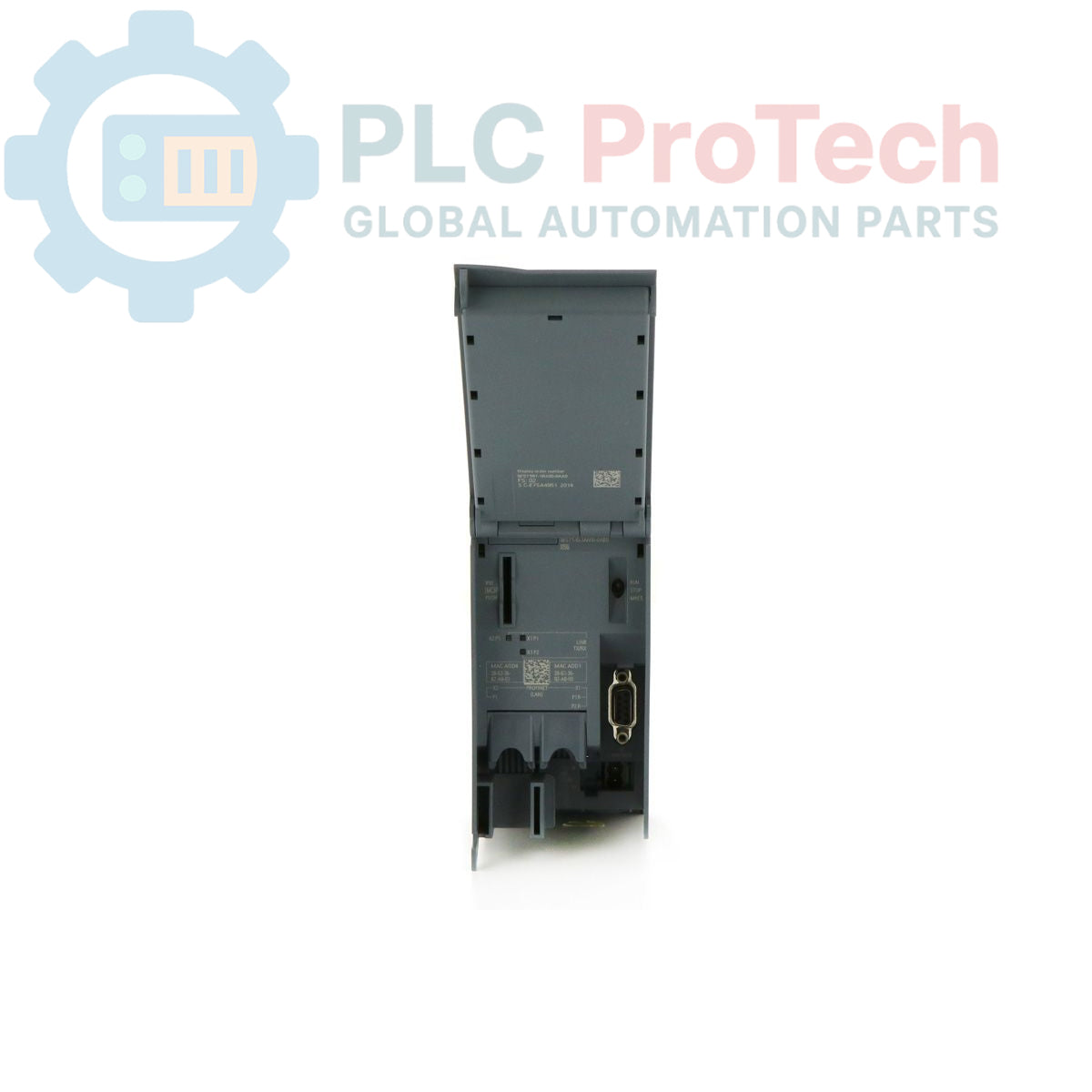

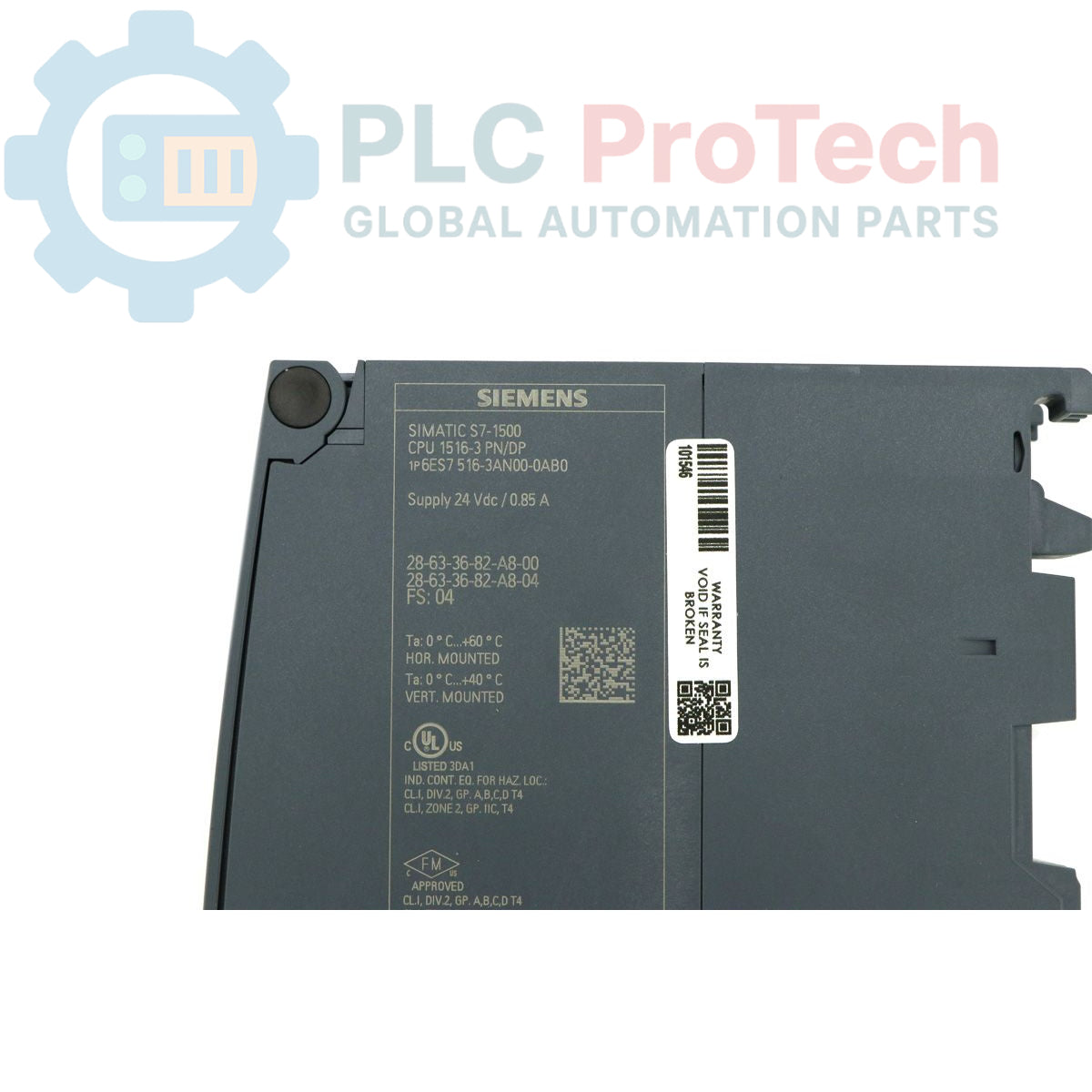

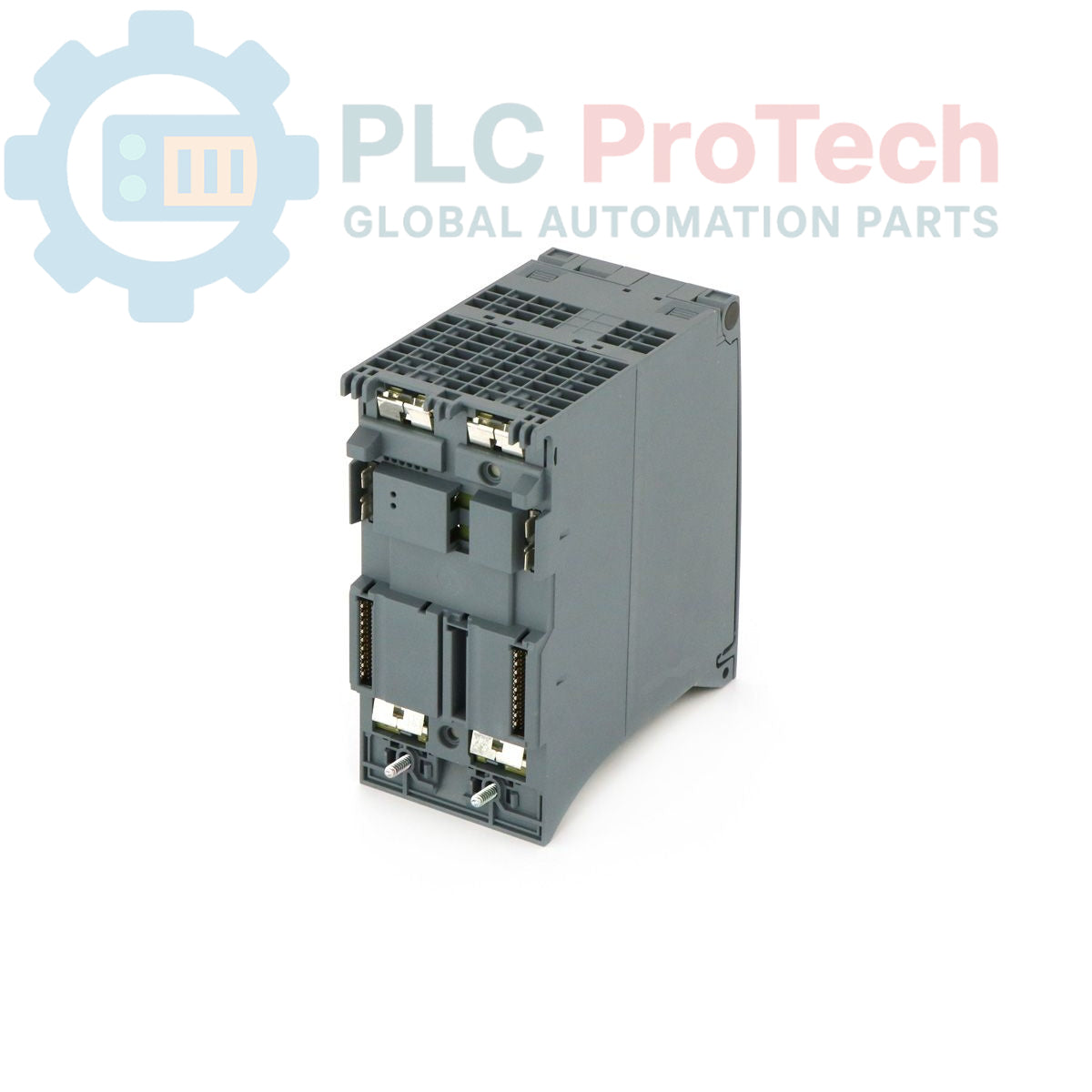

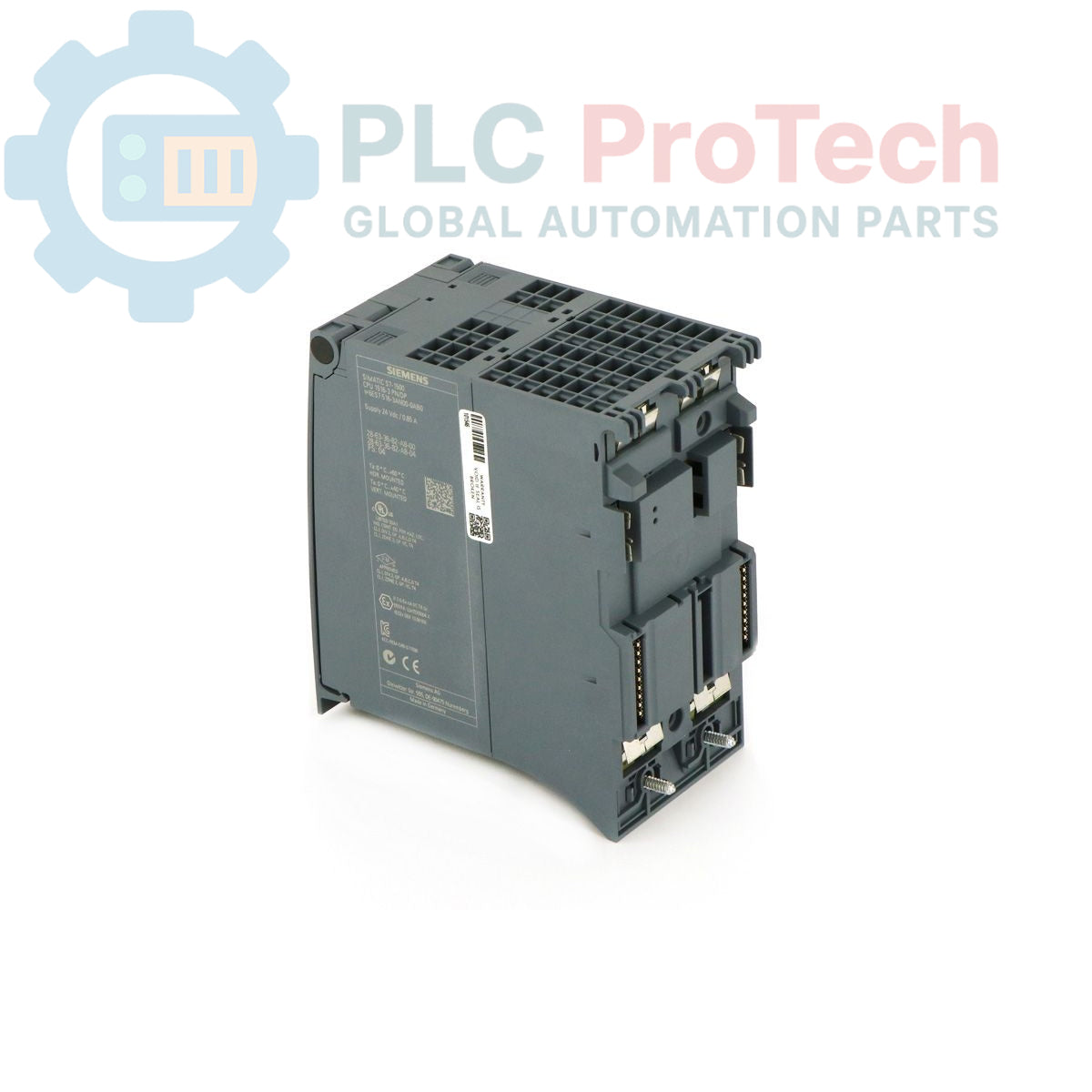

The Siemens 6ES7516-3AN00-0AB0 is a central processing unit from the SIMATIC S7-1500 series, designed for complex automation and process control applications. This CPU 1516-3 PN/DP module features a work memory of 1 MB for program and 5 MB for data, enabling it to handle extensive logic and data sets. With a bit processing performance of 10 ns, it ensures high-speed execution for time-critical tasks. The unit is equipped with three distinct communication interfaces: a primary PROFINET IRT interface with an integrated 2-port switch, a secondary Ethernet interface, and a PROFIBUS DP interface for versatile network integration. Operation of this CPU requires a SIMATIC Memory Card, which is not included.

Features

• 1 MB work memory for program execution.
• 5 MB work memory for data storage.
• High-speed 10 ns bit processing performance.
• Integrated PROFINET IRT interface with a 2-port switch for line topologies.
• Additional dedicated Ethernet interface for network separation.
• Integrated PROFIBUS DP master/slave interface for legacy device communication.
• Requires a SIMATIC Memory Card for operation.

Applications

• Medium to high-complexity machine control.
• Factory and manufacturing automation.
• Process control systems requiring multiple network protocols.
• Applications demanding high-speed data processing and communication.

Technical Specifications

Installation Guidelines

1. 1
   De-energize System: Before installation, completely disconnect and lock out the main power supply to the control cabinet to prevent accidental startup. Verify the absence of voltage with a calibrated multimeter.
2. 2
   Mount CPU: Securely mount the CPU module onto the S7-1500 system mounting rail inside the control panel. Ensure it is properly seated and the locking mechanism engages with adjacent modules.
3. 3
   Connect Power Supply: Connect a stable, correctly rated 24 VDC power supply to the designated power terminals on the module. Verify polarity before connecting. Ensure the power supply is properly grounded.
4. 4
   Terminate Network Cables: Connect the PROFINET, Ethernet, and PROFIBUS cables to their respective ports. Use shielded, industrial-grade cabling and ensure proper shield grounding to minimize electrical noise interference.
5. 5
   Insert Memory Card: Before applying power, insert a compatible SIMATIC Memory Card into the designated slot on the CPU. The CPU will not operate without a memory card.
6. 6
   System Commissioning: After verifying all connections, remove the lockout/tagout and re-apply power to the control cabinet. Proceed with system commissioning and program download via your engineering software.
